Nordic Cab EXPLORER Mode d’emploi

NordicCab Instructions and user manual for the NordicCab Explorer Page 1 of 25

Nordic Cab Explorer

Instructions and user

manual

“Start life exploring”

NordicCab Instructions and user manual for the NordicCab Explorer Page 2 of 25

NordicCab Instructions and user manual for the NordicCab Explorer Page 3 of 25

CONTENTS

INTRODUCTION ...................................................................................................................................................................5

OUR HISTORY.........................................................................................................................................................................................5

SAFETY ....................................................................................................................................................................................6

SYMBOLS ..................................................................................................................................................................................................6

SAFETY INSTRUCTIONS ....................................................................................................................................................................6

RULES FOR SAFE CYCLING ...............................................................................................................................................................7

PARTS LIST ............................................................................................................................................................................8

PARTS LIST..............................................................................................................................................................................................8

BICYCLE TRAILER AND STROLLER................................................................................................................................9

JOGGER KIT............................................................................................................................................................................9

SLED AND HIKING KIT .......................................................................................................................................................9

GET STARTED .................................................................................................................................................................... 10

MOUNTING OF CASTER /ADAPTER .........................................................................................................................................10

ATTACHING END PIECE TO THE FRONT FRAME ................................................................................................................11

ASSEMBLING THE FRAME AND THE CANOPY......................................................................................................................12

LED LIGHT ............................................................................................................................................................................................13

ATTACHING THE WHEEL PROTECTORS.................................................................................................................................14

MOUNTING THE SEAT.....................................................................................................................................................................15

SAFETY HARNESS..............................................................................................................................................................................16

FUNCTIONS ......................................................................................................................................................................... 17

FINE DETAILS......................................................................................................................................................................................17

FOLDING THE CART .........................................................................................................................................................................17

PARKING BRAKE................................................................................................................................................................................18

CONVERSIONS.................................................................................................................................................................... 19

STROLLER.............................................................................................................................................................................................19

BICYCLE TRAILER .............................................................................................................................................................................20

JOGGER (SOLD SEPARATELY)......................................................................................................................................................22

SLED/HIKING CART (SOLD SEPARATELY) ............................................................................................................................23

MAINTENANCE .................................................................................................................................................................. 25

WARRANTY ........................................................................................................................................................................ 25

SPECIFICATIONS ............................................................................................................................................................... 25

NordicCab Instructions and user manual for the NordicCab Explorer Page 4 of 25

NordicCab Instructions and user manual for the NordicCab Explorer Page 5 of 25

INTRODUCTION

Congratulations on your new Urban and thank you for choosing NordicCab Explorer!

Just one cart for all purposes! Our aim is to provide solutions for safe, comfortable and functional

transportation of children. It is a means of transportation you can use in all weather conditions and with most

of your activities. This makes your everyday life easier, saves the environment and advances your health.

OUR HISTORY

In 1980 Dagfinn Nyborg came up with the idea of a cart that his dog, Gorm, could pull. The whole idea

started as a hobby, which became a bit commercialised after a while. The first cart sold was named

“Kombikjerra” (Combi-Sled) and had many of the same solutions we see in current NordicCab.

As today, the cart was developed to be pulled by a dog or a bicycle, and even people pulling the cart was

already part of the concept.

The cart was developed further little by little. New ideas materialised, and over time many versions of

“Kombikjerra”, later named Rocky2, came to fruition.

Rocky2 became our brand for many years to come, right up until we decided to change the name to

NordicCab. This was done due feedback from our partners in the United States, who informed us that the

name could be associated with some guy named Balboa.

Earlier versions of Rocky2 are still used by people in Norway and Sweden. Rocky2 models received quite

good feedback from the customers, but we didn’t want to stop there...

NordicCab, which is our newest version, is an extensive improvement and development of our concept. The

result is a cart that is in world class on all usage areas. Sled/Ski-Sled, Bicycle trailer and Dog-Sled have

become first class products. In addition, we now have a stroller and a jogger, which makes our product

uniquely suitable for an active family with children. The cart also has a bunch of fine details and unique

solutions which make the cart a pleasure to use for kids, adults, and even your dog.

Based the on the massive feedback from our users, we have realised we truly have succeeded to make an

unbelievably good product! Our sales also show we have done something right...

Note:

Check the part list on page 8 to make sure you have received all the parts. Contact your authorised Urban

reseller immediately, if you find some parts missing.

Important:

Practise combining parts, opening and closing the canopy and assembling your new cart to get better

acquainted with the possibilities and security features of the cart. The cart is delivered with most parts

assembled.

NordicCab Instructions and user manual for the NordicCab Explorer Page 6 of 25

SAFETY

SYMBOLS

WARNING: This symbol is important, as it contributes to the safe use of Urban. If the

warnings are not followed, passenger(s) can be exposed to accidents, harm, and even

death.

ATTENTION: The symbol indicates actions needed to avoid damage to the Explorer

cart.

SAFETY INSTRUCTIONS

WARNING:

Read the user manual carefully and test the cart before you use it with children. Should something be

unclear, please contact your NordicCab Explorer reseller.

•Never replace original Explorer parts with other parts.

•Always use the parking brake when leaving the cart unattended.

•Remember to be careful when opening or folding the cart together, to avoid injuring your fingers.

•Do not make any modifications or alterations to the cart.

•Ensure that children can never come in contact with any moving parts. This applies also to clothes,

shoe laces, toys, and similar.

•Never leave children unattended in the cart.

•Use the cart only in accordance with the manufacturer’s instructions, as this provides better safety.

•Do not use the cart with more than 2 children or exceed the weight and height restrictions of the cart.

•Secure the child with the safety harness, and ensure that the child stays correctly seated at all times.

•You can transport a child up to 9 kg in Babyseat (available as an accessory) when used as a stroller

or a jogger.

•The Explorer cart can become unstable if the manufacturer’s maximum allowable weight is

exceeded.

•The Explorer cart can become unstable if a shopping basket, bag, or a rack not designed for the

Explorer is used.

•Always use the safety strap when using the Explorer as a stroller or a jogger.

•If the user manual is available in the language of the country you currently are located in, that manual

should be followed.

NordicCab Instructions and user manual for the NordicCab Explorer Page 7 of 25

RULES FOR SAFE CYCLING

WARNING:

•Do not use a car seat or a seat not approved by the manufacturer.

•Always use a well maintained bicycle with good brakes and correct air pressure in the tires. Check

that air pressure in the tires for the bicycle and the cart match the recommended pressure every time

you use the cart.

•Always follow the safety instructions when you are out and about.

•Your child’s safety harness must be correctly attached at all times. Always use a flag/flagpole for best

possible visibility.

•Children under the age of 1 should not be transported in the bike trailer.

•Bicycle helmet - Children using the cart must wear a bicycle helmet. Bicycle helmet must be fitted to

fit the child’s head and be CPSC or CE approved. The child must have strong enough neck muscles

to hold their head upright themselves.

•The bicycle trailer can become overturned if used carelessly. Do not ride over holes or objects with

high speed. Ensure that the child does not rock or move in a way that can alter the weight

distribution of the cart. Do not turn or ride downhill with high speed. Always turn carefully (5 km/h or

less). The maximum speed for the bicycle trailer is 24km/h.

•Ride always with the canopy pulled down. Stones and other objects can be thrown in the cart and

harm your child.

•Maximum allowed load is 45 kg.Maximum allowed total weight of the cart is 59 kg.Maximum

allowed combined weight of the passengers is 45 kg.

•Make sure that the weight at the end of the arm (where the bicycle attachment is attached) is above 2

kg, but does not exceed 9 kg with the cart fully loaded. If the weight exceeds this limit, redistribute

the weight in the cart until the weight is within the required limits.

•It is VERY different to ride with a bicycle trailer than without one. The higher weight means that

acceleration and braking are significantly slower than when cycling without a trailer. A combination of

a bicycle and a trailer is also significantly longer, and it is important to allow more time for crossing

roads. Take also trailer’s width in account when taking large turns. Practise cycling with the trailer

without children to gain better understanding of and more experience with the usage of bicycle

trailer.

•A reflector (in accordance with CPSC standard) must be visible on the rear of the bicycle trailer.

•Ensure before every ride that the bicycle trailer does not affect braking, movement of the pedals or

steering of the bicycle.

•Do not use the bicycle trailer during nights without sufficient lighting. Lights must be used in

accordance with the locale regulations.

•The smaller child must always sit on the left side (as seen from behind).

•Ensure before every ride that the bicycle attachment is securely attached.

NordicCab Instructions and user manual for the NordicCab Explorer Page 8 of 25

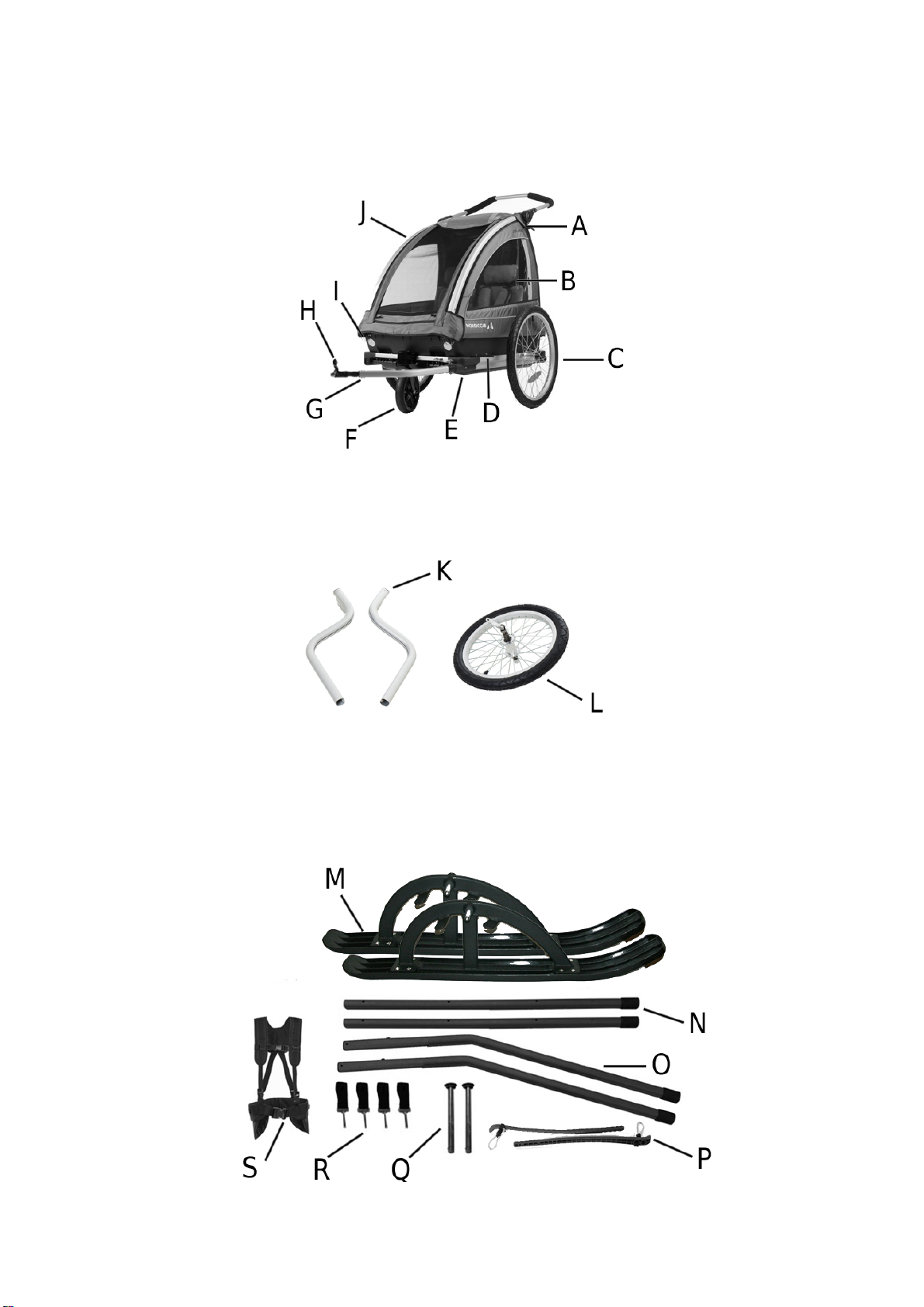

PARTS LIST

NUMBER

PART NAME

BASIC

PACKAGE

JOGGER KIT

SKI KIT

A 1 RED LED LIGHT X

B 1 SEAT INCL. (PAD AND HARNESS X 2) X

C 2 20“ ALUMINIUM WHEEL WITH WHEEL BOLTS X

D 2 WHEEL PROTECTOR X

E 1 BOTTOM CASE X

F 1 CASTER WITH ADAPTER X

G 1 BICYCLE ARM X

H 1 BICYCLE ATTACHMENT X

I 4 C LOCKING PINS X

J 1 FRAME WITH CANOPY X

K 2 JOGGER HANDLEBAR X

L 1 16“ ALUMINIUM WHEEL X

M 2 SKI WITH BRACKET X

N 2 ALUMINIUM TUBE STRAIGHT X

O 2 ALUMINIUM TUBE BENT X

P 2 PLASTIC ARM WITH HOOK X

Q 2 SKI BOLT X

R 4 VELCRO PINS X

S 1 HARNESS X

NordicCab Instructions and user manual for the NordicCab Explorer Page 9 of 25

BICYCLE TRAILER AND STROLLER

JOGGER KIT

SLED AND HIKING KIT

NordicCab Instructions and user manual for the NordicCab Explorer Page 10 of 25

GET STARTED

MOUNTING OF CASTER / ADAPTER

Required tools/parts:

(not included):

a. Adjustable wrench

b. Phillips screwdriver

(included):

c. Attachment bracket

d. 2x screws, washers

and nuts

Caster

Insert the bracket with the

plastic cap and release button

up in the front and centre of

the cart’s aluminium frame.

Insert the screws into the

holes from the inside of the

car, with the washer and nut

placed on the underside.

Tighten securely.

Insert the caster while

pressing the release button.

WARNING

Be careful when using a drill or another electric tool, as excessive torque can damage the screws, the

bracket, or the frame.

Tighten screws securely. Check at regular intervals that there is no slack in the bracket. Slack in the

bracket can create noise and damage the frame over time.
