Nordic Cab EXPLORER Instructions d'installation

NordicCab AS Instruction Manual for the NordicCab Explorer Page 1 of 6

USER GUIDE AND SAFETY INSTRUCTIONS

ENGLISH

NordicCab AS Instruction Manual for the NordicCab Explorer Page 2 of 6

Part list

Plastic bottom base 1

Waterproof Dernier nylon cover 1

U-locking pin 1

Wheels (20 ”) with fixed axle bolts 2

Tow bar including safety wire 1

Bike hitch 1

Wheel protector 2

NordicCab AS Instruction Manual for the NordicCab Explorer Page 3 of 6

USER GUIDE AND SAFETY INSTRUCTIONS

IMPORTANT! Read the user manual carefully before use.

INTRODUCTION

Congratulations on your new Explorer Cargo and thank you for choosing Nordic Cab!

SAFETY INSTRUCTIONS

WARNING! - Follow these instructions to avoid injury.

SYKLING:

Always use a well maintained bicycle with good brakes and correct air pressure in the tires. Check that air pressure in

the tires for the bicycle and the cart match the recommended pressure every time you use the cart. Always follow the

safety instructions when you are using this product.

The bicycle trailer can become overturned if used carelessly. Do not ride over holes or objects with high speed. Do not

turn or ride downhill with high speed. Always turn carefully (5 km/h or less). The maximum speed for the bicycle trailer

is 24km/h.

Maximum load:

For safety reasons, we state the total maximum weight of the carriage when cycling at 60 kg.

Check that the weight on the end of the bicycle drawbar (where the bicycle attachment is mounted) is more than 2 kg,

but does not exceed 9 kg with a fully loaded carriage.

Start and stop:

It is VERY different to ride with a bicycle trailer than without one. The higher weight means that acceleration and

braking are significantly slower than when cycling without a trailer. A combination of a bicycle and a trailer is also

significantly longer, and it is important to allow more time for crossing roads. Take also trailer’s width in account when

taking large turns.

Rules for safe cycling:

WARNING!

•Do not make any modifications or alterations to the cart.

•Ensure before every ride that the bicycle trailer does not affect braking, movement of the pedals or steering of the bicycle.

•Use the cart only in accordance with the manufacturer’s instructions, as this provides better safety.

•Maximum allowed total weight of the cart is 60 kg.

•If cleaning is needed, wash with mild soap and cold water. Do not use strong detergents.

•Ensure before every ride that the bicycle attachment is securely attached.

•Practise cycling with the trailer to gain better understanding of and more experience with the usage of bicycle trailer.

MAINTENANCE

Your Explorer is virtually maintenance-free. All metal parts are made of aluminium, stainless steel, chromed and/or zinc plated

steel. Follow these simple maintenance instructions and your Explorer will stay pretty for years to come:

Wheels: Wash regularly and grease axle bolts.

Check the bicycle attachment, the hydraulic hose and the bicycle arm for wear and damage. Replace immediately if damage

or significant wear is visible. Ensure always that straps or other lose parts cannot become entangled in the wheel.

Cargo cover - PU (plastic cover) protected, waterproof Denier polyester fabric. If cleaning is needed, wash with mild soap and

cold water. Do not use strong detergents.

NordicCab AS Instruction Manual for the NordicCab Explorer Page 4 of 6

MONTERING AV SYKKELVOGN

1. Tow bar

Pull the locking pin (a big,

spring loaded locking pin) on

the left side (in the direction of

travel) and insert the bicycle

arm. Release the locking pin

and push the tube in until it

clicks in place.

IMPORTANT

The end of the locking pin is red

and should protrude approx.

3mm out on the side of the

frame .

IMPORTANT

Press down the metal handle

on the plastic clamp so that the

bicycle drawbar is firmly

attached, or adjust with the

screw on the underside of the

clamp (prevents any rattling and

wear).

2. Attach the safety wire

around the locking pin

After the bicycle arm is set in

the correct position, attach the

carbine hook on the safety

cable to the red loop on the

cart.

WARNING

Before use, always check that

the safety wire is properly fitted

and sighted. Failure to use or

misuse the safety wire could

cause serious injury.

3. Attachment to bicycle

Detach rear axle bolt from hub

on the bicycle. ATTENTION:

Be careful not to lose any

small parts or springs.

If your bicycle has a thick axle,

the nut must be unfastened.

Place the bicycle attachment

over the axle bolt and attach it

back to the hub exactly as you

detached it. If the axle is thick,

the nut is attached over the

bicycle attachment.

IMPORTANT

Tighten the axle bolt firmly

with the lever so that the

bicycle attachment is firmly

attached. Use wrench or

wrench if thick shaft.

4. Safety wire

Insert the tip of the bicycle

arm into the bicycle

attachment. Lock the bicycle

attachment securely to the

arm with a U locking pin.

Thread the safety cable

around the bicycle frame

(behind the fork) and back,

and secure the hook on the

cable. Tighten the cable while

the plastic sleeve on the arm

is placed towards the casing,

and lock the cable by moving

the plastic sleeve towards the

bend on the bicycle arm (DO

NOT USE FORCE)

WARNING

Ensure that loose parts cannot

come in contact with the

bicycle wheel. Ensure that the

bicycle attachment is properly

attached to the bicycle and

that the bicycle arm is properly

attached to that attachment.

Remember to check this every

time you use the bicycle

trailer.

NordicCab AS Instruction Manual for the NordicCab Explorer Page 5 of 6

WARRANTY

Nordic Cab Solutions AS grants 2-years warranty for defects in materials and workmanship. The warranty does not cover

external ripping of fabric covers.

Nordic Cab Solutions AS or an authorised Explorer reseller are obligated to repair or replace a part faulty due manufacturing

defect (with the exception of the tires) for 2 years after the original date of purchase.

2-years warranty, as mentioned above, applies only as long as Explorer is used in a normal manner and in accordance with the

instructions and the user manual. The warranty includes only Explorer owners who present the original receipt from an

authorised Explorer reseller or Nordic Cab Solutions AS.

No other verbal agreement, warranty, conditions, or other, shall apply to this agreement. This warranty does not apply if:

The Explorer is misused, modified, damaged intentionally, rented out or neglected.

For warranty support, please visit www.nordiccab.com.

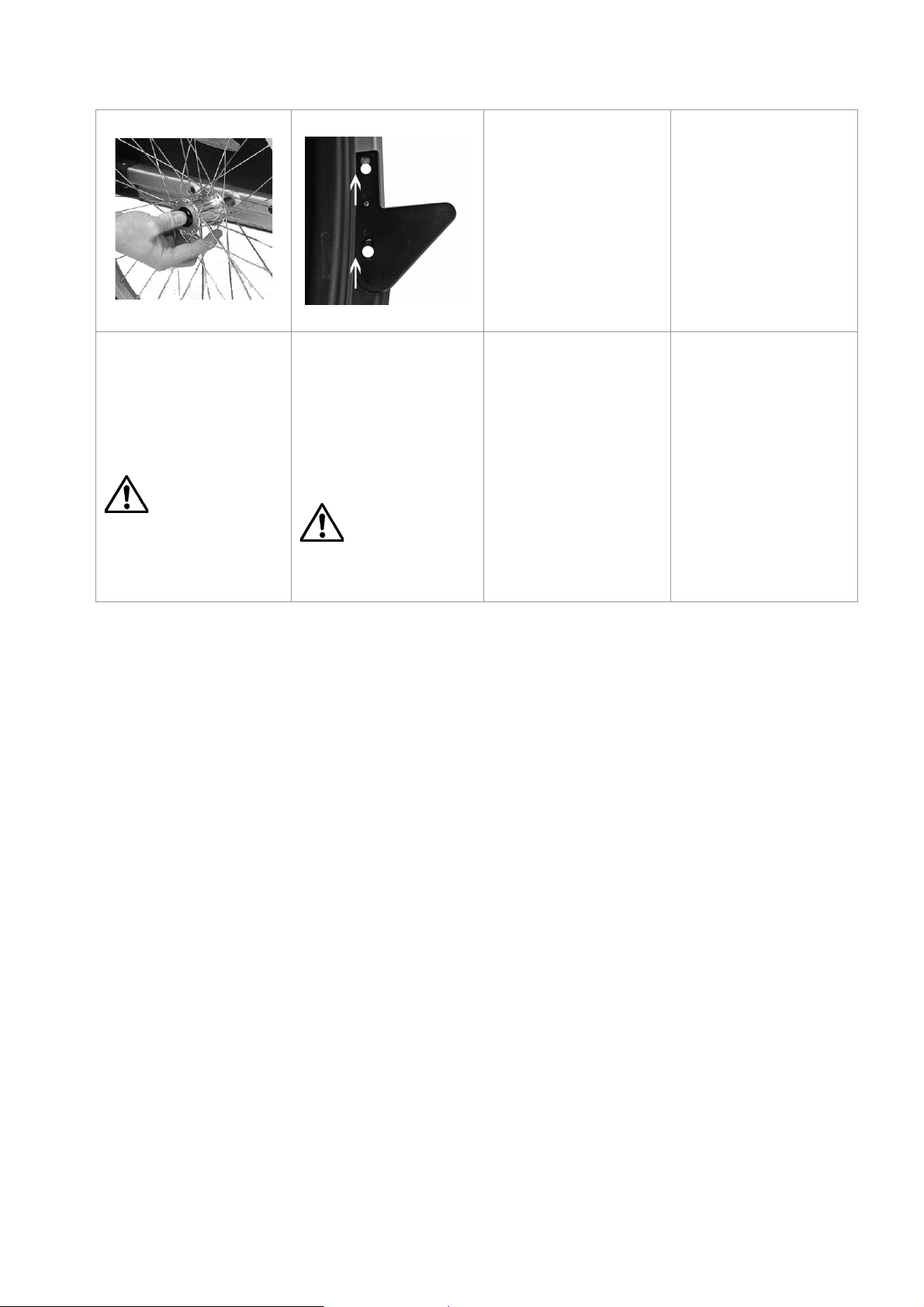

5. Wheel

Press the black button on the

end of the axle bolt with your

thumb. Insert the bolt in the

frame.

Release the button as you push

the wheel in until you hear the

axle bolt clicking in place.

IMPORTANT

Pull on the wheel to ensure it is

securely locked in place.

Place the wheel protectors over

the two screws on the side

frame of the cart.

Press down on the screws and

push the wheel protector back

until a spring (a metal tip)

engages with the hole in the

middle of the wheel protector.

Repeat this on the other side of

the cart.

IMPORTANT

Wheel protectors must always

be used when the cart is used

as a bicycle trailer.

Nordic Cab AS Instruction Manual for the Nordic Cab Page 6 of 6
