Nokia NAVIGATOR 6210 Manuel utilisateur

Nokia 6210

26.09.00

Quick Guide to Using the Nokia 6210 with Dial-Up Networking

1. Installing and setting up

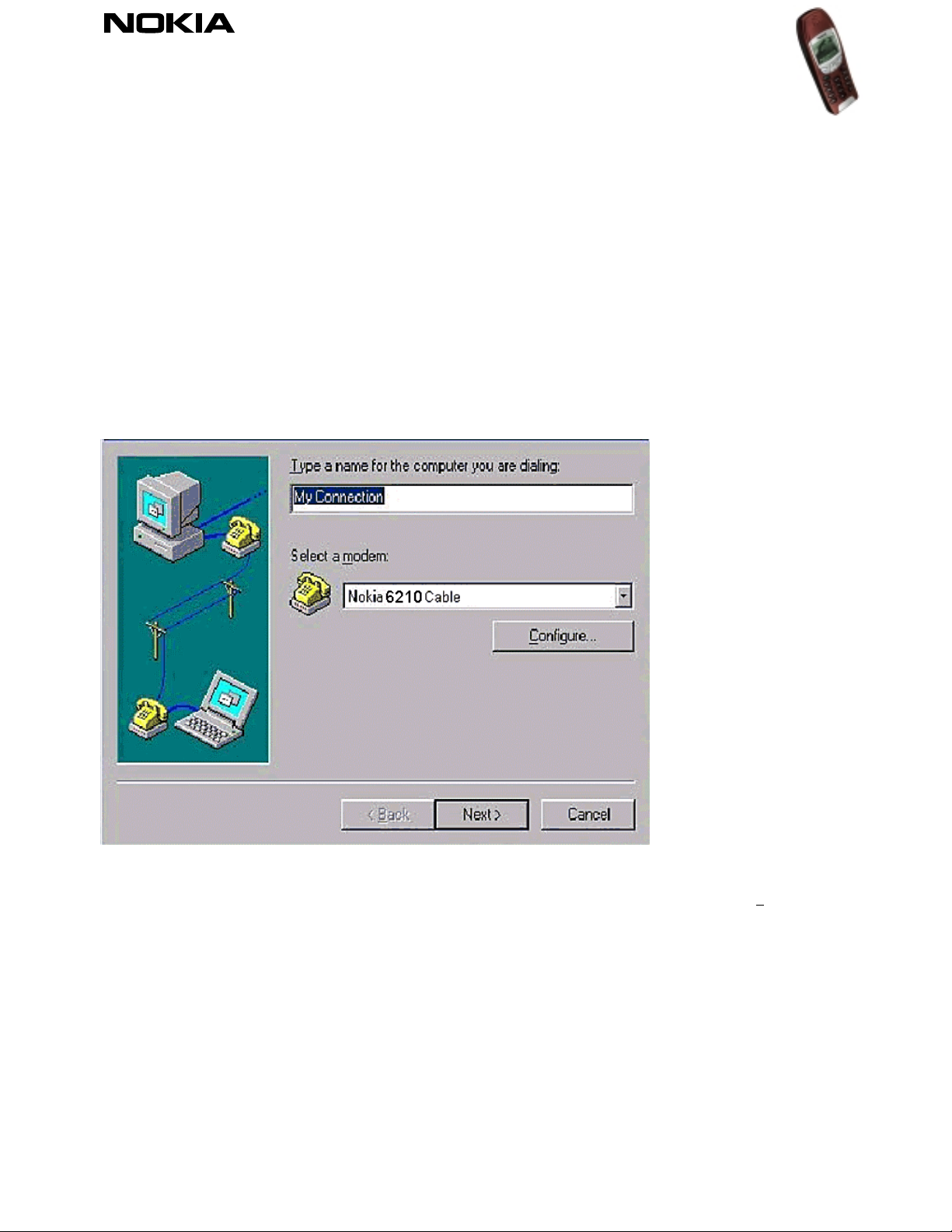

First you have to create a new connection for The Nokia 6210. Choose the My computer icon à

àà

àDial-up networking

àà

àMake a new connection. This opens a Window where you can choose the right modem and name the connection

(Figure 1).

Figure1.Makinganewconnection.

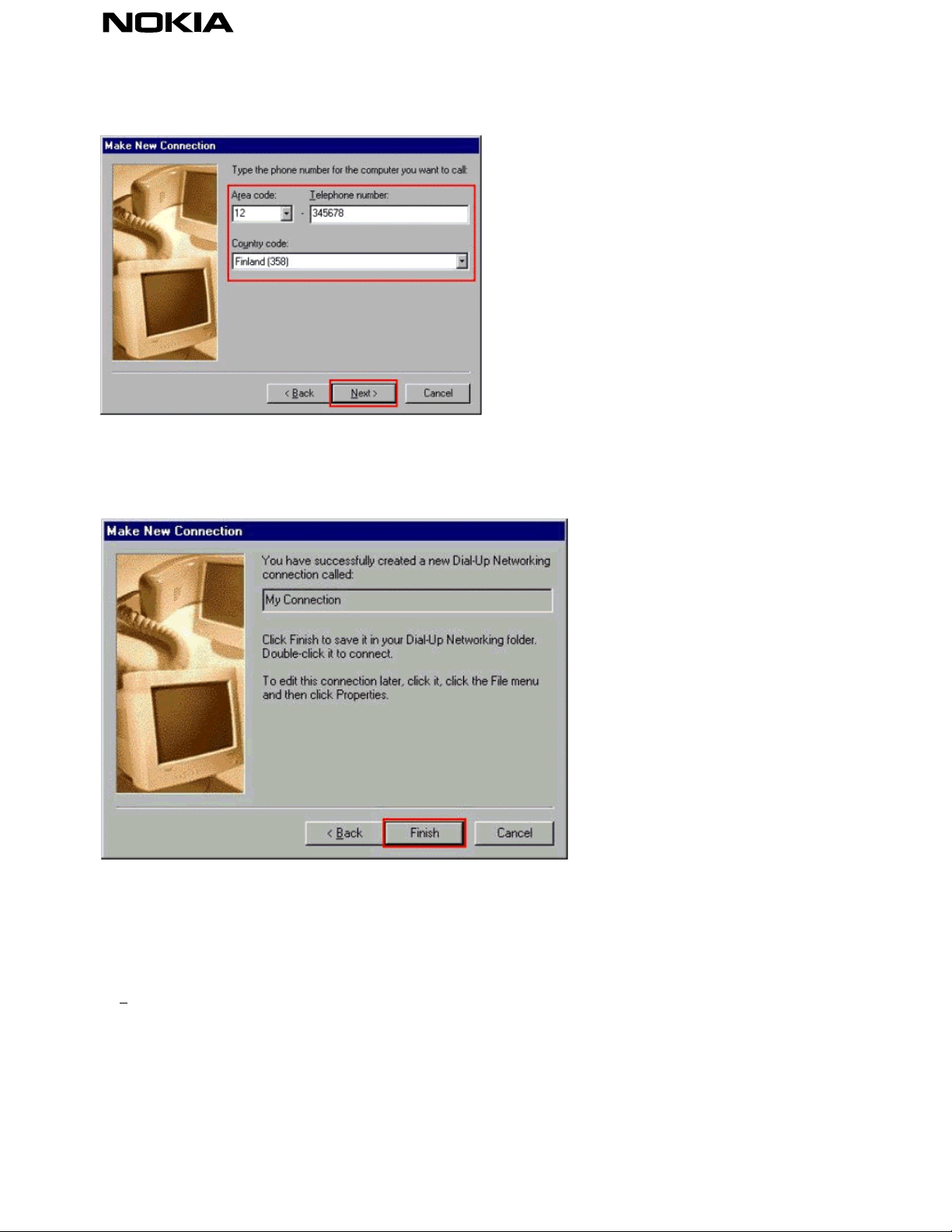

Enter a name for the connection and choose either Nokia6210Cable or Nokia6210IrDA, click Next> and enter the

correct number which you have obtained from your provider; also choose the correct area and country codes (Figure

2). Choose Next> to continue.

Figure2.Numberandcodes.

Choosing the Finish button will close the setup and create an icon for the dial-up networking folder (Figure 3).

Figure3.Finishingthecreationofanew connection.

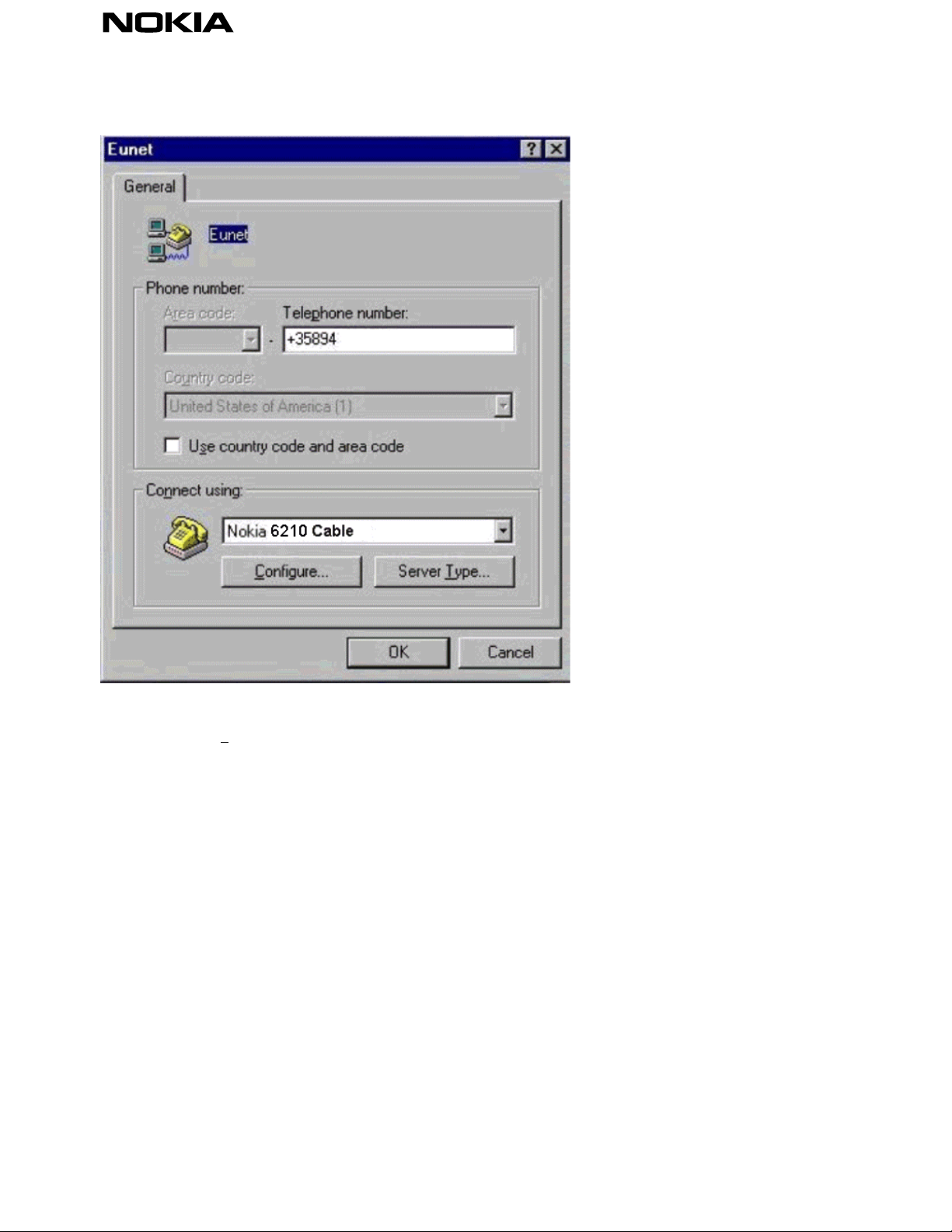

Click the newly created icon with the right button of the mouse and choose Properties. This will open a general

information box for this connection (Figure 4). (NOTE: If you are going to connect to an ISDN number you must add

the following line to the extra settings option: S35=0. This can be done by choosing Configure… à

àà

àConnection à

àà

Advanced… à

àà

àExtra settings). If you want to change this connection to a “normal” line please remember this. The

same procedure applies if you want to use a 14.4-Kb/s data line, only the AT command is different. To enable the

transmission of 14.4 Kb/s data please type +CBST=14 instead of S35=0.

Figure4.General settings.

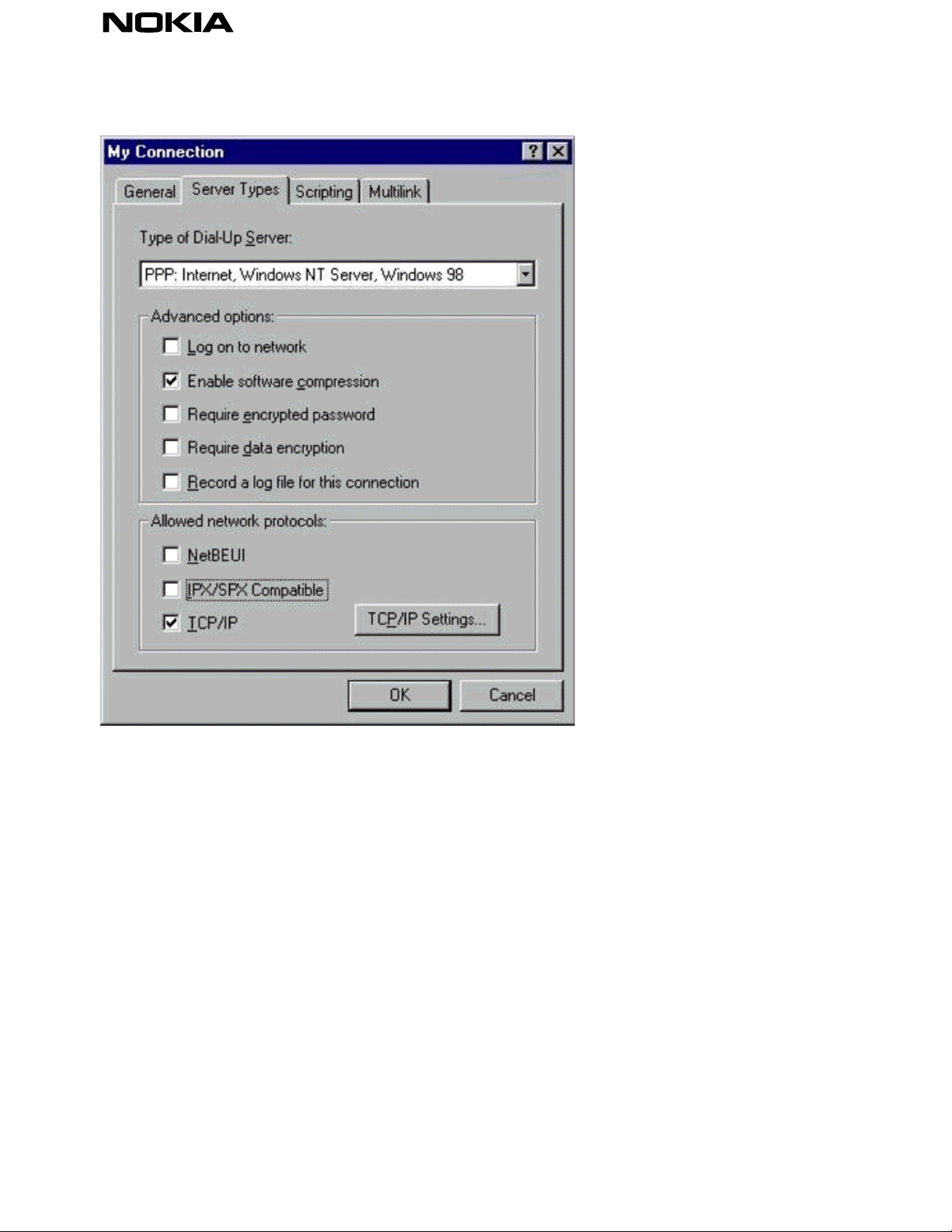

Under the Server Type… button select the appropriate settings according to those you received from your ISP…

(Figure 5).

Figure5.Server types.

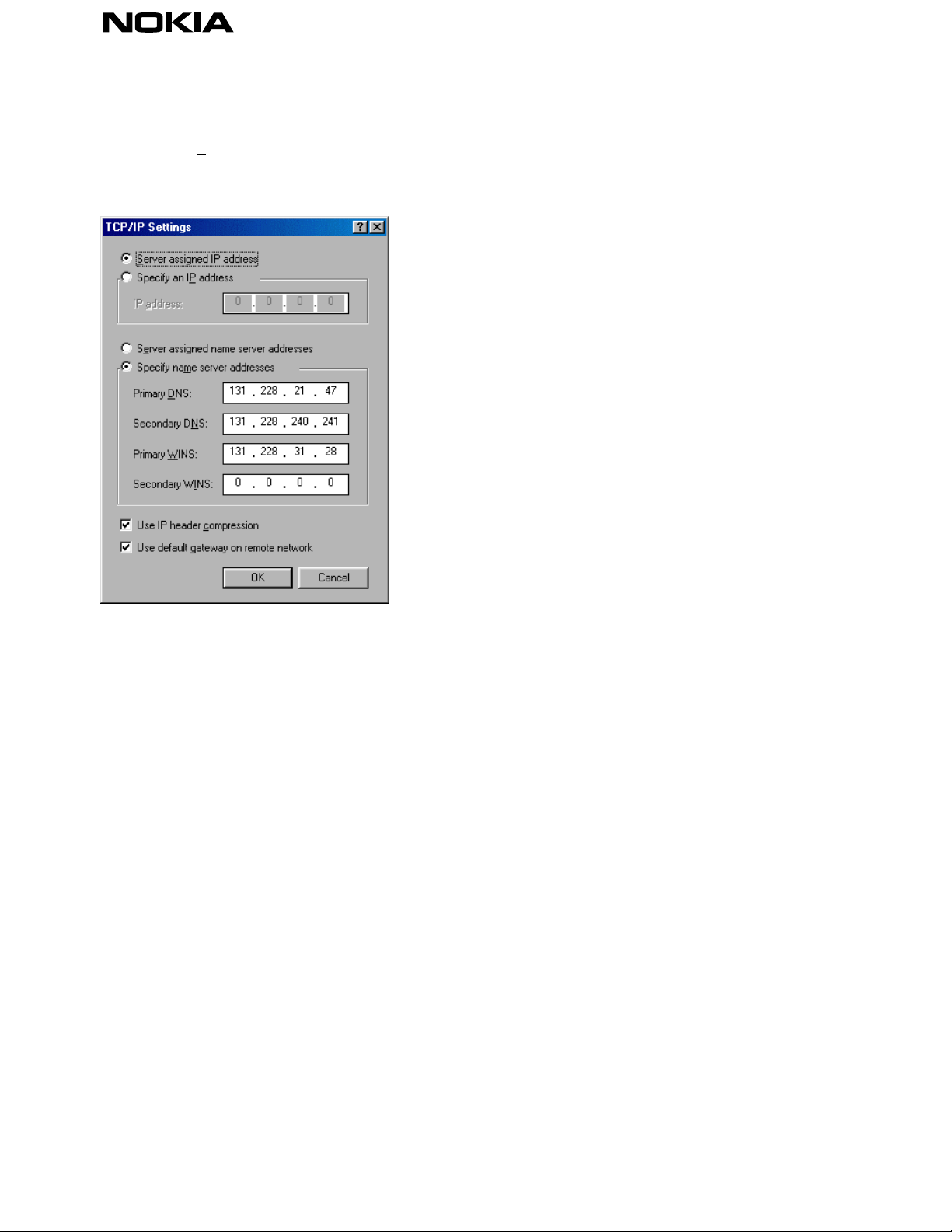

Choose the TCP/IP Settings… button; then you may need to add all the settings which you have received from your

ISP (Figure 6). Please check if you can use ServerassignedIP address as well as Server assignedname serveraddresses.

When you have selected all the necessary settings, close the window by choosing the OK button.

Figure6.TCP/IP settings.

1.1 Making a connection

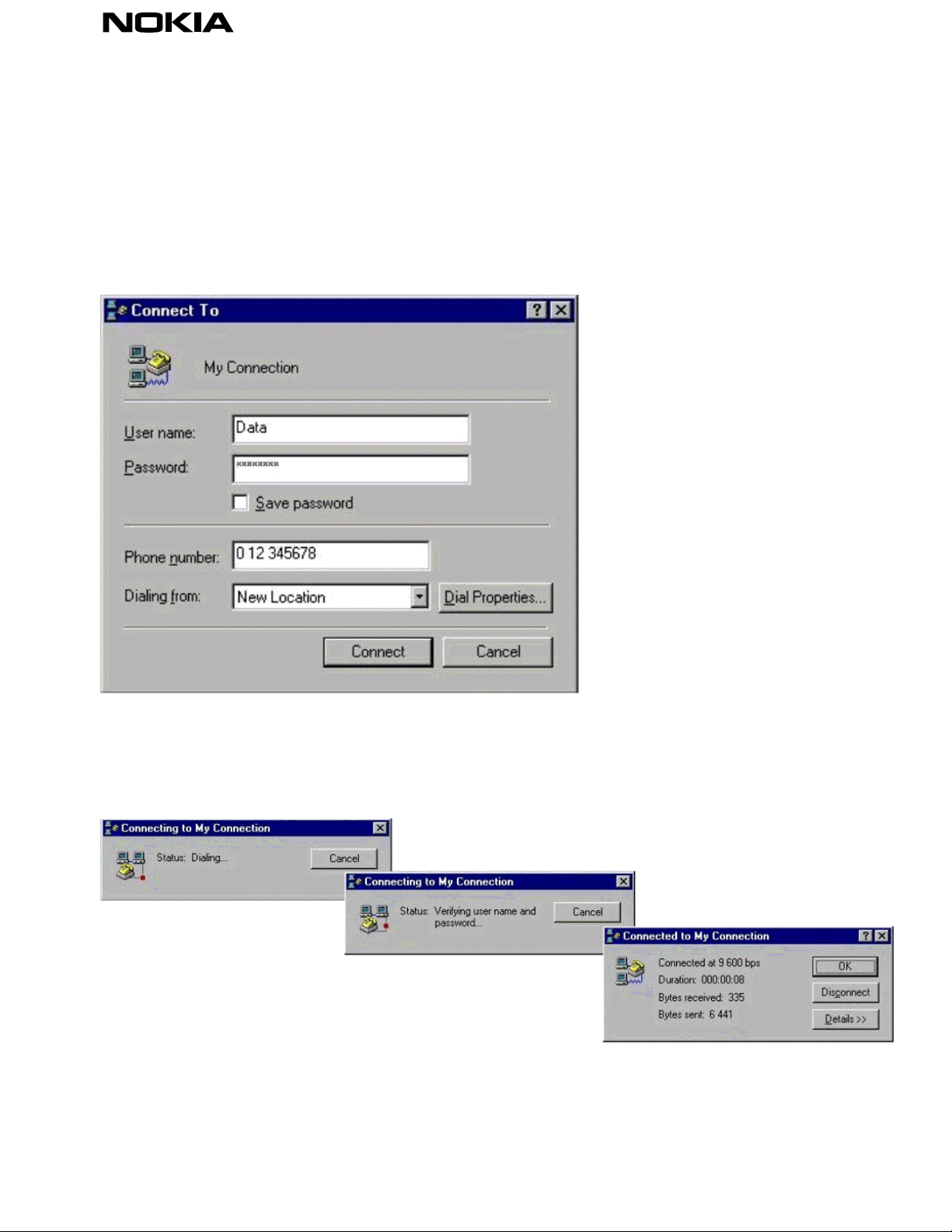

Double-click the icon that you have just created. Add the username and password information (you will get these

from your service provider). When you open this connection, you can choose Save password to save the password for

the next time (so you do not have to retype the password). Start to establish the connection by clicking Connect

(Figure 7).

Figure7.Connectto…

When you have clicked the Connect button, the computer should start to dial the number that you have

specified in the set-up for your Internet service provider (Figures 8-10).

Figure8-10. Makingaconnection…

When the connection is established a modem icon will appear in your taskbar (with two flashing red/green dots in it)

and it is then possible to open, for example, Netscape or Internet Explorer to browse the Internet.

LEGAL NOTICE

Reproduction, transfer, distribution or storage of part or all of the contents of this document in any form without the prior written permission of

Nokia is prohibited.

Nokia and Nokia Connecting People are registered trademarks of the Nokia Corporation. Other product and company names mentioned herein

may be trademarks or tradenames of their respective owners.

Nokia operates a policy of continuous development. Therefore, we reserve the right to make changes and improvements to any of the products

described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damage

howsoever caused.

The contents of this document are provided "as is". Except as required by the applicable law, no warranties of any kind, either express or implied,

including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy,

reliability or contents of this document. Nokia reserves the right to revise this document or to withdraw it at any time without prior notice.
