Nokia X2-02 Manuel utilisateur

Nokia X2-02 User Guide

Issue 1.1

Contents

Safety 4

Your phone in brief 5

Your dual SIM phone 5

Keys and parts 5

Get started 7

Insert a SIM card and battery 7

Insert a second SIM card 7

Insert a memory card 8

Charge the battery 9

Switch the phone on or off 10

GSM antenna 10

Connect a headset 11

Attach a strap 11

Basic use 11

Support 11

Access codes 12

Set which SIM card to use 12

Lock the keys 13

Copy contacts or pictures from your

old phone 13

Use your phone without a SIM card 14

Calls 14

Make a call 14

View your missed calls 14

Call the last dialled number 15

Divert calls to your voice mailbox or

another phone number 15

Contacts 15

Save a name and phone number 15

Use speed dial 16

Send your contact information 16

Write text 16

Switch between text input modes 16

Write using traditional text input 17

Messaging 17

Send a message 17

Save an attachment 18

Listen to voice messages 19

Send an audio message 19

Connectivity 19

Bluetooth 19

USB data cable 22

Clock 22

Change the time and date 22

Alarm clock 22

Pictures and videos 23

Take a picture 23

Record a video 23

Send a picture or video 24

Organise files 24

Music and audio 24

Media player 24

FM radio 26

Play via radio 27

Web 28

About the web browser 28

Browse the web 28

Fit a web page to your phone display 29

Add a bookmark 29

Clear your browsing history 30

Phone management 30

Update phone software using your

phone 30

Update phone software using your

PC 31

Restore original settings 31

Back up your pictures and other

content to a memory card 31

2Contents

Nokia original accessories 32

Practical rules about accessories 32

Battery 32

Protect the environment 33

Save energy 33

Recycle 33

Product and safety information 33

Index 50

Contents 3

Safety

Read these simple guidelines. Not following them may be dangerous or illegal. For

further information, read the complete user guide.

SWITCH OFF IN RESTRICTED AREAS

Switch the device off when mobile phone use is not allowed or when it may

cause interference or danger, for example, in aircraft, in hospitals or near

medical equipment, fuel, chemicals, or blasting areas. Obey all instructions

in restricted areas.

ROAD SAFETY COMES FIRST

Obey all local laws. Always keep your hands free to operate the vehicle while

driving. Your first consideration while driving should be road safety.

INTERFERENCE

All wireless devices may be susceptible to interference, which could affect

performance.

QUALIFIED SERVICE

Only qualified personnel may install or repair this product.

BATTERIES, CHARGERS, AND OTHER ACCESSORIES

Use only batteries, chargers, and other accessories approved by Nokia for

use with this device. Do not connect incompatible products.

KEEP YOUR DEVICE DRY

Your device is not water-resistant. Keep it dry.

PROTECT YOUR HEARING

Listen to a headset at a moderate level, and do not hold the device near

your ear when the loudspeaker is in use.

4Safety

Your phone in brief

Your dual SIM phone

You can insert two SIM cards.

Some benefits of a dual SIM phone

•You can make savings when you use services from different service providers.

•Use one phone number for personal calls and another for work, but carry only

one phone.

•Avoid network coverage variation between service providers.

Both SIM cards are available at the same time when the phone is not being used, but

while one SIM card is active, for example, making a call, sending or receiving a

message, or transferring data, the other is unavailable.

If there is no SIM card in the internal SIM card holder, you can only make emergency

calls.

Some features and operator services are only available when using the SIM card in

the internal SIM card holder.

A GPRS connection cannot be open in the background. If an application is using a GPRS

connection, and you return to the home screen or switch to another application,

menu, or other view, the connection is automatically closed.

Keys and parts

1Display

2Selection keys

3Navi™ key (scroll key)

4Call key

Your phone in brief 5

5Keypad

6End/Power key

7Earpiece

8Camera lens

9Loudspeaker

10 Media key

11 Memory card slot

12 Wrist strap hole

13 SIM card slot (SIM 2)

14 Volume down key

15 Volume up key

16 Headset connector/Nokia AV connector (3.5 mm)

17 Micro-USB connector

18 Charger connector

Media key functions

•To open the media player or radio, on the home screen, press and hold the media

key. The last used application opens.

•If the media player or radio is already open in the background, press the media

key.

6 Your phone in brief

Get started

Insert a SIM card and battery

This phone is intended for use with a BL-5C battery. Always use original Nokia

batteries.

If you only have one SIM card, insert the card into the internal SIM card holder.

1 Place your finger in the recess at the bottom of the phone, and carefully lift and

remove the back cover (1).

2 If the battery is inserted, lift it out.

3 Open the SIM card holder (2), and insert the SIM card (3). Make sure the contact

area of the card is facing down.

Line up the contacts of the battery and the battery compartment, and insert the

battery (4). To replace the back cover, direct the top locking catches toward their

slots (5), and press down until the cover locks into place (6).

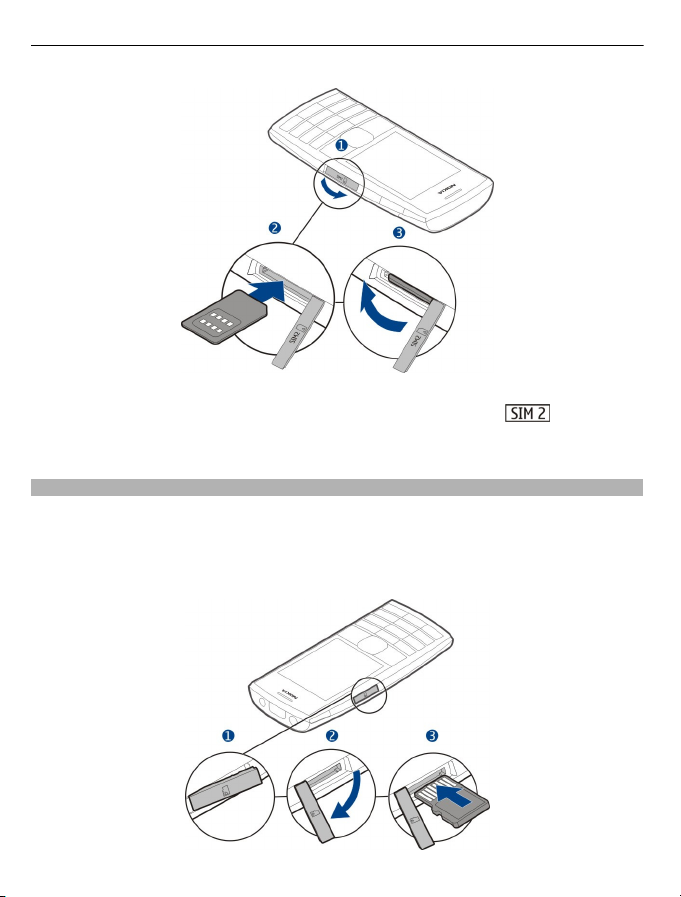

Insert a second SIM card

Have a second SIM card, but want to keep using your main SIM card? You can insert

or remove a second SIM card without switching the phone off.

Get started 7

1 Open the cover of the external SIM card slot (1), marked with .

2 Insert the SIM card (2). Make sure the contact area of the card is facing up. Push

the card in, until it locks into place. Close the cover (3).

Insert a memory card

Use only compatible memory cards approved by Nokia for use with this device.

Incompatible cards may damage the card and the device and corrupt data stored on

the card.

Your phone supports memory cards with a capacity of up to 32 GB.

8 Get started

1 Open the memory card slot cover (1, 2).

2 Make sure the contact area of the card is facing up. Push the card in, until it locks

into place (3).

3Closethecover.

Remove the memory card

Important: Do not remove the memory card when an application is using it.

Doing so may damage the memory card and the device and corrupt data stored on

the card.

You can remove or replace the memory card without switching the phone off.

1 Open the memory card slot cover.

2 Push the card in, until it is released, and pull the card out.

3Closethecover.

Charge the battery

Your battery has been partially charged at the factory, but you may need to recharge

it before you can switch on your phone for the first time. If the phone indicates a low

charge, do the following:

1 Connect the charger to a wall outlet.

2 Connect the charger to the phone.

3 When the phone indicates a full charge, disconnect the charger from the phone,

then from the wall outlet.

You do not need to charge the battery for a specific length of time, and you can use

the phone while it is charging.

Get started 9

If the battery is completely discharged, it may take several minutes before the

charging indicator is displayed or before any calls can be made.

If the battery has not been used for a long time, to begin charging, you may need to

connect the charger, then disconnect and reconnect it.

Switch the phone on or off

Press and hold the power key .

You may be prompted to get the configuration settings from your network service

provider. For more information on this network service, contact your network service

provider.

GSM antenna

The figure shows the GSM antenna area marked in grey.

10 Get started
