Nokia Lumia 610 Manuel utilisateur

Service Manual for L1 and L2

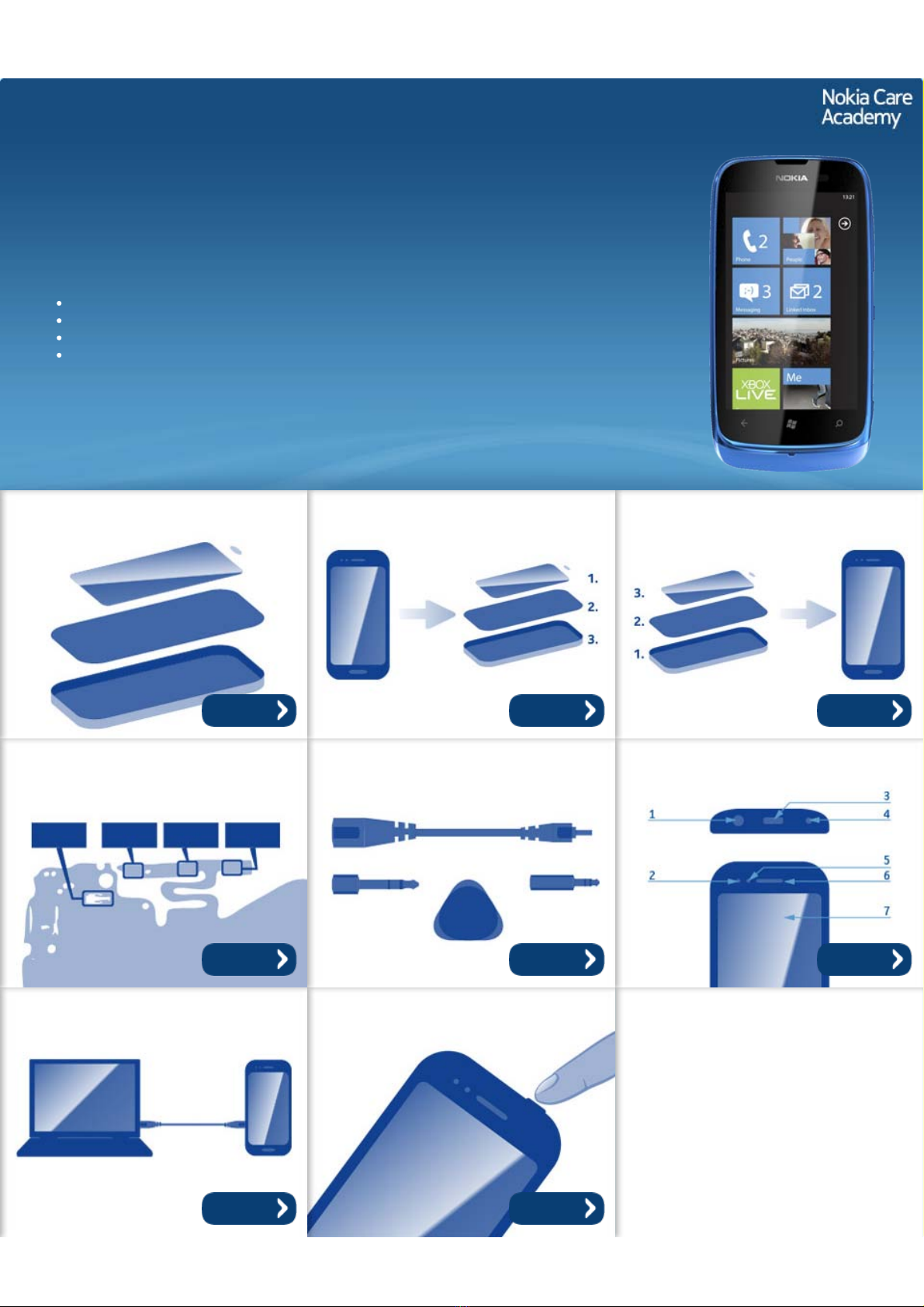

Nokia Lumia 610

RM-835 RM-836

Key features

Most affordable Nokia Lumia yet

Updated Windows Phone operating system

8 GB internal mass memory

3.7" WVGA 800 x 480 pixels LCD TFT display

Version 1.0

Exploded view Disassembly steps Assembly steps

Solder components Service devices Product controls and interfaces

Service concept Phone reset

More More More

More More

Service Manual Level 1 and 2

Nokia Lumia 610

RM-835 RM-836

Version 1.0

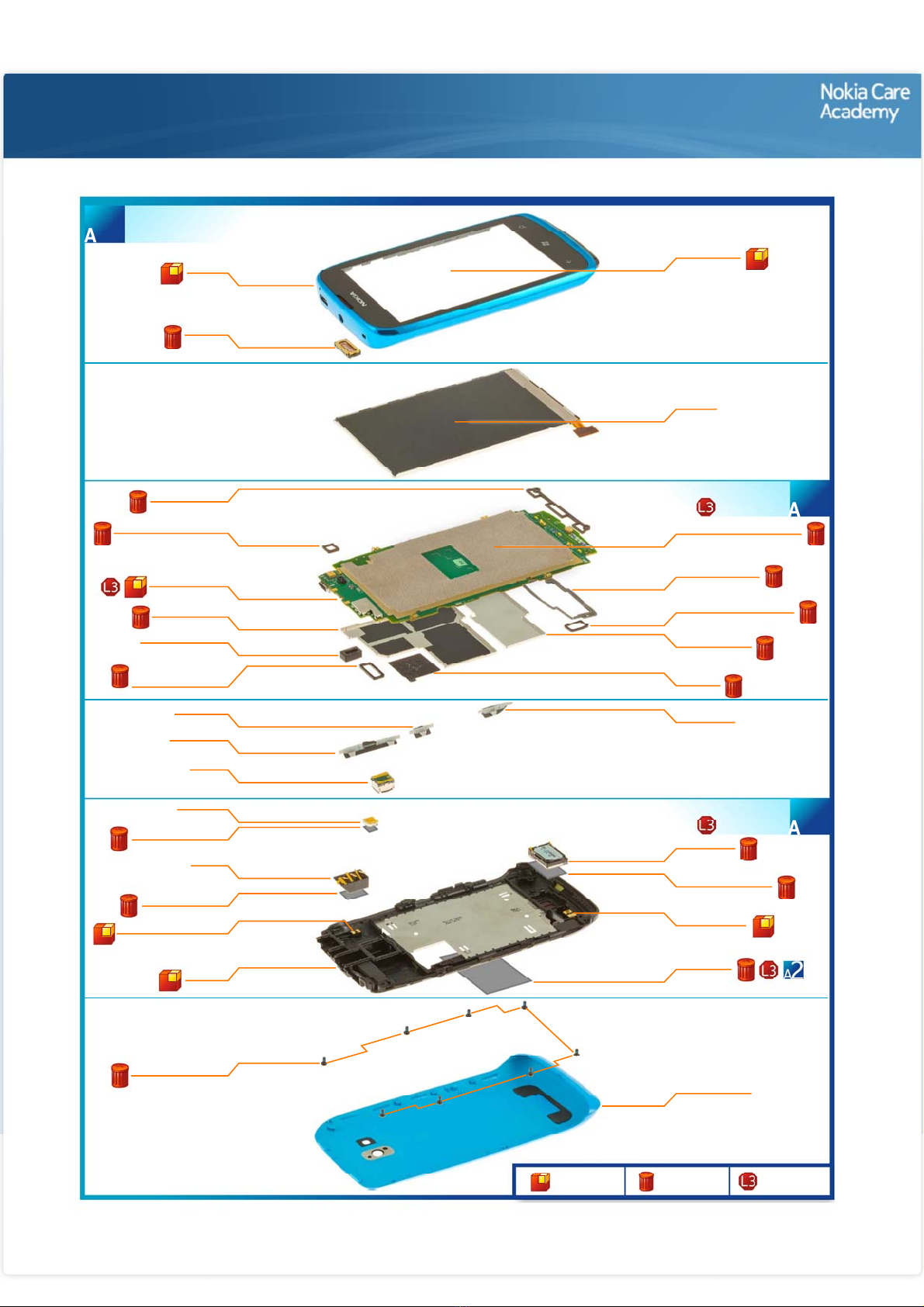

Exploded view

A-COVER

I0002

EARPIECE

I0003

SECONDARY MIC RUBBER

I0008

LIGHT SWAP PWB

I0018

SHIELDING LID 2

I0016

TOUCH PANEL

CONNECTOR RUBBER

I0012

LED FLASH RUBBER

I0017

POWER KEY

I0006

VOLUME KEY

I0004

CAMERA

I0020

LED FLASH

I0025

LED FLASH ADHESIVE

I0026

AV JACK

I0023

AV JACK ADHESIVE

I0024

D-COVER

I0029

BT/GPS/WLAN ANTENNA

I0028

KEY LED RUBBER

I0009

TOUCH PANEL

I0001

DISPLAY

I0007

DISPLAY CONDUCTIVE TAPE

I0010

ANTENNA RUBBER

I0014

LCD CONNECTOR RUBBER

I0011

BATTERY COVER

I0031

SHIELDING LID 1

I0015

SIM TAPE

I0013

CAMERA KEY

I0005

IHF SPEAKER GASKET

I0022

IHF SPEAKER

I0021

TYPE LABEL

I0019

MAIN ANTENNA

I0027

SCREW TORX+ SIZE 4

I0030

A-COVER ASSEMBLY

(I0001 - I0003)

LIGHT SWAP PACKAGE

(I0008 - I0019) 2

D-COVER ASSEMBLY

(I0021 - I0029) 3

Only available

as assembly

Not reuseable

after removal

Repair/swap

only in level 3

Service Manual Level 1 and 2

Nokia Lumia 610

RM-835, RM-836

Version 1.0

Disassembly steps

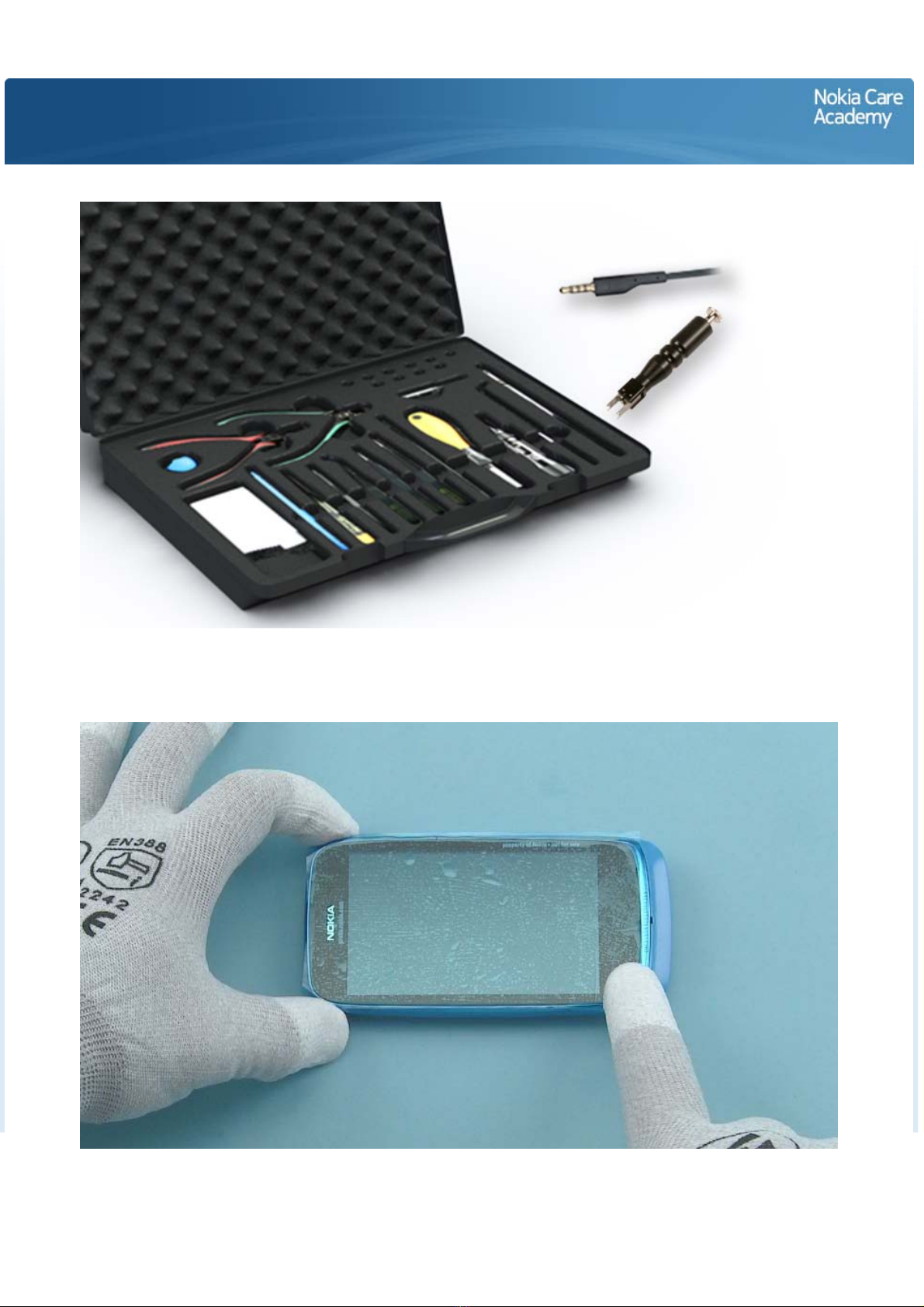

For disassembling you need the Nokia Standard toolkit version 2. You will also need the camera removal

tool SS-287 and an AV plug.

Protect the A-COVER with protective film.

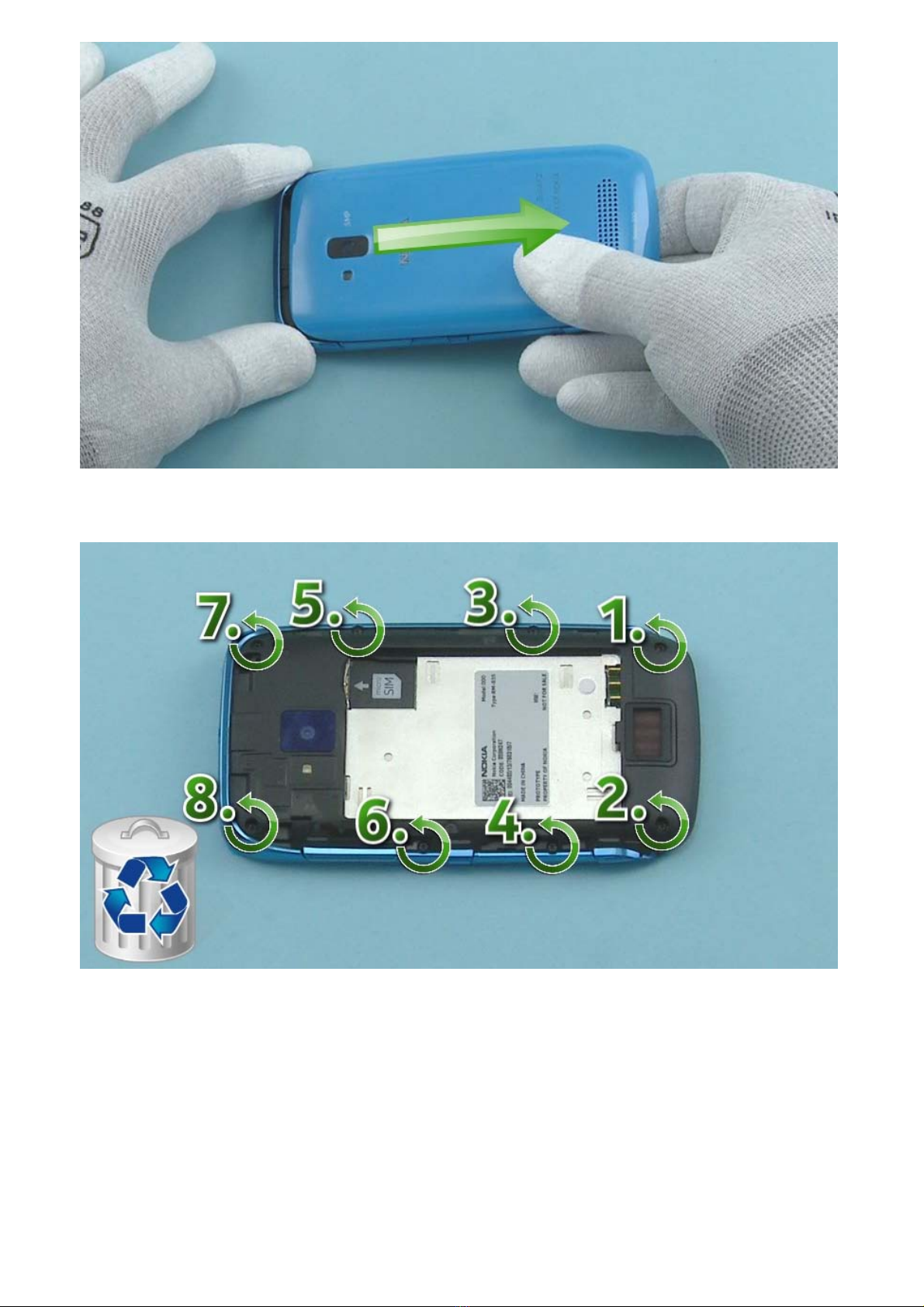

Open the BATTERY COVER by pulling it to the direction shown. Remove the BATTERY COVER.

Unscrew the eight Torx+ size 4 screws in the order shown. Do not use them again. Discard them.

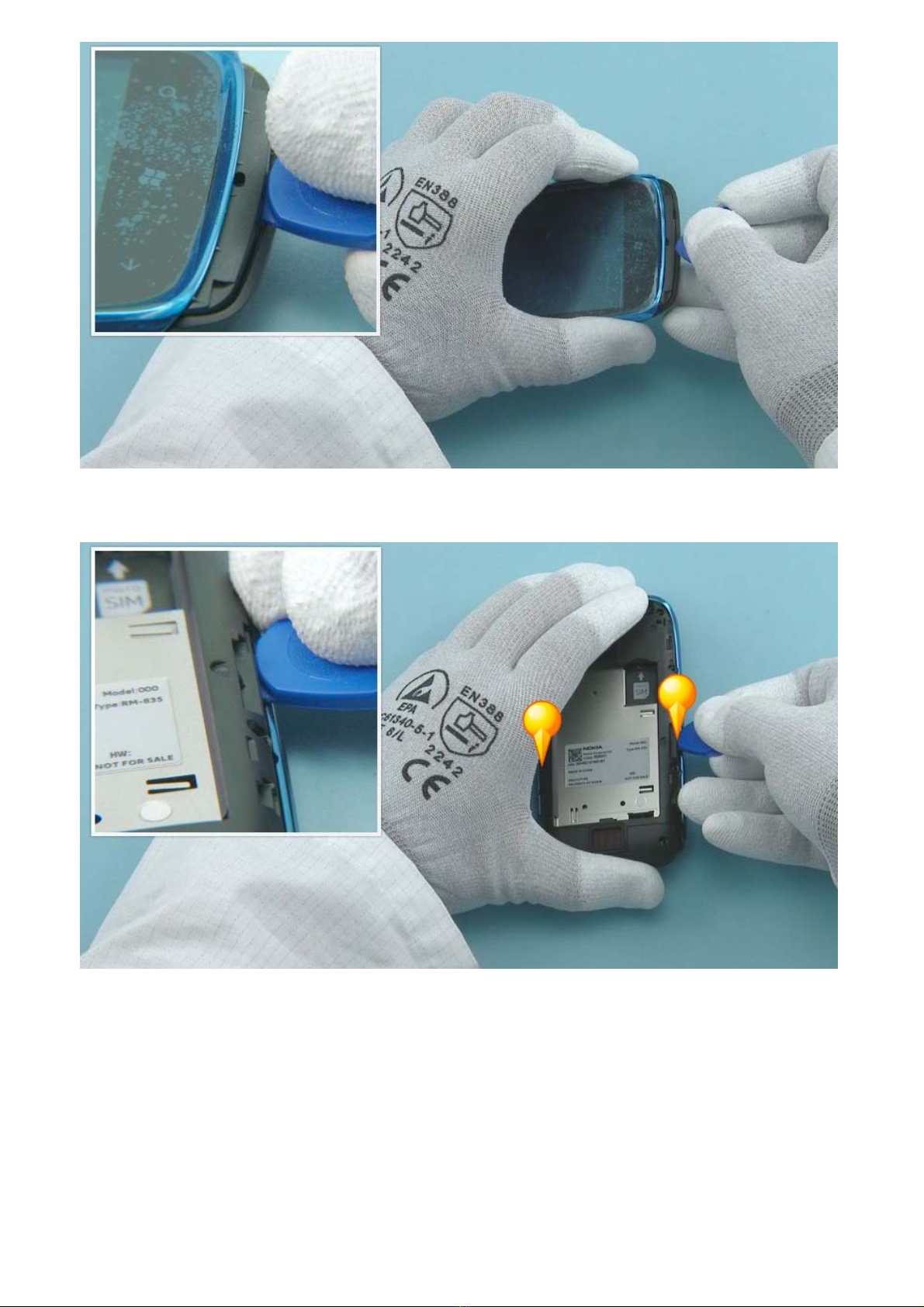

Insert the SRT-6 to the shown place and release the bottom end of the D-COVER.

Release also both sides of the D-COVER with the SRT-6.

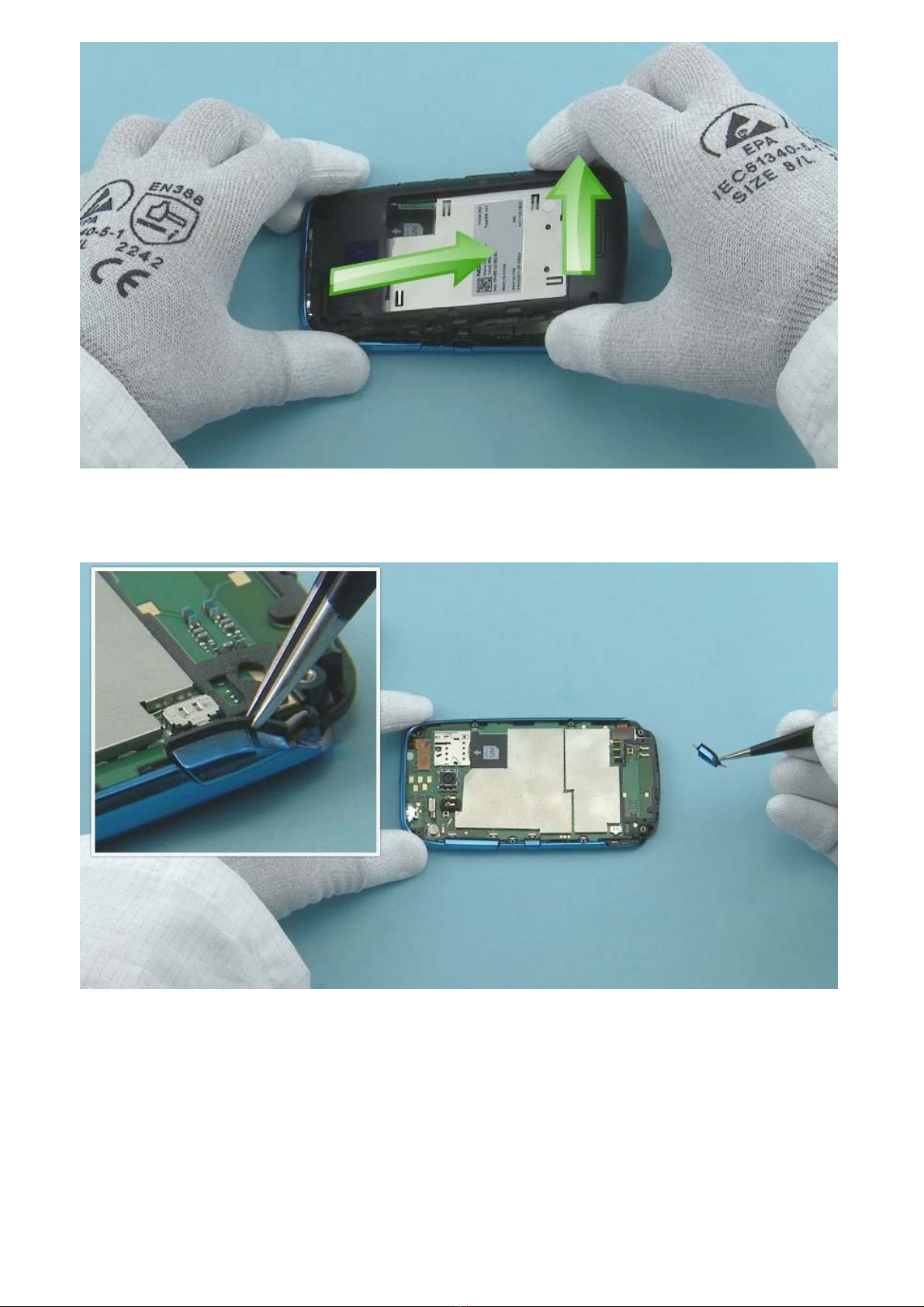

Lift up the bottom end of the D-COVER and pull it to the direction shown. The D-COVER can now be

separated.

Remove the CAMERA KEY with tweezers.

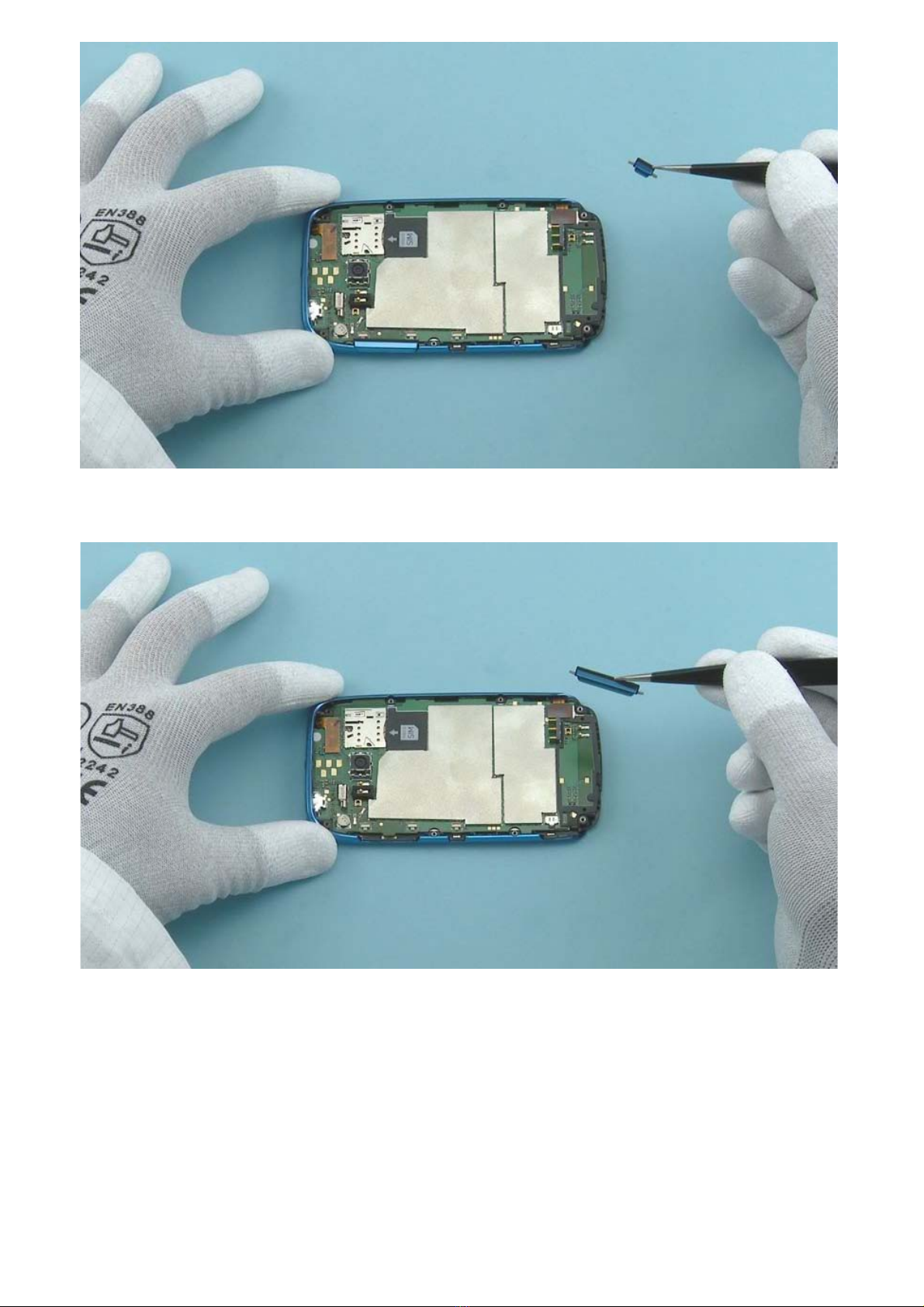

Remove the POWER KEY with tweezers.

Remove the VOLUME KEY with tweezers.

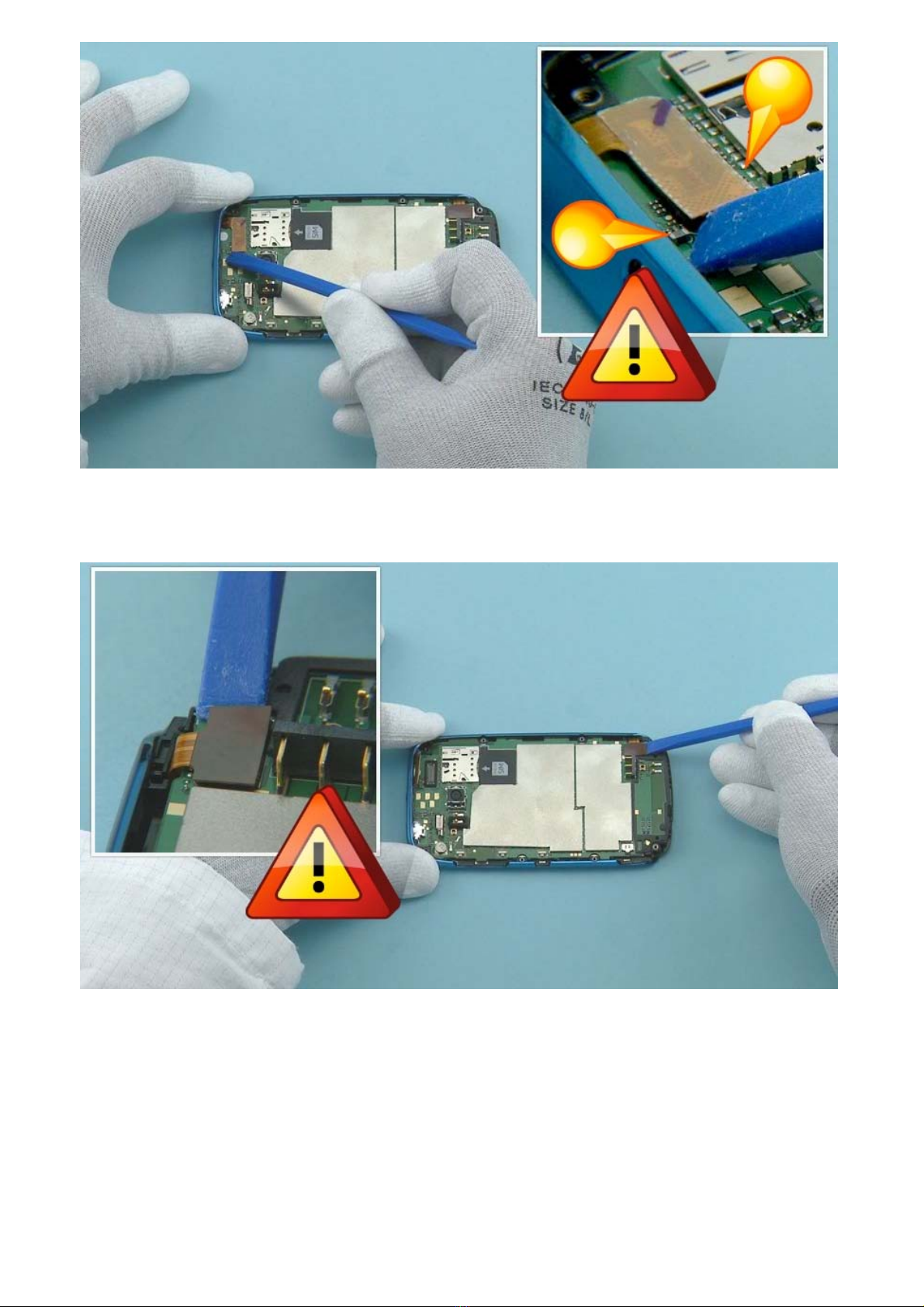

Use the SS-93 to open the TOUCH PANEL connector. Be very careful not to damage the connector or

the small components around the connector.

Open the DISPLAY connector with the SS-93. Be careful not to damage the connector or components

nearby.

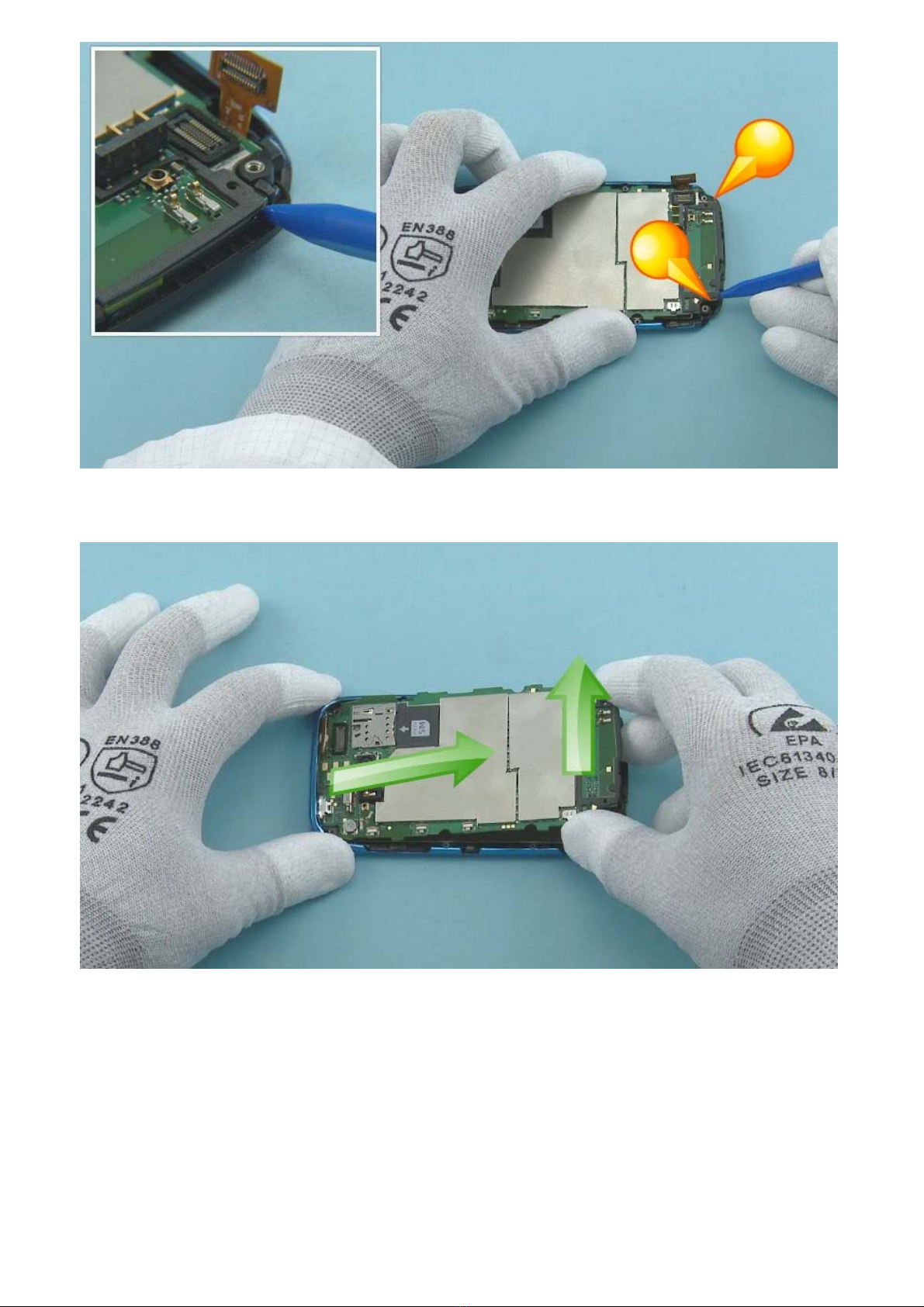

Open the two shown clips holding the ENGINE BOARD with the sharp end of the SS-93.

Lift up the bottom end of the ENGINE BOARD and pull it to the direction shown. The ENGINE BOARD can

now be separated.

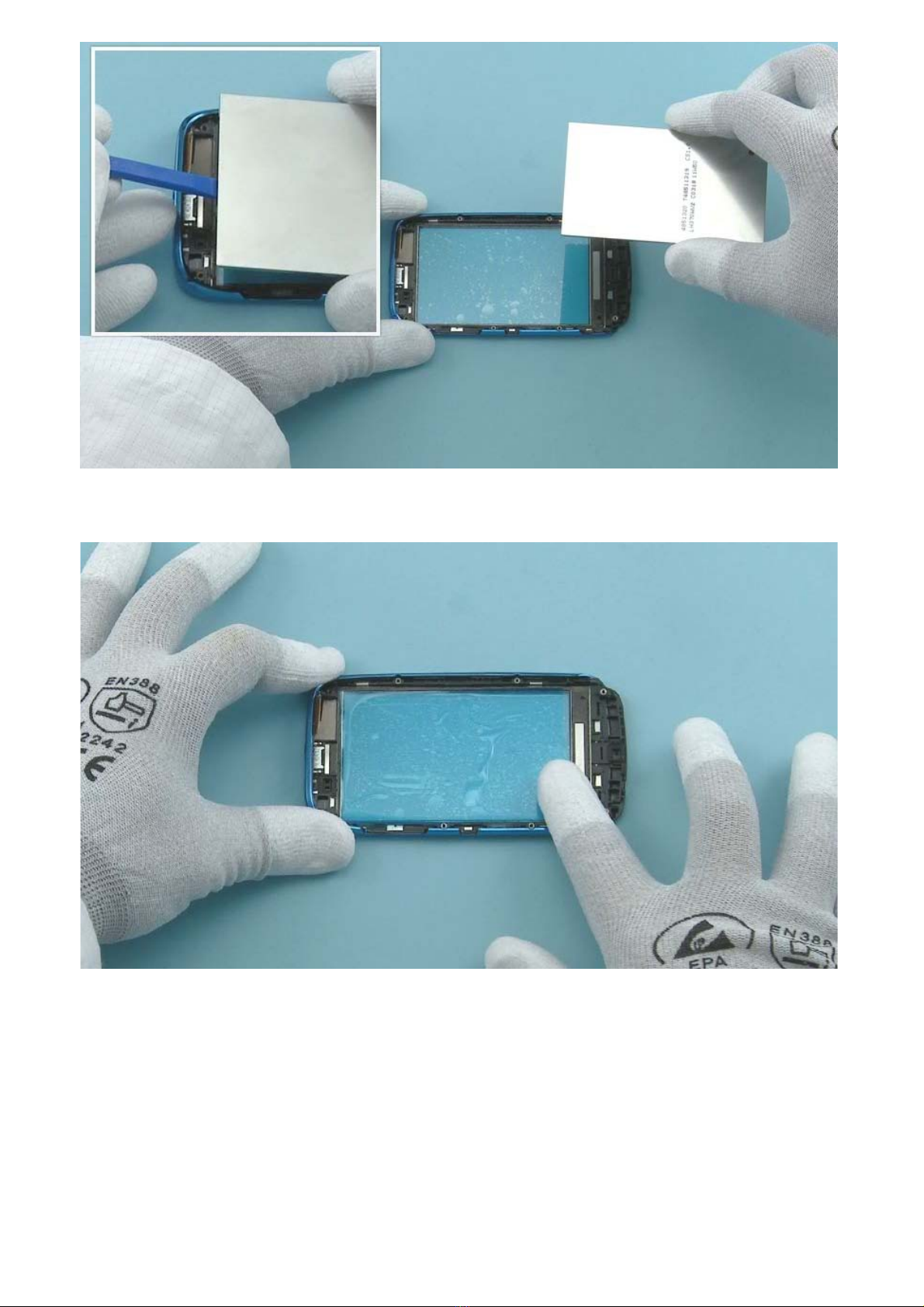

Lift up the DISPLAY with the SS-93 and remove it.

Protect the other side of the A-COVER with protective film.
