Installation guidelines for

Nokia Car Kit CK-300

Contents

To provide the technical background information needed for carrying out

professional installation.

Only a qualified service technician should install or service the car kit using

the approved original Nokia parts supplied in the sales package. Faulty

installation or service may be dangerous and may invalidate any warranty

which may apply to the car kit. End-users should remember that the car kit

comprises complex technical equipment that requires professional

installation using special tools and expert know-how.

Instructions given in this guide are general guidelines which apply for the

installation of the car kit in an automobile. However, due to the wide variety

of car types and models available on the market, this guide cannot consider

the individual technical requirements relevant for any particular vehicle.

Contact the vehicle manufacturer for detailed information about the vehicle

in question.

Purpose of these guidelines

Please note: car accessories must be installed or repaired by qualified professionals only.

Carefully read the User Guide and Installation Guide for each system to be installed.

Purpose of these guidelines 03

Product overview 04

Installation guidelines

Sales package content 06

Connectors 08

Options of installation, I 09

Options of installation, II 10

Options of installation, III 11

Overview 12

Various connections 14

Mute box 15

Car sound system phone-in 16

Dedicated speaker 17

Recommended placement of components 18

Installing the microphone close to the rear mirror 20

Alternatives 21

A2DP and AUX-in installation 22

Music connectivity solution overview 24

Setup and check 26

Troubleshooting

Sound 28

Bluetooth connection 29

Appendix

Power supply 1 32

Power supply 2 33

Operation with CarMenu 34

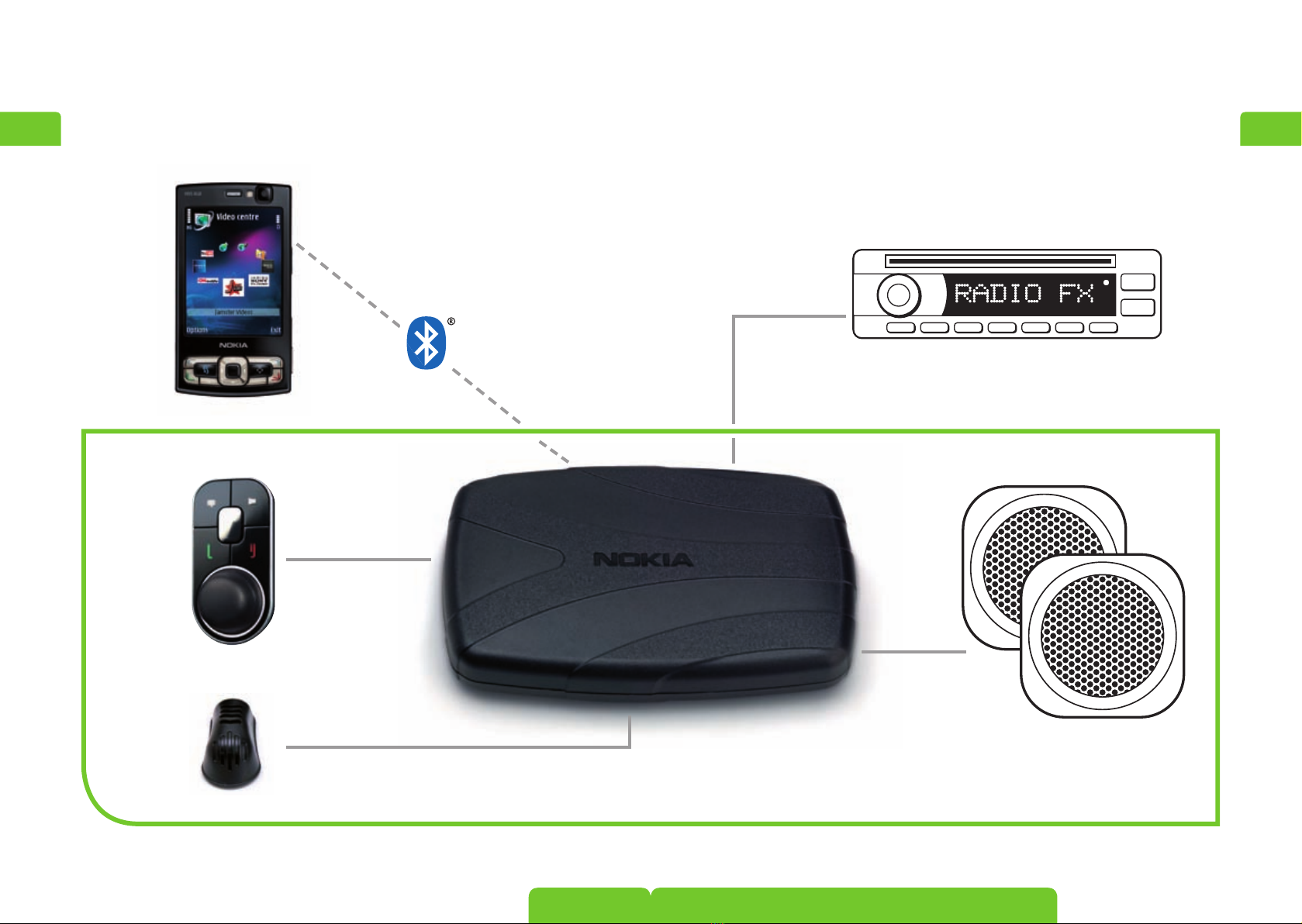

Product overview

Please note: car accessories must be installed or repaired by qualified professionals only.

Carefully read the User Guide and Installation Guide for each system to be installed.

Nokia Car Kit CK-300

Handsfree

via Bluetooth

wireless

technology

Car radio mute ISO cable

Handsfree unit

Loudspeaker

Input device

Microphone

Installation guidelines

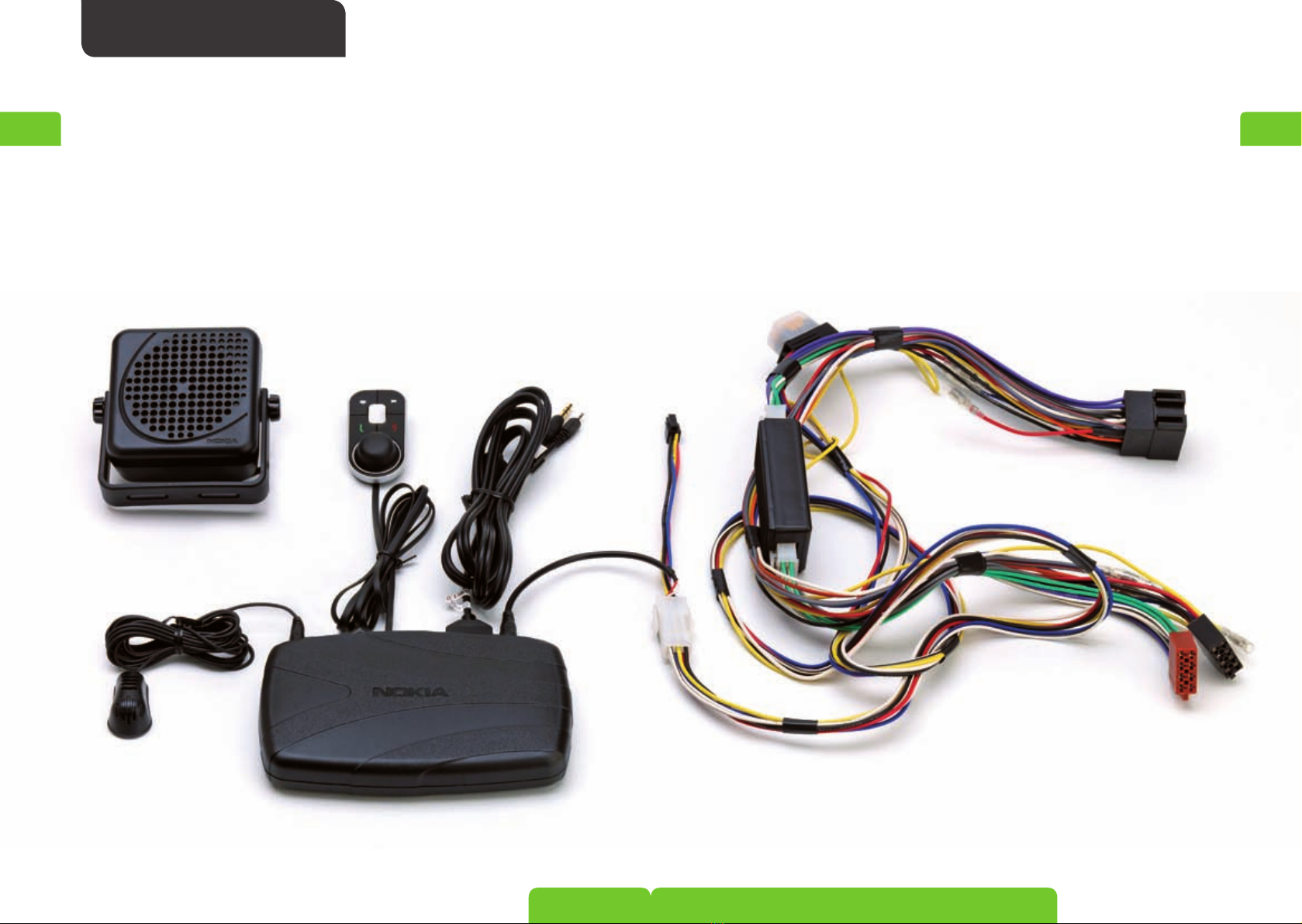

06 Sales package content

1. Loudspeaker SP-3*

2. Remote control CU-10

3. Audio/Charging cable CA-113CU*

4. Microphone MP-2

5. Handsfree unit HF-21W

6. ISO power cable CA-139*

Please note: car accessories must be installed or repaired by qualified professionals only.

Carefully read the User Guide and Installation Guide for each system to be installed.

3*6*

*Depends on sales package variant

Installation guidelines

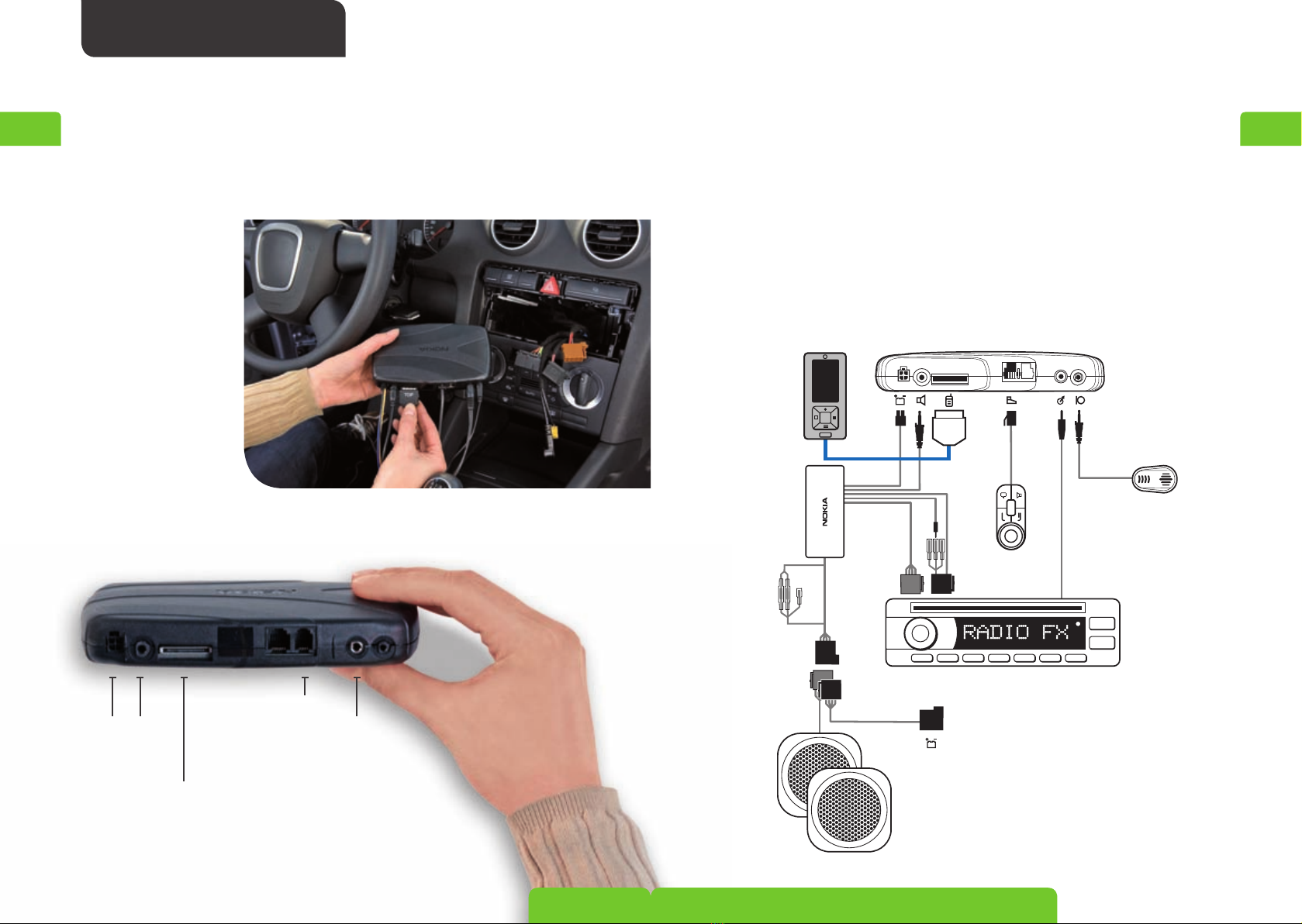

Connectors

1. Power cable

2. Speaker

3. Mobile device

4. Remote control

5. Stereo music out

6. Microphone

12 3 4 56

• Connect the car kit to the stereo system via ISO cable*

• For music connect the stereo music output of the handsfree unit

(a standard 3.5-mm stereo connector) to the AUX input of the car radio.

Use an appropriate cable specific to your car radio

(this cable is not supplied with the car kit)

• Enjoy good handsfree and music audio quality from the car stereo system

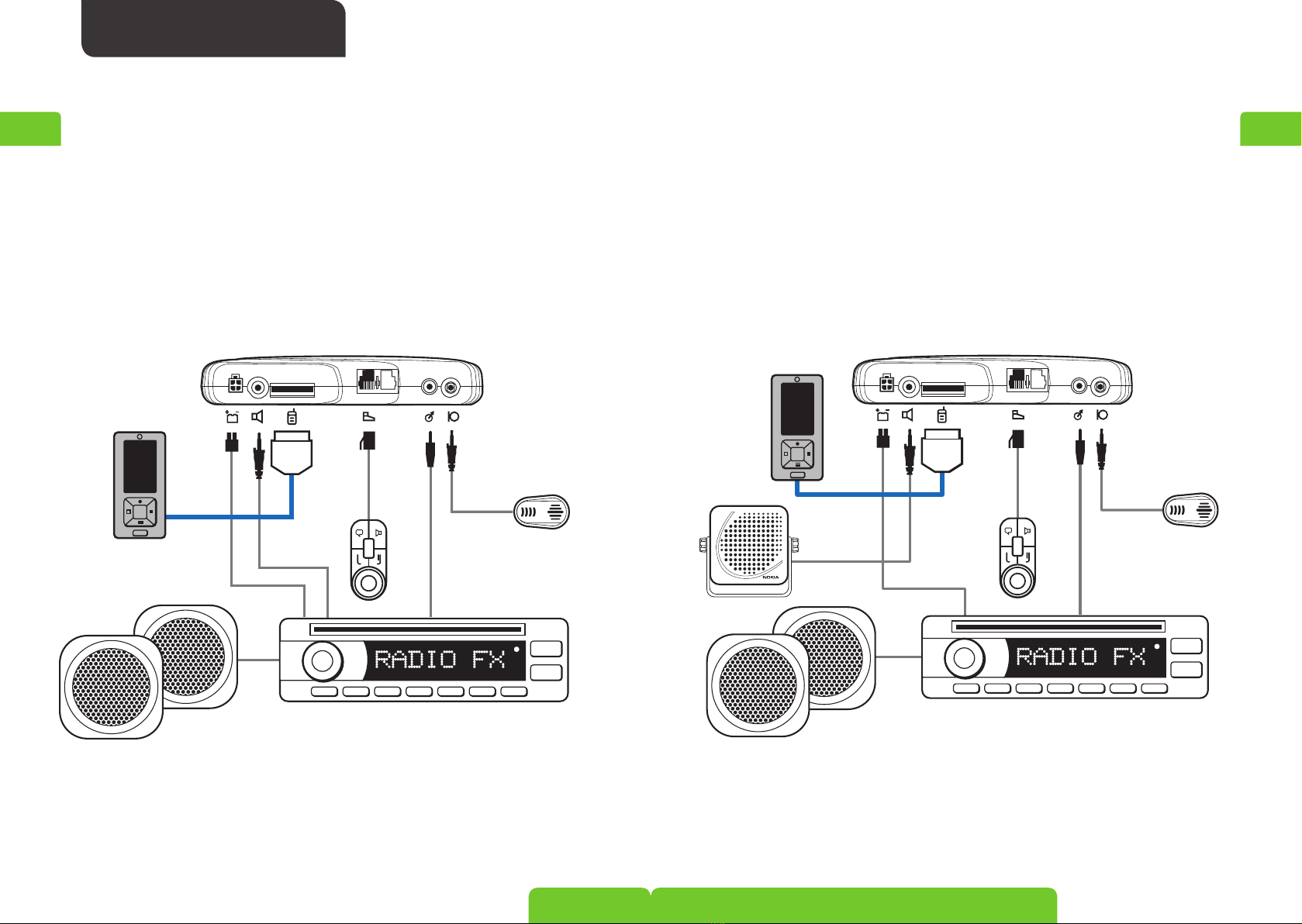

Options of installation, I

Please note: car accessories must be installed or repaired by qualified professionals only.

Carefully read the User Guide and Installation Guide for each system to be installed.

Connected to

the ISO cable

Unused

Stereo music out to be

connected to the AUX

input of the car radio

Charging of Nokia devices with 2mm

charging connector and mobile music

devices with 3.5mm standard stereo

connector

*Depends on sales package variant

• Use the external speaker SP-3 for handsfree*

• For music connect the stereo music output of the handsfree unit

(a standard 3.5-mm stereo connector) to the AUX input of the car radio.

Use an appropriate cable specific to your car radio

(this cable is not supplied with the car kit)

• Enjoy good music audio quality from the car stereo system

Options of installation, III

*Depends on sales package variant

Please note: car accessories must be installed or repaired by qualified professionals only.

Carefully read the User Guide and Installation Guide for each system to be installed.

Installation guidelines

Options of installation, II

• Connect the car kit to the stereo system via phone-in

• For music connect the stereo music output of the handsfree unit

(a standard 3.5-mm stereo connector) to the AUX input of the car radio.

Use an appropriate cable specific to your car radio

(this cable is not supplied with the car kit)

• Enjoy good handsfree and music audio quality from the car stereo system

Overview

Please note: car accessories must be installed or repaired by qualified professionals only.

Carefully read the User Guide and Installation Guide for each system to be installed.

Cable connections

to the car kit

Connection

options

Installation and

placement of

components in

the car

Installation guidelines

Various connections

In order to ensure correct car sound system mute, audio

volume behaviour and voice must be handled differently.

Overview of connection options:

• Mute box switches from car radio

to car kit and back

• Voice signal from the audio-out

of the handsfree to mute box

• Mute signal from power cable

to mute box

Cables/Adapters needed:

• Adapter from ISO to proprietary

connector for car sound system

and speaker may be required

Speaker*

Phone-in

Mute box*

(included in

the ISO cable)

Mute box

Connection options

Please note: car accessories must be installed or repaired by qualified professionals only.

Carefully read the User Guide and Installation Guide for each system to be installed.

*Depends on sales package variant

14 15

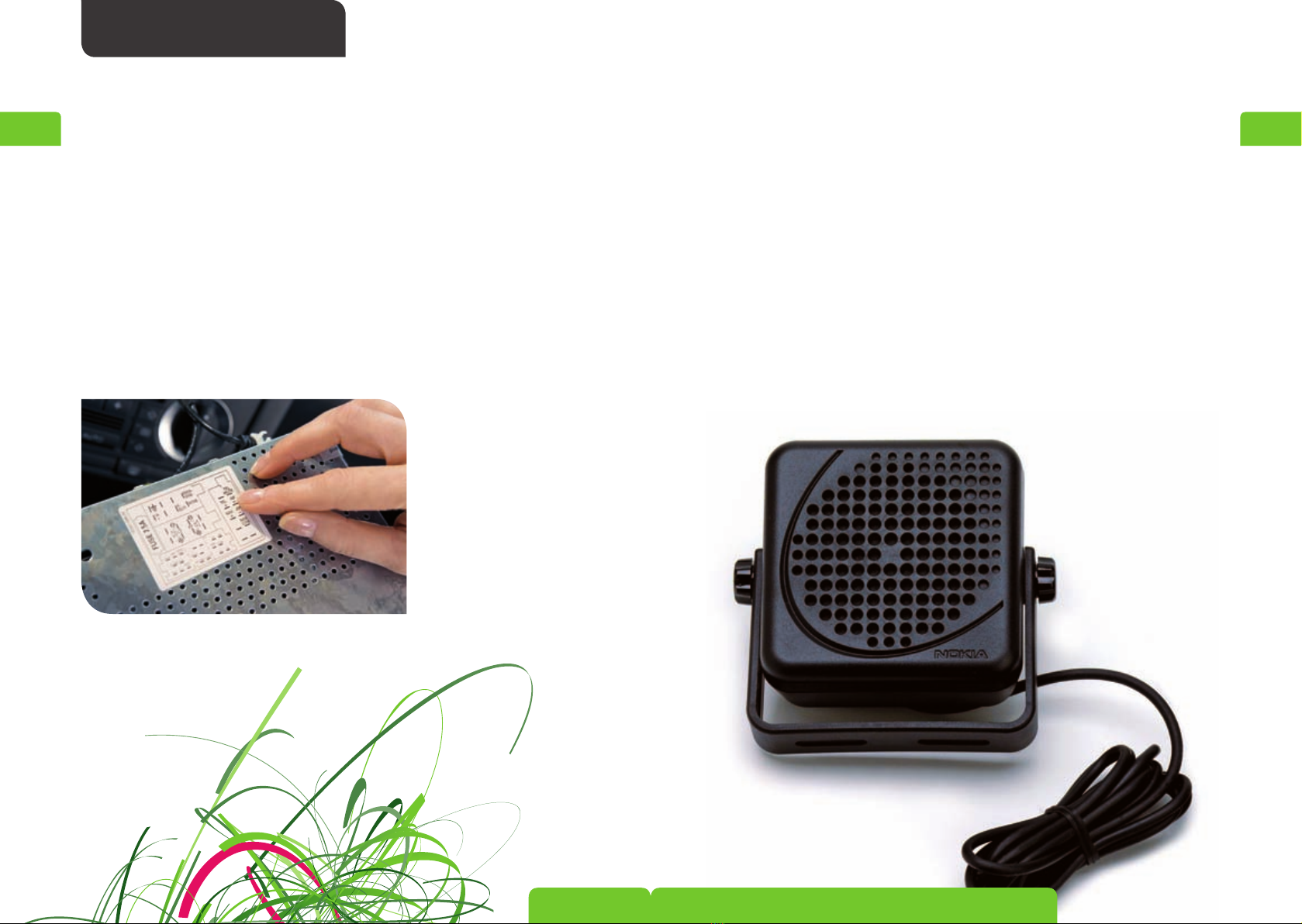

Dedicated speaker

• Voice signal from the audio-out of the handsfree to speaker

(cable permanently attached to speaker)

• Mute signal from power cable to car sound system

Cables/Adapters needed:

• Connector to transmit mute signal to car sound system may

be required (e.g. mini-ISO, Fakra)

Connection options

Please note: car accessories must be installed or repaired by qualified professionals only.

Carefully read the User Guide and Installation Guide for each system to be installed.

16 17

• Voice signal from the audio-out of the handsfree to phone-in port

of the car sound system

• Mute signal from power cable to car sound system

Cables/Adapters needed:

• Adapter cable from the audio-out of the hands-free unit to the phone-in of

the car sound system (e.g. simply cut the cable of the speaker included in

the sales package)

Car sound system phone-in

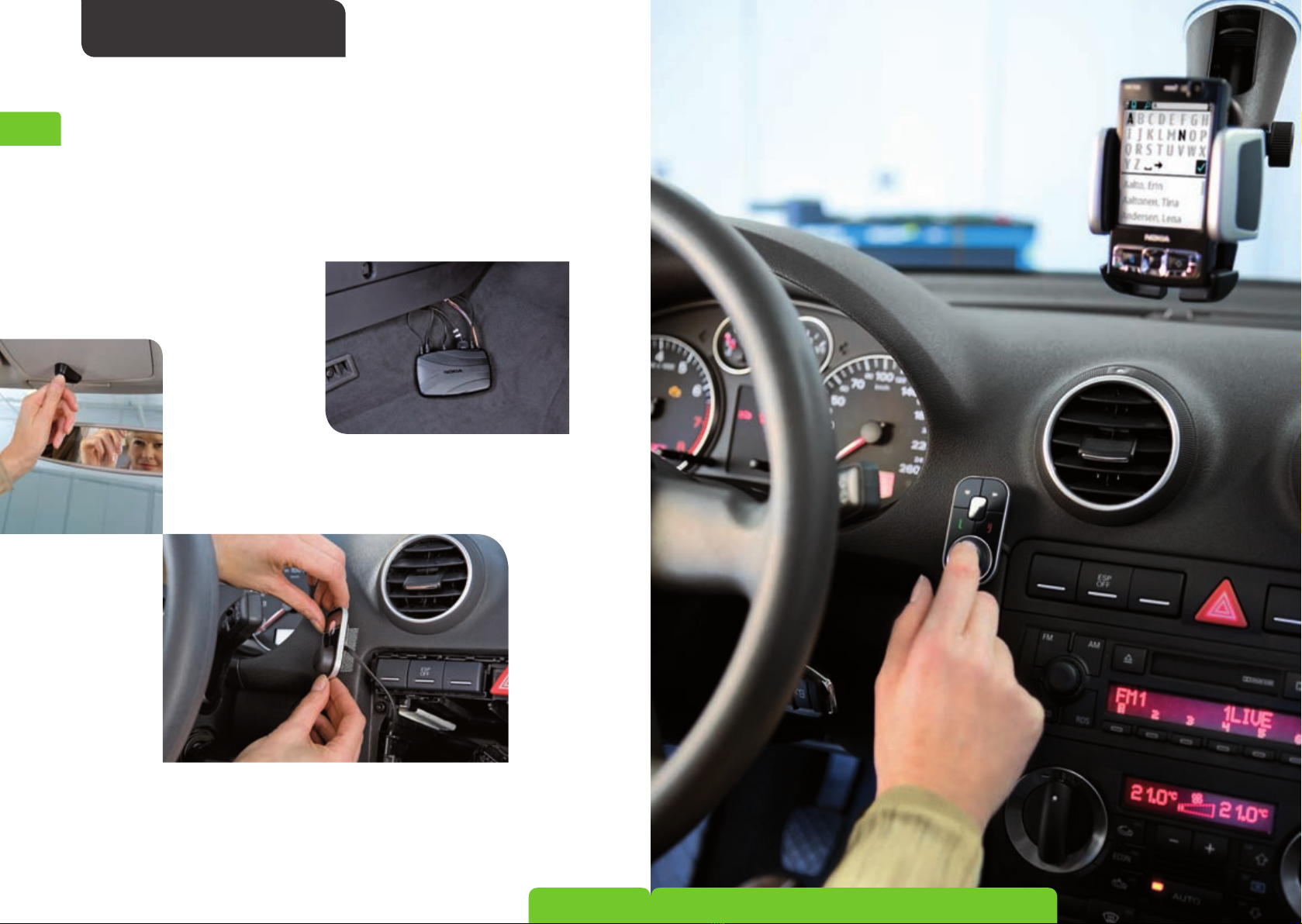

Recommended placement

of components

Installation

Please note: car accessories must be installed or repaired by qualified professionals only.

Carefully read the User Guide and Installation Guide for each system to be installed.

Microphone

Best place is near the

rear mirror pointing to

the driver‘s mouth

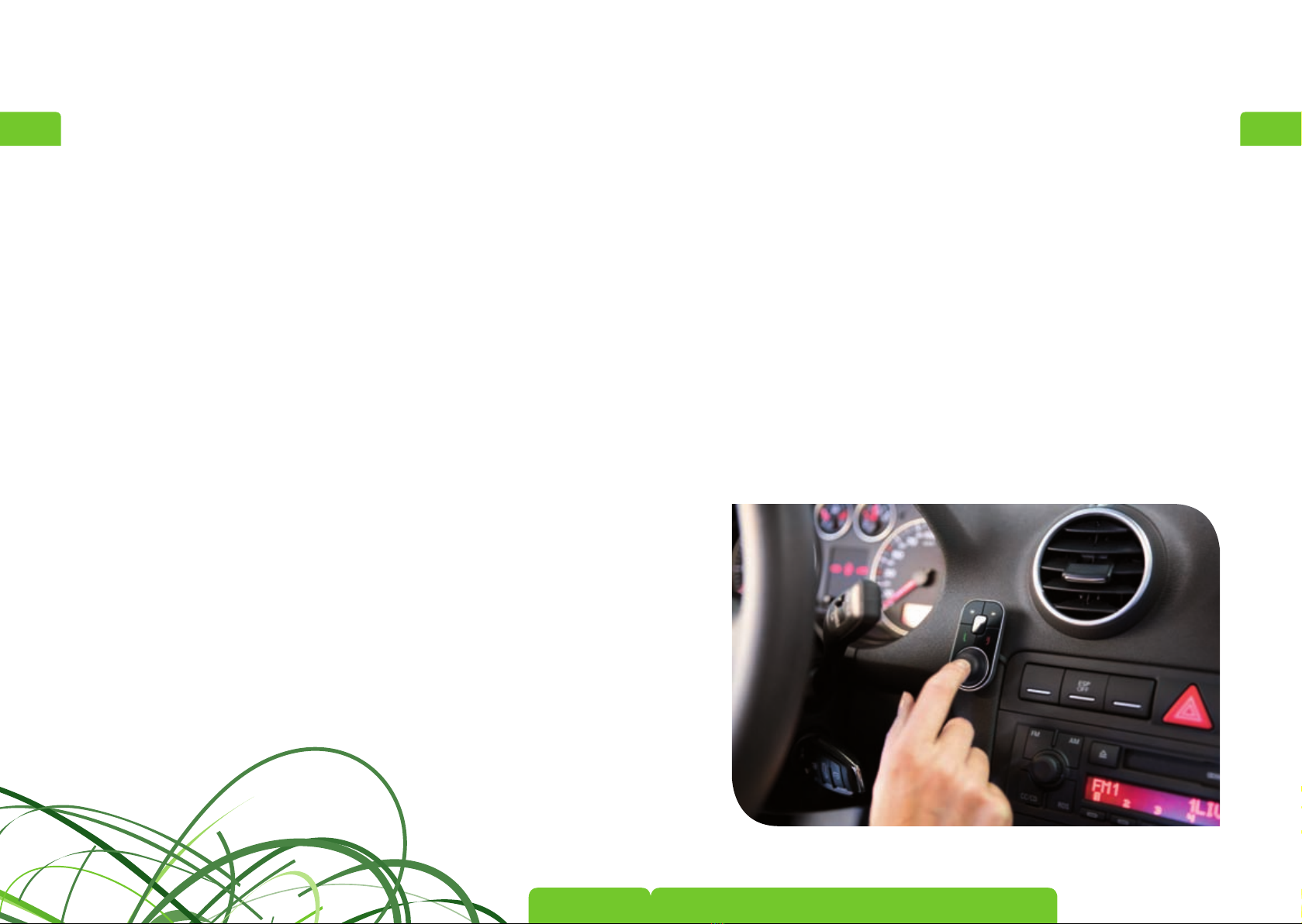

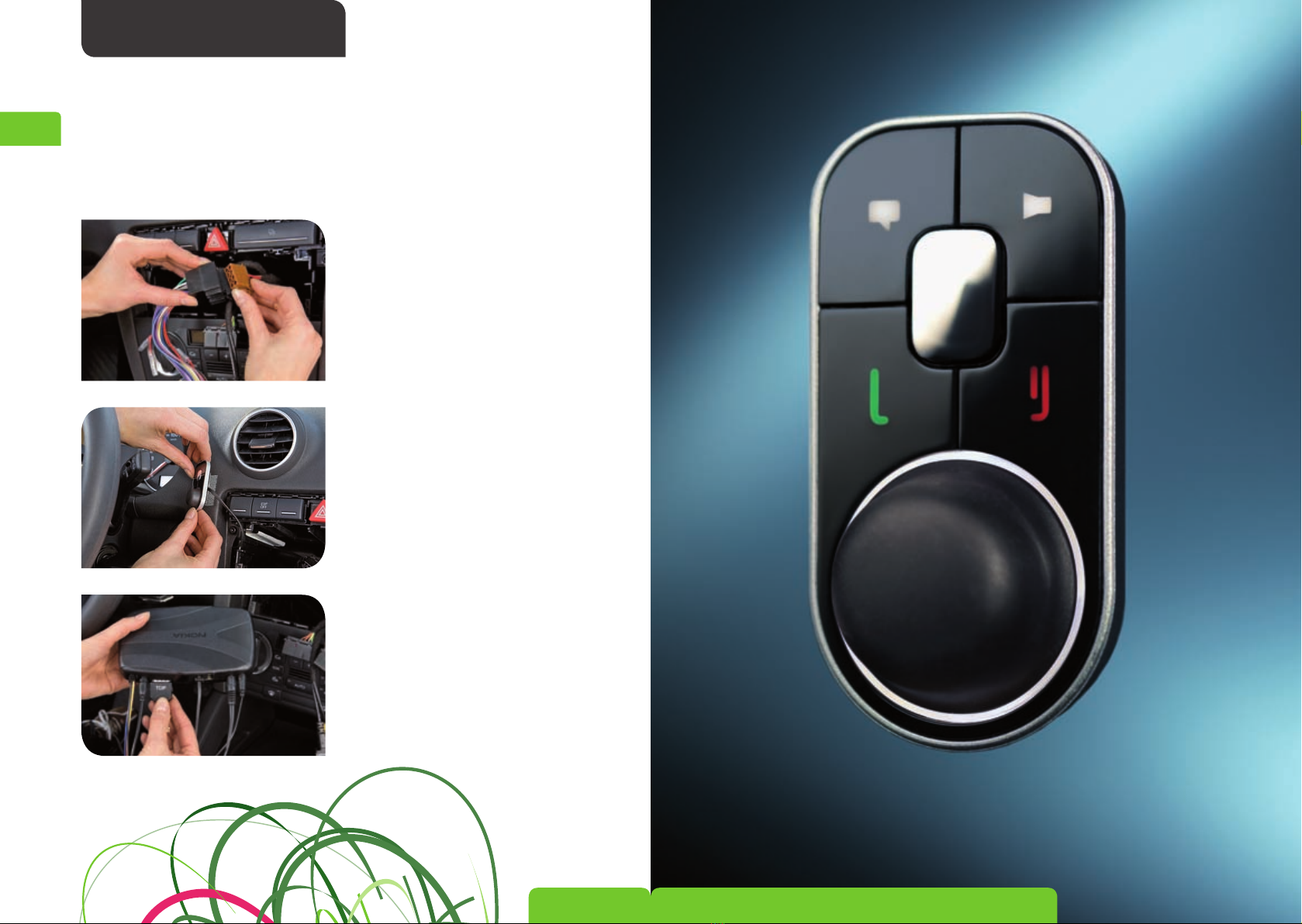

Input device

Best place is on the centre

console within reach

Handsfree unit

Control unit should

be secured behind

interior panel
