Niveo NGS18T16 Manuel utilisateur

User Manual

Niveo NGS18T16

16 10/100/1000BaseT(X) UTP/SFP combo ports and

2 Gigabit SFP Open Slots Management Switch

FCC Warning

This Equipment has been tested and found to comply with the limits for a Class-A

digital device, pursuant to Part 15 of the FCC rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy. It may

cause harmful interference to radio communications if the equipment is not installed

and used in accordance with the instructions. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

Content

Introduction....................................................................................................................... 4

Product Overview......................................................................................................... 4

Web Management Features....................................................................................... 4

Specifications................................................................................................................ 4

Mechanical.................................................................................................................... 5

Performance.................................................................................................................. 5

Package Contents........................................................................................................ 5

Hardware Description...................................................................................................... 6

Physical Dimensions/ Weight..................................................................................... 6

Front Panel.................................................................................................................... 6

LED Indicators.............................................................................................................. 6

Rear Panel..................................................................................................................... 7

Hardware Installation................................................................................................... 7

Software Description ........................................................................................................ 8

Login............................................................................................................................... 8

Configuration................................................................................................................. 9

System....................................................................................................................... 9

Ports......................................................................................................................... 10

VLAN.........................................................................................................................11

Aggregation............................................................................................................. 12

LACP........................................................................................................................ 13

RSTP........................................................................................................................ 13

802.1X...................................................................................................................... 15

IGMP Snooping...................................................................................................... 16

Mirroring................................................................................................................... 17

Quality of Service (QoS) ....................................................................................... 18

Filter Configuration................................................................................................. 20

Rate Limit Configuration........................................................................................ 22

Storm Control.......................................................................................................... 23

Monitorning.................................................................................................................. 24

Statistics Overview................................................................................................. 24

Detailed Statistics................................................................................................... 25

LACP Status............................................................................................................ 25

RSTP Status............................................................................................................ 27

IGMP Status............................................................................................................ 29

VeriPHY ................................................................................................................... 29

Ping........................................................................................................................... 30

Maintenance................................................................................................................ 31

Warm Restart.......................................................................................................... 31

Factory Default ....................................................................................................... 32

Software upload...................................................................................................... 32

Configuration File Transfer ................................................................................... 32

Logout...................................................................................................................... 33

Introduction

Product Overview

This switch is a Management Switch equipped with 16 10/100/1000BaseT(X)

UTP/SFP combo ports + 2 Gigabit SFP Open Slots. It is designed for easy

installation and high performance in an environment where traffic is on the

network and the number of users increased continuously. The compact rigid 19”

rack-mount size is specifically designed for small to medium workgroups. It

provides smooth network migration and is easy to upgrade the network capacity.

In addition, the switch features comprehensive and useful function such as QoS

(Quality of Service), Spanning Tree, VLAN, Port Trunking, Bandwidth Control,

Port Security, SNMP, IGMP Snooping capability via the intelligent software. It is

suitable for both metro-LAN and office application.

Web Management Features

Port Management

Port Mirroring

Bandwidth Control

Broadcast Strom Control

VLAN Setting

Port-based/ Tag-based

Trunking

Aggregation / LACP

QoS Setting

802.1p/DSCP

Spanning tree

STP/RSTP

Security Setting

802.1X /IP Filter/SNMP

IGMP Snooping

Specifications

Standard

IEEE 802.3 10BaseT

IEEE 802.3u 100BaseTX

IEEE 802.ab 1000BaseT

IEEE 802.3z 1000BaseSX/LX

IEEE 802.3x Flow Control

IEEE 802.1x Port-based Network Access Control

IEEE 802.1Q VLAN Tagging

IEEE 802.3ad Port Aggregation

IEEE 802.1d Spanning tree protocol

IEEE 802.1w Rapid Spanning tree protocol

IEEE 802.1p Class of service, Priority Protocols

Number of Port

16 10/100/1000BaseT(X) UTP/SFP combo ports + 2 Gigabit SFP Open Slots

Mechanical

LED Indicator

Per Port: LINK/ ACT, 1000

Per Unit: Power

Power Input: 100~240V/AC, 50~60HZ

Product Dimensions/ Weight

44 × 440 × 220 mm (H × W ×D) / 3kg

Performance

MAC Address: 8K

Buffer Memory: 500K Bytes

Jumbo Frames: 9.6K

Transmission Method: Store and Forward

Package Contents

Before you start to install this switch, please verify your package that contains

the following items:

One Gigabit Ethernet Switch

One Power Cord

CD : User Manual

Rack-mount kit

Hardware Description

This part primarily presents hardware of the web-smart switch, physical

dimensions and functional overview would be described.

Physical Dimensions/ Weight

44 × 440 × 220 mm (H × W × D) /3kg

Front Panel

The front Panel of the web-smart Switch consists of 16 10/100/1000BaseT(X)

UTP/SFP combo ports + 2 Gigabit SFP Open Slots. All of LED Indicators are also

located on the front panel.

LED Indicators

All of LED Indicators present real-time information of systematic operation status.

The following table provides descriptions of LED status and their meaning.

Table 1-1 LED Indicators

LED

Status

Description

Power

Power on

off

Power off

UTP

(1-16)

1000

Port is linked to1000M

Off

Port isn’t linked to 1000M

Link/ACT

Link

Flashing

Data activating

SFP

(1-18)

Link/ACT

(1-18)

Link

Flashing

Data activating

ACT

(1-16)

Link

Flashing

Data activating

LED Display

RJ-45 Port

SFP Port

Rear Panel

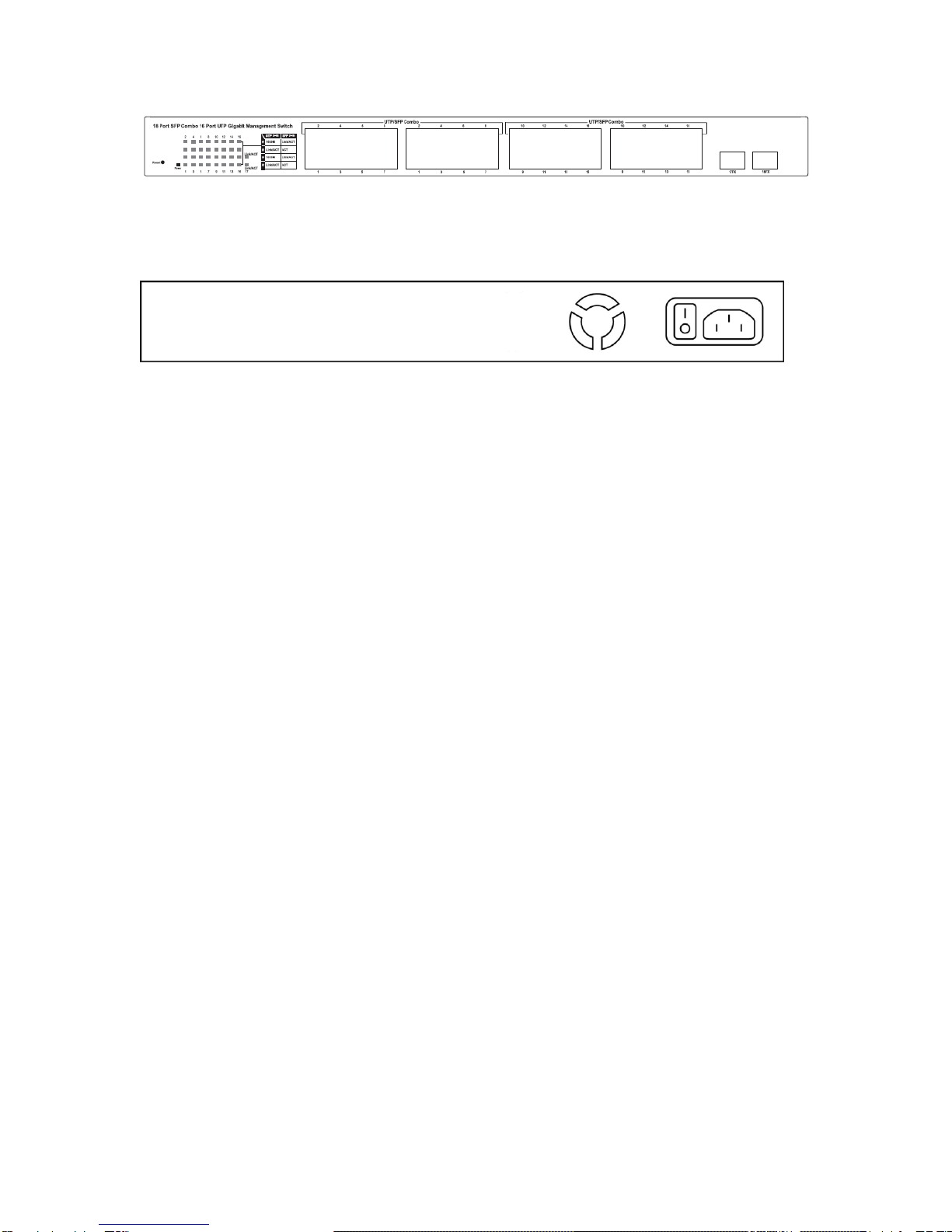

The 3-pronged power plug is placed at the rear panel which is on the right side of

the switch shown as below.

Hardware Installation

Set the switch on a large flat space with a power socket close by. The flat space

should be clean, smooth, level and sturdy. Make sure there is enough clearance

around the switch to allow attachment of cables, power cord and allow air

circulation. The last, use twisted pair cable to connect this switch to your PC then

user could start to operate the switch.

Software Description

This part instructs user how to set up and manage the switch through the web

user interface. Please follow the description to understand the procedure.

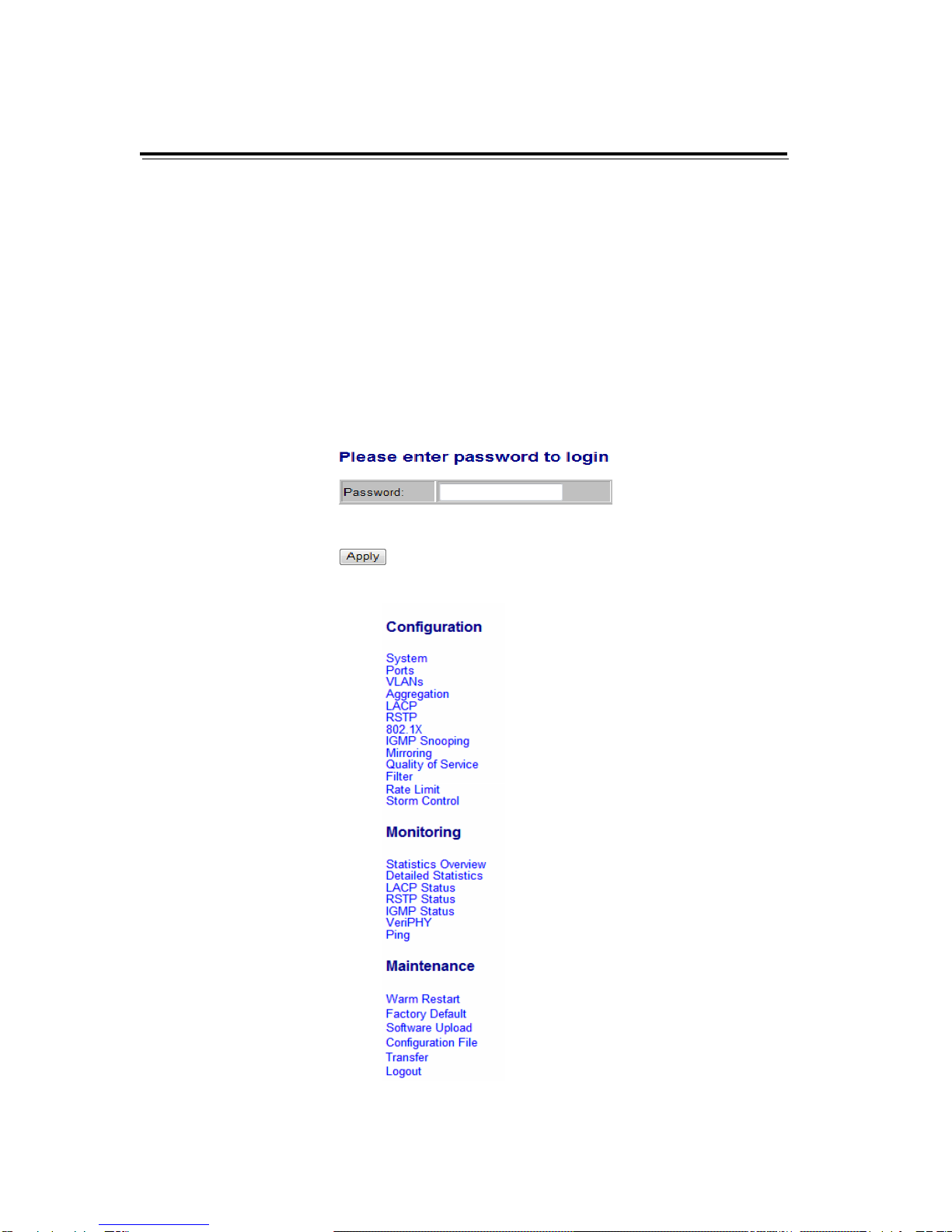

At the first, open the web browser, and go to 192.168.2.1 site then the user will

see the login screen. Key in the password to pass the authentication then clicks

the Apply.The login process is completed and comes out the sign “Password

successfully entered”.

Password: admin

Figure 1-1

After the user login, the right side of website shows all functions as Fig. 1-2.

Figure 1-2

Configuration

System

System Configuration

This page shows system configuration information. User can configure lots of

information as below:

Figure 2-1

MAC Address: Displays the unique hardware address assigned by

manufacturer (default).

S/W Version: Displays the switch’s firmware version.

H/W Version: Displays the switch’s Hardware version.

DHCP Enabled: Click the box to enable DHCP

Fallback IP address: Manually assign the IP address that the network is using.

The default IP is 192.168.2.1

Fallback Subnet Mask: Assign the subnet mask to the IP address

Fallback Gateway: Assign the network gateway for industrial switch. The

default gateway is 0.0.0.0.
