RAIL SETS
Rail sets will be packaged with corresponding front and back knuckles. To check the correct installation, hold the rail up
to the unit –the runner and stopper should face inward. This runner will hold the tray in the unit.

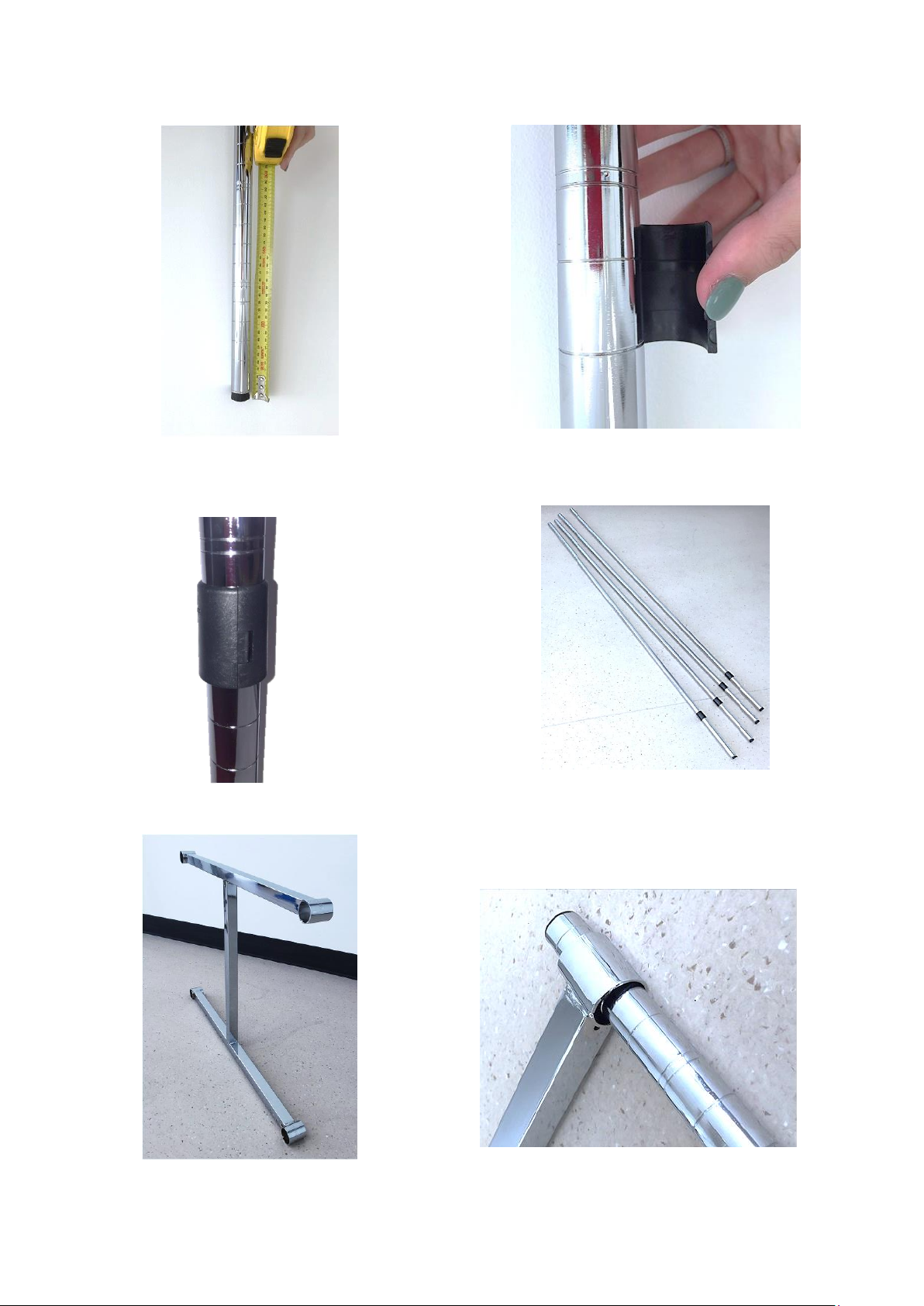

1. Take the first knuckle from the set
2. Open the knuckle by pushing the clip on the knuckle’s
side back until it releases.
3. Once open you will see the locating line on the inside
of the knuckle. This is to be located on the groove on the
post.
4. At the desired height for your first tray, place the
knuckle above the appropriate groove on the post.
*The first knuckle must be at least 2 grooves the post
below the H-Bar.
5. Slide the knuckle down post until the locating line on
the knuckle locates into the groove on the post then
close the knuckle around the post. Make sure the stopper
on the knuckle faces inward.
6. Ensure the end of the knuckle faces the opposite post
(front/back) and the stopper face in.
Repeat this process for the rear knuckle.
