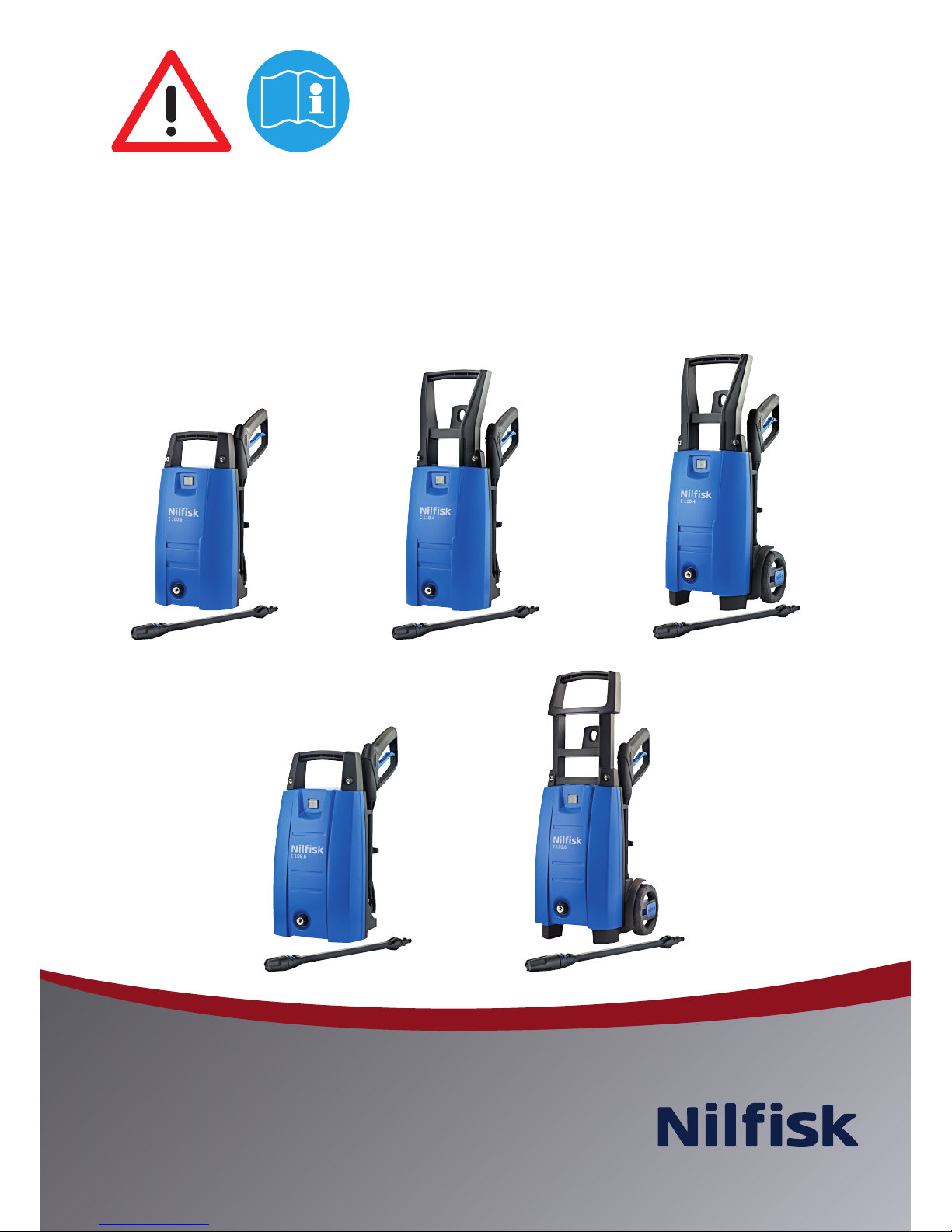

Nilfisk-Advance C 100.6 Manuel utilisateur

C 100.6, C 110.4, C 110.4 X-TRA,

C 105.6, C 120.6 X-TRA

128700022 e (09.2014)

EN-DA-NO-SV-FI-DE-FR-NL-IT-ES-PT-EL-TR-CS-

HU-PL-HR-SL-SK-LV-LT-ET-RU-ZH

User Manual

User Manual .......................................... 3 - 16

Instruktionsbog ...................................... 17 - 30

Instruksjonsbok...................................... 31 - 44

Instruktionsbok ...................................... 45 - 58

Käyttöohje.............................................. 59 - 72

Betriebsanleitung................................... 73 - 87

Instructions d’utilisation ......................... 88 - 103

Gebruiksaanwijzing ............................... 104 - 118

Istruzioni sull’uso ................................... 119 - 133

Instrucciones de manejo........................ 134 - 148

Instruções de operação......................... 149 - 163

Οδηγίες χρήσης..................................... 164 - 179

Kullanım Kılavuzu.................................. 180 - 194

Návod k obsluze.................................... 195 - 208

Használati útmutató............................... 209 - 223

Instrukcja użycia.................................... 224 - 238

Priručnik za korisnike............................. 239 - 252

SL Navodila za uporabo ........................ 253 - 266

Návod na používanie............................. 267 - 281

Lietošanas instrukcijae .......................... 282 - 295

Naudojimosi instrukcija.......................... 296 - 309

Kasutamisjuhend................................... 310 - 323

Руководство ......................................... 324 - 339

操作说明 .............................................. 340 - 350

3Original Instructions

Contents

1 Introduction.................................................................................................. 4

1.1 Symbols used to mark instruction.......................................................................4

2 Safety precautions and working techniques................................................4

3 Before you start using your high pressure washer................................ 10

3.1 Mounting of trolley handle and wheels .............................................................10

3.2 Mounting of quick coupling ...............................................................................10

4 Operating your high pressure washer..................................................... 11

4.1 Connection of high pressure hose ....................................................................11

4.2 Mounting of spray lance and Click&Clean nozzles ...........................................11

4.3 Water Connection .............................................................................................11

4.4 Starting the high pressure washer....................................................................12

5 After using the pressure washer.............................................................. 12

5.1 Stopping the high pressure washer ..................................................................12

6 Maintenance............................................................................................... 13

7 Troubleshooting......................................................................................... 13

8 Warranty Conditions ................................................................................. 14

9 Main technical Data ................................................................................... 15

10 Declaration of Conformity......................................................................... 16

1Original Instructions

1 Introduction

1.1 Symbols used to mark instruction

All pictograms attached to the high pressure washer and its components are shown and ex-

plained in this manual.

Safety instructions marked with this symbol must be observed to prevent personal injury or

serious damage to property.

Caution where there is a risk of damaging the machine or its individual components.

This symbol indicates tips and instructions to simplify work and to ensure a safe operation of

the high pressure washer.

2 Safety precautions and working techniques

Before starting up your machine for the ﬁrst time, this instruction manual must be read through

carefully. Save the instructions for later use.

WARNING!

• Inhalation of aerosols can be hazardous to health.

Where applicable use a device in order to avoid or re-

duce aerosols production, e.g., a shield covering the

nozzle. For protection against aerosols use a respira-

tory mask of class FFP 2 or higher.

• The high water pressure generated by the machine

and the power connection are particular sources of

danger.

• Children should be supervised to ensure that they do

not play with the machine.

• Before starting up your machine please check it care-

fully for any defects. If you ﬁnd any, do not start up

your machine, contact your Nilﬁsk distributor. The in-

sulation of the electric cable should be faultless and

without any cracks. If the electric cable is damaged,

an authorized Nilﬁsk distributor should replace it.

• The operator and anyone in the immediate vicinity of

the site of cleaning should take action to protect them-

selves from being struck by debris dislodged during

operation.

• Always unplug the power plug before cleaning or

maintenance and when replacing parts or converting



2Original Instructions

the machine to another function.

• Observe the national safety regulations issued, for

example, by the employers liability insurance associa-

tion, social security institutions, occupational safety

and health authorities or other organizations.

Accessories and spare parts

• To ensure the machine safety only use original spare

parts from Nilﬁsk or approved by Nilﬁsk.

• High pressure hoses, ﬁttings and couplings are impor-

tant for the safety of the machine. Only use hoses, ﬁt-

tings and couplings recommended by Nilﬁsk.

Physical, sensory or mental conditions

• This machine is not intended for use by persons

(including children) with reduced physical, senso-

ry or mental capabilities or lack of experience and

knowledge.

• Anyone who has consumed alcohol, medicines or

drugs affecting their ability to react must not operate

the machine.

Applications

This machine has been developed for domestic use

such as:

• Car, motorbike, boat, caravan, trailer, patio/drive/ﬂag-

stones, woodwork, brickwork, barbecue, garden furni-

ture, lawn mower.

Any other use is considered as improper use. Nilﬁsk

accepts no liability for any damage resulting from such

use. The risk for such use is borne solely by the user.

Proper use also includes proper operation, servicing

and repairs as speciﬁed in this instruction.

Clothing and equipment

Always take action to protect yourself when operating

the machine.

• Wear shoes with non-slip soles.

• Wear goggles, ear protection and protective clothes

during operation.



3Original Instructions

Transporting the high pressure washer

• When transporting the machine in or on a vehicle, it

must be secured, e.g. with straps, so that it cannot slip

or tip over.

• Nilﬁsk recommends that the machine is positioned

horizontally on the backside, when transported in or

on a vehicle.

Detergents

• This machine has been designed for use with clean-

ing agents supplied or recommended by Nilﬁsk. The

use of other cleaning agents or chemicals may ad-

versely affect the function of the machine.

Before starting the work

Inspecting the machine

• Do not use the machine if a supply cord or important

parts of the machine are damaged, e.g., safety de-

vice, high pressure hose, and spray handle and spray

attachments.

• The trigger of the spray handle must move easily and

automatically return to its starting position when re-

leased.

• Always keep high pressure hose and spray attach-

ment in good condition (clean, moving easily) and cor-

rectly assembled.

Electrical connection

WARNING!

Minimize the risk for electrical shock:

• Voltage and frequency of the machine (see rating

plate) must match the voltage of and frequency of the

mains supply.

• Only connect the machine to electrical installation

made by a certiﬁed electrician and comply with IEC

60364-1.

• It is recommended that the electrical supply to the

machine should include a residual current device that

will interrupt the supply if the leakage current to earth



4Original Instructions

exceeds 30 mA for 30 ms.

• Inadequate extension cables can be dangerous. If an

extension cable is used, it shall be suitable for outdoor

use, and the connection has to be kept dry and off the

ground

• Nilﬁsk recommends use of an extension cable drum

when cable extension is needed which keeps the

socket at least 60 mm above the ground.

• Cables on extension cable drums should always be

completely unwound to prevent overheating. Exten-

sion cables must comply with the below-mentioned re-

quirements for length and cable dimensions:

1.0 mm² Max. 12.5 m

1.5 mm² Max. 20.0 m

2.5 mm² Max. 30.0 m

• If the electric cable is damaged, it must be replaced

by an authorized Nilﬁsk distributor or similar qualiﬁed

person in order to avoid a hazard.

Water connection

• This high pressure washer is only allowed to be con-

nected with the drinking water mains, when an appro-

priate backﬂow preventer has been installed, Type BA

according to EN 60335-2-79.

• The backﬂow preventer can be ordered under number

106411177.

• As soon as drinking water has ﬂown through the back-

ﬂow preventer, it is no longer regarded as drinking

water.

• Operation by suction (e.g. a rainwater vessel) is car-

ried out without a backﬂow preventer – see “Connec-

ting to a pressureless water supply”.

IMPORTANT !

• Only use water without any impurities.

• If there is a risk of running sands in the inlet water

(i.e. from your own well), an additional ﬁlter should be

mounted.



5Original Instructions

During work

WARNING!

• Never use the machine in an environment where there

could be a danger of explosions. If any doubt arises

contact the local authorities.

• It is not allowed to clean asbestos-containing surfaces

with high pressure.

• Never draw in ﬂuids containing solvents (e.g., gaso-

line, heating oil, paint thinner or acetone) These sub-

stances damage the materials used in the machine.

Their spray is highly combustible, explosive and poi-

sonous.

• Never direct the water jet at yourself, other persons,

not even to clean clothing or footwear - risk of injury.

• Never direct the water jet at pets or other animals.

• Never direct the water jet at live electrical equipment

or the machine itself - danger of short-circuiting.

• Hold the spray lance ﬁrmly with both hands. The spray

lance is affected by a thrust of up to 16.4 N during

operation.

• This high pressure washer machine must not be ope-

rated at temperatures below 0°C.

• Never start up a frozen machine. Frost damages are

not covered by the guarantee!

• Always ensure ﬁrm and safe footing.

• Keep the machine as far away as possible from the

object being cleaned.

• Always adjust the distance and thus the pressure of

the nozzle to the surface, which is to be cleaned to

avoid any damage to the surface being cleaned.

• The machine shall be operated in an upright position.

• Do not cover the machine or use it in a room without

adequate ventilation.

• If the machine is left or not used for 5 minutes, it must

be switched off on the start/stop switch "O" (1).



6Original Instructions

After ﬁnishing the work

WARNING!

• Always switch off the machine and unplug the power

plug from the socket after work and when leaving the

machine unattended.

• Disconnect water inlet hose between machine and

water supply.

• Wind up electrical cable and high pressure hose – to

avoid damage of cable, plug, high pressure hose and

ﬁttings.

• Always empty pump, hose and accessories of water

after use of the machine and prior to storing.

Maintenance and repairs

WARNING!

• Always disconnect the electrical plug from the socket

prior to maintenance, cleaning and repair.

• Any repair should always be made in Nilﬁsk

authorized workshop with original Nilﬁsk spare parts.

• Do not attempt any maintenance not described in the

instructions.

• If the machine refuses to start, stops, pulsates, pres-

sure ﬂuctuates, motor busses, fuse blows or no wa-

ter comes out, check the trouble shooting diagram

in these instructions. In case other problems occur,

please contact your local Nilﬁsk distributor.

Recycling the high pressure washer

Make the old machine unusable immediately.

• Unplug the machine.

• Cut the electric cable.

Do not discard electrical appliances with household

waste. As speciﬁed in WEEE Directive 2012/19/EC on

old electrical and electronic appliances, used electrical

goods must be collected separately and recycled eco-

logically. Contact your local authorities or your nearest

dealer for further information.

10 Original Instructions



3 Before you start using your high pressure washer

See the pictorial quick reference guide – unpacking.

Illustration shows the operation elements and how to prepare your machine for use.

Operation elements

1. Start/stop switch

2. Water inlet with ﬁlter (2a)

3. High pressure connection

4. High pressure hose

5. Electric cable

6. Click&Clean spray lance

7. Spray handle with lock (7a)

8. Click&Clean Tornado nozzle (C 100.6, C 105.6 and C 110.4)

9. Click&Clean Tornado PR nozzle (C 120.6)

10. Click&Clean Powerspeed nozzle

11. Foam sprayer

12. Nozzle cleaning tool

13. Accessory storage

14. Model tag

15. Trolley handle

16. Holder for hose/electric cable (C 100.6-6, C 110.4 and C 120.6)

17. Hexagon key for handle and bracket mounting

18. Wheel brackets

19. Wheels

20. Wheel caps

3.1 Mounting of trolley handle and wheels

Mounting of trolley handle

Only applicable for models with trolley handle and wheels (C 100.6-6, C 110.4, C 110.4 X-TRA

and C 120.6 X-TRA)

A1 Place the trolley handle (15) on the machine.

A2 Secure the handle by mounting the 2 screws using the enclosed hexagon key (17).

Mounting of wheel brackets

A3 Place the wheel brackets (18) on the machine.

A4 Secure the wheel brackets by mounting the 2 screws, using the enclosed hexagon key.

A5 Place the wheels (19) on the wheel axel – push into position – you should hear a click

when the wheels are in correct position.

A6 Secure the wheels by mounting the wheel caps (20) – you should hear a click when the

wheel caps are in correct position and the wheel is secured.

3.2 Mounting of quick coupling

A7 When mounting the quick coupling for the ﬁrst time, check that the factory ﬁtted ﬁlter (2a)

is positioned in the water inlet pipe.

A8 Screw the quick coupling tight on to the water inlet (2).

IMPORTANT!

The inlet ﬁlter must always be ﬁtted in the water inlet pipe to ﬁlter out sand, limestone and

other impurities as these will damage the pump valves. The ﬁlter is factory ﬁtted.

If the ﬁlter is removed this will invalidate the guarantee.

Autres manuels pour C 100.6

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Nilfisk-Advance Nettoyeur haute pression

Nilfisk-Advance

Nilfisk-Advance C 100.6 Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance MC 4M Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance MH 4M Series Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance P 130.1 Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance N/G-3000 A Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance SelectSpray 1500E 56011781 Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance Alto POSEIDON 2 Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance Selectspray 2700G Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance D 130.4 X-TRA Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance FI-30N Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance SH SOLAR G Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance E130.3 X-TRA Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance MH 5M E Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance 2300A Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance MH 5M E Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance N/G-411A Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance C 135.1 Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance MH 3M Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance Core 130 Powercontrol Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance MH 3M Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance MC 2C-180 PE Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance HYBRID PENTA SU11-PD22 Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance MC 8P Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance C 125.4 Manuel utilisateur

Manuels Nettoyeur haute pression populaires d'autres marques

Shark

Shark RG-232637 Manuel utilisateur

Shakti Technology

Shakti Technology S3 Manuel utilisateur

Kärcher

Kärcher K 4 Pure Manuel utilisateur

Porter-Cable

Porter-Cable D25806-025-2 Manuel utilisateur

REM POWER

REM POWER HDEm 662 Manuel utilisateur

Landa

Landa HS-3000 Manuel utilisateur

Craftsman

Craftsman 580.752270 Manuel utilisateur

HIKOKI

HIKOKI AW 100 Manuel utilisateur

Delco

Delco DC 1302 Manuel utilisateur

Kärcher

Kärcher K 3 Full Control Manuel utilisateur

BIEMMEDUE

BIEMMEDUE 120/10 - 170/13 Manuel utilisateur

ARKSEN

ARKSEN 014-HG-14141-HR Manuel utilisateur

Black & Decker

Black & Decker PW1700SPX Manuel utilisateur

Kärcher

Kärcher 595 - SPARE Mode d’emploi

Kranzle

Kranzle B 10 200 Manuel utilisateur

Stihl

Stihl RE 90 Manuel utilisateur

Husky

Husky HU80911 Manuel utilisateur

PowR-Quip

PowR-Quip PQ-2600 Manuel utilisateur
