Upgrading the Firmware for the D700

Upgrading the Firmware for the

D700

Macintosh 

Thank you for choosing a Nikon product. This guide describes how

to upgrade the camera firmware for the D700.

If you are not confident that you can perform the update

successfully, the update can be performed by a Nikon-authorized

service representative.

Important

The camera may be damaged if power is interrupted or camera controls are operated during the

update. Do not turn the camera off, remove or disconnect the power source, or operate camera

controls during the update. If the update is not completed successfully and the camera becomes

inoperable, take the camera to a Nikon-authorized service representative for inspection.

Get ready

To upgrade the camera firmware, you will need:

The camera

A computer equipped with an CF card reader or card slot

One of the following power sources:

An EH-5/EH-5a AC adapter

A fully-charged EN-EL3e rechargeable Li-ion battery

A Nikon-approved memory card that has been formatted in the camera (note that

all data on the memory card will be deleted when the card is formatted; before

formatting the card, back up any data you wish to keep to a computer or other

device).

The camera

User's Manual

file:///K|/d700_mac_en_NQR.html (1 of 6) [1/4/2010 3:00:47 PM]

Upgrading the Firmware for the D700

Check the current camera firmware version

Turn the camera on.

Press the MENU

button and select

Firmware version

in the setup menu.

Two firmware versions (A and B) will be

displayed. Both should be earlier than 1.01.

Press OK and turn the camera off.

Download and extract the new firmware

Click the I agree - Begin download link on the download site to download the file “F-

D700-V102M.dmg”. Double-click this file to mount a disk image containing the folder

“D700Update,”which contains the following files:

D7000102.bin Camera firmware

file:///K|/d700_mac_en_NQR.html (2 of 6) [1/4/2010 3:00:47 PM]

Upgrading the Firmware for the D700

Copy the firmware to the memory card

To copy the firmware to the memory card, a computer is used.

Connect the card reader to the computer and insert a formatted memory card.

If Nikon Transfer is installed, it will start automatically; to exit, select Quit

Nikon Transfer from the Nikon Transfer menu.

Copy the firmware to the memory card.

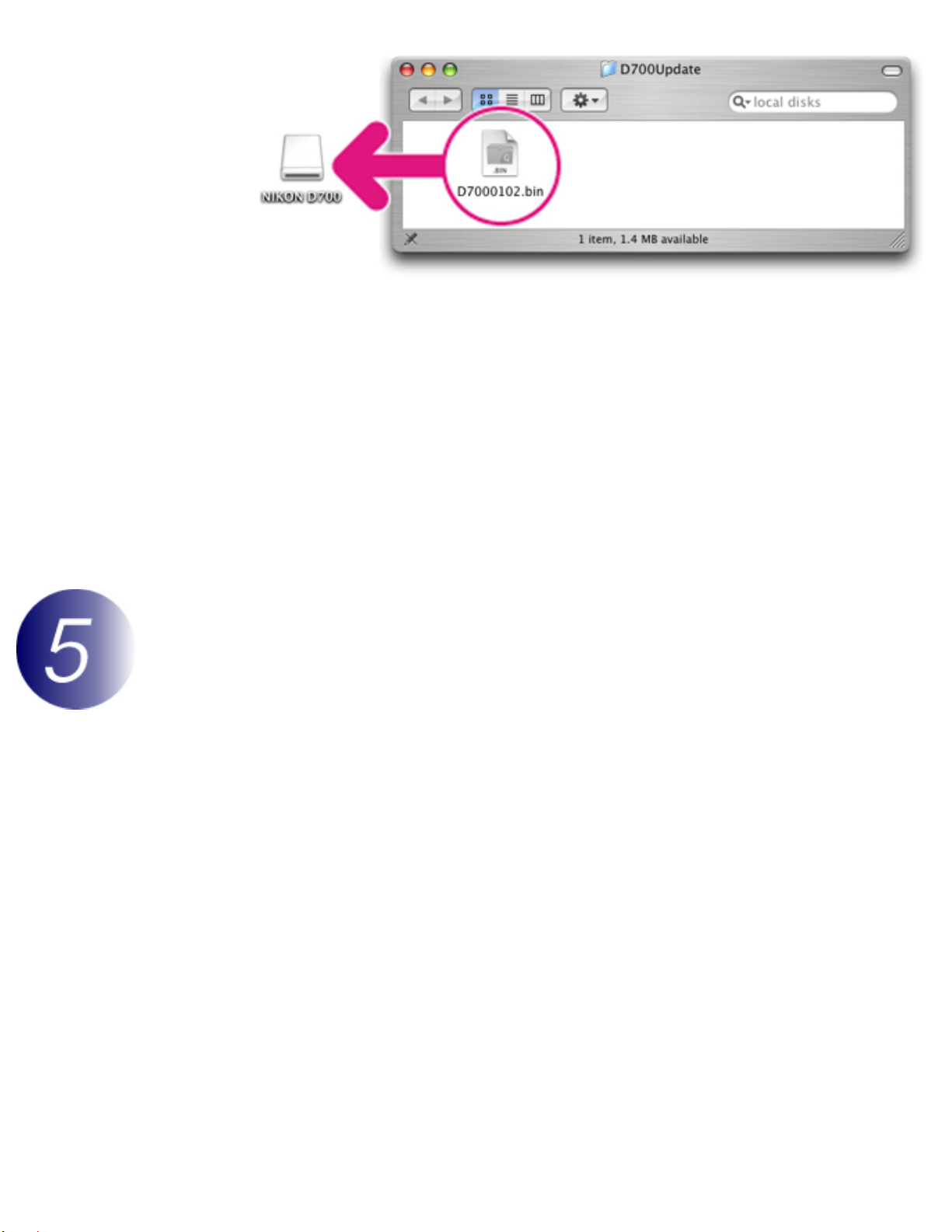

2-1. A camera volume will appear on the desktop. Copy “D7000102.bin”from the

“D700Update”folder this volume.

file:///K|/d700_mac_en_NQR.html (3 of 6) [1/4/2010 3:00:47 PM]

Upgrading the Firmware for the D700

2-2. When copying is complete, confirm that the camera volume contains the

“D7000102.bin”.

Drag the camera volume into the Trash and remove the memory card from the

card reader.

Important

Be sure to copy the firmware to the root directory of the memory card. The camera will not

recognize the new firmware if it is placed in a folder under the root directory.

Update the camera firmware

During the update, do not:

Remove the memory card

Turn the camera off

Operate any of the camera controls

Attach or remove lenses

Unplug or disconnect the AC adapter

Remove the battery

Subject the camera to powerful electromagnetic noise

Any of the above actions could cause the camera to become inoperable.

Insert the memory card containing the firmware into the camera.

Turn the camera on.

file:///K|/d700_mac_en_NQR.html (4 of 6) [1/4/2010 3:00:47 PM]

Upgrading the Firmware for the D700

Press the MENU

button and select

Firmware version

in the setup menu.

The current firmware version will be

displayed. Highlight Update and press the

multi selector to the right.

A firmware update

dialog will be

displayed. Highlight

Yes and press OK

to begin the update.

The update may take anywhere from two to

five minutes. Do not perform any operations

while the messages shown at right are

displayed.

file:///K|/d700_mac_en_NQR.html (5 of 6) [1/4/2010 3:00:47 PM]

Upgrading the Firmware for the D700

The message shown at right will be displayed

when the update is complete.

Confirm that the update was completed successfully.

7-1.Turn the camera off and remove the memory card.

7-2.Check the camera firmware version as described in Step 2, “Check the

current camera firmware version.”

7-3.If the version displayed is 1.02, the

update was successful.

Format the memory card.

This completes the firmware update.

file:///K|/d700_mac_en_NQR.html (6 of 6) [1/4/2010 3:00:47 PM]
