Nikon D5600 Manuel utilisateur

User’s Manual

DIGITAL CAMERA

Quick Start Guide 6

“Point-and-Shoot” Modes (iand j) 11

Viewing Photographs 11

Deleting Unwanted Photographs 11

Recording Movies 12

Camera Menus 13

Caring for the Camera 14

Troubleshooting 14

Specifications 15

For Your Safety 27

Notices 29

Bluetooth and Wi-Fi (Wireless LAN) 33

The Camera Body 3

• Read this manual thoroughly before using the camera.

• To ensure proper use of the camera, be sure to read

“For Your Safety” (027).

• After reading this manual, keep it in a readily accessible

place for future reference.

Package Contents

❏ D5600 camera

❏ DK-25 rubber eyecup

❏ BF-1B body cap

❏ EN-EL14a rechargeable Li-ion

battery (with terminal cover)

❏ AN-DC3 strap

❏ User’s Manual (this booklet)

❏ Warranty

❏ MH-24 battery charger (plug adapter supplied in countries or regions

where required; shape depends on country of sale)

Purchasers of the lens kit option should conrm that the package also

includes a lens. Memory cards are sold separately. Cameras purchased

in Japan display menus and messages in English and Japanese

only; other languages are not supported. We apologize for any

inconvenience this may cause.

D5600 Model Name: N1538

About the Reference Manual

For more information on using your Nikon camera, download a pdf copy of

the camera Reference Manual from the website listed below.

http://downloadcenter.nikonimglib.com/

Nikon User Support

Contact a Nikon representative for technical assistance with the operation of

your Nikon product or products. For information on the Nikon representatives in

your area, visit http://www.nikon-asia.com/support.

Nikon Manual Viewer 2

Install the Nikon Manual Viewer 2 app on your smartphone or tablet to view

Nikon digital camera manuals, anytime, anywhere. Nikon Manual Viewer 2

can be downloaded free of charge from the App Store and Google Play.

The Camera Body

1516

1 AF-assist illuminator

Self-timer lamp

Red-eye reduction lamp

2 Power switch

3 Shutter-release button

4 E/Nbutton

5 Movie-record button

6 Live view switch

7 Mode dial

8 Built-in ash

9 M/Ybutton

10 Eyelets for camera strap

11 Fn button

12 Mounting mark

13 Lens release button

14 s/Ebutton

15 Mirror

16 Lens mount

17 CPU contacts

18 Body cap

20 2119

22 23 24

19 Stereo microphone

20 Accessory shoe (for optional ash

units)

21 Eye sensor

22 R(information) button

23 Command dial

24 A/Lbutton

25 Connector cover

26 Gbutton

27 Speaker

28 Focal plane mark (E)

29 USB connector

30 Connector for external

microphone

31 Accessory terminal

47 33 34 35 36

414244 43 51

32 Viewnder eyepiece

33 Diopter adjustment control

34 Kbutton

35 Pbutton

36 Multi selector

37 J(OK) button

38 N-Mark (NFC antenna)

39 Obutton

40 Memory card access lamp

41 Battery-chamber cover latch

42 Battery-chamber cover

43 W/Qbutton

44 Xbutton

45 Tripod socket

46 Touch-sensitive vari-angle

monitor

47 Rubber eyecup

48 HDMI connector cover

49 Memory card slot cover

50 Power connector cover for

optional power connector

51 Battery latch

A The Multi Selector

In this manual, operations using the multi selector are represented by 1, 3,

4, and 2icons.

1: Press the multi selector up

4: Press the multi

selector left

2: Press the multi selector

right

3: Press the multi selector down

Jbutton (select)

Quick Start Guide

Attach the Camera Strap

Charge the Battery

If a plug adapter is supplied, raise the wall plug and connect the plug

adapter as shown below at left, making sure the plug is fully inserted.

Insert the battery and plug the charger in.

Battery charging

Charging complete

Insert the Battery and a Memory Card

Open the Monitor

Open the monitor as shown. Do not use force.

Attach a Lens

Mounting mark (camera)

Mounting mark (lens)

Rotate the lens as shown until it clicks into place.

A Lenses with Retractable Lens Barrel Buttons

Before using the camera, unlock and extend the lens. Keeping the retractable

lens barrel button pressed (q), rotate the zoom ring as shown (w).

Retractable lens barrel button

Pictures can not be taken when the lens is

retracted; if an error message is displayed as a

result of the camera having been turned on with

the lens retracted, rotate the zoom ring until the

message is no longer displayed.

A Removing Lenses

To remove the lens, turn the camera o and press and hold the

lens-release button on the front of the camera while rotating

the lens in the direction opposite that shown above.

Camera Setup

❚❚ Setup from a Smartphone or Tablet

Download and install the SnapBridge app.

The app is available free from the Nikon website

(http://snapbridge.nikon.com), the Apple App Store®, and

GooglePlay™.

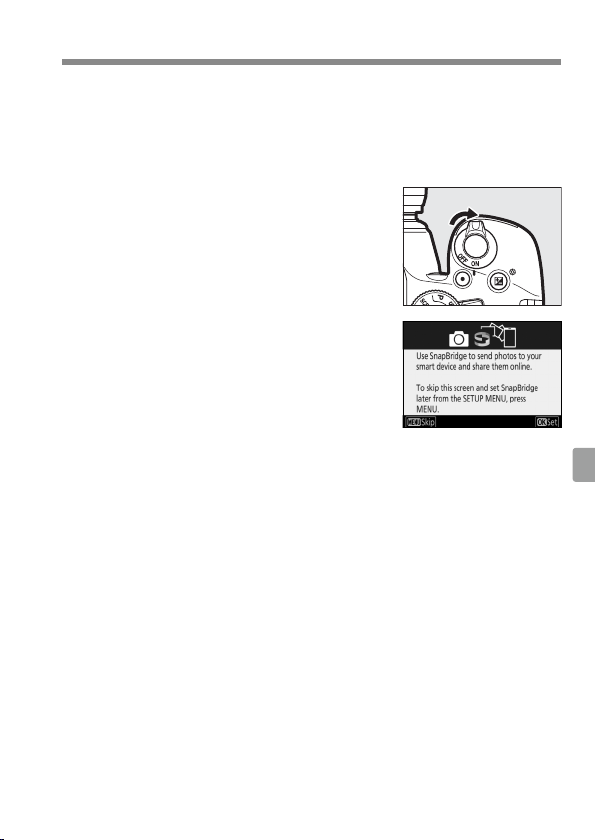

Turn the camera on.

A language-selection dialog will be

displayed; press 1and 3to highlight a

language and press Jto select.

Press Jwhen the dialog at right is

displayed.

Pair the camera and the smart device.

• Android devices with NFC support: After checking that NFC is enabled

on the smart device, touch the camera H(N-Mark) to the NFC

antenna on the smart device to launch the SnapBridge app.

• iOS devices and Android devices without NFC support: Press the camera

Jbutton. The camera will wait for a connection; launch the

SnapBridge app on the smart device and follow the on-screen

instructions to tap the name of the camera you want to pair with.

Check the authentication code.

Press Jon the camera and tap PAIR on the smart device (the

button may vary with the smart device).

Press Jwhen the dialog at right is

displayed.

If the camera displays Unable to

connect., the display will change after a

short pause. Return to Step 4.

Follow the on-screen instructions.

Follow the instructions displayed by the camera and smart device

to complete the setup process.

❚❚ Setup from the Camera Menus

Turn the camera on.

A language-selection dialog will be displayed; press 1and 3to

highlight a language and press Jto select.

Press Gand set the camera clock.

After setting time zone, date format, and

daylight saving time options, use the

multi selector and Jbutton to set the

camera clock.

Focus the Viewnder

After removing the lens cap, rotate the

diopter adjustment control until the AF

area brackets are in sharp focus. When

operating the control with your eye to the

viewnder, be careful not to put your ngers

or ngernails in your eye.

Viewnder not in focus Viewnder in focus
