Nikon D3000 Manuel utilisateur

DIGITAL CAMERA

)¢)C)

User's Manual

PictureControls

Nikon's unique Picture Control system makes it possible to share image processing

settings, including sharpening, contrast, saturation, and hue, among compatible

devices and software.

Selecting a Picture Control

The camera offers six Picture Controls. In RS,A,and Mmodes, you can choose a

Picture Control according to the subject or type of scene (in other modes, the camera

selects a Picture Control automatically).

Display Picture Controls.

To display the menus, press the MENUbutton.

Highlight Set Picture Control in the

shooting menu and press I_ to display a list

of Picture Controls. MENUbutton

2Choose a Picture Control.

Highlight one of the following options and press

_-=!:_i-()_Dti°on='T=':_::_''_-_ T_:::::: Description

Standard processing for balanced results. Recommended for most

r_SD Standard situations.

Minimal processing for natural results. Choose for photographs that

[]NL Neutral will later be extensively processed or retouched.

Pictures are enhanced for a vivid, photoprint effect. Choose for

[]Vl Vivid photographs that emphasize primary colors.

BMC Monochrome Take monochrome photographs.

BPT Portrait Process portraits for skin with natural texture and a rounded feel.

r_LS Landscape Produces vibrant landscapes and cityscapes.

Modifying Picture Controls

Picture Controls can be modified to suit the scene or the user's

creative intent. Choose a balanced combination of settings

using Quick adjust, or make manual adjustments to individual

settings.

Display the Picture Control menu.

Todisplay the menus, press the MENUbutton.

Highlight Set Picture Control in the

shooting menu and press I_.

Select a Picture Control.

Highlight the desired Picture Control and

press I_.

MENUbutton

Adjust settings.

Press • or • to highlight the desired setting

and press • or I_ to choose a value (_ 89).

Repeat this step until all settings have been

adjusted, or select Quick adjust to choose a

preset combination of settings. Default

settings can be restored by pressing the

button.

4Press _).

[] Modifications to Original Picture Controls

Picture Controls that have been modified from default settings are

indicated by an asterisk ("*").

Quickadjust

Sharpening

-_==

_,="_' Contrast

_=_

_Saturation

_' Hue

_Filter

_= effects

_. Toning

Choose from options between -2 and +2 to reduce or exaggerate the effect

of the selected Picture Control (note that this resets all manual adjustments).

For example, choosing positive values for Vivid makes pictures more vivid.

Not available with Neutral or Monochrome Picture Controls.

Control the sharpness of outlines. Select Ato adjust sharpening

automatically according to the type of scene, or choose from values between

0(no sharpening) and 9(the higher the value, the greater the sharpening).

Select Ato adjust contrast automatically according to the type of scene, or

choose from values between -3 and +3 (choose lower values to prevent

highlights in portrait subjects from being "washed out" in direct sunlight,

higher values to preserve detail in misty landscapes and other low-contrast

subjects). Not available when Active D-Lighting (_ 64) is on; reset if Active

D-Lighting isactivated after value is changed.

Control the vividness of colors. Select Ato adjust saturation automatically

according to the type of scene, or choose from values between -3 and +3

lower values reduce saturation and higher values increase it).

Choose negative values (to a minimum of-3) to make reds more purple,

blues more green, and greens more yellow, positive values (up to +3) to

make reds more orange, greens more blue, and blues more purple.

Simulate the effect of color filters on monochrome photographs. Choose

from Off (the default setting), yellow, orange, red, and green (_ 90).

Choose the tint used in monochrome photographs from B&W (black-and-

white), Sepia, Cyanotype (blue-tinted monochrome), Red, Yellow, Green,

Blue Green, Blue, Purple Blue, Red Purple (_ 90).

"A" (Auto)

Results for auto contrast and saturation vary with exposure and the position of the subject in

the frame.

[] The Picture Control Grid

Pressing the _ button in Step 3 displays a Picture Control grid

showing the contrast and saturation for the selected Picture Control

in relation to the other Picture Controls (only contrast isdisplayed

when Monochrome isselected). Release the _ button to return to

the Picture Control menu.

The icons for Picture Controls that use auto contrast and saturation

are displayed in green in the Picture Control grid, and lines appear

parallel to the axes of the grid.

[] Previous Settings

The line under the value display in the Picture Control setting menu

indicates the previous value for the setting. Use this as a reference

when adjusting settings.

[] Filter Effects (Monochrome Only)

The options in this menu simulate the effect of color filters on monochrome photographs.

The following filter effects are available:

Note that the effects achieved with Filter effects are more pronounced than those

produced by physical glassfilters.

[] Toning (Monochrome Only)

Pressing • when Toning is selected displays saturation options.

Press• or • to adjust saturation. Saturation control is not available

when B&W (black-and-white) is selected.

MoreonPlayback

Full.Frame Pla,

To play photographs back, press the F_Ibutton.

The most recent photograph will be displayed in

the monitor.

F_qbutton

View additional

photographs

View photo

information

View thumbnails

Zoom in on

photograph

Delete images

Change protect

status

Return to

shooting mode

Display menus

Create retouched

copy or play stop-

motion movie

__Us°e =°:U:'_=_- Description _

Press • to view photographs in order recorded, • to view

photographs in reverse order.

//_ Press A or V to view information about current photograph

i(__ ,_1_

._j (_ 92).

ql_ See page 97 for more information on the thumbnail display.

See page 99 for more information on playback zoom.

Confirmation dialog will be displayed. Press _ again to

delete photo.

To protect image, or to remove protection from protected

O-Irl AE-[

G,-O image, press o-. (Ik_)button (_ 100).

Monitor will turn off. Photographs can be taken

immediately.

MENU See page 117 for more information.

Create retouched copy of current photograph (_ 140). If

current picture is marked with _ icon to show that it is a

@stop-motion movie, pressing _) starts movie playback

(_ 153).

Photo Information

Photo information is superimposed on images displayed in full-frame playback.

Press • or • to cycle through photo information as shown below. Note that

shooting data, RGB histograms, and highlights are only displayed if corresponding

option is selected for Display mode (_ 118).

File information Overview data Shooting data 3 Shooting data 2

RGBhistogram Highlights Shooting data I

II FileInformation

8 7

Protect status ...............................................1O0

Retouch indicator .......................................141

Frame number/total number of images

File name .........................................................51

Image quality .................................................50

Image size ........................................................52

Time of recording .........................................18

Date of recording ..........................................18

Folder name ..................................................138

II R6BHistogrom_

Protect status ...............................................1O0

Retouch indicator .......................................141

White balance .................................................80

White balance fine-tuning ......................82

Preset manual ..............................................83

_ Camera name

Histogram (RGB channel). In all

histograms, horizontal axis gives pixel

brightness, vertical axis number of

pixels.

Histogram (red channel)

Histogram (green channel)

Histogram (blue channel)

Frame number/total number of images

Displayed only if RGB histogram is selected for Display mode (_ 118).

[] Playback Zoom

Tozoom in on the photograph when the histogram is

displayed, press % Usethe _ and ql_ buttons to zoom in

and out and scroll the image with the multi selector. The

histogram will be updated to show only the data for the

3ortion of the image visible in the monitor.

[] Histograms

Camera histograms are intended as a guide only and may differ from those displayed in

tmaging applications. Some sample histograms are shown below:

If the image contains objects with a wide range of

brightnesses, the distribution of tones will be relatively

eve n.

If the image is dark, tone distribution will be shifted to the

left.

If the image is bright, tone distribution will be shifted to

the right.

Increasing exposure compensation shifts the distribution of tones to the right, while

decreasing exposure compensation shifts the distribution to the left. Histograms can

3rovide a rough idea of overall exposure when bright ambient lighting makes it difficult to

see photographs in the monitor.

Protect status ...............................................1O0

Retouch indicator .......................................141

Image highlights

_ Camera name

Frame number/total number of images

4 5

*Displayed only if Highlights is selected for Display mode (_ 118). Blinking areas indicate

highlights.

ll ShootingData Page 17

1 2

I0 II

Protect status ...............................................1O0

Retouch indicator .......................................141

Metering ...........................................................74

Shutter speed ..........................................69, 71

Aperture ....................................................70, 71

Shooting mode ................................25, 30, 67

ISO sensitivity 2............................................... 62

Exposure compensation .............................76

Focal length ..................................................161

Lens data

Focus mode ..............................................41,48

Lens VR (vibration reduction) 3.................17

Flash mode ......................................................59

Flash compensation .....................................78

Camera name

Frame number/total number of images

1 Displayed only if Data is selected for Display mode (_ 118).

2Displayed in red if photo was taken with ISO sensitivity auto control on.

3 Displayed only ifVR lens isattached.

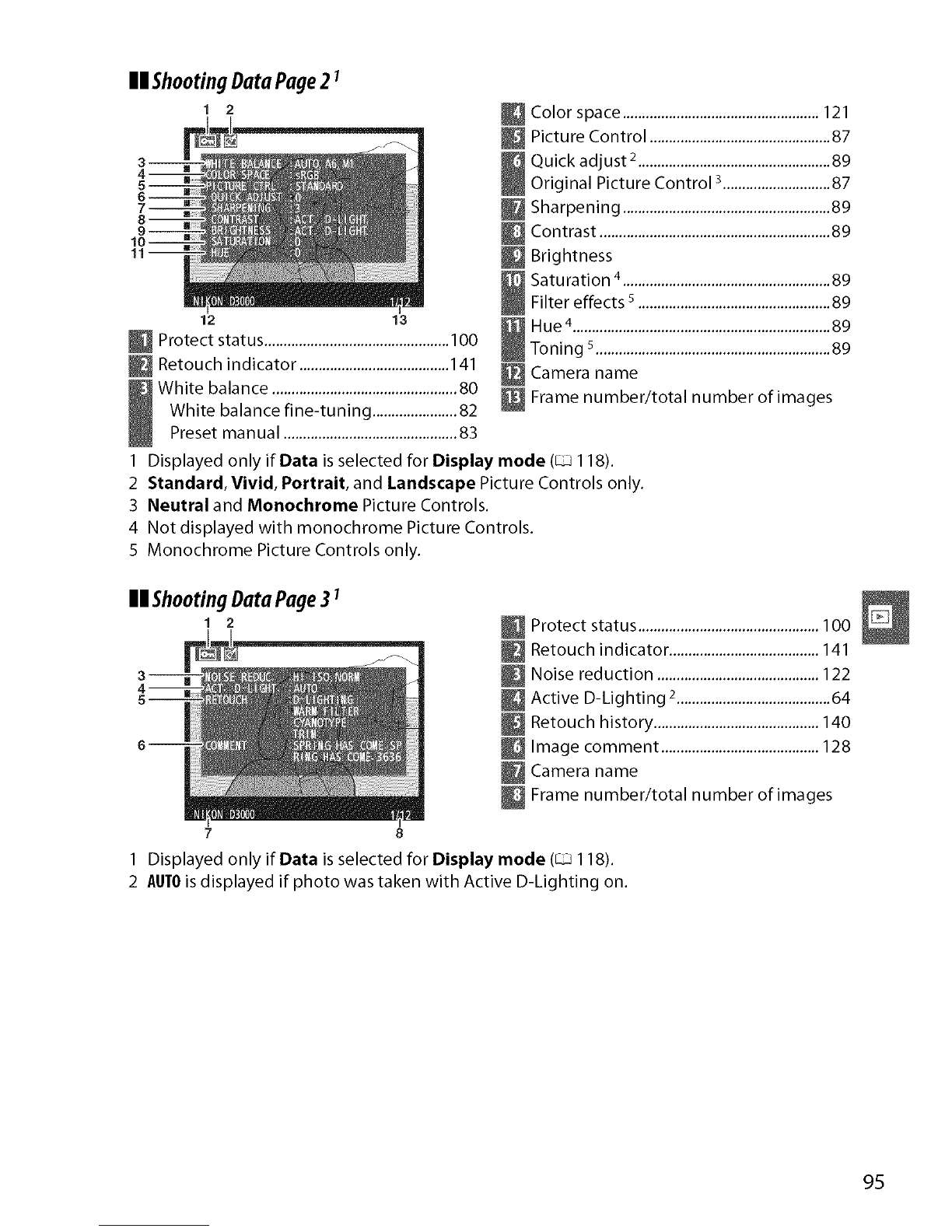

IIShooting Data Page 21

12 13

Protect status ................................................100

Retouch indicator .......................................141

White balance ................................................80

White balance fine-tuning ......................82

Preset manual .............................................83

Color space...................................................121

Picture Control ...............................................87

Quick adjust 2..................................................89

Original Picture Control 3............................87

Sharpening ......................................................89

Contrast ............................................................89

Brightness

[Saturation 4......................................................89

Filter effects s..................................................89

Hue4................................................................... 89

Toning 5.............................................................89

_ Camera name

Frame number/total number of images

1 Displayed only if Data is selected for Display mode (_ 118),

2Standard, Vivid, Portrait, and Landscape Picture Controls only.

3Neutral and Monochrome Picture Controls.

4 Not displayed with monochrome Picture Controls.

5 Monochrome Picture Controls only.

UShootingData Page3 7

12Protect status ...............................................100

Retouch indicator .......................................141

Noise reduction ..........................................122

Active D-Lighting 2........................................64

Retouch history ...........................................140

Image comment .........................................128

_ Camera name

Frame number/total number of images

1 Displayed only if Data is selected for Display mode (_ 118).

2AUTOis displayed if photo was taken with Active D-Lighting on.

Autres manuels pour D3000

Table des matières

Autres manuels Nikon Appareil photo numérique

Nikon

Nikon COOLPIX AW100 Manuel utilisateur

Nikon

Nikon D300 Manuel utilisateur

Nikon

Nikon Coolpix A10 Manuel utilisateur

Nikon

Nikon CoolPix P500 Manuel utilisateur

Nikon

Nikon KEYMISSION 360 Manuel utilisateur

Nikon

Nikon D-40 - D40 6.1MP The Smallest Digital SLR... Manuel utilisateur

Nikon

Nikon Coolpix S3100 Manuel utilisateur

Nikon

Nikon 25557 Manuel utilisateur

Nikon

Nikon 25438 Manuel utilisateur

Nikon

Nikon D200 Manuel utilisateur

Nikon

Nikon COOLPIX S9600 Manuel utilisateur

Nikon

Nikon Coolpix S640 Guide de l'utilisateur

Nikon

Nikon CoolPix P6000 Manuel utilisateur

Nikon

Nikon CoolPix S6200 Manuel utilisateur

Nikon

Nikon CoolPix S8100 Manuel utilisateur

Nikon

Nikon Coolpix P90 Manuel utilisateur

Nikon

Nikon D200 Manuel utilisateur

Nikon

Nikon D-40 - D40 6.1MP The Smallest Digital SLR... Manuel utilisateur

Nikon

Nikon CoolPix P60 Manuel utilisateur

Nikon

Nikon 25563 - Coolpix L11 6MP Digital Camera Guide de l'utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Nikon

Nikon D700 Manuel utilisateur

Nikon

Nikon Nikonos III Manuel utilisateur

Nikon

Nikon CoolPix S520 Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur

Samsung

Samsung SCC-C4253 Manuel utilisateur
