EMP-2 Simplified Manual
１．Components and Name
Zero Filter
Battery
LCD Touch screen
Gas Inlet
SD Card
START/STOP Button
for measuring
Power
Switch
Probe
Dust Filter
NIC-TD-0000026-00
2/12
２Preparation
(１)Confirm the battery fully charged.
(２)Enter the SD card.
(３)Connect the probe to the gas inlet.
３Measuring

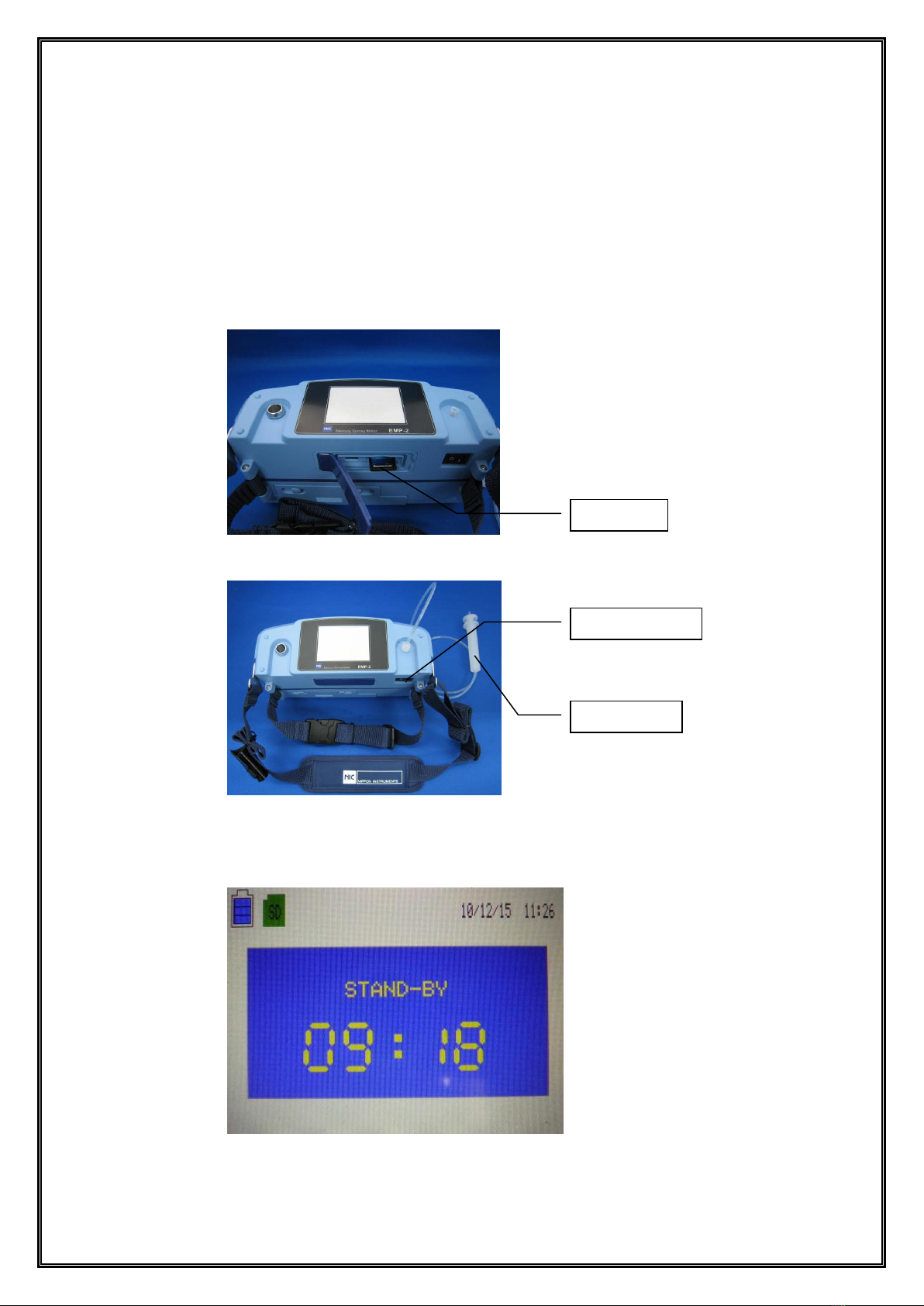

（１）Power on the Power Switch.
（２）After the Start-up screen, the system starts 10min.-countdown.
Power Switch
Probe
SD Card
NIC-TD-0000026-00
3/12
（３）After “STAND-BY”screen, the screen changes as below.
If you select “EMP-2+WLE”, you must inject two solutions into WLE in advance.
WLE connection
Select “EMP-2+WLE”with MENU screen.
WLE solution injection
When you press the start-stop button for 1 to 3 sec, WLE solution injection starts
※If you press the START button without injecting WLE solutions, a warning is
displayed and the measurement does not start.
＜WLE solution injection＞＜Warning＞
Whenever pushing “START”on LCD, the pump starts running and “Auto-Zeroing”is performed.
After Zeroing, the measurement starts and repeats 4min 50sec of measuring and 10sec of zeroing.
There are three Measuring screens, being switched over by touching the screen.
START/STOP
Button
START/STOP
on LCD
NIC-TD-0000026-00
4/12
Confirm the display is not key-locked. Because you can’t control the screen
during Key-locked.
Confirm the SD card is slotted and confirm the icon on the screen.
If not, the results can’t be saved.
Confirm the “Interference Check”icon to be . If it is ,
The measurements are not fulfilled.
①Digital Display
This is a normal operation to see the results.
Residual amount of Battery
Alarm Level
Average
Level Meter
(Instantaneous Value)
Measuring Number
START/STOP
Switch
Measuring Mode Setting
Interference Check
Maximum Value
Caution
Full Scale
With/without SD card
Key-locked Screen
(Touch Screen
longer, then OFF)
Instantaneous Value
NIC-TD-0000026-00
5/12
②Level Meter Display
Be effective to see the current reading visually, especially against the alarm level.
Set the full scale properly so that the alarm level is red area.
②Chronological Order Display
Be effective to see the results in chronological order.
Set the full scale properly so that the alarm level is red area.
（４）When terminating measurements, press “STOP”.
Confirm the display is not key-locked. Because you can’t control the screen
during Key-locked.
Caution
NIC-TD-0000026-00
6/12
（５）Turn off the “POWER”switch when the measurements are completed.
If you select “EMP-2+WLE”, you must discharge WLE solution before power-off.
WLE solution discharge
When you press the start-stop button over 3 seconds, WLE solution discharge starts.
POWER Switch
NIC-TD-0000026-00
7/12
４Cautionary Instructions
(１)Data saving
All data are saved on SD Card.
Confirm the icon before starting.
(２)Key-locked function
When pressing the screen longer, the screen is locked and any functions on the screen
are not available.
To cancel the key-lock, press the screen again so that the icon disappears.
(3) Interferences
If sample gases contain interferences such as Hydrocarbons, the readings may contain positive
errors. When the readings are supposed to be doubtful, press the “Interference Check”.
( )
-When the reading is decreasing to Zero, the reading is definitely “mercury”.
-When the reading does not reach to Zero, the current reading is due to interferences.
If the interferences are stable, this influence is automatically compensated during Zeroing.
NIC-TD-0000026-00
8/12
５Various Functions
(１)Full Scale
When pressing MENU/Setting/Full Scale, Full Scale can be set.
Enter the number of Full Scale.
(２)Alarm Level
When the readings are close the alarm level, the beeping sounds are changing.
When the readings are exceeding the level, the beeping sounds are keeping and the back ground
of the screen is blinking.
※If “0”is entered, this function is not available.
How to set the Warning Level
When pressing MENU/Setting/Warning Level, the Warning Level can be set.
Enter the number of the Warning Level.
NIC-TD-0000026-00
9/12
(３)Measuring Mode
Three Measuring Modes are available.
①Normal Measuring Mode（MANUAL MODE）
When you carry EMP-2 on your shoulder during measuring, use this Mode.
Whenever you want to stop, press the “START/STOP”.
The readings are in unit of １μg/m3.
②１min Measuring Mode（1MIN MODE）
Same as the above Mode, but the measuring time is just one minute.
The readings are in unit of １μg/m3.
③Static Measuring Mode(STATIC MODE)
Select for low-level measurements.
Keep EMP-2 on the static and horizontal desk and never carry under this Mode.
Whenever you want to stop, press the “START/STOP”.
The readings are in unit of 0.１μg/m3.
How to set the MODE
Press MENU/Setting/Measurement Mode and select the Measuring Mode.
NIC-TD-0000026-00
10/12
(４)WLE solution replacing cycle
Set WLE solution replacing cycle.
When pressing MENU/Setting/ WLE Cycle, WLE Cycle can be set.
(５)WLE solution replacement time
Set WLE solution replacement time
When pressing MENU/Setting/ Replacing Time, Replacing Time can be set.
