Safety information

This manual describes installation and service procedures

for implementation by specialists.

The manual must be left with the customer.

This appliance can be used by children

aged from 8 years and above and per-

sons with reduced physical, sensory or

mental capabilities or lack of experience

and knowledge if they have been given

supervision or instruction concerning use

of the appliance in a safe way and under-

stand the hazards involved. Children shall

not play with the appliance. Cleaning

and user maintenance shall not be made

by children without supervision.

Rights to make any design or technical

modifications are reserved.

©NIBE 2017.

Symbols

NOTE

This symbol indicates danger to person or ma-

chine .

Caution

This symbol indicates important information

about what you should observe when maintain-

ing your installation.

TIP

This symbol indicates tips on how to facilitate

using the product.

Marking

The CE mark is obligatory for most products sold

in the EU, regardless of where they are made.

Classification of enclosure of electro-technical

equipment.

IP24

Danger to person or machine.

Read the User Manual.

Serial number

The serial number for F2040 can be found on the side

of the foot.

LEK

DATA

Serial number

Caution

You need the product's (14 digit) serial number

for servicing and support.

Recovery

Leave the disposal of the packaging to the in-

staller who installed the product or to special

waste stations.

Do not dispose of used products with normal

household waste. It must be disposed of at a

special waste station or dealer who provides this type of

service.

Improper disposal of the product by the user results in

administrative penalties in accordance with current legis-

lation.

F2040Chapter 1 | Important information4

1 Important information

Environmental information

The equipment contains R410A, a fluorinated green-

house gas with a GWP value (Global Warming Potential)

of 2088. Do not release R410A into the atmosphere.

5Chapter 1 | Important informationF2040

Inspection of the installation

Current regulations require the heating installation to be inspected before it is commissioned. The inspection must

be carried out by a suitably qualified person. Fill in the page for information about installation data in the User

manual.

DateSignatureNotesDescription

✔

Heating medium (page 24)

System flushed

System vented

Particle filter

Shut-off and drain valve

Charge flow set

Electricity (page 26)

Fuses property

Safety breaker

Earth circuit-breaker

Heating cable type/effect

Fuse size, heating cable (F3)

Communication cable connected

F2040 addressed (only when cascade

connection)

Connections

Main voltage

Phase voltage

When installing F2040-6, check that the

software version of the indoor mod-

ule/control module is at least v8320.

Miscellaneous

F2040Chapter 1 | Important information6

Transport and storage

F2040 must be transported and stored vertically.

Assembly

■Place F2040 outdoors on a solid level base that can

take the weight, preferably a concrete foundation. If

concrete slabs are used they must rest on asphalt or

shingle.

■The concrete foundation or slabs must be positioned

so that the lower edge of the evaporator is at the level

of the average local snow depth, although a minimum

of 300 mm.

■The F2040 should not be positioned next to sensitive

walls, for example, next to a bedroom.

■Also ensure that the placement does not inconveni-

ence the neighbours.

■F2040 must not be placed so that recirculation of the

outdoor air can occur. This causes lower output and

impaired efficiency.

■The evaporator should be sheltered from direct wind,

which negatively affects the defrosting function. Place

F2040 protected from wind against the evaporator.

■Large amounts of condensation water, as well as melt

water from defrosting, may be produced. Condensa-

tion water must be led off to a drain or similar (see

page 8.

■Care must be exercised so that the heat pump is not

scratched during installation.

LEK

Cirka 1 m

LEK

Cirka 1 m

min 300 mm

Min. 300 mm

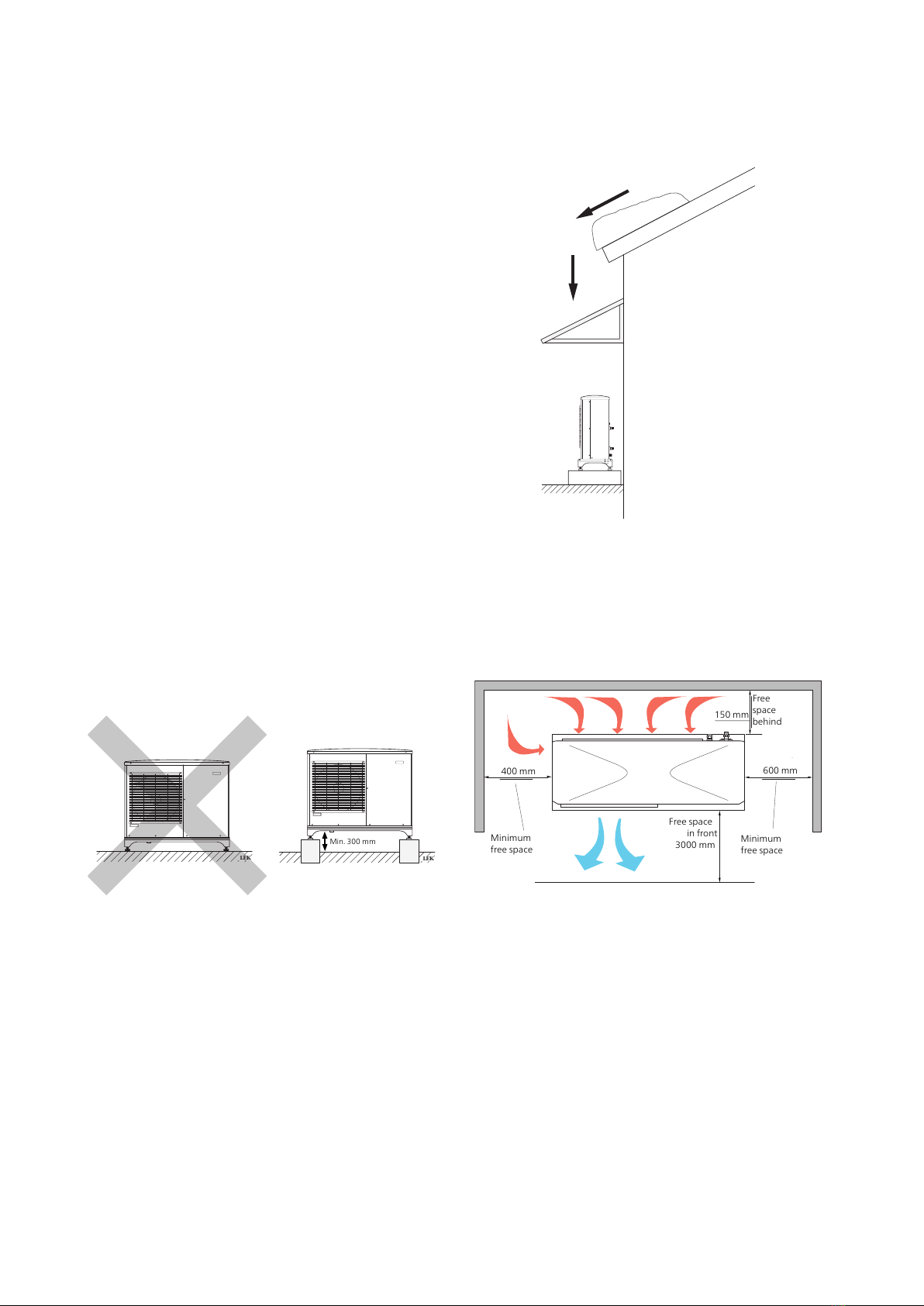

Do not place F2040 directly on the lawn or other non

solid surface.

If there is a risk of snow slip from roof, a protective roof

or cover must be erected to protect the heat pump, pipes

and wiring.

Installation area

The distance between F2040 and the house wall must

be at least 150 mm. Clearance in front of F2040 should

be at least one metre.

255

Ställbar 40-50 955

243

512

110

395

265

452 1075

1145

108

Ø40*

3000 mm

400 mm

Minimalt

fritt utrymme

Minimalt

fritt utrymme

Fritt utrymme

framför

150 mm

Fritt

utrymme

bakom

600mm

Minimum

free space

Minimum

free space

Free

space

behind

400 mm 600 mm

150 mm

3000 mm

Free space

in front

7Chapter 2 | Delivery and handlingF2040

2 Delivery and handling

Condensation water trough

The condensation water trough collects and leads away

most of the condensation water from the heat pump.

NOTE

It is important to the heat pump function that

condensation water is led away and that the

drain for the condensation water run off is not

positioned so that it can cause damage to the

house.

Condensation runoff should be checked regu-

larly, especially during the autumn. Clean if

necessary.

NOTE

Pipe with heating cable for draining the con-

densation water trough is not included.

To ensure this function the accessory KVR 10

should be used.

NOTE

The electrical installation and wiring must be

carried out under the supervision of an author-

ised electrician.

■The condensation water (up to 50 litres/24 hrs) that

collects in the trough should be routed away by a pipe

to an appropriate drain, it is recommended that the

shortest outdoor stretch possible is used.

■The section of the pipe that can be affected by frost

must be heated by the heating cable to prevent

freezing.

■Route the pipe downward from F2040.

■The outlet of the condensation water pipe must be at

a depth that is frost free or alternatively indoors (with

reservation for local ordinances and regulations).

■Use a water trap for installations where air circulation

may occur in the condensation water pipe.

■The insulation must seal against the bottom of the

condensation water trough.

Recommended alternative for leading off

condensation water

Stone caisson

LEK

Frostfritt djup

Frost proof depth

If the house has a cellar the stone caisson must be posi-

tioned so that condensation water does not affect the

house. Otherwise the stone caisson can be positioned

directly under the heat pump.

The outlet of the condensation water pipe must be at

frost free depth.

F2040Chapter 2 | Delivery and handling8

Drain indoors

Water seal

The condensation water is lead to an indoor drain (sub-

ject to local rules and regulations).

Route the pipe downward from F2040.

The condensation water pipe must have a water seal to

prevent air circulation in the pipe.

KVR 10 spliced as illustrated. Pipe routing inside house

not included.

Gutter drainage

Frostfritt

djup

LEK

Frost proof depth

Water seal

The outlet of the condensation water pipe must be at

frost free depth.

Route the pipe downward from F2040.

The condensation water pipe must have a water seal to

prevent air circulation in the pipe.

Caution

If none of the recommended alternatives is

used good lead off of condensation water must

be assured.

Supplied components

LEK

Filterball (G1").

2 x flexible pipes (DN25, G1")

with 4 x gaskets.

9Chapter 2 | Delivery and handlingF2040

Removing the covers

F2040-6

F2040-8

LEK

F2040-12

LEK

F2040-16

LEK

F2040Chapter 2 | Delivery and handling10
