Operating and

Installation Manual

NFO Sinus Optimal

3006469-2022-04





NFODrivesAB2021201013‐2OperatingandInstallationManual2

Contents

1Safetyaspects........................................................................................................................................4

2Technicaldata.......................................................................................................................................5

3Mechanicalinstallation.........................................................................................................................7

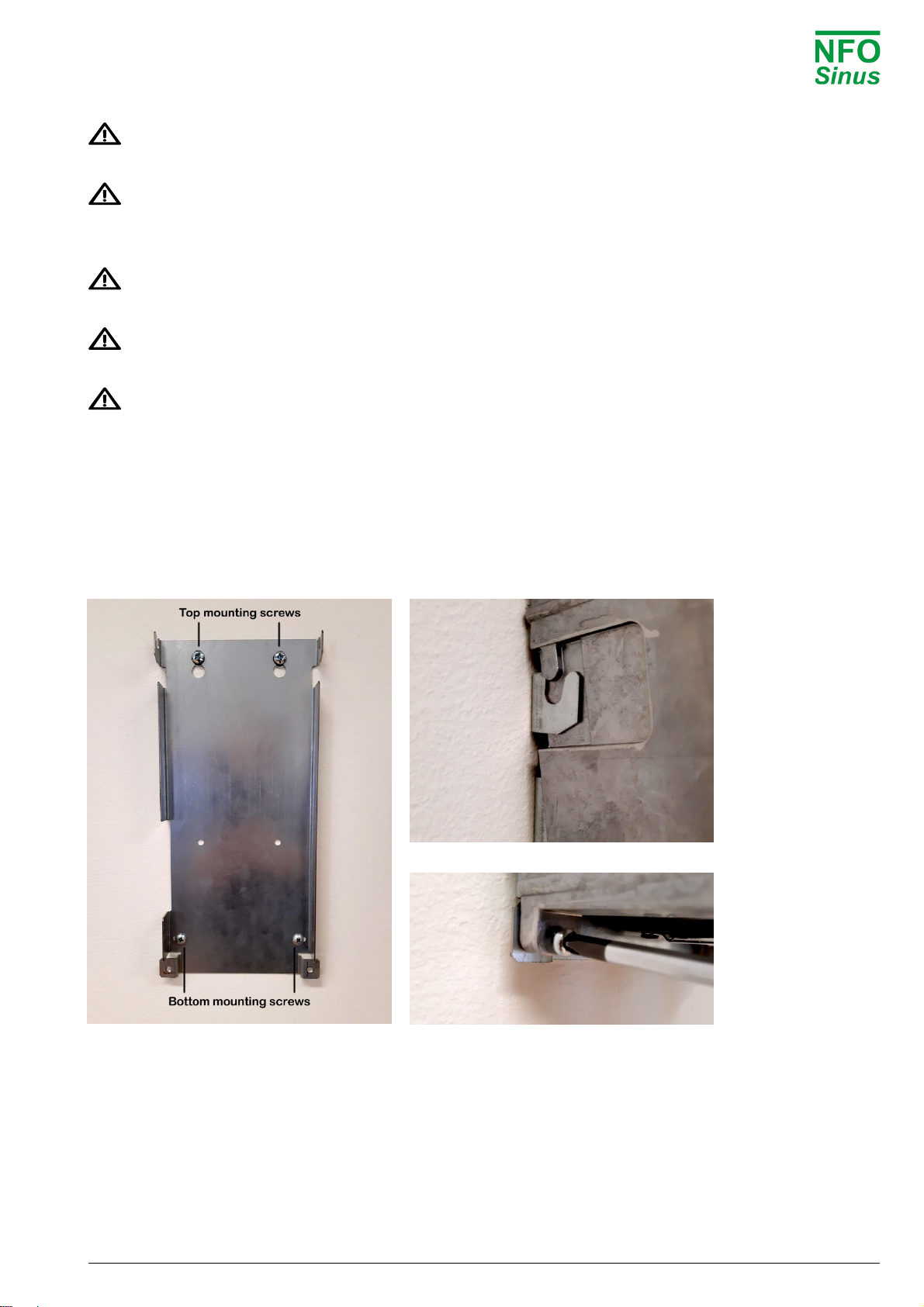

3.1Mounting...................................................................................................................................7

4Electricalinstallation.............................................................................................................................8

4.1Signalterminalconnection........................................................................................................9

4.1.1Signalterminalsandtheiruse....................................................................................9

4.1.2Signalterminalsconfiguration..................................................................................11

4.1.3Analoguecurrentinput.............................................................................................11

4.1.4Negativelogic...........................................................................................................12

4.1.5SerialchannelRS485.................................................................................................12

4.1.6Connectingpotentiometer.......................................................................................12

4.2Powerterminalconnection.....................................................................................................13

4.2.1Connectorsandcables..............................................................................................13

4.2.2Powerterminaluse...................................................................................................13

4.2.3Connectingmainssupply..........................................................................................14

4.2.4Connectingmotor.....................................................................................................14

5Parametersettingsandoperation......................................................................................................15

5.1Generalnotes..........................................................................................................................15

5.2Keyboardanddisplay..............................................................................................................15

5.3IndicatorsandMotorstatus....................................................................................................17

5.4Operatingmodes.....................................................................................................................17

5.4.1ManualMode...........................................................................................................18

5.4.2AutoMode................................................................................................................18

5.4.3BusMode(Serialchannel/Fieldbus)......................................................................19

5.5Parameterspecifications.........................................................................................................20

5.5.1Parametersummary.................................................................................................20

5.5.2Parametertable........................................................................................................20

5.6Selectapplication....................................................................................................................24

5.7Autotuningandmotorparameters.........................................................................................24

5.7.1Fulltuning.................................................................................................................25

5.7.2Basictuning...............................................................................................................25

5.7.3Calculatedtuning......................................................................................................25

5.7.4Motorsinparallel.....................................................................................................26

5.8Settingcontrolparameters.....................................................................................................26

5.8.1Accelerationanddecelerationramps.......................................................................26

5.8.2Phaseorder...............................................................................................................26

5.8.3Stopmode................................................................................................................27

5.8.4Energysavefunction................................................................................................27

5.8.5PowerOn,StartandStopdelay................................................................................27

5.8.6Motorbrake,DC‐Brake.............................................................................................27

5.8.7Speedregulator,Kp‐speedandTi‐speed..................................................................27

5.8.8Frequencysleepsetting............................................................................................28

5.8.9Frequencybypass.....................................................................................................28

5.8.10Increasedstartcurrent(currentboost)....................................................................29

3006469-2022-04





NFODrivesAB2021201013‐2OperatingandInstallationManual3

5.8.11ControlMode............................................................................................................29

5.8.12Autostart...................................................................................................................29

5.8.13Analoginputtype.....................................................................................................30

5.8.14Digitalinputconfiguration........................................................................................30

5.9Frequencycontrolwithoutloadcompensation,Frequencymode.........................................30

5.9.1SetpointsourceforFrequencyMode.......................................................................30

5.9.2Analoguefrequencysetpointrange,MinAinFrqandMaxAinFrq..........................30

5.10RPMregulationwithspeedestimation,Speedmode.............................................................31

5.10.1SetpointsourceforSpeedMode..............................................................................31

5.10.2Analoguespeedsetpointrange,MinAinSpdandMaxAinSpd...............................31

5.11Processregulation,PIregulator..............................................................................................32

5.11.1SetpointsourceforPI‐regmode...............................................................................33

5.11.2Regulatorsetting,RegAmp,RegKpandRegTi........................................................34

5.12Motorsafetyfunctions............................................................................................................34

5.12.1PTCinput...................................................................................................................34

5.12.2Electronicmotoroverloadprotection......................................................................35

5.13Outputsignals.........................................................................................................................36

5.13.1Relay1(Alarmrelay).................................................................................................36

5.13.2Relay2(Runindication)............................................................................................36

5.13.3Analogoutputs.........................................................................................................36

5.14Communicationinterfaces......................................................................................................36

5.15Displaysetup...........................................................................................................................37

5.16Status,Temperature,CountersandVersion...........................................................................37

5.17Resettofactorysettings..........................................................................................................37

5.18Alarmandfaultprocedures....................................................................................................38

5.18.1Faultlog....................................................................................................................38

5.18.2Faultmessages..........................................................................................................38

5.18.3Acknowledgefault....................................................................................................40

6CommunicationusingModbus...........................................................................................................40

6.1.1Readstatusandactualvalues..................................................................................41

6.1.2ControlinverterusingMODE/SMODE/InverterStatus.............................................41

6.1.3ControlinverterusingDriveControl/DriveStatus.....................................................42

7ControlusingProfinet/Profibus..........................................................................................................43

8Brakechopperandpowersurgeregulator.........................................................................................44

9Gettingstarted....................................................................................................................................45

9.1Installation...............................................................................................................................45

9.2RunninginManualmode........................................................................................................45

9.3RunninginAutomode.............................................................................................................45

9.3.1Setvalueselectioninautomode...............................................................................45

9.3.2Runningwithfixedfrequency...................................................................................45

9.3.3Runningwithanalogsetpoint...................................................................................46

9.3.4Processregulationwithfixedsetpoint.....................................................................46

9.3.5Processregulationwithanalogsetpoint..................................................................46

9.3.6Alternatingfixedfrequencyandprocessregulation................................................47

9.3.7Ventilationcontrolwithanalogsetpointandfirealarm..........................................47

3006469-2022-04





NFODrivesAB2021201013‐2OperatingandInstallationManual4

Introduction

The frequency inverter described in this operating manual is used for frequency (Hz) or speed (rpm) control of

three-phase AC induction motors. This manual describes how to install and use the inverter.

Read the manual carefully before installing the inverter, to ensure you install it correctly and get the maximum

performance out of it.

The inverter has a patented switch circuitry that ensures the motor receives a sinusoidal voltage at all times, under

all operating conditions. This solves all problems related to conventional PWM based frequency inverters, e.g.

electromagnetic interference, ball bearing damage, high earth currents and high switching noise.

A 30mA rated RCD (earth leakage circuit breaker) can be used with this frequency inverter.

The inverter also uses the patent "Natural field orientation" which is a vector control method to give perfect speed

control of induction motors all the way from zero to full speed.

1 Safety aspects

Always disconnect the inverter from the mains supply before working on any electrical- or mechanical installation

components.

Installation, maintenance and repairs must always be conducted by staff adequately trained and experienced for

the purpose.

Modifying or replacing any components of the inverter or its accessories will render the inverter warranty null and

void. Should the need for any modifications or replacements arise, always contact NFO Drives AB.

Components in the power section and some components in the signal section are connected to the mains supply

when the inverter is powered.

WARNING! Touching any components with the mains supply connected can be fatal. Always disconnect the

mains supply before opening the cover.

WARNING! Even when disconnected from the mains supply, the inverter may still contain lethal voltages

due to its buffer capacitors. Always wait at least five minutes to make sure no voltage remains before

working with the inverter.

WARNING! The heat sink of the inverter may get hot, depending on operating conditions. Do not touch.

WARNING! Spontaneous start. When controlled from a communication bus or remote unit, the motor may

start at any moment. Pressing STOP on the inverter is not sufficient, as bus master or remote unit may re-

gain control over inverter and start motor again. Disconnect run signal at terminal DIN1 to safely inhibit start.

For connection of mains supply, the inverter shall be permanently connected to fixed wiring including a circuit

breaker which must be used to ensure all-pole disconnection under overvoltage III conditions.

The inverter shall always be connected to protective earth (P.E.) when the mains supply is connected.

If the motor temperature sensor (PTC/Klixon) functionality is used, the sensor and its wiring must supply

adequate isolation and comply with installation requirements for the equipment in use.

The level of integrity offered by the drive control input functions – for example stop/start, forward/reverse and

maximum speed, are not sufficient for use in safety-critical applications without independent channels of

protection. All applications where malfunction could cause injury or loss of life must be subject to a risk

assessment and further protection provided where needed.

3006469-2022-04





NFODrivesAB2021201013‐2OperatingandInstallationManual5

2 Technical data

Table 1. Inverter ratings for 380-480V 3~ 50/60 Hz Type TN electrical supply network

Art. no.

Rated

output

power

Rated

output

current

[1]

Max

output

current

[2]

Apparent

output

power

[3]

Absolute

losses

[4]

L,CDM(90,100)

Efficiency

class

[5],[6]

Standby

power

[7]

Size (H×D×W)

[mm]

Weight

[kg]

NFO

3A4D3490D 2.2 kW 1.0-4.9 A 5.8 A 3.3 kVA 0.14 kW IE2 7.5 W 390x190x160 7.0

Notes:

[1] The inverter is optimized for use at a wide range of nominal motor currents in the power ranges of 0.37 kW to

2.2 kW.

[2]

The inverter application should not be dimensioned for higher continuous current than Rated output current.

However, it can supply Max output current for an infinite time, but it may be detrimental to its life span.

[3]

Apparent output power Sr,equ used for IE (International Efficiency) classification.

[4]

Measured at a load point corresponding to 90% of rated frequency and 100% of rated output current.

[5]

CDM (Complete Drive Module) efficiency class according to Commission Regulation (EU) 2019/1781 and

IEC 61800-9-2:2017.

[6]

Due to sinusoidal voltage output from the NFO inverter, the expected additional harmonic losses in the motor,

which are present when using a PWM inverter, are now absent.

IEC 61800-9-2:2017: “When [three-phase induction motors] are operated on a CDM, additional harmonic

losses PLHL = rLHL × PLTsin are caused by the non-sinusoidal voltage supply”. The increase of motor losses as a

result of PWM operation (rLHL) are estimated to 15% of the total losses. According to the reference model for a

2.2kW IE2 or IE3 induction motor, this corresponds to about 0,05 kW.

When determining the overall efficiency of the PDS (Power Drive System, i.e. inverter and motor together), it

should be taken into account that motor losses are approximately 15% lower when using an inverter with

sinusoidal voltage output, than it would be if using a conventional PWM inverter.

[7]

No external control equipment connected to the 24V supply output, and cooling fan regulator at low speed.



3006469-2022-04





NFODrivesAB2021201013‐2OperatingandInstallationManual6

Table 2. Common data

Inverter output

Output volta

e waveform Sinusoidal

Output frequenc

–

150 Hz

Control modes

Frequenc

control 0

–

150 Hz, Vector control without slip compensation

Speed control 0

–

9000 rpm, Vector control with slip compensation

ulators

Process control PI with extern analo

ue feedback in all control modes

Speed re

ulator Re

ulator for optimal d

namic performance

I/O No. Name Confi

urable levels

ital control inputs 8 DIN1

–

DIN8

Analogue control inputs 2 AIN1, AIN2 0-10V, 2-10V, ±10V,

0-20mA, 4-20mA, ±20m

, Pot

ital outputs 2 Re1, Re2 Rela

, max 50VDC

Analogue outputs 2 AOUT1, AOUT2 0-10V, 2-10V, ±10V,

0-20mA, 4-20mA, ±20m

Volta

e output 1 +24V max 200m

Serial control 2 USB 2.0 T

pe B, RS485

Serial protocols 2 Modbus RTU / ASCII, NFO

Fieldbus options Profinet, Profibus, Modbus TCP b

usin

Bus CompactCom module

Motor safet

Thermistor input PTC or Klixon

Electronic motor

overload protection Switch off if motor load is over rated power for a long time

Ambient conditions

Ambient operating temp. -10 – +45 C

Storage temp. -20 – +60 C

Humidit

–

90%, non-condensin

Protection class IP55 accordin

to SS-EN 60529

EMC certification

Emissions: EN 55011:2016 EN, 55011/A1:2017, EN 61000-3-3:2013

Immunity: EN 61000-6-2:2005, EN 61000-4-2, -3, -4, -5, -6, -11

Harmonics: EN 61000-3-2:2014 [1]

For use without shielded cables or additional EMC filter.

Electrical safety

Low Voltage Directive EN 61800-5-1:2007, EN 61800-5-1/A1:2017. Motor

terminal short circuit protection [2] according to IEC 60364-4-41:2005 / AMD1,

clause 411. Short circuit protection functionality operates regardless of motor

cable area, len

th or other properties, or mains power suppl

impedance.

Climatic tests

Dry heat test IEC 60068-2-2

Damp heat test IEC 60068-2-78

Vibration test IEC 60068-2-6

Notes:

[1] Compliance guaranteed up to 80% of nominal output power.

[2] If short circuit should occur, the inverter may get damaged. However, it will prevent damage of connected

equipment, fire and other hazards.

3006469-2022-04





NFODrivesAB2021201013‐2OperatingandInstallationManual7

3 Mechanical installation

When unpacking the inverter, carefully inspect the product and make sure it has not been damaged during

transportation. Inverter with cracks, dents or other visual damage shall not be installed.

The inverter must not be installed such that outlet air from another inverter or other equipment blows directly

into the inverter air intake. A minimum of 80 mm clearance must be kept above and below the inverter, and a

minimum of 20 mm vertical gap must be kept between inverters, to ensure sufficient air flow.

All terminals are accessed by opening the plastic cover. To be able to use the snap-and-hold-open

functionality of the cover, a free space of 200 mm is required above the inverter.

During installation it is important that no foreign objects, such as cable strands or screws, fall into the inverter

as a short circuit may occur. Drilling in chassis or cover is not allowed.

After installation, make sure all grommets at the cable entries are mounted and the cover is closed and

secured with its screws to avoid contact with dangerous voltages.

3.1 Mounting

Unscrew the two lower captive screws and loosen the inverter from the backplate. Fasten backplate to a vertical

surface using four screws. Make sure that the top mounting screws are sufficiently strong to hold the entire weight

of the inverter. Place the inverter on the backplate by mating the chassis cut-out to the backplate hooks. Tighten

the lower captive screws on both sides.

The cover is opened by unscrewing the two captive screws in the plastic cover and fold up the cover until it snaps

tight. There are two possible positions for the cover. Close the cover by pulling it out and fold down. Be careful not

to break the snaps in the cover when folding down. Tighten the screws in the plastic cover.

The plastic cover can be removed by unscrewing the two upper screws after the cover is opened. The cable from

the cover to the control board must be carefully removed from the control board. Replace in reverse order.

3006469-2022-04





NFODrivesAB2021201013‐2OperatingandInstallationManual8

4 Electrical installation

Connect mains power to terminals L1, L2, L3 and PE.

Connect motor cable to terminals U, V, W and PE using standard unshielded cable.

Never install contactors or switches between the inverter (terminals U, V and W) and the motor that

intentionally or unintentionally may be used to disconnect the motor from inverter output.

A motor safety switch can be mounted between the inverter (terminals U, V and W) and the motor, but it

must only be operated when the motor is not running.

First time powered up, the installer must select application, enter motor name plate data, and perform a

motor tuning.

Connect/install the necessary low voltage signalling that is required for your application, e.g. a run signal for

start/stop, analog input for setpoint, communication, etc.

Make sure run signal is not activated until installer has completed the setup of the inverter.

Make sure the low voltage signal wires have sufficient isolation when passing nearby power cables.

Fig.1. Default configuration

3006469-2022-04





NFODrivesAB2021201013‐2OperatingandInstallationManual9

Terminals 11, 12, 30 and 31 (0V) are connected to PE with a 1MΩresistor but can be connected galvanically to PE

via an external jumper to terminal 19 or 36 (PE). These terminals may vary in terms of potential by up to 100 V from

PE. The USB contact is galvanically connected to 0V.

AIN1.N and AIN2.N are connected to 0V by jumpers J701 and J703.

Warning! If option Autostart is ON and there is a run signal to the inverter (DIN1, terminal 1), the inverter will

start the motor when power is applied.

An external brake-resistor must be fitted if the retardation time is less than 5 sec, see section 6.

If a Motor Safety Thermistor is to be used, jumper J802 must be set accordingly, see 5.12.1.

4.1 Signal terminal connection

The signal terminals are of type “tension clamp spring connection” with a usable cable cross-section of 0.13 - 2.5

mm² (AWG 26 - AWG 14). To connect the cable, carefully push the actuator downward. If a tool is used, make sure

it does not damage any components on the circuit board. The signal cables should be fixed to the PCB with at least

two straps.

Fig. 1. Signal line wiring.

Make sure the signal wires have sufficient isolation when passing power cables.

4.1.1 Signal terminals and their use

The following control signals with its default configuration are available:

Term. Name Function Default function description

1 DIN1 Di

ital input 1 Run si

nal Start/stop

2 DIN2 Di

ital input 2

nalo

selection

3 DIN3 Di

ital input 3 Direction of rotation

4 DIN4 Di

ital input 4 Process re

ulator activation

5 DIN5 Di

ital input 5 Select fixed frequency (see Table7)

6 DIN6 Di

ital input 6 Select fixed frequency (see Table7)

7 DIN7 Di

ital input 7 Select fixed frequency (see Table7)

8 DIN8 Di

ital input 8 PTC motor protection

9 +24V

+24V max 200mA regulated voltage for digital inputs or external

sensors. Short circuit protected. Can also be used for auxiliary

control power suppl

10 +24V

3006469-2022-04





NFODrivesAB2021201013‐2OperatingandInstallationManual10

11 0V 0V, I/O Ground

12 0V

13 RE1.NO Rela

1 NO Fault relay, potential-free contact max 1 A, 50 V DC.

If fault present, terminals 14 are 15 closed.

14 RE1.COM Rela

1 COM

15 RE1.NC Rela

1 NC

16 RE2.NO Rela

2 NO Run indication, potential-free contact max 1 A, 50 V DC.

Terminals 16 and 17 are closed when motor is running.

17 RE2.COM Rela

2 COM

18 RE2.NC Rela

2 NC

19 PE Protective earth

IN1.P

nalo

ue input 1, pos

nalo

ue setpoint input, positive

IN1.N

nalo

ue input 1, ne

nalo

ue setpoint input, ne

ative

(

0V, I/O Ground

)

IN2.P

nalo

ue input 2, pos Process re

ulator actual value input, positive

IN2.N

nalo

ue input 2, ne

Process re

ulator actual value input, ne

ative

(

0V, I/O Ground

)

OUT1.I

nalo

ue output 1, I Current output 1

OUT1.U

nalo

ue output 1, U Volta

e output 1, impedance 50Ω

OUT2.I

nalo

ue output 2, I Current output 2

OUT2.U

nalo

ue output 2, U Volta

e output 2, impedance 50Ω

28 +24V +24V (same as terminal 9 and 10)

29 +24V

30 0V 0V, I/O Ground (same as terminal 11 and 12)

31 0V

32 RS485.

RS 485 +

33 RS485.

34 RS485.B

RS 485 -

35 RS485.B

36 PE Protective earth

Table 3. Signal terminals and their use

Digital inputs (terminals 1 - 8), positive logic:

Maximum input voltage: 30V

Switch level: 13V (input voltage higher than switch level is considered as active level)

Impedance: 10kΩ

Digital inputs (terminals 1 - 8), negative logic:

Maximum input voltage: 30V

Switch level: 9V (input voltage lower than switch level is considered as active level)

Impedance: 10kΩ

3006469-2022-04

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels NFO Drives Entraînement CC

NFO Drives

NFO Drives NFO Sinus Optimal Fiche technique

Manuels Entraînement CC populaires d'autres marques

Vincent Associates

Vincent Associates UNIBLITZ ED12DSS Manuel utilisateur

EKSMA OPTICS

EKSMA OPTICS DQ-100-4 Manuel de la liste des pièces

Chamberlain Garog

Chamberlain Garog D Series Manuel utilisateur

Parker

Parker PDS Series Manuel utilisateur

Festo

Festo DGC G Series Guide de configuration

Binks

Binks QS-5012-1-CE Manuel utilisateur

Danfoss

Danfoss VLT 2800 Series Fiche technique

ABB

ABB ACQ580-01 Series Manuel d'installation

YASKAWA

YASKAWA CANopen SI-S3 Manuel utilisateur

GE D20A6 Manuel utilisateur

Unex

Unex MC-D-250-1000-050W-TW Manuel utilisateur

Geckodrive

Geckodrive G213V Manuel utilisateur

ABB

ABB RSYC-01 Manuel utilisateur

Rockwell Automation

Rockwell Automation PowerFlex 700S Manuel du propriétaire

WEG

WEG DeviceNet CFW500 Manuel utilisateur

Siemens

Siemens SINAMICS G Fiche technique

Siemens

Siemens SINAMICS SM150 6SL3815-7NP41-0AA1 Mode d'emploi

SOMFY

SOMFY JR RU 30 Manuel utilisateur
