Model: NCR-N1200/NCR-N1200-A

Nebula1200

DUAL-BAND AC WIRELESS ROUTER

plus

Rear panel

Front panel

1. Preliminary steps

2. Product layout

Thank you for purchasing the new Nebula 1200+ dual band router

from Nexxt Solutions®. If any of the following items are mismatched,

missing or damaged, please contact the store from whom you

purchased the unit for immediate replacement.

This advanced network device works as wireless router, universal

repeater and WISP client. Before setting up the router, you must verify

that you have high-speed internet access available. The most widely

used connection nowadays is broadband DSL, cable and AP modes.

The description used in this guide is based on that type of connection.

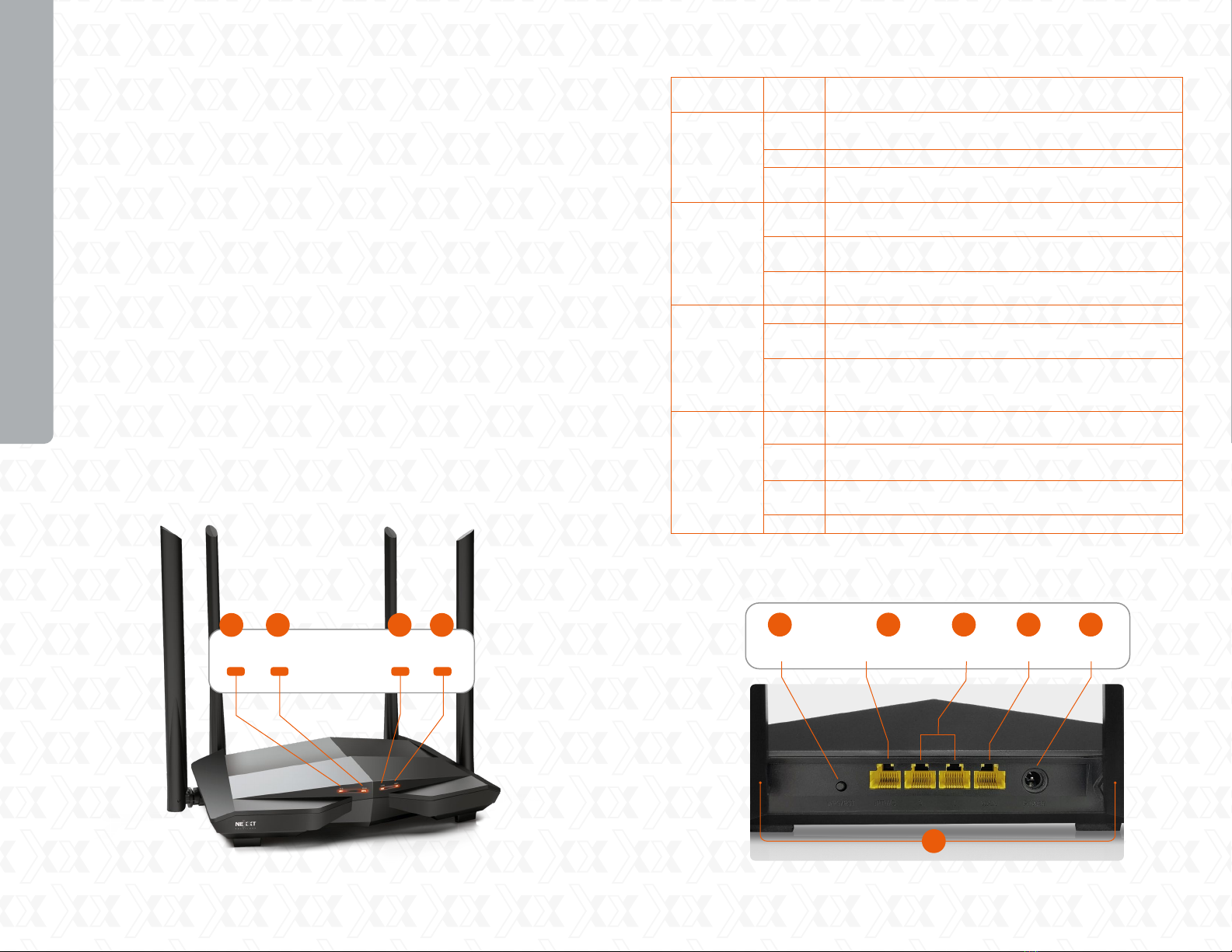

LED indicators on the front panel provide information about network

activity, the connection and link status of the ports in real time. They

also facilitate activity monitoring and troubleshooting the performance

of the device.

• Dual band gigabit wireless router

• Power adapter 110/220V

• Network cable

• User guide

LED

indicator

1. SYS

3. LAN

2. WAN

4. Wi-Fi

DescriptionStatus

English

USER GUIDE

SYS WAN LAN Wi-Fi

The router is starting up or it fails to function

correctly after being initialized

The system is working properly

The system is not working properly or it has not

been powered on correctly

The WAN port is connected properly but no data is

being transmitted

The device is actively sending or transmitting

packets over that port

The WAN port is either disconnected or improperly

connected

Port 1, 2 or 3 is connected properly

A new client device has been added to port 1, 2

or 3

No wired device is connected to any LAN port of

the router or the wired device is not connected

properly

At least the 2.4GHz or 5GHz WiFi network is

enabled

The device is actively sending or transmitting data

wirelessly

The router is performing WPS negotiation on a

client device

The wireless function is disabled

Solid

Blinking

Off

Solid

Blinking

fast

Off

Solid

Blinking

twice

Off

Solid

Blinking

fast

Blinking

slowly

Off

WPS/RST WAN POWERLAN (IPTV/3) LAN (2,1)

5 4 3 2 1

1 2 3 4

Power DC-IN: Connect the supplied power adapter to this jack..

WAN port: This RJ45 port is where you will connect the DSL/ca-

ble modem or ethernet line from your ISP.

LAN port 1/2: Connect your local laptop or desktop computers in

your network to any of these RJ45 ethernet ports.

IPTV/LAN port 3: This is a LAN port by default. When the IPTV

feature on the router is enabled, this port can be used for connec-

ting an Internet Protocol receiver to stream videos on your TV set

via a set-top box.

WPS/RST button: Press and hold this button for about 8 seconds

until all LEDs light up once, and then release it to restore the device

to its factory default values.

Press and hold for a second to use the WPS feature (if enabled). To

successfully establish a WPS link, within the first 2 minutes the

wireless client’s WPS feature must be enabled.

Antennas: It is equipped with four dual-band omnidirectional

antennas.

First determine the optimum location for the router. The best place

is usually at the center of your wireless network with the antennas in

the upright position.

Then, connect the modem to the internet port of the router using

the supplied ethernet cable.

Connect your PC to the router if using a wired connection.

Insert one end of the supplied power adapter to the AC input jack

located on the rear panel of the router, before plugging the other

end to a standard electrical wall outlet.

3. Hardware installation

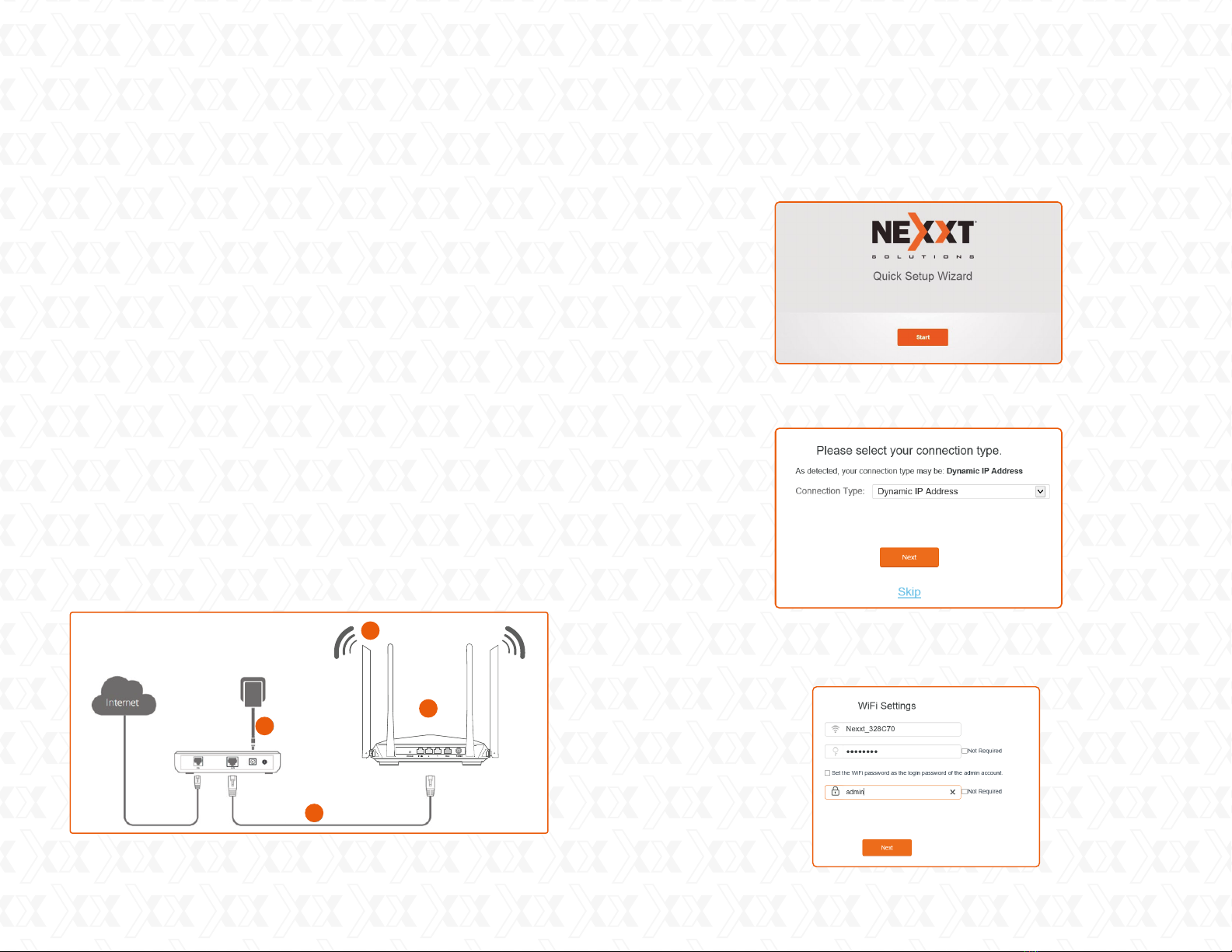

Open a web browser to access the main web interface. Type

http://www.nexxtwifi.local or 192.168.0.1 in the address bar

and press Enter on the keyboard.

The Quick setup wizard will come up to assist you in completing the

internet settings. Click on Start to initiate the process.

4. Router configuration

Select your connection type and click on Next. For the purposes of

this guide, the DHCP option was selected.

In this screen, you can set up the Transmit power, SSID and

Password. Once you finished configuring these settings, click on

Next to continue.

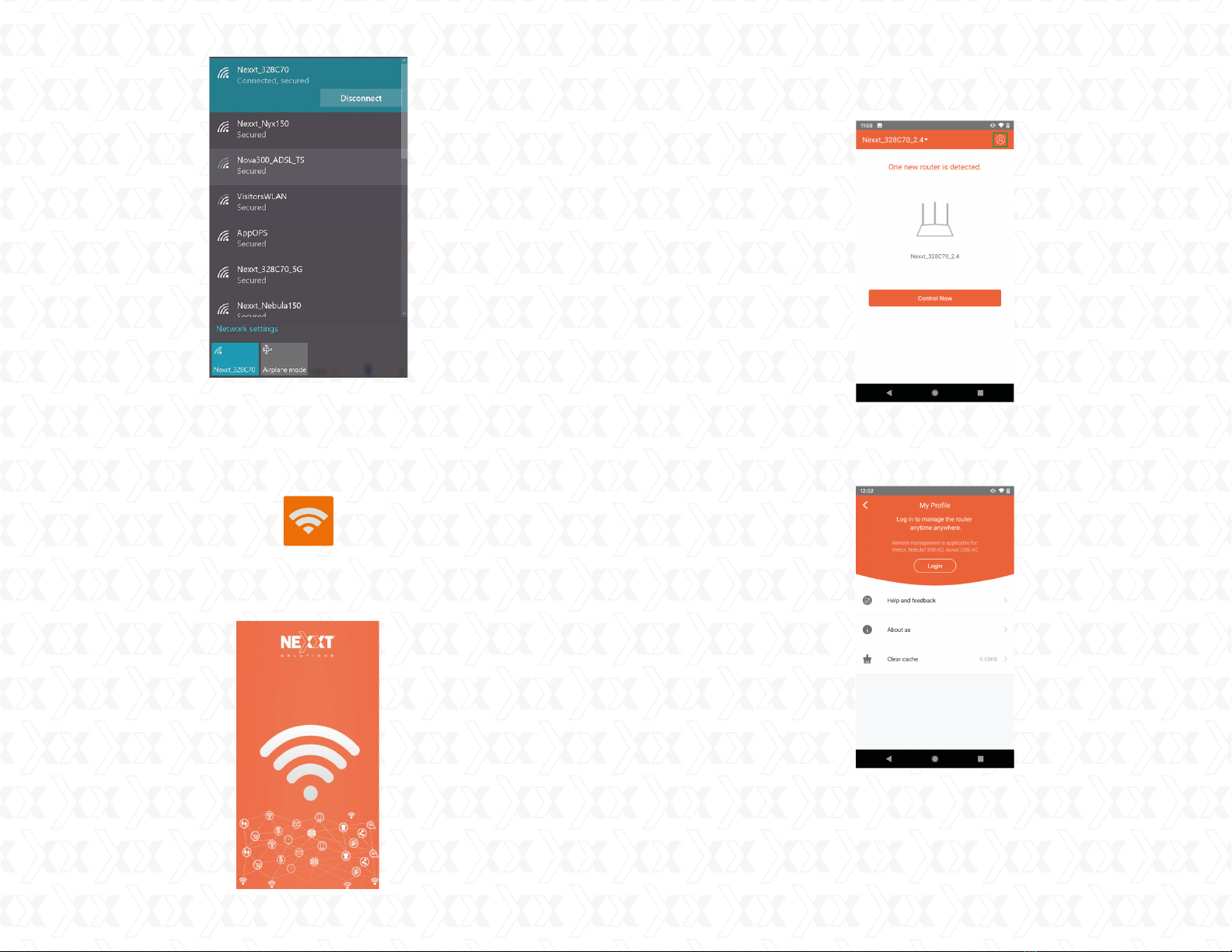

To connect to the router wirelessly, click on the wireless icon on

your taskbar.

5. Connecting to Wi-Fi using Windows 10

Proceed to select the Wireless network followed by Connect. By

default, the wireless SSID is Nexxt_XXXXXX (whereby “x“ represents

the last digits of the MAC address).

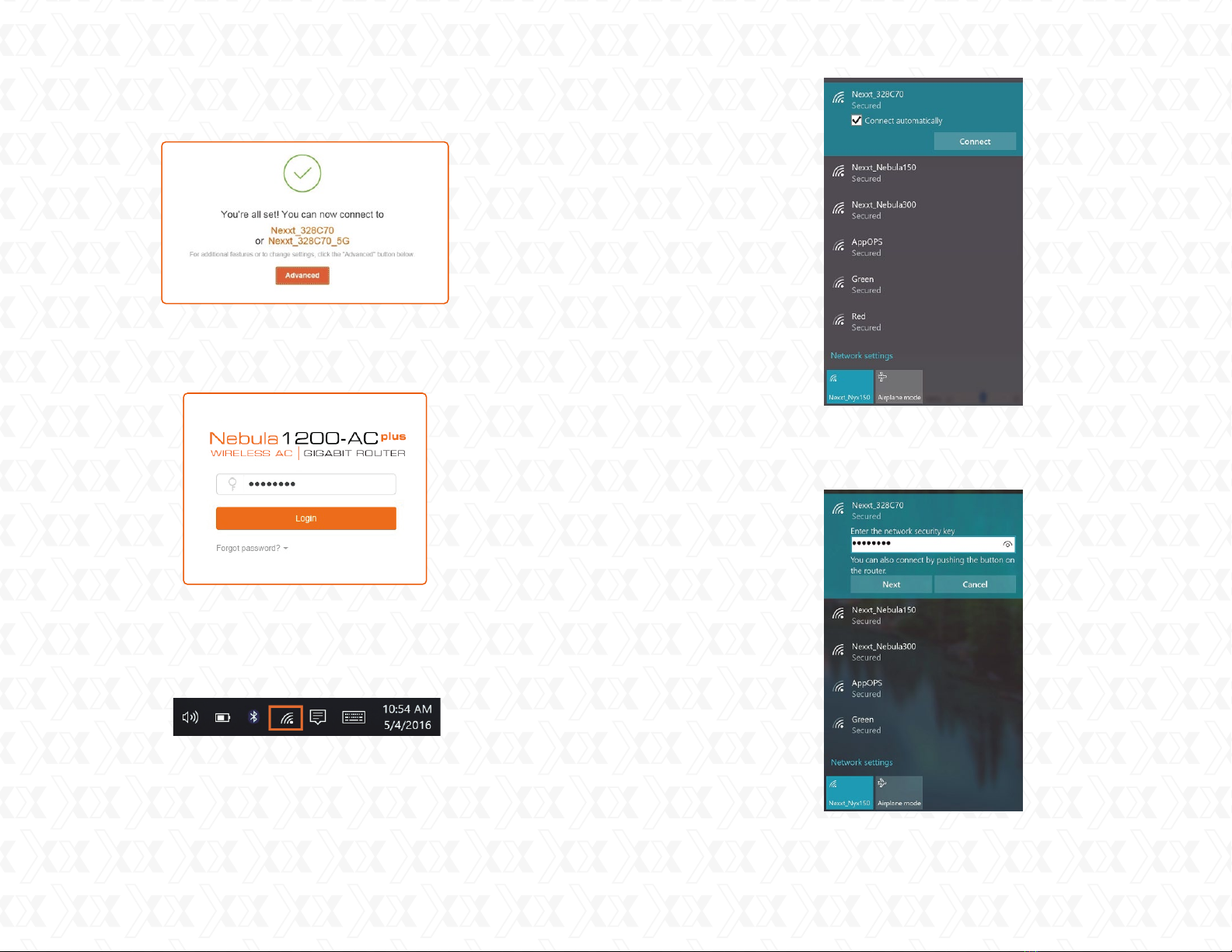

Once done, the message stating that the setup is complete will be

displayed. To configure additional settings, the user can click on the

Advanced option, as illustrated below.

The next time you access the web interface through

http://www.nexxtwifi.local or 192.168.0.1, the default Login

screen will be displayed. The default user name and password is

admin.

Enter the user defined or preassigned password, if any, and click on

Next to continue.

If connection is successfully established, the Connected message

will come up on the screen.

Search and install the Nexxt Wi-Fi app from the Apple or Google app

store.

6. How to setup and use the Nexxt Wi-Fi app for

the AC wireless router

For this guide, we will be using a phone based on an Android

platform.

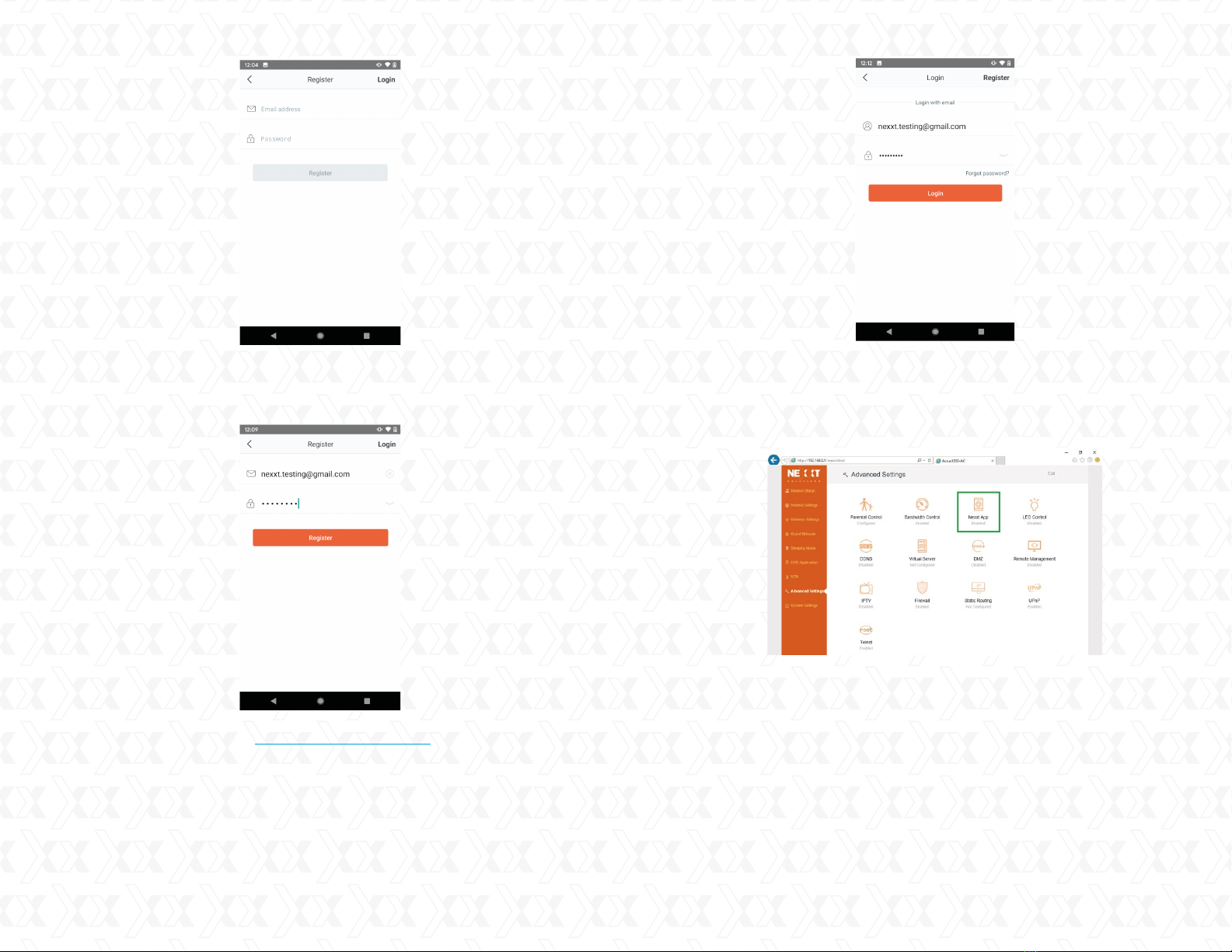

Open the Nexxt Wi-Fi app.

In order to access your router from a remote location you will have

to register an account. Click on the option on the right hand corner

(person icon).

Click on Login.5.

Then click on Register.6.

Enter the email address you wish to register, and assign a password.

Type in the verification code displayed, and click on Register.

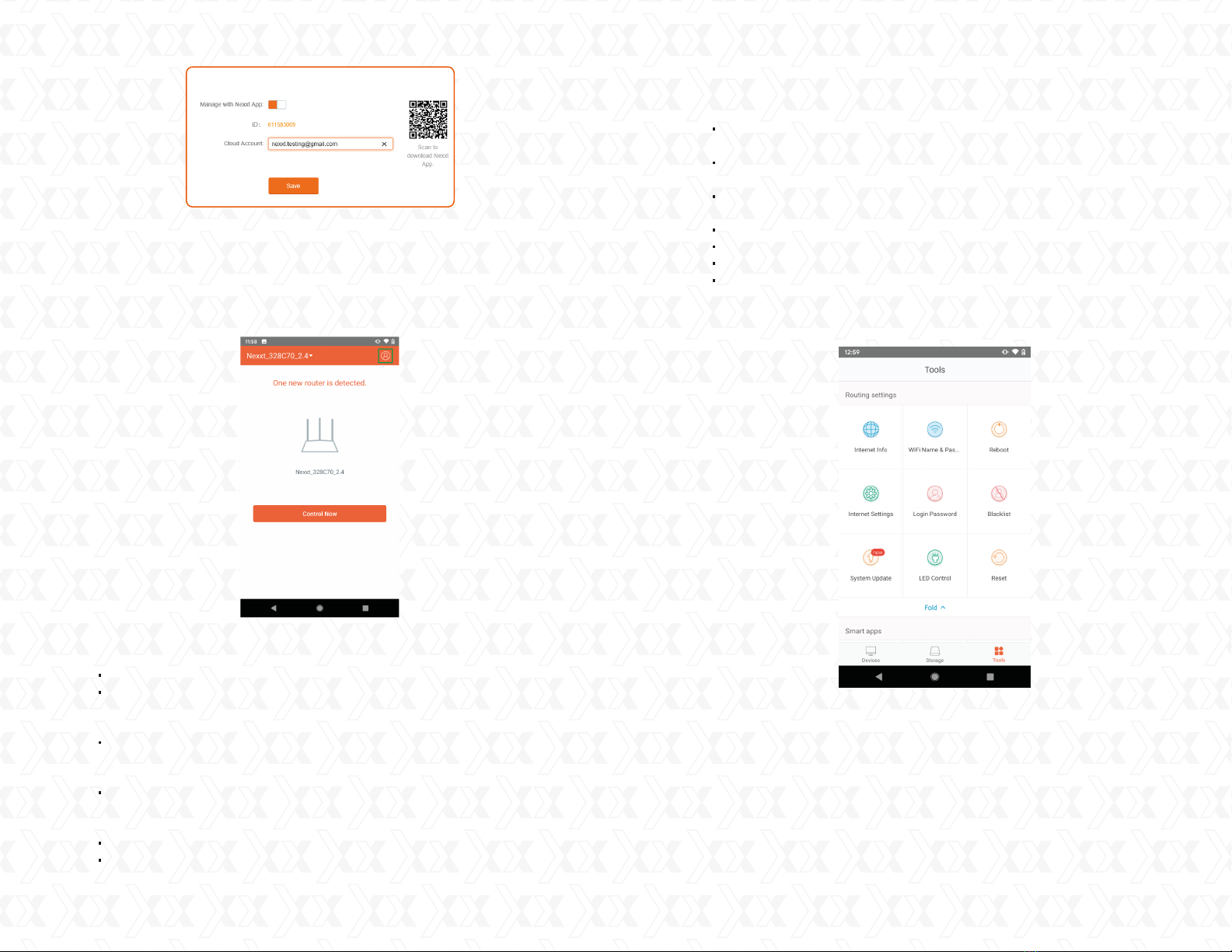

7. You will now need to log into the Nebula 1200+web user interface

from a PC. Once logged in, go to Advanced Settings and look for the

Nexxt App.

10.

Click on the Nexxt App option to enable the feature.

Now type in the email address you used on the app in the Account

field. Click on Save when done.

11.

12.

A verification email from [email protected] will be sent. Once

you receive the email, click on the confirmation link.

Your account is now active. Type in your email address and password,

followed by Login.

Go back to the app and tap on the arrow located at the upper left

hand corner.

This will refresh your account and it will show your AC wireless router

on the screen. From the device list, tap on your router.

You will be able to make changes to your AC wireless router

anywhere in the world, at any time.

13.

14.

From the Main menu you can do the following:16.

The Nexxt Wi-Fi app provides the following features:

·Current download and upload speeds being used.

· Parental controls: Allows you to setup when each person can go

online and for how long you want. You can restrict what websites

they can and cannot go to.

· Access control: You can turn off/on notification of when anyone

logs on/off the router. You can also allow that person to use the

AC router or add them to the blacklist so they can’t use it at all.

· Power saving: You can turn off/on the LED on the router. Set a

schedule for when the WiFi will be off/on. Also Wake Up the router

if you have Sleeping Mode on.

· Guest access: Turn off/on the Guest Network.

· Signal: One Touch Optimization and change the Signal Strength.

15.

·Change the Wi-Fi name and password. Turn off 2.4GHz or 5GHz

Wi-Fi. Hide the Wi-Fi names of either 2.4GHz or 5GHz band.

· Login password: Changes the passkey of the AC wireless

router.

· Internet settings: Sets up PPOE, Dynamic IP, or Static IP

connections.

·System update: Brings the application up to date.

·Reset: Returns the AC wireless router to its factory default values.

· Logout: Logs off the AC wireless router.

· Reboot: Allows to restart the router.

Español

FCC statement

This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interfe-

rence to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

Caution!

Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate

the equipment.

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

FCC ID: X4YNBL12PAC (NCR-N120)

1. Pasos preliminares

2. Descripción del producto

Gracias por preferir el nuevo Router Nebula 1200+de doble banda de

Nexxt Solutions®. Si faltara cualquiera de los artículos mencionados en

la lista, estuviera dañado o si no coincide con la descripción, contácte-

se de inmediato con el distribuidor donde adquirió la unidad para su

reemplazo.

Este avanzado dispositivo de red funciona como router inalámbrico,

repetidor universal y cliente WISP. Antes de configurar el router, debe

asegurarse primero de contar con un servicio de internet de alta

velocidad. La conexión más comúnmente utilizada en la actualidad es

DSL, cable de banda ancha y punto de acceso o AP. La descripción

que se utiliza en esta guía se basa en este tipo de conexión.

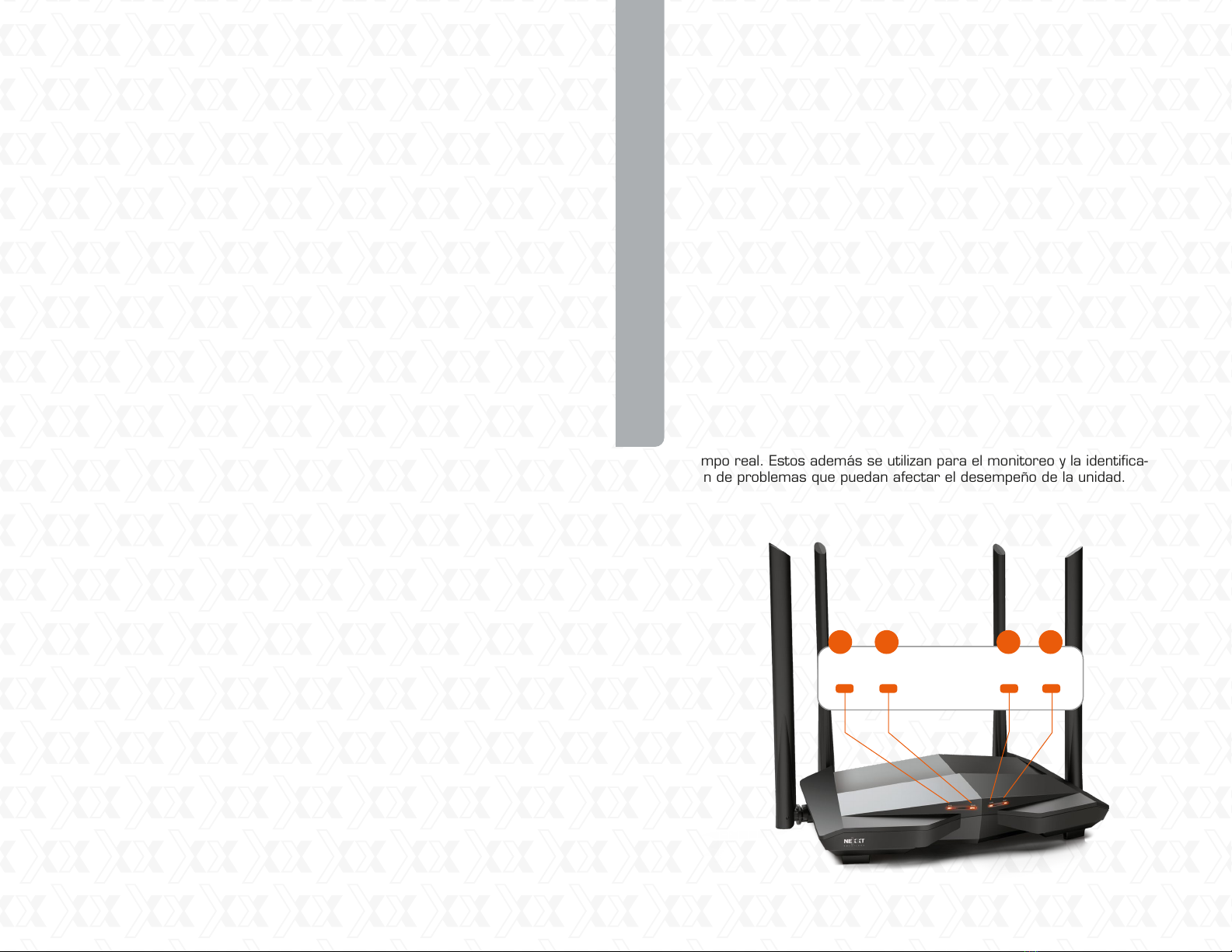

Los indicadores LED en la sección frontal del dispositivo exhiben la

actividad en la red, el estado de conexión y de enlace de los puertos en

tiempo real. Estos además se utilizan para el monitoreo y la identifica-

ción de problemas que puedan afectar el desempeño de la unidad.

• Router inalámbrico gigabit de doble banda

• Adaptador de alimentación, de 110/220V

• Cable de red

• Guía del usuario

MANUAL DEL USUARIO

SYS WAN LAN Wi-Fi

1 2 3 4

Panel frontal

This device is for indoor use only.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

This device complies with the FCC radiation exposure limits set forth for an

uncontrolled environment and it also complies with Part 15 of the FCC RF Rules.

This device should be installed and operated with a minimum distance of 20 cm

(8 inches) between the radiator and your body.

www.nexxtsolutions.com

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Nexxt Solutions Routeur sans fil

Nexxt Solutions

Nexxt Solutions Nyx1200-AC Manuel utilisateur

Manuels Routeur sans fil populaires d'autres marques

Milesight

Milesight UG67 Manuel utilisateur

Airlogic

Airlogic AirSync Class 1 Manuel du propriétaire

Samsung

Samsung WCH730B Manuel utilisateur

TELEFONICA

TELEFONICA USB Adapter Manuel utilisateur

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Manuel utilisateur

Askey

Askey RAC2V1K Manuel utilisateur

Alloy

Alloy WLF2454AP-S Manuel utilisateur

TP-Link

TP-Link TL-WR542G Manuel utilisateur

NETGEAR

NETGEAR WNR2000v4 Manuel utilisateur

Hama

Hama 53120 Manuel utilisateur

Intellinet

Intellinet 524582 Manuel utilisateur

Asus

Asus RT-N10P Manuel utilisateur

D-Link

D-Link DIR-506L Manuel utilisateur

Sapido

Sapido GR297n Manuel utilisateur

Asus

Asus DSL-N55U Manuel utilisateur

AMTC

AMTC WR7502 Manuel utilisateur

Compaq

Compaq CP-2W - iPAQ Connection Point Manuel utilisateur

SMC Networks

SMC Networks WBR14-N2 FICHE Manuel utilisateur
