IMPORTANT
• This product is a micro projector with MP4 player function
that can connect to mobile/iPhone, MP4/iPod, PSP, PDA,
DVD, P /Notebook and other digital products which have
video and audio output for personal entertainment and small
business presentation.
• Before using the product, please read the manual carefully.
• Please charge for 10 minutes before using battery.
• This product has 1GB memory, and can receive an
additional TF/Micro SD card with bigger memory.
• You have to leave 30 MB of free space in the memory of the
player for the O.S.
• If MP4 function is not responding, please press the RESET
button to reset the MP4 player.
• Do NOT use the projector in wet or very hot place.
• The projection resolution is 640x480 pixels. Separately, the
MP4 module recognizes that the video is 640x480.
• When you turn off the MP4 module, please wait 3 seconds
before turning it back on repeatedly.
• ontents in this user manual may change for better service.
• For the latest setting information of your product, please visit
our website.
• If the player is unable to start up, please charge the player
with the battery charger at first, and check whether the
battery has been run out.
• If you need to play a large number of files in MP4 player,
please recompress those files into a single file which can
save the start up time, the MP4 module will also respond
faster.
III
INDEX
Product List 1
Overview 1
Projector Specification 2
asic Functions: 2
MP4 key functions description: 3
MP4 features: 4
Access to MP4 Menu 4
MP4 Function Descriptions 6
1. Music Mode 6
2. Video Mode 8
3. Photo Mode 9
4. Explorer Mode: 9
5. Settings Mode 10
Troubleshooting 11
1
Product List
Projector 1
Power Adaptor 1
A/V able 1

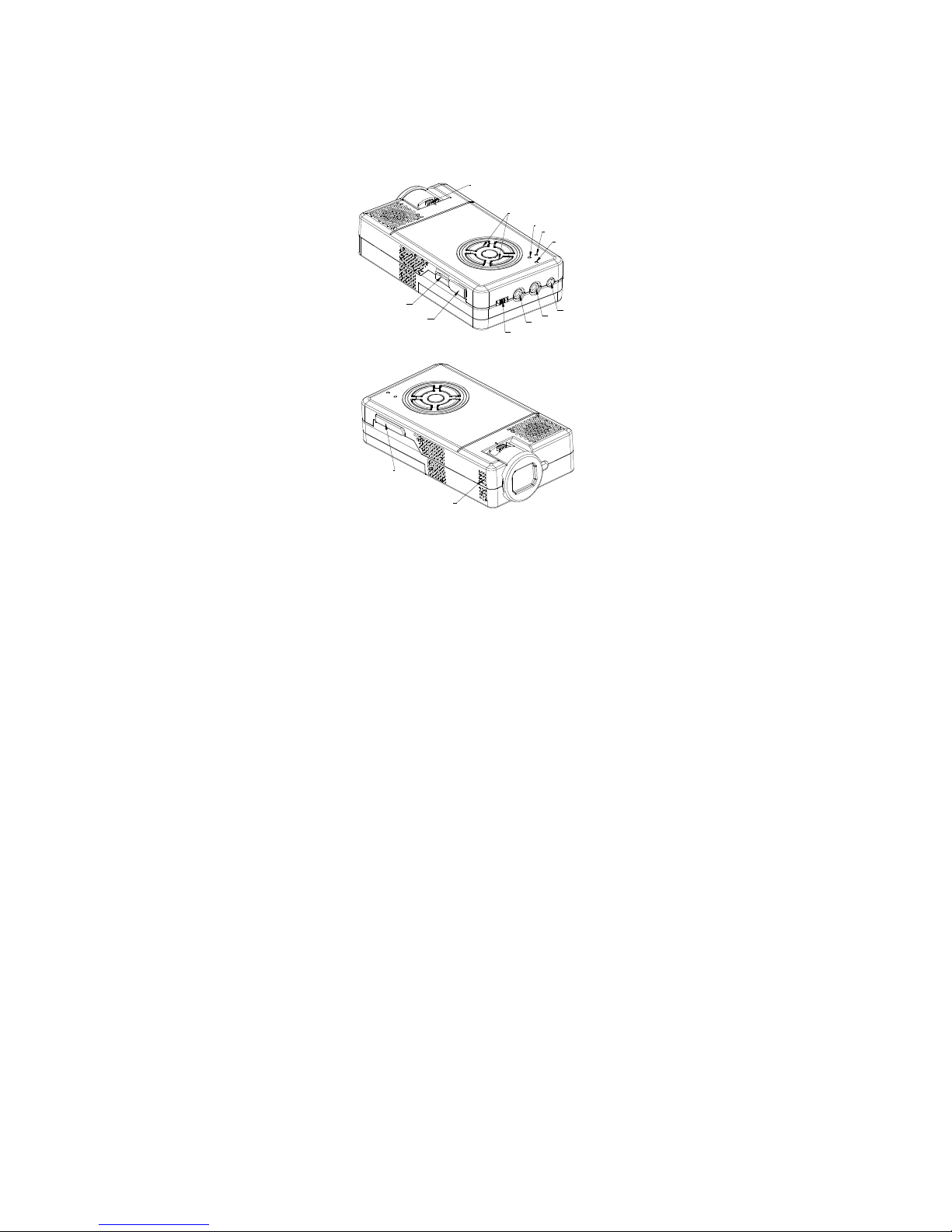

Overview
Reset
Focus
Keypad of MP4 Player
Battery charge
Green: Power is available
Red: Battery isn't available
ound Tuner
U B
+5DC
A/V
Earphone
Power witch
peaker
D(TF) Card
2
Projector Specification
Parameters Normal Unit Remarks
Resolution 640x480 Pixel
Aspect ratio 4:3
Projection lens type
Manual focus
Projection angle 51 Degree
Recommended
projection size 15-30 Diagonal Inch
Light source LED
Lifetime 30000 Hour
Input A/V NT C/PAL
Weight 175 Gram Include battery
asic Functions

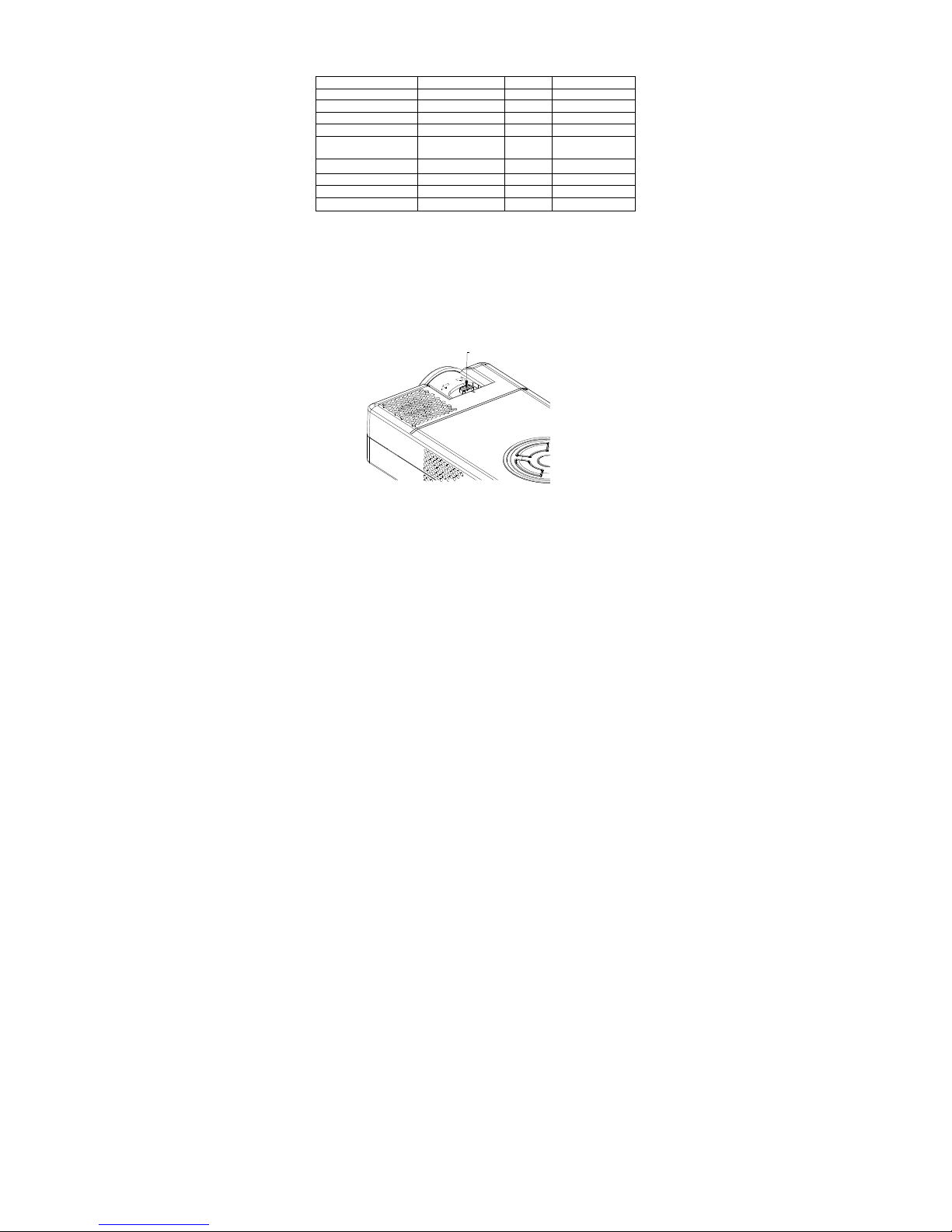

1. Focus adjustment
To achieve the best quality projection image at different projection
distances, please manually turn the focus knob. The focus mechanism is
designed for projection distance from 0.2m to infinity.
Focus
2.
onnects to digital products (A/V input) by A/V cable
3
BATOFFDC
Audio/Video
Cable
+5VDC
A/V
Power witch
3. onnects to P /Notebook products (A/V input) by S-Video/A/V
able

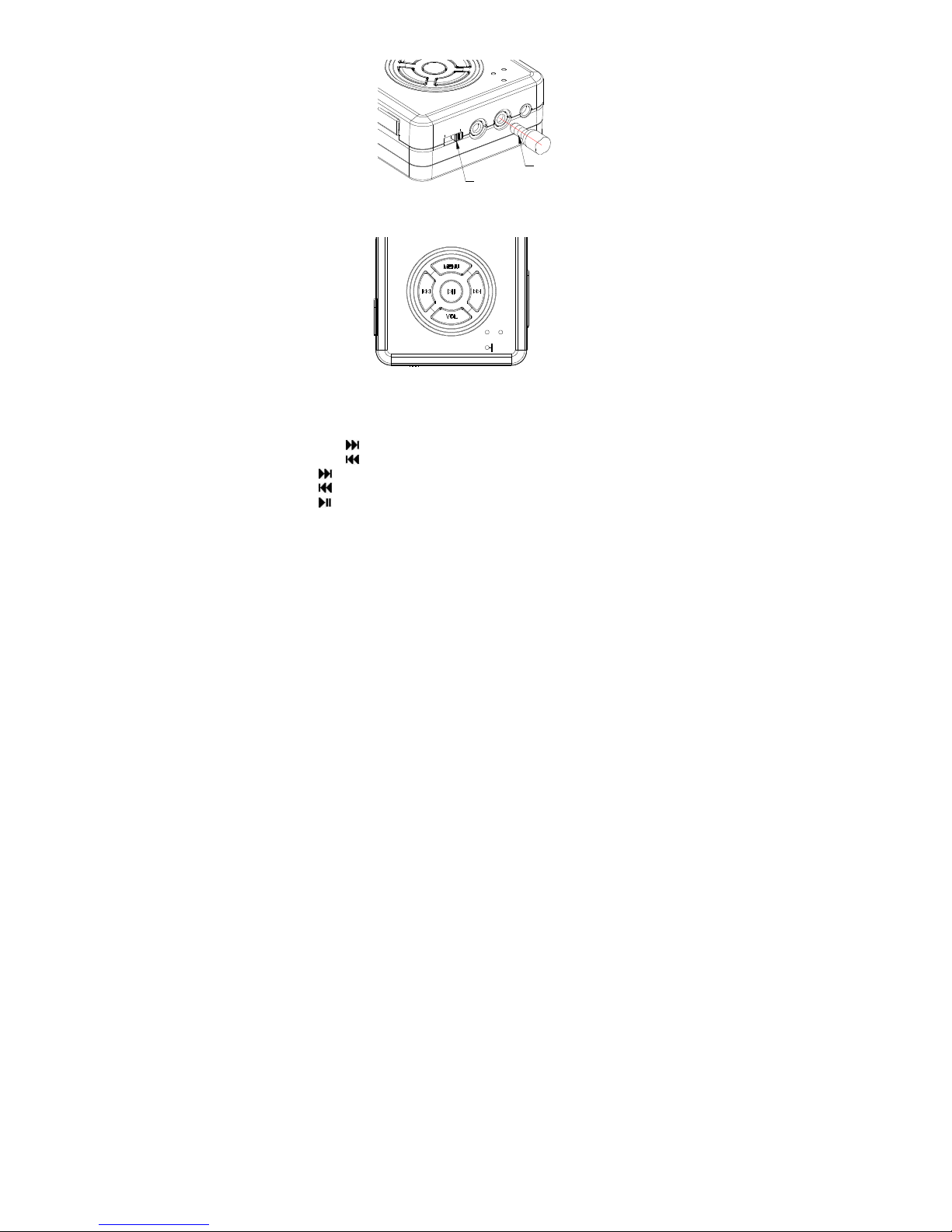

4. MP4 player
RE ETCHARGE
G
R
MP4 key functions description
MENU: Key interface or short-press to go back to previous menu
VOL+: V+ volume up
VOL+: V- volume down
: Select next track or fast forward
: Select previous track or fast reverse
: Play and Pause or short press enter sub-menu.
4
Power on, power off: pressed and hold for over 3 seconds.
MP4 features
Explorer: Internal Media, Recorded List, All Audio Tracks, All
Video Tracks, All Image Files.
System Settings: System Setting, Desktop, Language, System
Information.
rowsing Pictures: Browsing pictures one by one or Slide show
or Thumbnail (supports JPEG, BMP and GIF format).
Video Playback: ompatible with AVI, MPEG1, MPEG2, MPEG4
3G, WMV9/V 1, ASF, RM/RMVB and FLV formats (must use
software to compress the size of files to 640x480 before playing).
Audio Playback: ompatible with MP3, WMA, WAV, APE, FLA
AA /AA + and MPEG1/2/2.5 formats.
Access to MP4 Menu
*Please ensure there is no A/V input before starting up the
MP4 player.
Press [Play] and hold for 3 seconds, blue LED is light, MP4 is
power on and 3 seconds later the start up logo displays.
Press [MENU] key to access the Menu mode and the different
menus from the main menu.

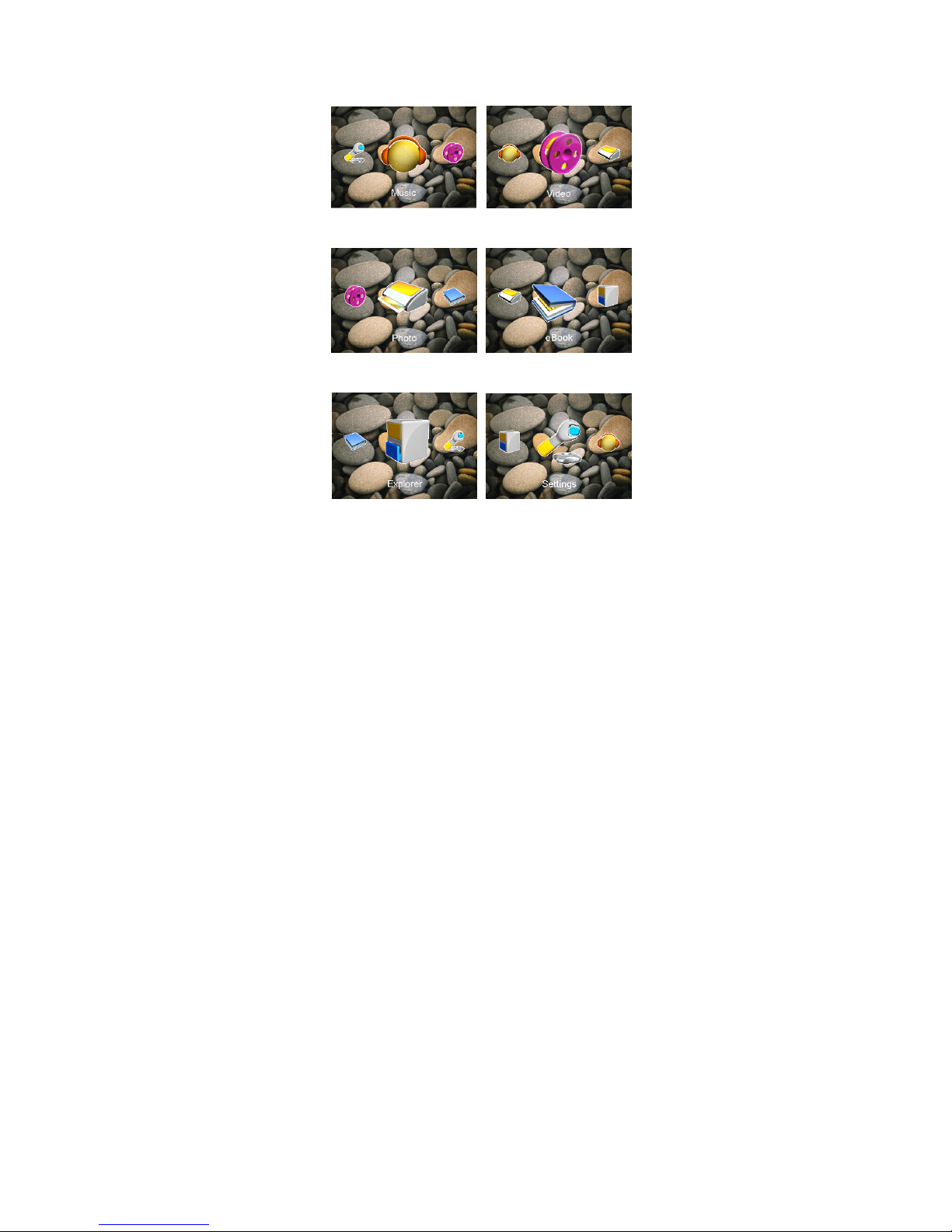

1. Music Mode
2.
Video Mode
3. Photo Mode
5
4. eBook Mode
5. Explorer Mode
6. Settings Mode
Music Mode Video Mode
Photo Mode eBook Mode
Explorer Mode Settings Mode
6
MP4 Function Descriptions
1. Music Mode
A. Switch on the player, then select Music Mode and press
[Play] to enter sub-menu, then select and press [Resume
Play] and press [Play] to play the music. Press to pause.
. Select music:
: Select previous song
: Select next song
C. Volume Adjust: Press [VOL] key and
V+: Increase volume
V- : Decrease volume
D. Press / key over 1 second to do FR/FF function when
playing the music.
E. After entering Music mode, short press [Play] and you can
view the following sub-menus:
Resume play, All Music, Artist, Album, Genre, My Fa orite,
Medialib Update
In Resume play option, when the play list is displayed:
Press / to select the music, then press [Play] to start the
playback.
