Nextar ME Manuel utilisateur

Contents

Important Safety Instructions …………………………………..………..2

……………………………….…………...6

Accessories

……………………………….…………...7

View of Main Unit

System Connections ……………………………….……….…..8

Power Supply Preparation …………………………….……….…. . .10

General Setup ……………………………….…………..12

Playing Music ……………………………….…………..16

Photo Viewer ……………………………….…………..19

Use of the Mount Accessories ……………………………….…………..22

Troubleshooting ……………………………….…………..23

Specifications ……………………………….…………..24

Important

ety

Instructions

，

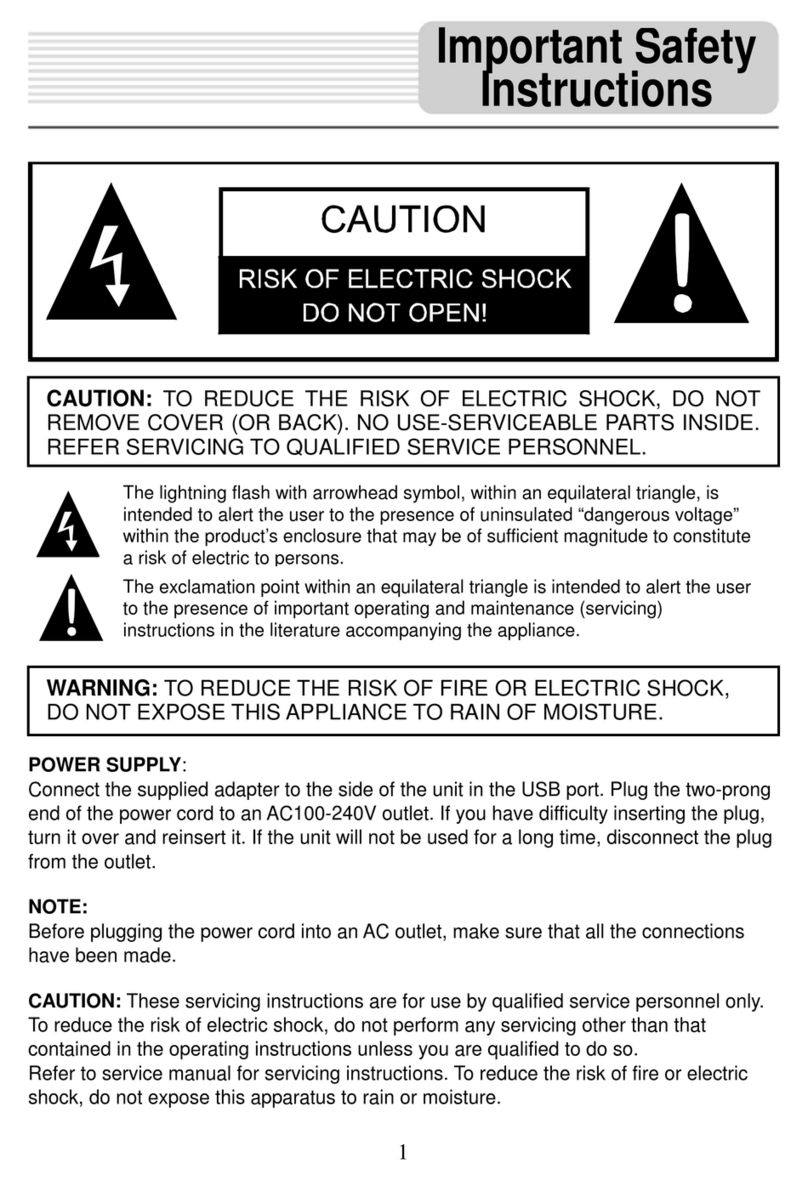

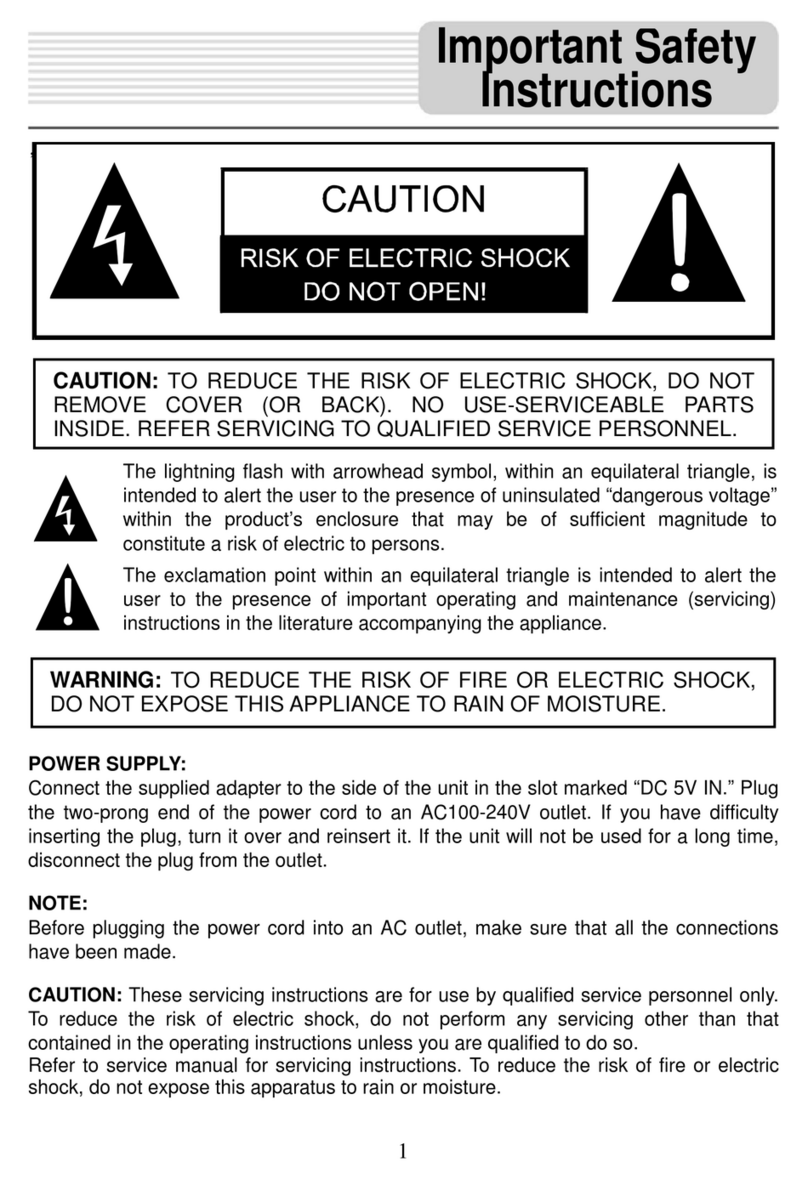

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to the presence of uninsulated “dangerous voltage”

within the product’s enclosure that may be of sufficient magnitude to

constitute a risk of electric to persons.

The exclamation point within an equilateral triangle is intended to alert the

user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OF MOISTURE.

POWER SUPPLY:

Connect the supplied adaptor to the USB port of the unit. Plug the two-prong end of the

power cord to an AC100-240V outlet. If you have difficulty inserting the plug, turn it over

and reinsert it. If the unit is not used for a long time, disconnect the plug from the outlet.

NOTE:

Before plugging the power cord into an AC outlet, make sure that all the connections

have been made.

CAUTION: These servicing instructions are for use by qualified service personnel only.

To reduce the risk of electric shock, do not perform any servicing other than that

contained in the operating instructions unless you are qualified to do so.

Refer to service manual for servicing instructions. To reduce the risk of fire or electric

shock, do not expose this apparatus to rain or moisture.

Important

ety

Instructions

NOTES

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with a damp cloth.

7) Do not block any of the ventilation openings. Install in accordance with the

manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or

other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other.A grounding type plug

has two blades and a third grounding prong. The wide blade or the third prong is

provided for your safety. When the provided plug does not fit into your outlet,

consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with a cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use

caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of

time.

14) Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or has

been dropped.

15) Apparatus shall not be exposed to dripping or splashing and no objects filled with

liquids, such as vases, shall be placed on the apparatus.

To prevent the GPS from being damaged, be sure to keep the GPS out of direct

sunlight or heat.

Important

ety

Instructions

Warning

Failure to avoid the following potentially hazardous situations may result in injury or

property damage.

The unit is designed to provide you with route suggestions. It does not reflect road

closures or road conditions, traffic congestion, weather conditions, or other factors that

may affect safety or timing while driving.

Use the unit only as a navigational aid. Do not attempt to use the unit for any purpose

requiring precise measurement of direction, distance, location, or topography. This

product should not be used to determine ground proximity for aircraft navigation.

CAUTION:

Danger of explosion if battery is incorrectly replaced. Replace only with the same or

equivalent type.

The batteries (or batteries installed) shall not be exposed to excessive heat such as

sunshine, fire or the like.

Important

ety

Instructions

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may

cause undesired operation.

Note: This equipment has been tested and found to comply with limits for Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and the receiver. Connect the

equipment into an outlet on a circuit different from that to which the receiver is

connected.

3. Consult the dealer or an experience radio/TV technician for help.

The images in this manual are only for reference and they may be

different from the actual ones.

Accessories

Accessories List

ITEM NAME QTY

Instruction Manual 2

AC Adaptor 1

Car Adaptor 1

Mounting Bracket 1

USB Cable 1

Magnetic Cradle 1

Stylus 1

Dashboard Mount Disk 1

Pouch 1

NOTE

Accessories and their parts numbers are subject to modification without prior notice due

to improvements.

View of Main Unit

1. POWER Button

Press power button to turn on the unit or exist standby or power off mode.

2. Card Slot

Insert the SD card into the slot.

3. RESET Hole

Press the reset button with a metal pin to reset the system.

4. LCD Screen

5. Charge Indicator

When charging the battery, it is red. When the battery is fully charged, it turns

green.

6. Earphone Jack

Used to connect earphones for private listening.

When the earphones are connected to this jack,

the speaker will be turned off automatically.

7. USB Port

Connect to the supplied adaptor to charge the

unit.

8. Magnet

Used to secure the unit onto the magnetic

cradle firmly.

System

Connections

•Always ensure that the unit and any other external device connected to the unit

are switched off and unplugged from the power supply before you attempt to

connect the unit to any external device.

Connecting to PC

The unit is designed with a USB port which allows you to connect the unit to a PC for

map updating or charging. See the figure below for details:

System requirements:

-Windows 98SE, ME, 2000 and XP

(Driver required for Windows 98SE)

-DVD Rom Drive (for map upgrade purposes)

-Intel Pentium II 233 MHz

-64 MB RAM

-50 MB available hard drive space

-Available serial port and/or USB Port

-256-color display adaptor and monitor

(16 bit color required)

System

Connections

Inserting SD Card

The unit is designed with SD Card Slot which allows you to insert a SD card into the unit

as shown below:

To remove the card, gently press the card in with your fingernail. The card unlocks and

protrudes slightly. You can now remove the card.

Connecting to Earphones

Connect the earphones to the bottom of the unit for private listening.

When earphone is connected, the speakers will automatically turn off.

Note: Excessively loud volume could damage your hearing. So turn down the

volume before you connect the earphones, and then raise the volume to

comfortable level.

The SD card and earphones are not supplied.
