1.0 Introduction

1.1 Purpose

The purpose of this document is to provide instructions on how to use the ESP301

graphical user interface (GUI).

1.2 Overview

The ESP301 GUI is a graphical user interface, that allows the user to control Newport

stages with the ESP301 controller (execute motion, configure stages, etc.).

EDH0282En1030 — 01/17

ESP301 Controller GUI Manual

2.0 Installation

2.1 Install ESP301 Graphical User Interface

Following are steps to install the ESP301 GUI:

•For 32 bit, Select and launch “ESP301 Utility Installer Win32.exe”. For 64 bit,

Select and launch “ESP301 Utility Installer Win64.exe”.

•A window opens up showing Install welcome page.

•Click on “Next”.

•A window opens up allowing destination folder selection. By default it is showing

C:\.

•Click on “Next”.

•Ready to install window opens up. Click “Install”.

•Then installation starts, wait for completion. Click on “Finish” to finalize the

installation.

32 bit installer will install “Newport.ESP301.CommandInterface.dll” in GAC_32 folder

and 64 bit installer will install the dll in GAC_64 folder.

NOTE

LabVIEW users can add a reference of the command interface dll from GAC

during VI creation.

2.2 Launch GUI

From Windows “START” menu, select “All Programs\Newport\Motion

Control\ESP301\ESP301 Utility”.

EDH0282En1030 — 01/17

ESP301 Controller GUI Manual

3.0 User Interface

3.1 Configuration

The Configuration tab allows the user to view and / or change information related to the

logging configuration and the instrument settings. Read only values are displayed for

the log file name and the log file path.

The logging level may be changed to any of the settings in the drop-down list on the

right hand side. Trace is the most detailed of the settings and when this setting is

selected, the GUI logs everything. Critical Error is the least detailed of the settings and

when selected, the GUI will only log errors that are defined to be critical.

The polling interval defines the number of milliseconds between each time the GUI

polls the ESP301 for the latest information. The user may change the polling interval

by entering a value.

The Save button saves the current settings to the configuration file.

EDH0282En1030 — 01/17

ESP301 Controller GUI Manual

Configurable settings

The following table describes all the settings that can be changed by the user.

Parameter

Description

Values

Default

LoggingConfiguration

Level

Logging level. Trace is the most

detailed of the settings and when this

setting is selected, the GUI logs

everything. Critical Error is the least

detailed of the settings and when

selected, the GUI will only log errors

that are defined to be critical.

Trace Detail

Equipment

Message Info

Warning

Error Critical

Error

Trace

InstrumentInformation

PollingFrequency

The polling interval defines the

number of milliseconds (delay)

between each time the GUI polls the

instrument for the latest information.

An Integer

200

Diagnostics

Delay

The Delay defines the number of

milliseconds (delay) between each

command from a file of commands in

the diagnostics tab.

An Integer

1000

Models\InstrumentInfo

CommunicationChannel

The communication channel

USB

MemorizedPositionRollingBuffer

BufferDepth

MaxItem defines the maximum

number of memorized positions by the

GUI.

Positions

The list of the memorized position.

The format is "Name of position #1;X

position #1;Y position

#1;Name of position #2;X position

#2;Y position #2…"

3.2 Axis

The combo box at the top of the window allows the selection of axes (1 to 3).

EDH0282En1030 — 01/17

ESP301 Controller GUI Manual

3.3 Main

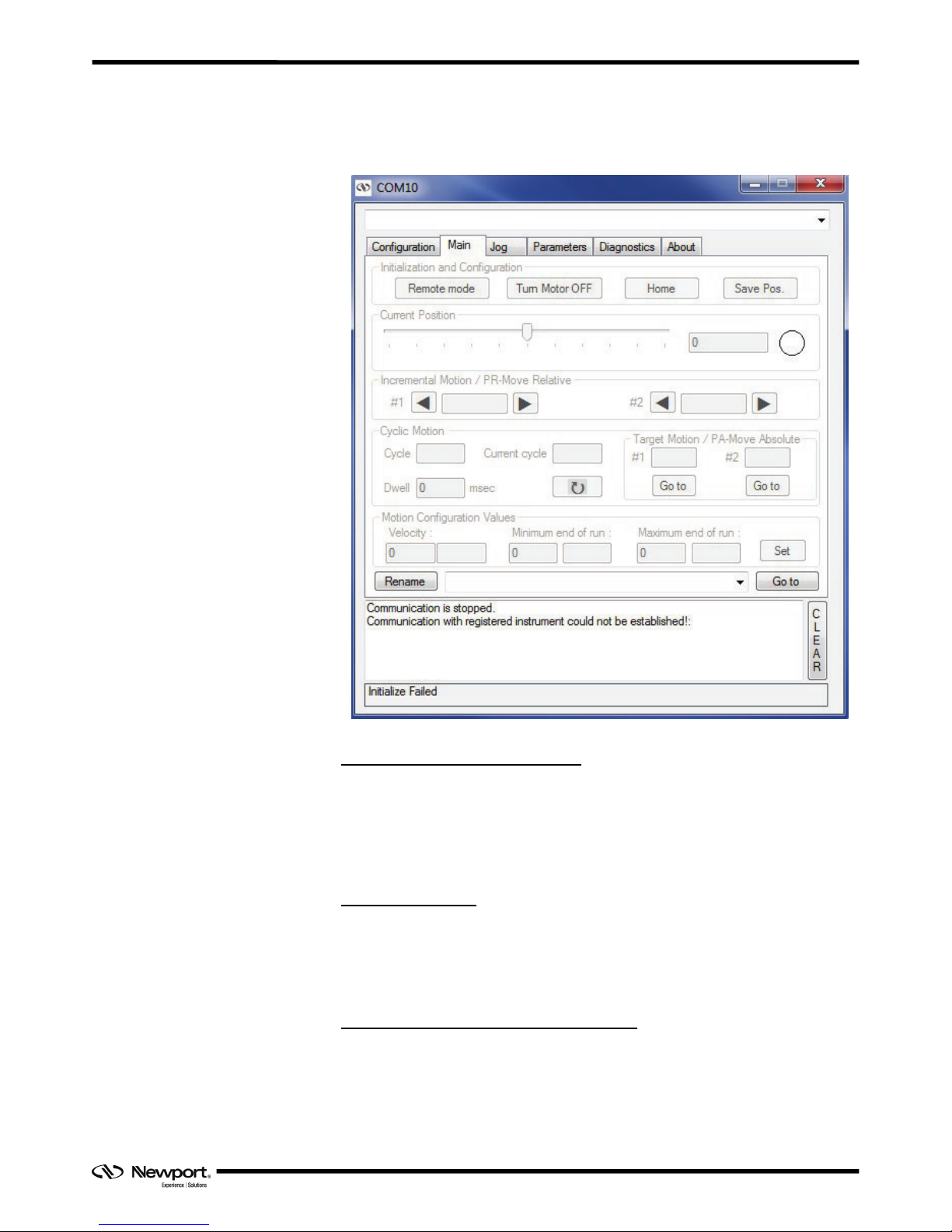

The Main tab displays the main controls in the GUI like a virtual front panel. It is

updated each time the polling interval timer expires.

“Initialization and Configuration”

In the “Initialization and Configuration” area, the first button switches between the

Local and Remote states. The second button turns the motor: ON or OFF and Stop

Motion. The Home button commands the stage to go to the home position. The last

button “Save Pos.” memorizes the current positions in the combo box. As soon as a new

position is memorized, this is displayed in the trace.

“Current Position”

In the “Current Position” area, the current position is displayed in a text box and

visualized in a slider. The slider limits are defined with the ends of run. An LED shows

the current controller state. When you move the mouse over the LED, the controller

state is displayed in an information balloon.

“Incremental Motion / PR-Move Relative”

In the “Incremental Motion / PR-Move Relative” area, two steps can be defined. For

each step, a relative move is made in the negative direction or a positive direction.

EDH0282En1030 — 01/17

ESP301 Controller GUI Manual

“Cyclic Motion” and “Target position / PA-Move Absolute”

In the “Cyclic Motion” area, a motion cycle is configured with a number of cycles

(Cycle) and a specified time in milliseconds (dwell). The motion cycle gets the defined

target positions from the “Target position / PA-Move Absolute’ area to perform the

cycle.

In the “Target position / PA-Move Absolute” area, two target positions can be defined.

The “Go to” button executes the absolute move to go to the specified target position.

“Motion Configuration Values”

In the “Motion Configuration Values”, the current ends of run and the velocity are

displayed in a disabled text box: “Minimum end of run”, “Maximum end of run” and

“Velocity”. These ends of run and the velocity can be modified and saved with the

“Set” button.

Memorized positions

The combo box memorizes the positions using the “Save Pos.” button. Each of these

positions can be renamed or deleted. To execute an absolute move to go to one of these

memorized positions, select one item of the combo box and click on “Go to” button.

When the mouse moves over to the combo box, the positions of the selected memorized

position are showed in an information balloon.

Rename a memorized position: Select an item from the combo box, edit the position

name to change it and click on the “Rename” button to save the new position name.

Delete a memorized position: Select an item from the combo box, right-click on the

mouse and select the “Delete” menu to delete the selected memorized position.
