NewLine WH3310 Manuel utilisateur
Model：WH3310
WH3310 Installation Manual
To use the product safely and correctly, please read this manual carefully before installation.
This product is suitable for 55-86 inch interactive display.
The maximum capacity of this
cart
is 100
Kg.

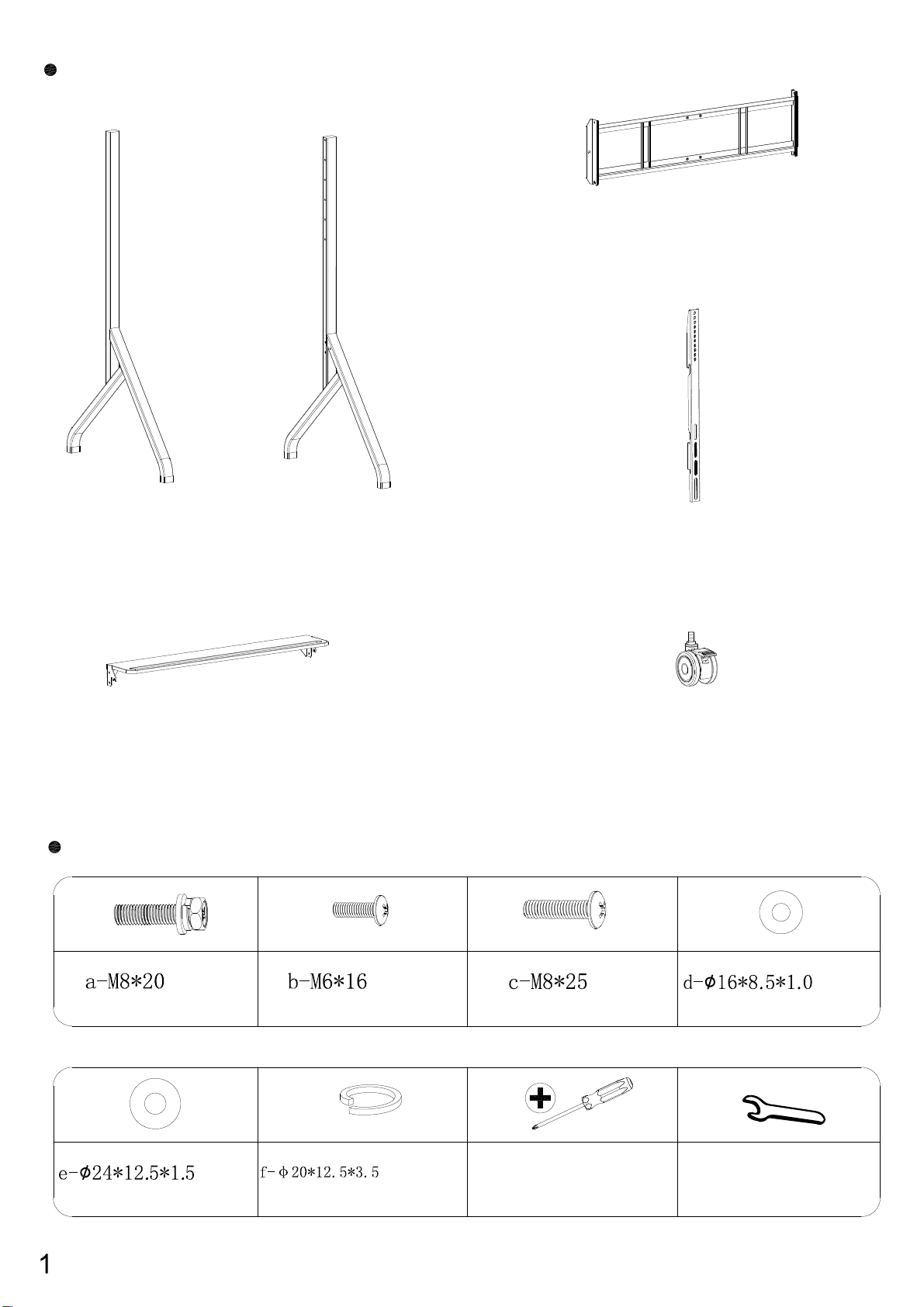

Main Parts:
B-right column 1pc
C-tray 1pc F-4inch wheels 4pcs
A-
left column 1pc
Spring washer
4pcs
Cross screwdriver
1pc
E-bracket 2pcs
D-wall plate 1pc
Washer
4pcs
Washer
4pcs
Screw
4pcs
Screw
4pcs
Screw
12pcs
Spanner
1pc
Spare parts
Before installing the wheel,
adjust it to the brake state.

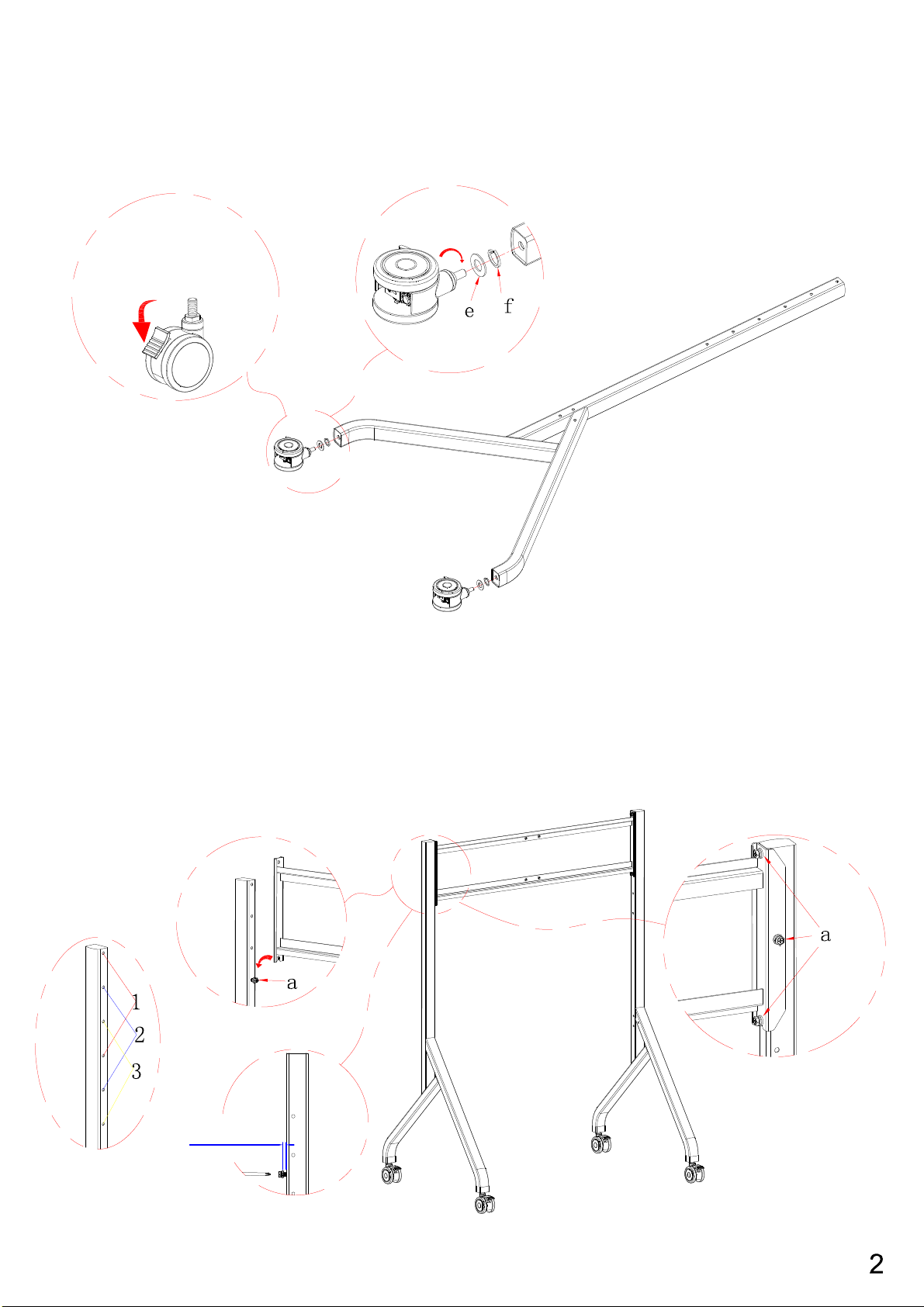

Step 1:
Adjust the wheels to the braking state, and then screw the four wheels onto the left and right columns.
(Figure 1)
3 combinations
of holes
Reserve 8mm
Figure 2
Figure 1
Step 2:
There are
3
combinations of installation holes in the wall plate. Choose the combination you need.
Turn a screw (a) into the lower hole of the combination in advance. Do not lock it and reserve a
distanceof 8mm. Then hang up the wall plate and lock all six screws (a).

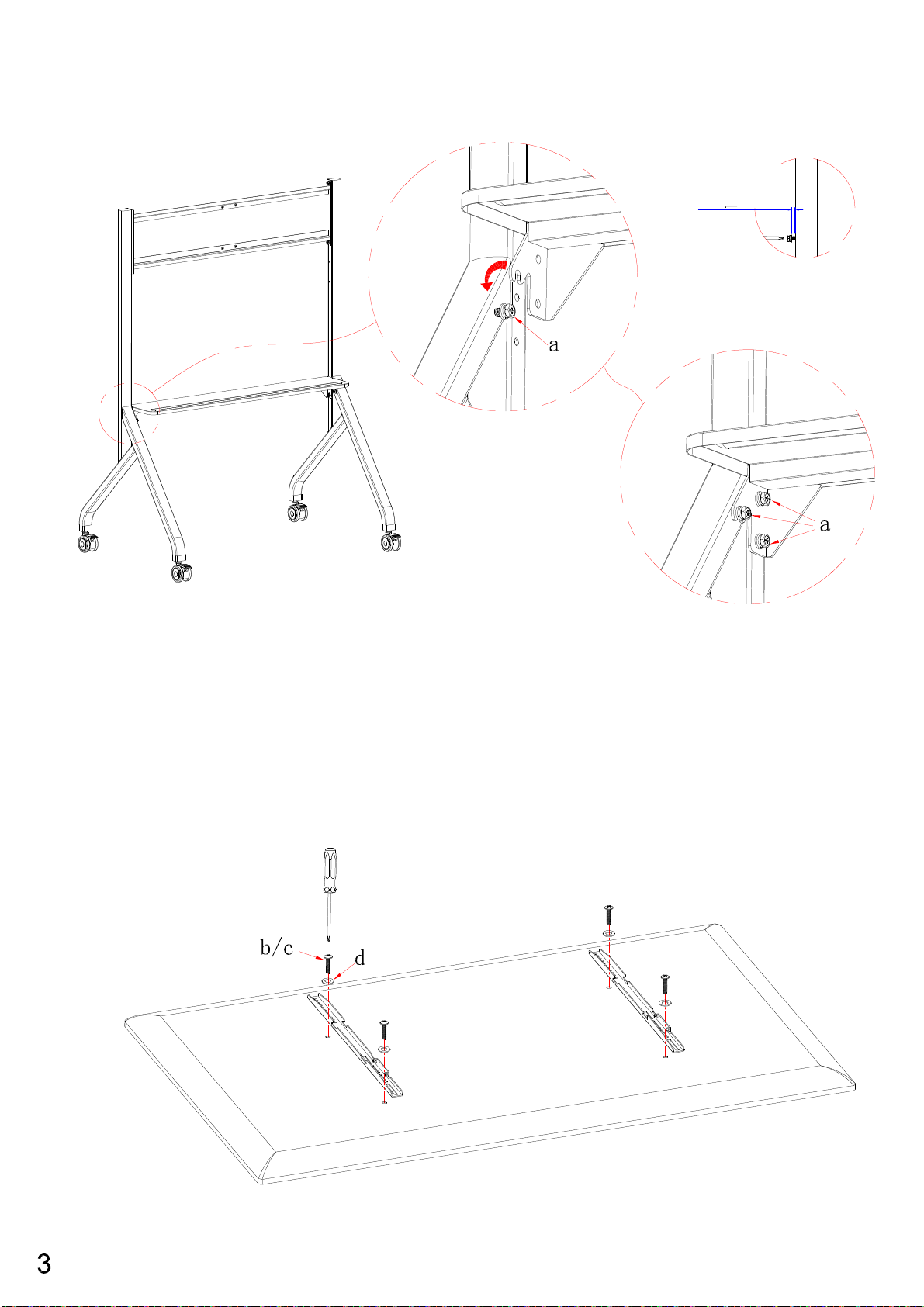

Step 3:
Turn a screw (a) into the hole as shown in Figure 3 in advance, do not lock and reserve a
distance of 8mm. Then hang up the tray and lock all six screws (a).
Figure 3
Reserve 8mm
Figure 4
Step 4:
As shown in Figure 4, lay the conference screen flat, and select the appropriate screw to
connect the bracket with the screen.
Warm Tips:
Figure 5
Step 5:
Install the interactive display with the bracket on the wall plate, ensure that the hook is hung
on the border of the wall plate, and then lock the safety screw on the
bracket.
When selecting the bottom group of holes on the column, the distance from the bottom group
of holes on the bracket to the tray is shown as the figure below. Please pay attention to the
size of your screen and ensure that the lower end of the screen does not interfere with the tray.
702mm
302mm

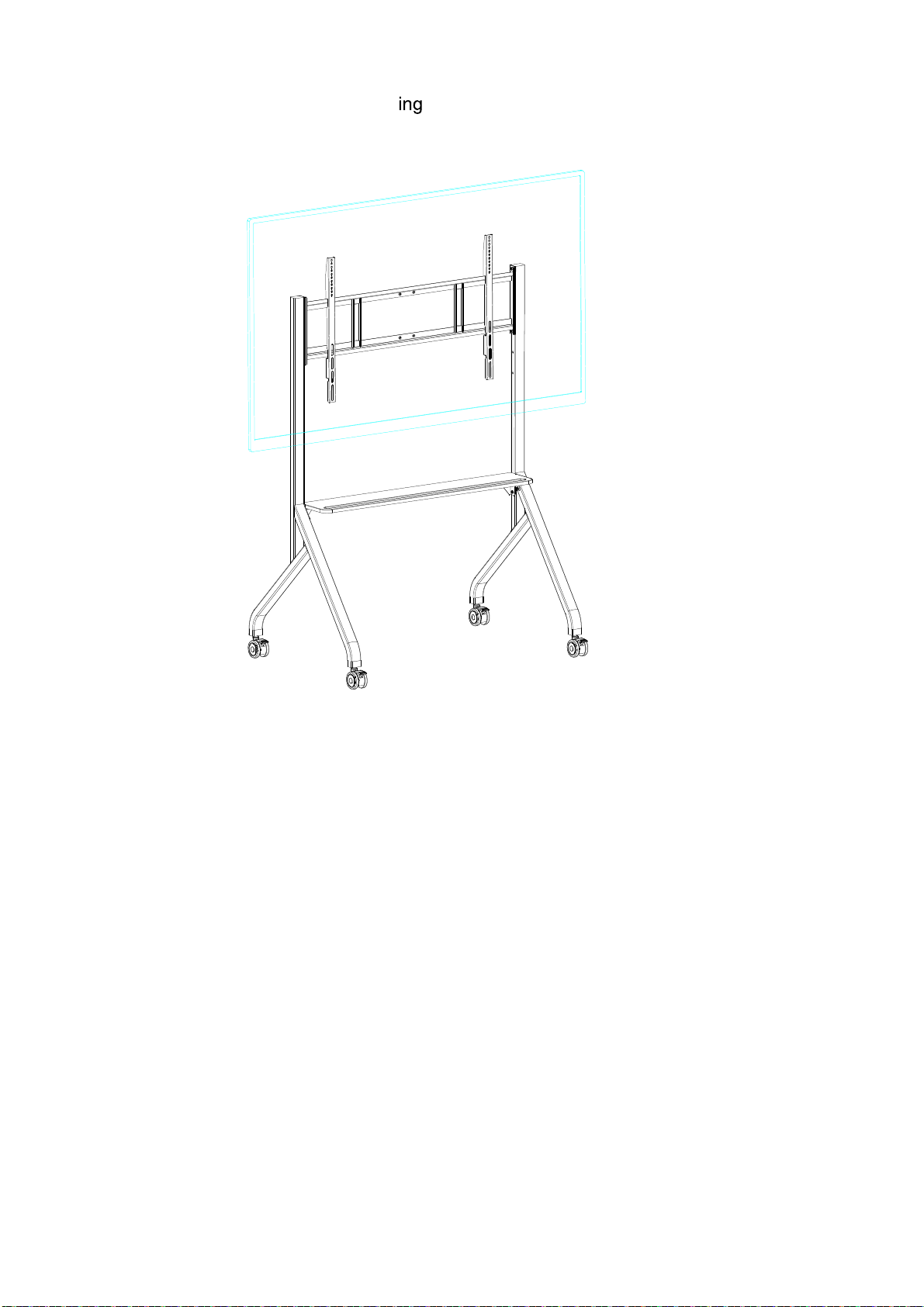

Step 6:
The effect after installation is as follow :
Figure 6
5
