NewAge Products KAMADO PRO Mode d'emploi
THIS INSTRUCTION MANUAL CONTAINS IMPORTANT INFORMATION NECESSARY FOR THE PROPER ASSEMBLY AND SAFE USE OF
THE APPLIANCE.
READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS BEFORE ASSEMBLING AND USING THE APPLIANCE.
FOLLOW ALL WARNINGS AND INSTRUCTIONS WHEN USING THE APPLIANCE. FAILURE TO OPERATE THIS PRODUCT IN A WELL
VENTILATED AREA CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH.
INSTALLATION AND OPERATION GUIDE
ATTENTION:Is your Kamado damaged?
Need help or spare parts? For fastest service,
contact NewAge Products at 1-877-306-8930;
Do not return to the retailer.
STOP
Use two or more people to move, assemble, or install Kamado to avoid
back injury.
Warning: Excessive weight hazard!
!

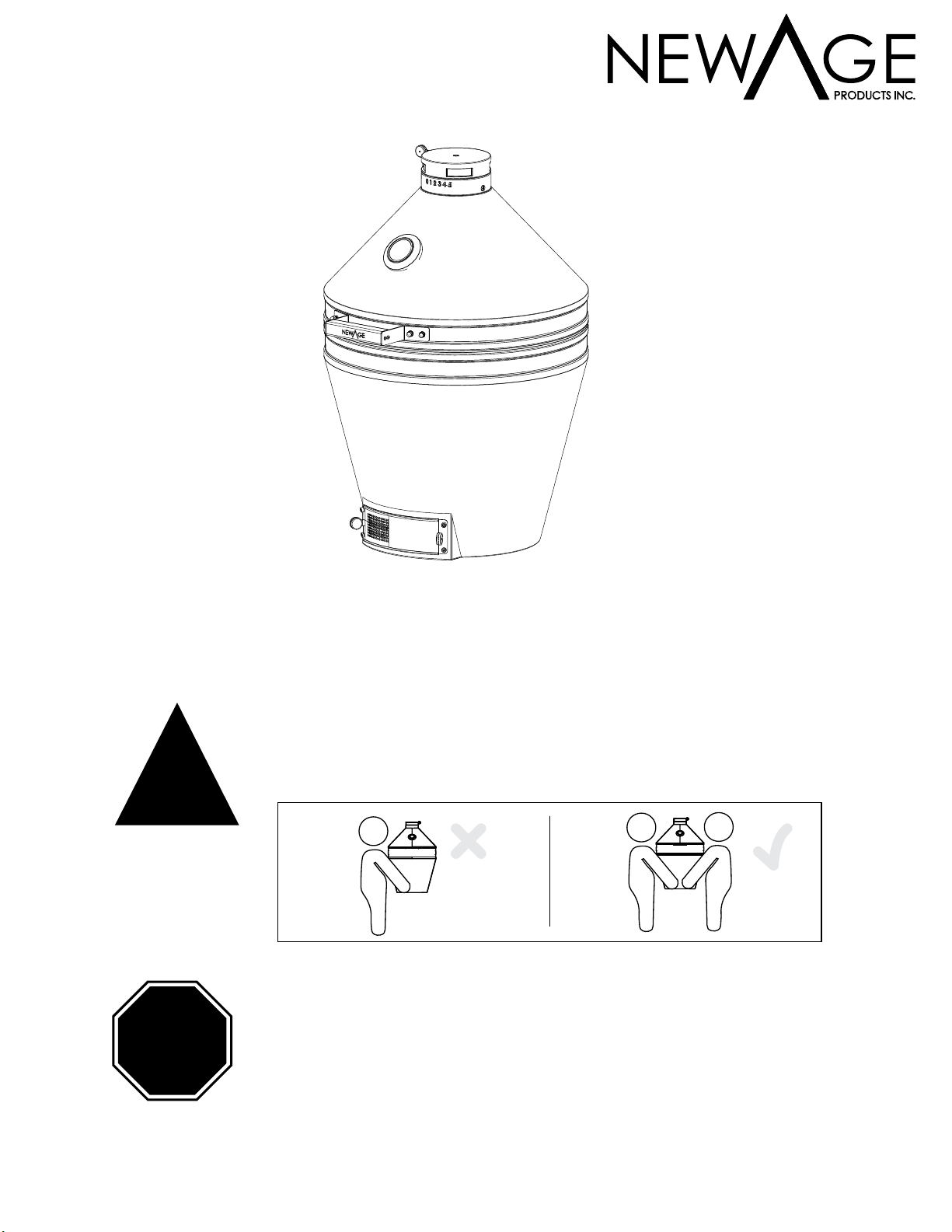

KAMADO PRO
IM-KDO.01A-01
Kamado Grill - Black - SKU#65996
Kamado Grill - Blue - SKU#65997
Kamado Grill - Two Tone - SKU#65998
Appliance Model No.
Safety and Care
1. Do not use kamado indoors. Strictly intended for Outdoor use only.
2. Use at least two people to lift and move the kamado. While lifting hold the kamado from bottom and back.
3. Place and use the kamado in a safe and level spot. Do not place it on a slope, uneven surface or under low trees or branches.
4. Do not use lighter uid, gas or other combustible liquids. This may result in producing chemical taste to your food.
5. Do not place the Kamado on a wooden table, deck or any other surfaces. The bottom of the kamado does generate signicant
heat when in use, and may cause combustion if placed directly on - or in proximity to - any combustible material.
6. Do not remove the gray gasket from the rims of the kamado. Its purpose is to help seal the cooker, provide cushion and mue
the sound that would be generated when the lid is closed.
7. ALWAYS keep children and pets at a safe distance from the oven when in use.
8. Be cautious when touching the exterior of the kamado. Exterior surfaces are HOT when in use.
9. NEVER leave a burning re unattended.
10. DANGER of carbon monoxide poisoning – NEVER light this product or let it smoulder or cool down in conned spaces.
11. DO NOT use this product in a tent, caravan, car, cellar, loft or boat.
12. DO NOT use under any awnings, parasols or gazebos.
13. FIRE HAZARD – Hot embers may emit while in use.
14. It is highly recommended that you use lump charcoal in your Kamado. It burns for longer and produces less ash which can
restrict the airow.
Do not use“Instant Light”briquettes. They will not be able to reach grilling temperatures over 500ºF and they also impart an
undesirable taste.
Do not use briquette charcoal. This type of charcoal cannot reach temperatures above 525°F and it does not impart true
charcoal avor that quality lump charcoal.
15. IMPORTANT: When opening the lid at high temperatures it is essential to lift the lid only slightly, allowing air to enter slowly
and safely, preventing any backdraft or are-ups that may cause injury. ALWAYS“BURP” your grill before opening. To“BURP”
your grill, slowly open the grill lid about 1-2 inches to allow air in, then after a few second, fully open the lid to its stop
position. By properly“Burping”your grill, you may avoid potentially dangerous sudden escape of heat and possible reball
eect when doing so.
16. DO NOT use the Kamado on decking or any other ammable surfaces such as dry grass, wood chips, leaves or decorative bark.
17. Ensure that the Kamado is positioned at least 2 metres away from ammable items.
18. DO NOT use this Kamado as a furnace.
19. ATTENTION: This product will become very hot, DO NOT move it during operation.
20. ALWAYS USE heat resistant gloves when handling hot ceramics or cooking surfaces.
21. Never use water to extinguish charcoal in the kamado. Just close both top and bottom air vents and it will extinguish itself.
22. Allow the unit to cool down completely before moving or storing.
23. NewAge kamado comes with a patented ash bucket. Make sure the unit is cooled down and charcoal is extinguished before
removing the ash bucket from the bottom of the rebox in order to empty it.
24. Always inspect the unit prior to use for fatigue and damage and replace as and when necessary.
Safety
Care
1. The Kamado is self cleaning. Heat it up to 260ºC for 30 minutes and it will scorch o all of the food and debris.
2. DO NOT use water or any other types of cleaning product to clean the inside of your Kamado. The walls are porous and will
absorb any uids used, this could cause the Kamado to crack. If the soot becomes excessive then use a wire brush to scrape
o the carbon remnants before the next use.
3. To clean the grills and grates use a non-abrasive cleaner once the unit has fully cooled.
4. To clean the outer surface wait until the Kamado is cool and use a damp cloth.
Wooden parts
Oiling teak parts regularly will preserve its original golden brown appearance. Follow the below steps for oiling:
1. Place a cloth or newspaper beneath the teak parts to catch spills. Put on gloves to avoid getting oil on your hand, which may
cause skin irritation.
2. Clean the wooden parts with water and mild soap.
3. Dry the wooden parts after cleaning and leave them for 24–36 hours to remove all moisture before applying the oil.
4. Apply teak oil by using a paint brush.
5. Wait fteen minutes, then wipe down with a cloth.
6. Reapply regularly. Your wooden parts will fade in color if oil is not reapplied.
Safety and Care
Scan this QR code with the camera
on your mobile device to visit the
NewAge Products Support Hub
www.newageproducts.com/support-hub/
Register your NewAge Products purchase online for quicker
customer assistance and access to exclusive benefits
Visit www.newageproducts.com/register/
Warranty Claim
For warranty service please contact NewAge Products at
Please review all warranty details below, prior to
contacting NewAge Products for a claim.
Scan the QR code on the right to access our support page or
visit www.newageproducts.com/contact-us/
PROOF OF PURCHASE IS REQUIRED
TO OBTAIN WARRANTY SERVICE.
Please have the following information available
when you call our customer service team:
• Name, address and telephone number
• Product Name / SKU Number
• A clear, detailed description of the problem
• Proof of purchase including order number
NEWAGE PRODUCTS INC. KAMADO PRO
MANUFACTURER WARRANTY
ONE YEAR LIMITED WARRANTY
WHAT IS COVERED
When this product is installed, operated and maintained according to the instructions attached to or furnished with the product, NewAge Products
Inc. will replace the defective product or parts if the part fails as a result of defective materials or workmanship for the warranty duration from the
purchase date of the product.
1. Service calls to correct the installation of any NewAge products or to instruct you how to use or install them.
2. Damage resulting from products caused by accident, misuse, abuse, fire, flood, improper installation, acts of God, neglect, modification or
mishandling.
3. Products damaged by improperly loading beyond the specified maximum weight capacity outlined in the instructions provided with the
product.
4. Repairs or replacement when your product is used in other than normal, residential use, such as a commercial environment, or handled in
anyway inconsistent with the installation instructions included with the product.
5. Cosmetic damage, including scratches, dings, dents or cracks in paint that do not aect the structural or functional capability of the product.
6. Surfaces damaged due to improper use of chemicals, and detergents.
7. Replacement parts for NewAge products outside Canada and the United States.
8. Loss due to theft.
9. Damage resulting from use of the product contrary and not in accordance to the instruction manual.
10. Any labor costs during the warranty period.
DISCLAIMER OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR
THE SHORTEST PERIOD ALLOWED BY LAW. THIS WARRANTY IS LIMITED TO THE ORIGINAL BUYER. Some states and provinces do not allow limitations
on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and
you also may have other rights that vary from state to state or province to province.
LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AT OUR DISCRETION AS
PROVIDED HEREIN. NEWAGE SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the
exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific
legal rights, and you also may have other rights that vary from state to state or province to province.
WHAT IS NOT COVERED
Index
Safety and Care 2
MANUFACTURER WARRANTY 3
Unpacking 5
Product Inspection 5
Product Specications 5
Parts Included and Spare Parts 6
Tools Included 8
Accessories 8
Assembling the Kamado 10
Assembling the Kamado Basic Setup 11
Installing the Accessories 12
Starting the Charcoal 18
Controlling the Temperature 19
Cooking Guide 21
Replacing the sealing gasket 24
Replacing the Hinge Spring 25
6
Unpacking
• Begin by placing the package on a covered at surface.
• Remove all cardboard, foam packaging material and clear plastic bags.
• Dispose / recycle all packaging materials.
• Verify all the contents in the box and gather the required tools. See“Tools Needed”in the list below.
Product Inspection
• Check to see all parts are received as per the
order placed.
• Contact NewAge Products at 1-877-306-8930;
for any missing parts.
• Inspect the products for any damages before
starting the installation.
• Go through the installation instructions carefully
before starting the installation.
Product Specications
Kamado Pro
Material Ceramic
Grate Grilling Area 300 SqIn
Fuel Type Charcoal / Wood
Weight 110.23 Lbs
Width (W) 22”
Depth (D) 24.48”
Height (H) 32.77”
7
Parts Included and Spare Parts
A
B
E
1
12
22
21
19
20
13
17
16
14
11
9
18
8
7
11
10
6
5
14 23
DETAIL A
SCALE 2 : 5
15
24
25
DETAIL B
SCALE 2 : 9
30
2
3
26
29
30
4
DETAIL E
SCALE 2 : 13
14
27
31
28
8
ItemNo PartNo Description SKU QTY.
1 KDO-22.001A-01-XX Kamado Bottom - 1
2 KDO-22.002.01A-01 Bottom Vent Liner 65982 1
3 KDO-22.003A-01 Bottom Vent Assembly-I 65983 1
4 KDO-22.004A-01 Bottom Vent Assembly-II 65984 1
5 KDO-22.005A-01 Kamado Firebox 65970 1
6 KDO-22.006A-01 Ash Bucket Assembly 65985 1
7 KDO-22.007A-01 Charcoal Tray 65973 1
8 KDO-22.008A-01 Charcoal Divider 65975 1
9 KDO-22.009A-01 Cooking Grate Assembly 65974 1
10 KDO-22.010A-01 Bottom Band Assembly - 1
11 KDO-22.011A-01 Flat Band 65971 2
12 KDO-22.012A-01 Hinge Assembly - 1
13 KDO-22.013A-01-XX Kamado Lid - 1
14 KDO-22.014A-01 Top Band Assembly - 1
15 KDO-22.015A-01 Top Vent Assembly 65981 1
16 KDO-22.016A-01 Thermometer Bezel 65979 1
17 KDO-22.017A-01 Thermometer 65978 1
18 KDO-22.018A-01 Second Tier Cooking Grate 65976 1
19 KDO-22.019A-01 Hanging Cooking Kit Assembly 65977 1
20 KDO-22.024A-01 Charcoal Starter Chimney 65993 1
21 KDO-22.012.04A-01 Hinge spring 65972 2
22 KDO-22.025A-01 Grate Lifter Gripper 65994 1
23 KDO-22.029A-01 Charcoal Stirring Rod Assembly 65969 1
24 H00318A-01 M5 Flange Nut - 2
25 H00274A-01 M5x35L Round Head Screw - 2
26 H00340A-01 Socket Cap Screw M6x45L - 2
27 H00269A-01 Cap Nut M6 - 12
28 H00388A-01 M6x12x1.5 Washer - 12
29 H00282A-01 Socket Cap Screw M6x60L - 2
30 H00200A-01 M6 Nut - 4
31 H00396A-01 M6 Spring Washer - 12
Parts Included and Spare Parts
9
Accessories
Included Accessories
Ash Bucket Grill Grippers
Charcoal Stirring Rod
Charcoal Grate
Expander Grate
Cooking Grate
Charcoal Chimney
Charcoal Divider
Hanging Cook Kit
Tools Included
Wrench
10mm
Phillips Screwdriver
Half Moon Diuser
Kamado Cover Pizza Stone
Kamado cart
Cast Iron Griddle
18”Heat Diuser
Optional Accessories
*Accessories oering depends on location
and subject to change.
10
Assembling the Kamado
Top Vent M5x35 Screw M5 Nut
Handle Cap Nuts Spring Washers
M6x12 Washers Wrench Phillips
Screwdriver
Gather the following parts and tools
supplied with the package. Install handle in position by matching
holes with the screws on the Kamado.
Install four cap nuts along with the
spring washer and M6x12 washer using a
spanner to secure the handle.
Install Top vent on top of the Kamado.
Make sure to align side holes on the vent
with the holes on top of the Kamado.
Secure the Top vent to Kamado by
installing M5x35 screws using the
provided screwdriver.
Open the kamado lid and tighten nuts
from inside using the spanner.
1
2 3
44
