New Century Communication TK-750A Manuel utilisateur

NEW CENTURY COMMUNICATION

TO USER

Thank you for purchasing NEW CENTURY serial transceiver. We appreciate your trust

in our products and believe that this easy to operate and state of the art 2-way transceiver

would well serve your diverse communication needs.

MODEL COVER BY THIS MANUAL:

TK-750AVHF FM TRANSCEIVER

TK-760A UHF FM TRANSCEIVER

CONTENTS

SAFETY INFO

UNPACKING AND CHECKING EQUIPMENT

SUPPLIED ACCESSORIES

BATTERIES

PREPARATION

INSTALLING/REMOVING THE BATTERY PACK

INSTALLING THE ANTENNA

INSTALLING THE BELT CLIP

GETTINGACQUAINTED

BASIC OPERATIONS

AUXILIARY FUNCTIONS

MONITOR/SQUELCH OFF

CALLALARM TONE

SELECTIVE CALL

VOX TRANSMIT

SAFETY INFO

NOTICES TO THE USER

Government law prohibits the operation of unlicensed radio transmitters within the

territories under government control.

Illegal operation is punishable by fine or imprisonment or both.

Refer service to qualified technicians only.

SAFETY:

It is important that the operator is aware of and understands hazards common to the

operation of any transceiver.

NEW CENTURY does not guarantee the safety and operation of the transceiver

when using accessories and /or attachments not sold by NEW CENTURY.

WARNING

EXPLOSIVE ATMOSPHERES(GASES，DUST，FUMES，etc．)

Turn off your transceiver while taking on fuel，or while parked in gasoline service

stations．

PRECAUTIONS

Observe the following precautions to prevent fire，personal injury and transceiver damage．

Do not modify or attempt to adjust this transceiver for any reason．

Do not expose the transceiver to long periods of direct sunlight，nor place it close to

heating appliances．

Do not place the transceiver in excessively dusty，humid，and/or wet areas，nor on

unstable surfaces．

If an abnormal odor or smoke is detected coming from the transceiver，switch OFF

the power immediately and remove the optional battery pack from the

transceiver．Contact your NEW CENTURY dealer．

UNPACKING AND CHECKING

EQUIPMENT

Carefully unpack the transceiver．We recommend that you identify the items listed in the

following table before discarding the packing material．If any items are missing or have

been damaged during shipment，file a claim with the carrier immediately．

SUPPLIED ACCESSORIES

Item Quantity

Antenna 1

Charger（with adaptor）1

Li-ion Battery Pack（or Ni-MH Battery Pack）1

Belt clip 1

User’s manual 1

BATTERIES

CHARGING WARNINGS:

Initially charging the battery pack after purchase or extended storage（greater than 2

months）will not bring the battery pack to its normal operating capacity. After repeating

the charge/discharge cycle two or three times, the operating capacity will increase to

normal. Please replace or charge the battery pack while while low power alarm.

AVAILABLE BATTERIES

Please use NEW CENTURY special battery to charge transceiver, it may happen explode

and damaged body if using other brand batteries.

Notice:

1. Do not short the battery terminals or dispose of the battery by fire. Never attempt to

remove the casing from the battery pack.

2. The ambient temperature should be between 5 and 40℃while charging is in progress.

Charging outside this range may not fully charge the battery.

3. Always switch OFF the transceiver equipped with a battery pack before charging.

Using the transceiver while charging its battery pack will interfere with correct

charging.

4. Do not plug/unplug the AC adaptor and battery during charging, to avoid interference

charging program.

5. The battery pack life is over when its operating time decrease even though it is fully

and correctly charged. Replace the battery pack.

6. Do not recharge the battery pack if it is already fully charged. Doing so may cause

the life of the battery pack to shorten or the battery pack may be damaged.

7. Do not charge transceiver while the battery or units were wet. Ought to dry it with

cloth before charging, avoide to damage the unit.

Notice: All batteries can cause property damage and/or bodily injury such as burns if a

conductive material such as jewelry, keys, or beaded chains touch exposed terminals.

The conductive material may complete an electrical circuit (short circuit) and become

quite hot. Exercise care in handling any charged battery, particularly when placing it inside

a pocket, purse, or other container with metal objects.

CHARGE OPERATION

If installing battery, the transceiver lights red and three beeps sound each 30 seconds, it

means low power, please start to charge the transceiver.

Please use NEW CENTURY special charger for battery charging, the charger LED display

charger cause.

LED appears status Battery Type

Lights red charging Ni-MH/Li-ion battery

Lights green Fully charging Li-ion battery

TO CHARGE BATTERY PACK, PERFORM THE FOLLOWING STEPS:

1. Plug theAC adaptor cable into the adaptor jack located on the rear of the charger.

2. Slide the battery pack or transceiver with a battery pack into the charger.

3. Plug theAC adaptor intoAC outlet.

4. Make sure the battery pack contacts are in contact with the charging terminals, the

charger LED lights red and charging begins.

5. The supplied charger LED lights green（Li-ion battery）, complete charged. Remove

it or the transceiver equipped with it from the charger.

Notice:

1. The charger LED brights before unplug battery pack, it is normal.

2. When replace a battery pack to charge, please charging after LED is steady.

3. The charger lights red while charging after plug the battery, brights mesns

damage battery or the degree is too high or low.

PREPARATION

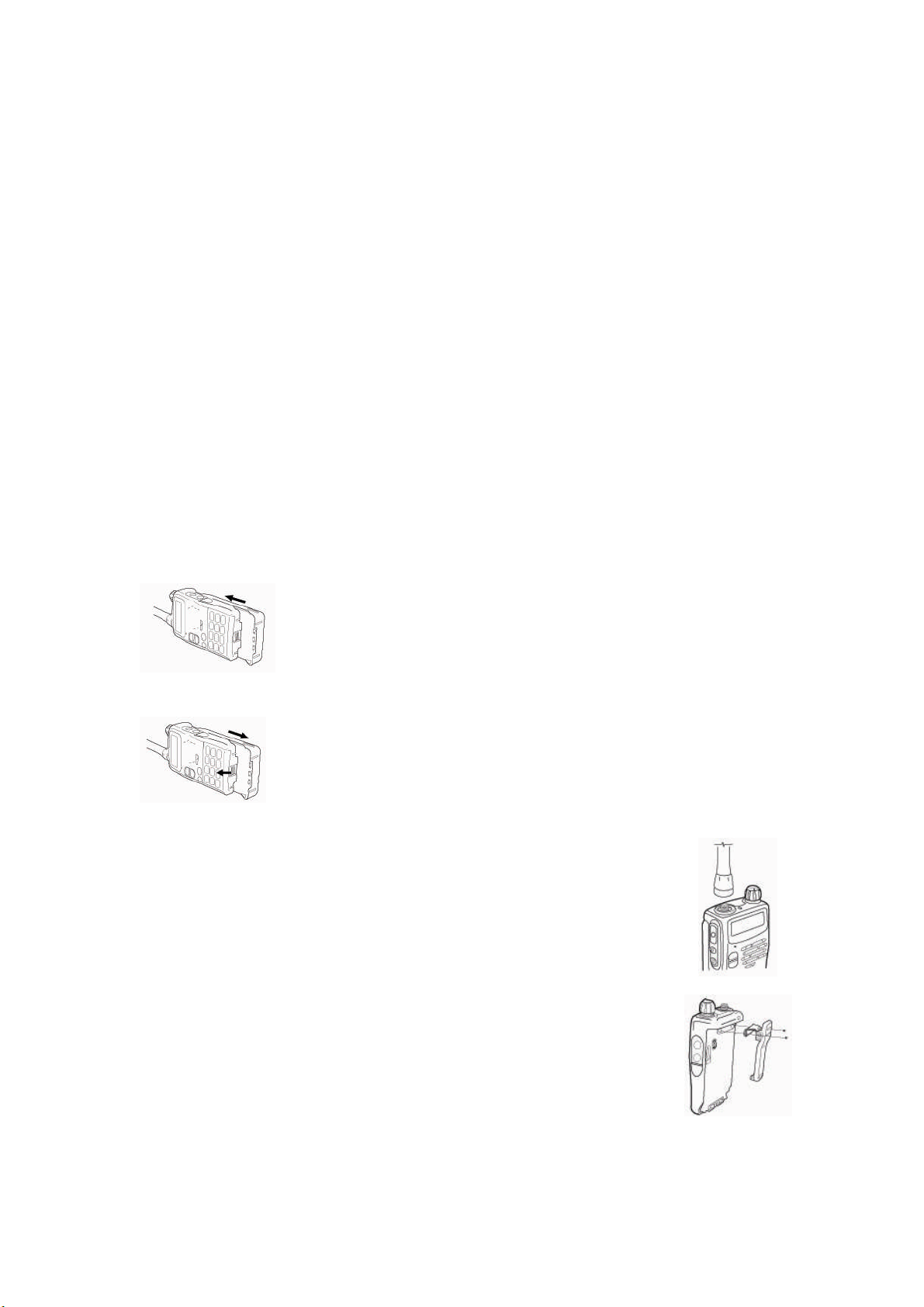

INSTALLING/REMOVING THE BATTERY PACK

The battery pack is not charged at the factory；charge it before use.

1. Match the two bulges of the battery pack with the corresponding

guides on the back of the transceiver, then press the battery

pack and transceiver firmly together until the release latch on the

base of the transceiver locks.

2. While pressing the release latch，pull the battery pack away from

the transceiver.

INSTALLING THE ANTENNA

Screw the antenna into the connector on the top of the transceiver by

holding the antenna at its base and turning it clockwise until secure。

Note：The antenna is neither a handle，a key ring retainer，nor a

speaker/microphone attachment point. Using the antenna in these ways

may damage the antenna and degrade your transceiver’s performance.

INSTALLING THE BELT CLIP

If necessary，attach the belt clip using the two supplied screws。

Caution:

Do not use glue which is designed to prevent screw loosening when

installing the belt clip，as it may cause damage to the transceiver。Acrylic ester，which is

contained in these glues，may crack the transceiver’s back panel.

Your first QSO

FIRST QSO

Are you ready to give your transceiver a quick try? Reading this chapter should get your

voice on the air right away. The instructions below are intended only for a quick guide. If

you encounter problems or there is something you would like to know more, read the

detailed explanations given later in this manual.

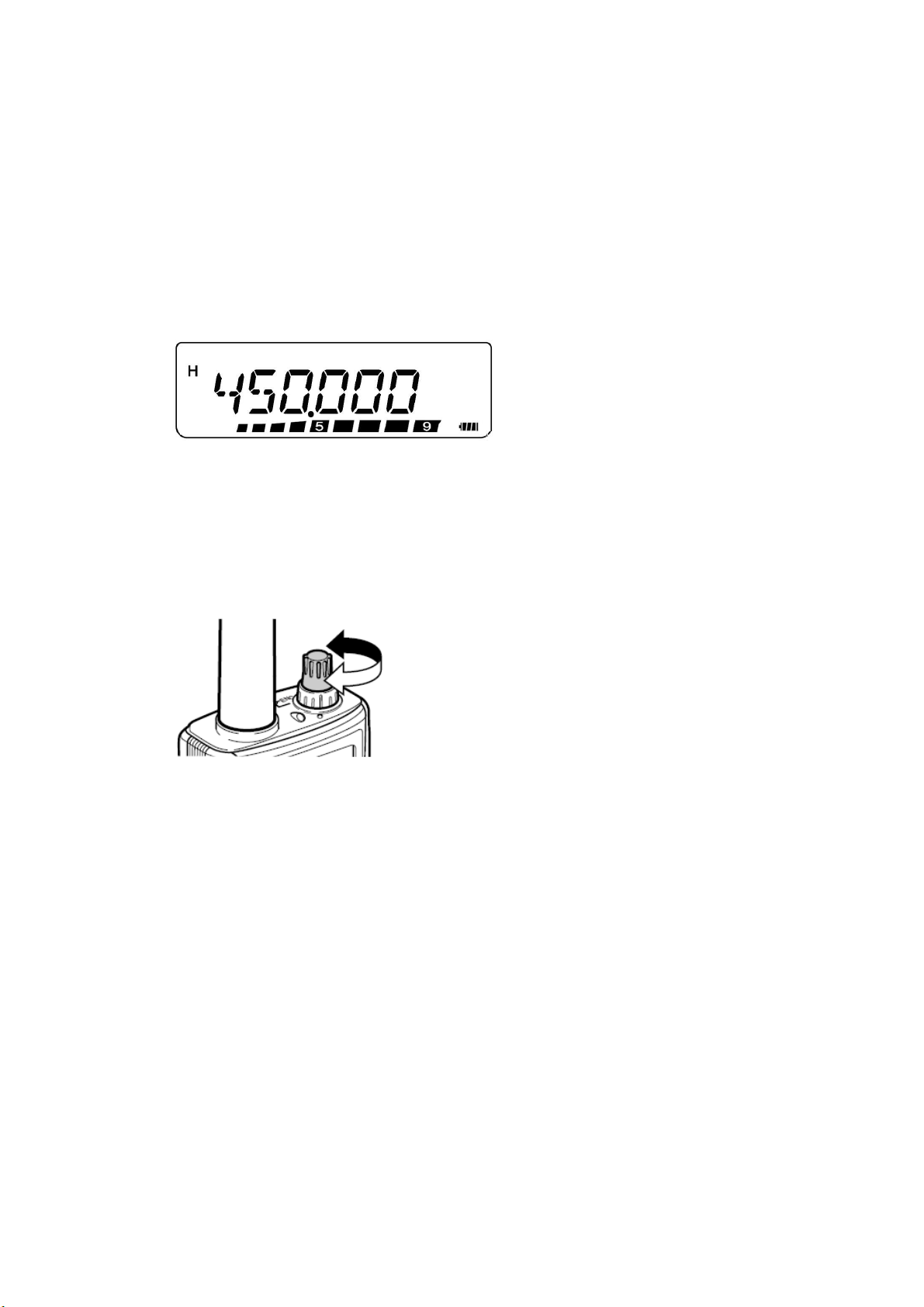

1. Turn on the transceiver, example shown below

A high pitched double beep sounds and a Power-ON message appears

momentarily. The various indicators and the current operating frequency appear

on the LCD.

The transceiver stores the current parameters when it is turned OFF and

automatically recalls these parameters the next time you turn the transceiver ON.

2. Turn the PWR/VOL control clockwise.

3. Press【▲/▼】keys to select a reception frequency.

You may further turn the PWR/VOL control to adjust the volume level of the

signal.

4. To transmit, hold the transceiver approximately 5 cm (2 inches) from your mouth.

5. Press and hold [PTT], then speak in your normal tone of voice.

6. Release [PTT] to receive.

7. Repeat steps 4,5and 6to continue communication.

GETTING ACQUAINTED

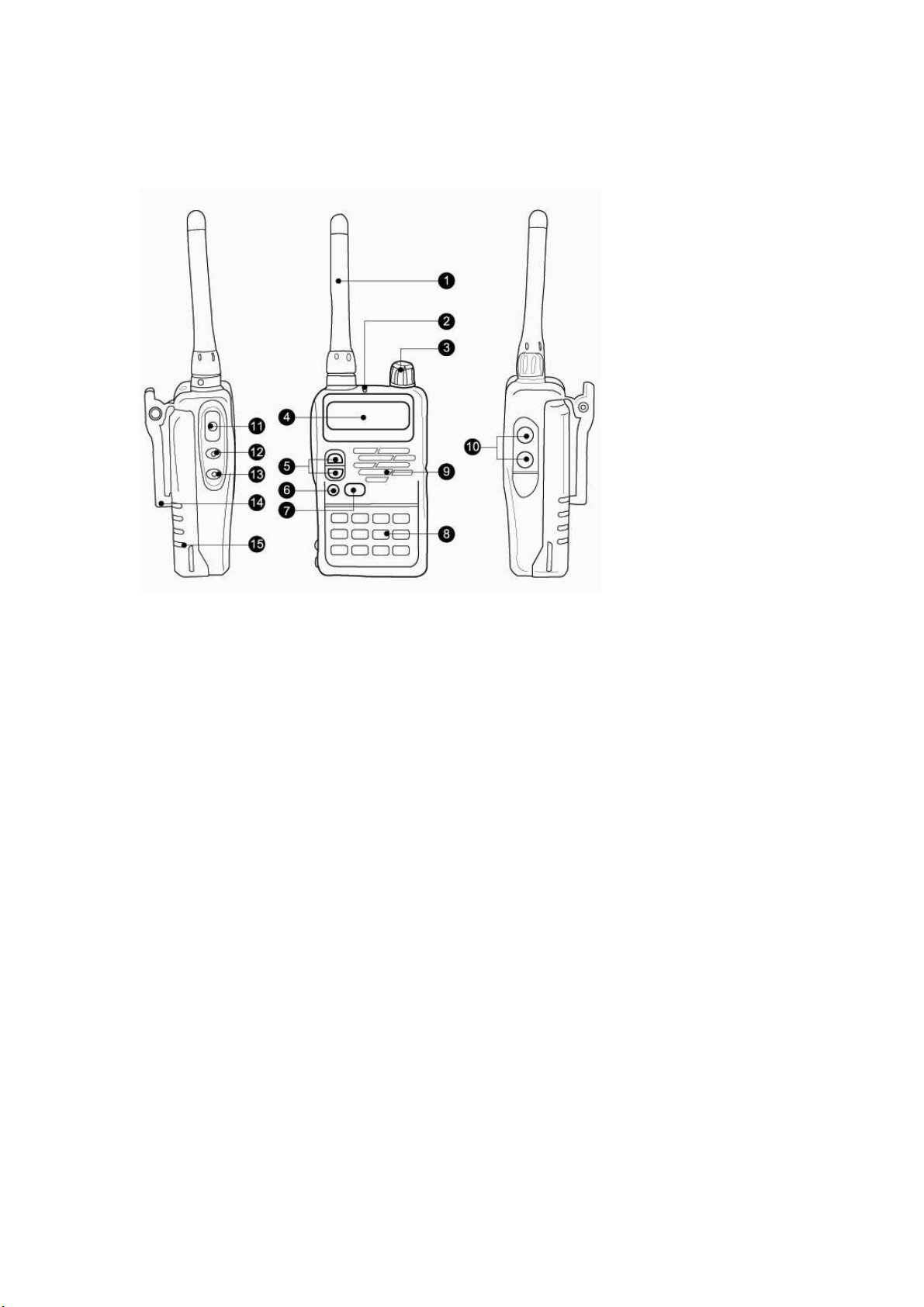

KEYS AND CONTROLS

Antenna

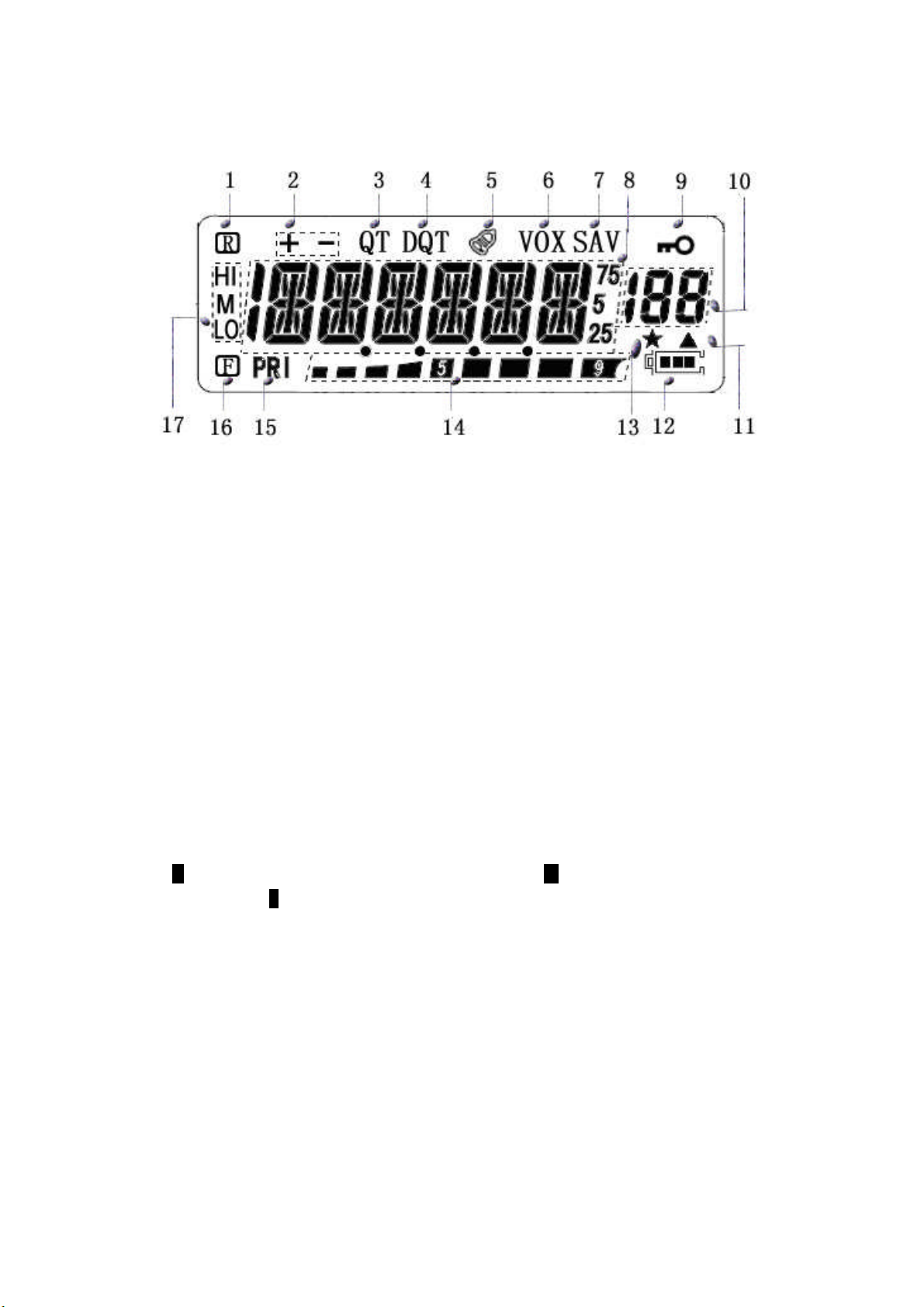

Display

1. Appears when the Reverse function is activated

2. Appears when the repeater shift function is activated

3. Appears when the CTCSS function is activated

4. Appears when the DCS function is activated

5. Appears when the call alarm tone is activated

6. Appears when the VOX function is ON

7. Appears when set the unit in saving mode

8. Displays the frequencies, Menu settings and other information.

9. Appears when the Lock function is ON

10. Displays the Menu No., memory channel number, and status

11. Appears when the displayed memory channel has data

12. Displays the battery power remaining

13. Appears when the memory channel lockout function is ON

14. S-meter (RX) and TX Power Output indicator when the transceiver transmits

15. Appears when a Priority Scan function is activated

16. Appears when setting shortcut function

17. Happears when high power transmission is selected, Mappears when medium power is

selected, and Lappears when low power is selected

BASIC OPERATION

Switching the Power ON/OFF

Switch ON the unit by turning the POWER SWITCH/VOLUME CONTROLknob clockwise.

A high-pitched double beep sounds, full display and a POWER-ON message appear

briefly followed by the frequency and others indicators.

To switch the unit OFF by turning the POWER SWITCH/VOLUME CONTROL knob

anticlockwise.

The unit stores the current frequency and parameters when it is turned OFF and recalls

their parameters the next time you turn the unit ON.

Adjusting the Volume

Turn the POWER SWITCH/VOLUME CONTROL knob clockwise to increase the

audio output level and anticlockwise to decrease the output lever.

If you are not receiving a signal, press and hold 【MON】key to unmute the speaker,

then adjust the POWER SWITCH/VOLUME CONTROL to a comfortable audio output

level.

Adjusting the Squelch

The purpose of squelch is to mute the speaker when no signals are present. With the

squelch level correctly set, you will hear sound only while actually receiving signals. The

higher the selected squelch level, the stronger the signals must be to receive.

The appropriate squelch level depends on the ambient RF noise conditions.

1. Press 【MENU】key, and then press【MENU】.

The current squelch level appears.

2. Press【▲/▼】key to adjust the level.

Select the level at which the background noise is just eliminated when no signal

is present.

The higher the level, the stronger the signals must be to receive.

9 different levels can be set（0: minimum, 9: Maximum, Default value: 5）.

3. Press【MENU】key to store the new setting and continue to set other functions. Or

press【F】key to store the new setting and exit Menu mode.

Transmitting

1. To transmit, hold the transceiver approximately 5 cm (2 inches) from your mouth,

then press and hold 【PTT】and speak into the microphone in your normal tone of

voice.

The LED lights red and the bar-graph meter appear.

2. When you finish speaking, release【PTT】.

Note: If TOT function is activated, continuously transmit for longer than the time specified,

the internal timeout timer generates a warning beep and the transceiver stops transmitting.

In this case, release【PTT】and let the transceiver cool down for a while, then press【PTT】

again to resume transmission.

Selecting an Output Power

Selecting a lower transmission power is the best way to reduce battery consumption, if

communication is still reliable. You can configure different power levels for transmission.

Ce manuel convient aux modèles suivants

Table des matières

Manuels Émetteur-récepteur populaires d'autres marques

Yaesu

Yaesu FT-7B Manuel utilisateur

Kenwood

Kenwood ProTalk TK-3201 Manuel utilisateur

Texas Instruments

Texas Instruments TLK10232 Manuel utilisateur

Mizuho

Mizuho MX-2 Guide produit

Kenwood

Kenwood TK-3180 Manuel d'utilisation et d'entretien

Blitz

Blitz MJ-398U Manuel utilisateur

Utilicom

Utilicom LongRanger 2050 Manuel utilisateur

Standart

Standart HX290UKA Manuel utilisateur

Altronix

Altronix Pace1PTM Manuel utilisateur

Kirisun

Kirisun PT2208 Manuel utilisateur

ELECRAFT

ELECRAFT KX2 Manuel utilisateur

Zodiac

Zodiac K3 Manuel utilisateur

Assa Abloy

Assa Abloy SecureComm HKC GSM-WIFI U Manuel utilisateur

Kenwood

Kenwood TK-2217 Manuel utilisateur

Siemens

Siemens PSO 4000 Manuel utilisateur

Kenwood

Kenwood TS-590SG Manuel utilisateur

Midland

Midland G8E-BT Manuel

ComNav

ComNav Mariner X2 Manuel utilisateur
