S101 & S201 Wall Mount Cabinet
Assembly Instructions - Rev. 3
Bottom Panel
Front Panel
Side Panel - x2 Cage Nut Rail - x4
Front Frame
Rear Panel Top Panel
M6*20 Screw M6*12 Screw M6 Nut M6 Washer

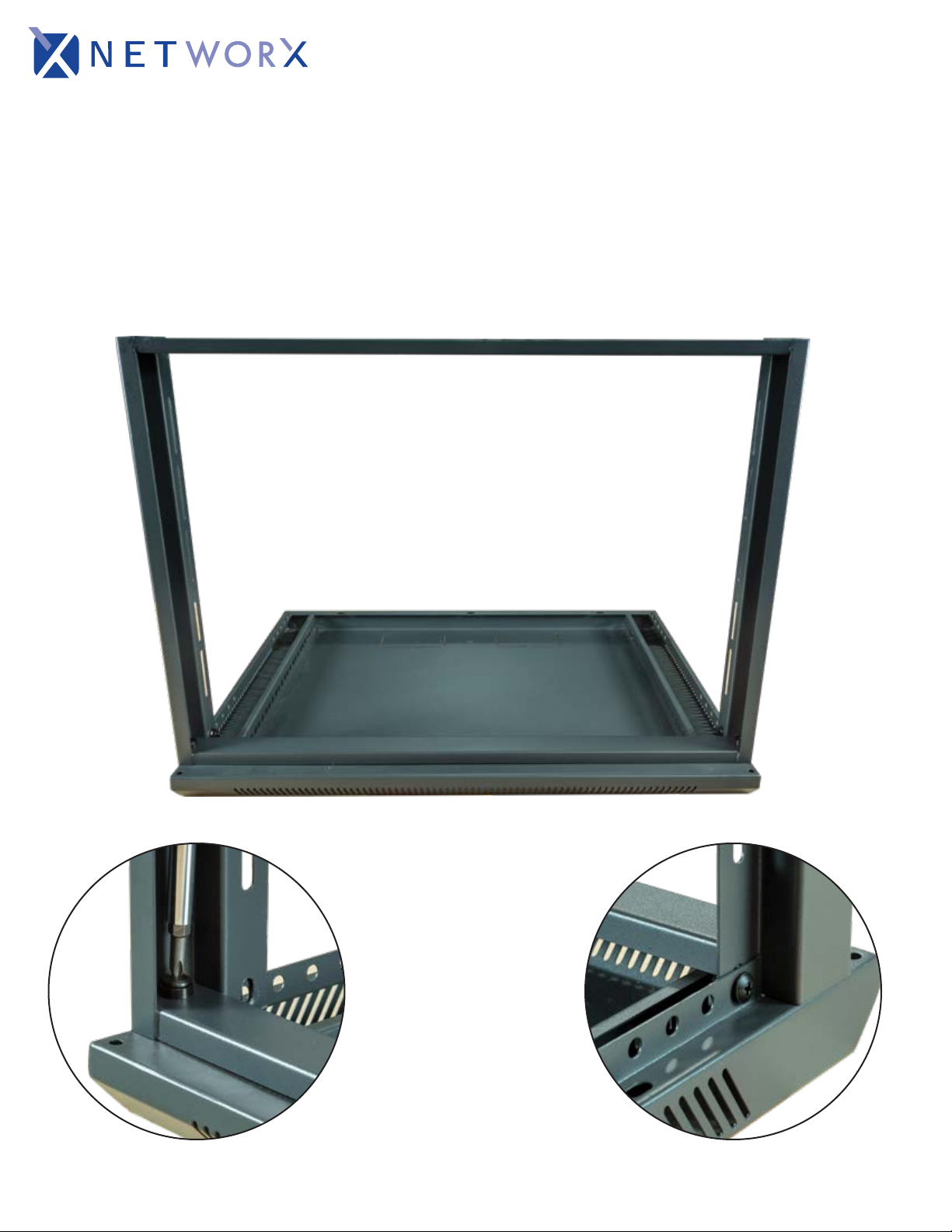

Step 1 - Mount Front Frame to Bottom Panel
A - Use 2x M6*20 Screws & washer at preinstalled cage nut locations
B - Use 2x M6*12 Screws & nuts
A
A
A
B
B
B
®

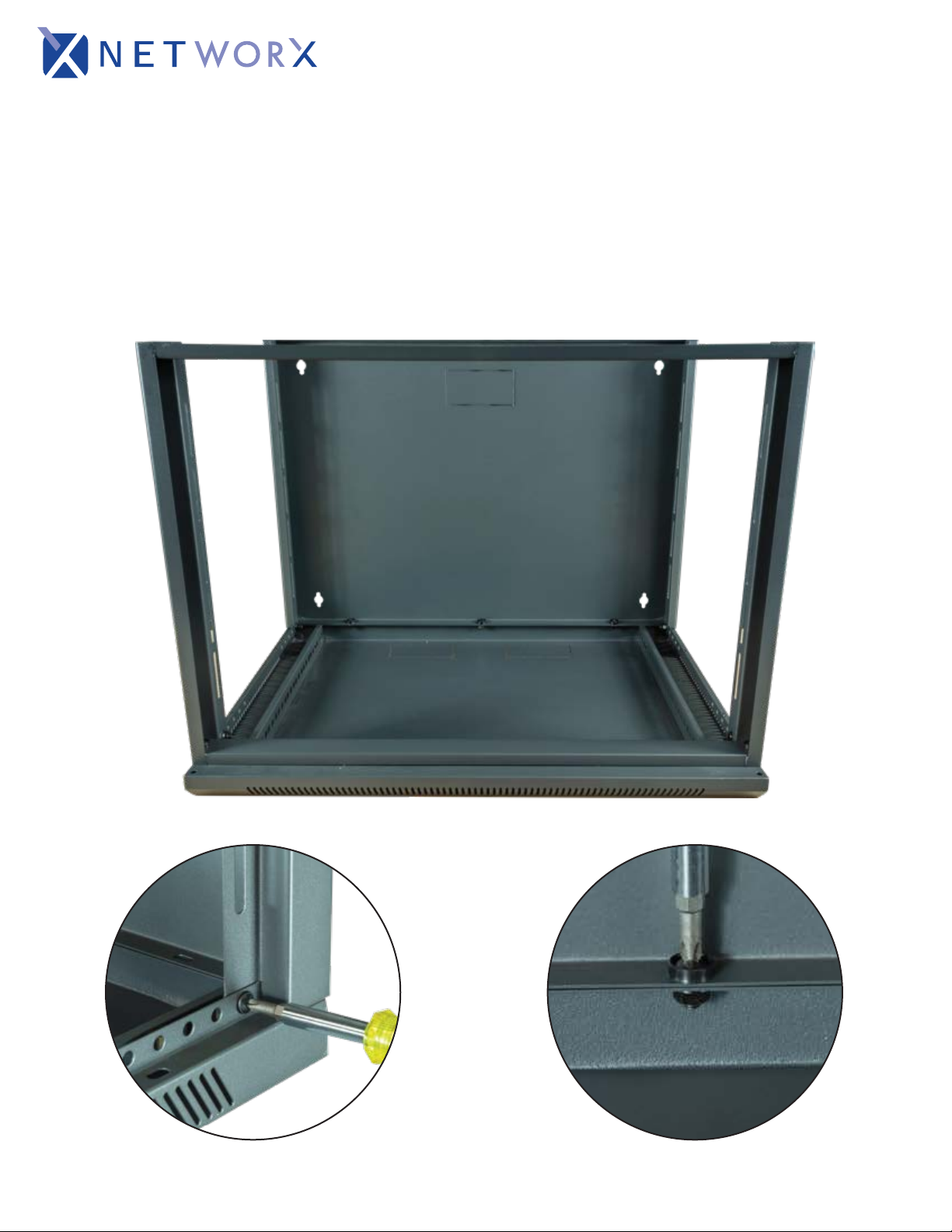

Step 2 - Mount Rear Frame to Bottom Panel
B - Use 2x M6*12 Screws & Nuts
C - Use 3x M6*12 Screws, washers, & nuts
BB
B
C C
C
C
®

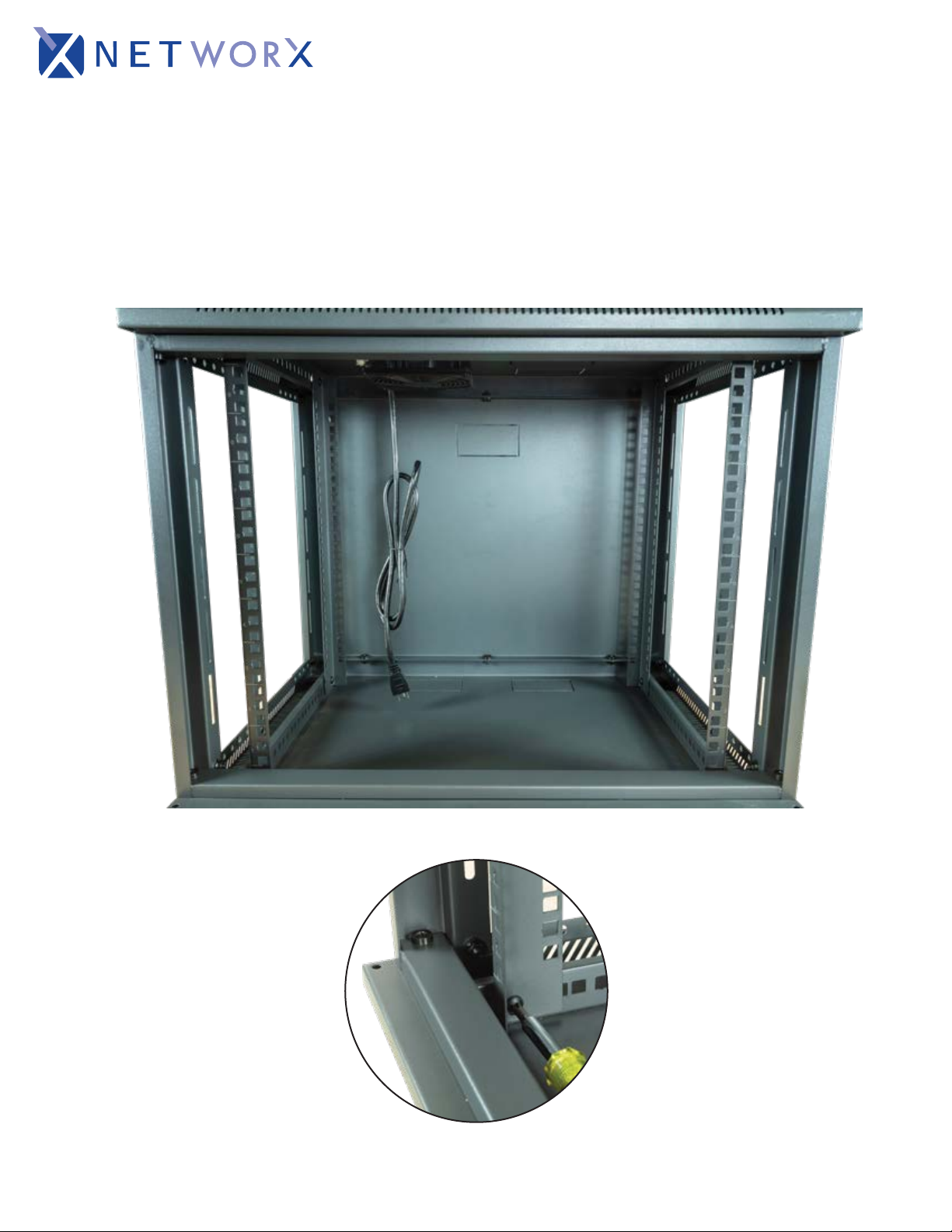

Step 3 - Mount Top Panel to Rear & Front Frames
A - Use 2x M6*20 Screws & washers at preinstalled cage nut locations
B - Use 4x M6*12 Screws & Nuts
C - Use 3x M6*12 Screws, washers, & nuts
A
A
A
B
B
B
B
B
C C
C
C
®
Step 4 - Secure Cage Nut Mounting Rails
D - Use 8x M6*12 Screws & washers at preinstalled cage nut locations
D
DD D D
D
D
D
D
®
Step 5 - Add Side Panels and Front Panel
Assembly Finished.
®
