Netum NT-M3 Manuel utilisateur

NT-M3

Quick Setup Guide

This is a plug and play model if you use a US keyboard. If you use other type of keyboard, plug the

USB cable on your device , setup keyboard language before you use it. (refer to below Keyboard

Language Type) after that the scanner can start to work.

If you want to do other configurations please refer to below programming barcodes.

Barcode Programming

Netum barcode scanners are factory programmed for common terminal and communications

settings. If you need to change these settings, programming is accomplished by scanning the bar

codes in this guide. An asterisk (*) next to an option indicates the default setting.

Firmware Version

Read below command barcode to check scanner firmware version.

000A0

Firmware Version

If you have any questions about the scanner, please scan above barcode

Keyboard Language

In order to let scanner upload the codes in a correct way, you have to set the keyboard

language.

For example

If you use French Keyboard, scan below barcode of “French keyboard” then scanner will upload

barcodes according to France keyboard layout. American Keyboard is set by default, if you use a US

keyboard you can skip this step.

American Keyboard Portugal Keyboard

French Keyboard Spanish Keyboard

Germany Keyboard Turkey Q Keyboard

Italy Keyboard

Scanning Mode

·Key Holding

Press the button to trigger the reading, release the button to end the reading. Reading

success or reading time over a single reading time will end the reading.

013300

By trigger

·Continuous Mode

Under continuous mode scanner performs continuous work. Reading success or reading

time over a single reading time will end the reading. More than the specified time will

automatically trigger the next reading

013304

Continuous Scanning

Terminator configuration

The scanner provides a shortcut for setting the terminating character suffix to CR or CRLF

and enabling it by scanning the appropriate barcode below.

Add CR Add LF

Add CR+LF None

Reader Beep Tone

014201

014200

Beep Tone ON Beep Tone OFF

Default Configuration

If you want to cancel all the configuration that you have done to the scanner.

Scan below barcodes to the restore factory.

000B0

Factory Default

Common Function Barcodes

EAN-8

00371

00370

Enable EAN-8* Disable EAN-8

Transmit Check Digit

EAN-8 is 8 digits in length with the last one as its check digit used to verify the integrity of the

data. The default mode opens “transmit EAN-8 Check Digit”. Users can scan the code below to

choose it.

00571 00570

Transmit EAN-8 Check Digit Do Not Transmit EAN-8 Check Digit

Add-On Code

An EAN-8 barcode can be augmented with a two-digit or five-digit add-on code to form a new

one. In the examples below, the part surrounded by blue dotted line is an EAN-8 barcode while

the part circled by red dotted line is add-on code. The default mode opens “Disable Add-on

Code”. Users can take “Add-On Code Setting” for reference.

EAN-13

00361

00360

Enable EAN-13* Disable EAN-13

Transmit Check Digit

EAN-13 is 13 digits in length with the last one as its check digit used to verify the integrity of the

data. The default mode opens “Transmit EAN-13 Check Digit”. Users can choose to send it or

not

00461 00460

Transmit EAN-13 Check Digit* Do Not Transmit EAN-13 Check Digit

Add-On Code

And EAN-8/EAN-13 Barcode can be augmented with a two-digit or five-digit add-on code

form a new one. In the example below, the part surrounded by blue line is an EAN-8

barcode while the part circled by red line is add-on code. The default mode opens “ Disable

Add-on Code”. Users can take “Add-On Code Setting” for reference.

EAN-13 Transfer to ISBN

The International Standard Book Number (ISBN) is a unique numeric commercial book

identifier. The ISBN is 13 digits long, When you scan “EAN-13 Transfer to ISBN” programming

code, the output code will be 10 digits long ISBN code. The default closes this mode.

00481

00480

Enable EAN-13 Transfer to ISBN Disable EAN-13 Transfer to ISBN*

EAN-13 Transfer to ISSN

An International Standard Serial Number (ISSN) is used to uniquely identify a serial publication.

When you scan “EAN-13 Transfer to ISSN”programming code, the output code will be 10 digits

long ISSN code. The default closes this mode.

01501 01500

Enable EAN-13 Transfer to ISSN Disable EAN-13 Transfer to ISSN

Codabar

00851

00850

Enable Codabar Disable Codabar

Code 11

01261

01260

Enable Code 11* Disable Code 11

Code 39

00221

00220

Enable Code 39* Disable Code 39

Full ASCII

00231 00230

Enable Full ASCII* Disable Full ASCII

Code 93

00621 00620

Enable Code 93* Disable Code 93

Code128

00691 00690

Enable Code 128* Disable Code 128

GS1 DataBar Limited (RSS Limited)

01771

01770

Enable RSS Limited Disable RSS Limited*

GS1 DataBar Ominidirectional (RSS Ominidirectional)

01671

01670

Enable RSS Ominidirectional Disable RSS Ominidirectional*

UPC-A

00341

00340

Enable UPC-A * Disable UPC-A

Transmit Check Digit

UPC-A is 12 digits in length with the last one as its check digit used to verify the integrity of the

data. The default mode opens “Transmit UPC-A Check Digit”. Users can choose to send it or not.

00421

Transmit UPC-A Check Digit*

00420

Transmit UPC-A Check Digit

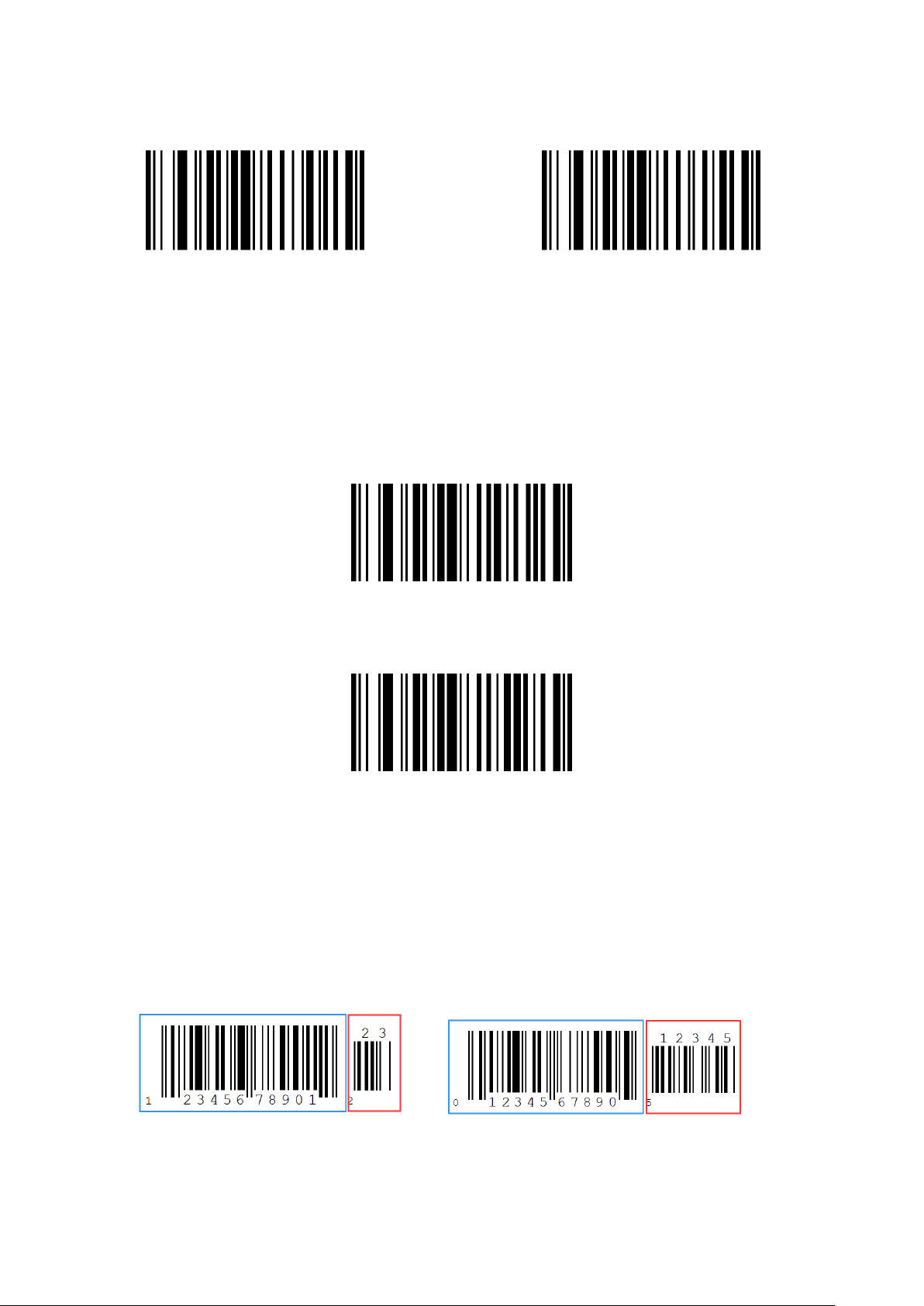

Add –On Code

A UPC-A barcode can be augmented with a two-digit or five-digit add-on code to form a new

one. In the examples below, the part surrounded by blue line is a UPC-A

barcode while the

part circled by red line is add-on code. Users can take “Add-On Code” Setting for reference.

UPC-A Transfer to EAN-13

00391

00390

Enable UPC-A Transfer to EAN-13 Disable UPC-A Transfer to EAN-13

UPC-E

00351

00350

Enable UPC-E Disable UPC-E

Add –On Code Setting

In the example below ,the part surrounded by blue line is a UPC-A barcode while the

part circled

by red line is add-on code. Users can take “Add-On Code Setting”for reference.

Interleaved 2 of 5

00961

00960

Enable Interleaved 2 of 5* Disable Interleaved 2 of 5
