1. Unpack the NA762TB3
2. Storage Enclosure Description

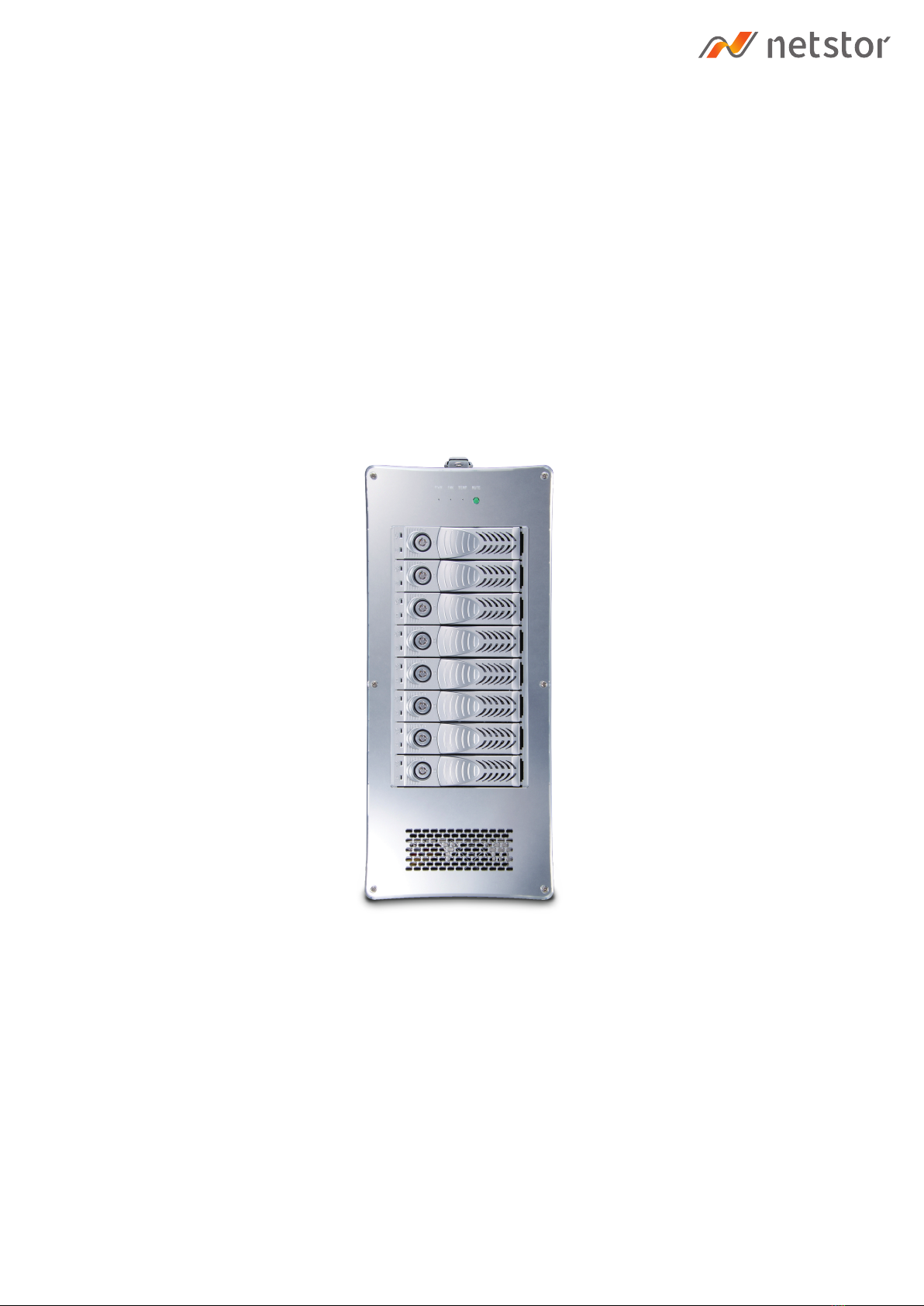

Panel Layout
The box contains the following items:
。Netstor NA762TB3 storage
。HDD tray × 8 (installed in enclosure)
。Thunderbolt 3 cable (2 meters) × 1
。Power cord × 1
。HDD mounting screws
。Key for HDD tray × 2
1. HDD Power LED
。White - Power On Indicator
4. Fan LED
。Green – normal
。Red – fan failure (low frequency of RPM or stop)
5. Temperature LED
。Green – normal
。Red – over temperature
6. Mute Button
。Mute Buzzer Beeping
3. Power On LED
。White – Storage Power On
2. HDD Status LED
。Flash Blue - HDD Accessing Indicator
。Red - HDD Failure Indicator
7Go Top ↑
3.2 Fan Speed Adjustment
1. There are two hot-swappable 80×80×25 mm cooling fans for ventilation at rear
of NA762TB3. After loosening the two thumbscrews on fan module, the fan
module can be detached from storage.
2. The rear 80×80×25 mm cooling fans speed can be adjusted. As fan module is
detached from storage, there are four sets of jumpers labeled with 6V, 8V,
10V, 12V from left to right on the backplane inside NA762TB3. The default
setting is the jumper being placed over pin 7 and 8 for label 6V for slowest
speed. The speed increases from label 8V to label 12V. As jumper is not placed
over pins, the fan will spin at 12V full speed.
1
6V
8V
10V
12V
2
7
8
JP5
8Go Top ↑
4. Power On/Off NA762TB3
1. NA762TB3 storage is designed to be powered on/off simultaneously with the
Thunderbolt 3 computer as NA762TB3 is connected to computer by Thunderbolt
cable. Therefore, power on computer first, and then NA762TB3 will be powered
on automatically.
2. As NA762TB3 storage is connected to computer by Thunderbolt cable, when
shutting down computer, the NA762TB3 will be shut down automatically as well.
※ If there is a PSU power switch on Netstor storage, remember to switch it
to “I” position to enable the PSU first.
※ NA762TB3 supports hot-plug and hot-unplug for powering on and off.
9Go Top ↑
5. Verification
1. Verify Netstor NA762TB3 is recognized by computer. Click Apple icon at the top
menu bar, select About This Mac, and click System Report button. Click Thunderbolt
in the left column, as NA762TB3 appears in the information, it means Netstor
storage is recognized correctly by computer.
2. Verify RAID controller of NA762TB3. Right after the above point 1, click PCI in the left
column, and information about NA762TB3 RAID controller will appear. (For RAID
controller, from starting up, it will take more time for its info to be shown)
5.1 macOS
10 Go Top ↑
3. Verify the driver of NA762TB3 RAID controller. Following point 2, there is an item
Driver Installed indicating the status of RAID controller’s driver. The driver is
already embedded in macOS 10.12 and later.
4. Download MRAID GUI program to configure and set up RAID volume for NA762TB3.
To download MRAID GUI program, please visit: www.netstor.com.tw
5. After downloading and installing MRAID GUI program, open MRAID folder, and
double click ArcHTTP64 icon to enter configuration page on web browser.
6. When at first page of web GUI, click SAS RAID Controllers, select Web Management,
and then a login pane will pop up.
