NetPing IO R401 Manuel utilisateur



[ENG] NetPing IO R401, User Guide



[ENG] NetPing IO R401, User Guide -
2
Содержание

[ENG] [R401] 1. Introduction....................................................................................... 4
[ENG] [R401] 2. Limitation of Liability and Copyright ............................................... 5
Limitation of Liability and Copyright ................................................................................................ 5
[ENG] [R401] 3. Connectors and Indication Elements............................................... 6
[ENG] [R401] 4. Installation and Connection ............................................................. 9
[ENG] [R401] 5. Connection of sensors..................................................................... 11
Sensors of the "Dry Contact" type .................................................................................................. 11
Connection of the Liquid sensor (mod.2605) ................................................................................. 11
NetPing Supply Voltage Sensor 995S2............................................................................................ 13
PIR detector (mod.M105-1E)............................................................................................................ 14
External NetPing AC/DIN socket...................................................................................................... 15
Buzzer (mod.STD-3025) ................................................................................................................... 15
Airflow sensor + GRID 120 * 120 * 10mm NC ................................................................................... 16
[ENG] [R401] 6. Using IO Lines for Managing External Devices (in the «Output»
Mode)......................................................................................................................... 18
Electrical parameters of IO lines (IO1- IO2)..................................................................................... 18
Equivalent circuit ............................................................................................................................. 19
Electrical parameters of input lines (I3–I4)..................................................................................... 19
Equivalent circuit ............................................................................................................................. 20
[ENG][R401] 7. Resetting Settings to Default Values ............................................... 21
[ENG] [R401] 8. Additional Documents and Links ................................................... 22
[ENG] [R401] 9. Warranty Obligations ...................................................................... 23
[ENG] [R401] 10. Operation Conditions and Storage .............................................. 24

[ENG] NetPing IO R401, User Guide -

              –

[ENG] NetPing IO R401, User Guide -[ENG] [R401] 1. Introduction

[ENG] [R401] 1. Introduction

              –

•

[ENG] [R401] 1. Introduction

This guide will help you get acquainted with the specialities and features of the NetPing IO R401, get an idea of its

functionality and technical characteristics and prepare the device for operation.

This User Guide is designed for network administrators and users, who set up or operate the device. To work with

the device properly, a user must have an idea about the principles of building and functioning of local networks as

well as possess the next knowledge and skills:

Basic knowledge in the area of local and global networks;

Basicknowledgeintheareaofarchitectureandprinciples of work of TCP/IP networks;

Basic knowledge in the area of architecture and principles of work of Ethernet networks.

[ENG] NetPing IO R401, User Guide -[ENG] [R401] 2. Limitation of Liability and Copyright

[ENG] [R401] 2. Limitation of Liability and Copyright

              –

[ENG] [R401] 2. Limitation of Liability and Copyright

Limitation of Liability and Copyright

The information, contained in this document, can be changed by the manufacturer without a prior notice. Although

every effort was made to make the information in this document accurate and without errors, the manufacturer is

not liable for their possible presence and for the consequences that may result from the errors herein. The

manufacturer is not liable if supplied equipment, software and this user guide does not correspond to expectations

of a user and his/her opinion about where and how to use all the above. All copyrights on supplied devices,

described in this User Guide, as well as firmware and software of devices and this User Guide belong to NetPing

global Ltd. Сopying, replication and translation of this user guide to other languages are not allowed without a

prior written permission of a rightholder. Copying, replication, changing, disassembling of provided softwareare

not allowed without a prior written permission of a rightholder.For the part of software that is provided in source

codes, there is a separate license agreement, which defines an order of its use and modification. Other trademarks

used in this description belong to corresponding rightholders.

[ENG] NetPing IO R401, User Guide -[ENG] [R401] 3. Connectors and Indication Elements

[ENG] [R401] 3. Connectors and Indication Elements

              –

[ENG] [R401] 3. Connectors and Indication Elements

The front panel of the NetPing IO R401 device is shown in this image:

There are two Ethernet 10/100-BASE-TX connectors on the front panel of the device. The device can be connected

to the Ethernet network using any of these connectors. The second connector can be used to connect any network

devices including other NetPing devices.

Connectors and indication elements:

Element Function

DC IN 12V power connector

[ENG] NetPing IO R401, User Guide -[ENG] [R401] 3. Connectors and Indication Elements

[ENG] [R401] 3. Connectors and Indication Elements

              –

Element Function

Eth ports 2x 100 BASE-TX Ethernet

CPU An indicator of the device operation. The indicator flashes when it transmit

packets to the network. Fast flashing occurs when the device is reset to

initial (factory) settings

LINK An indicator of the device operation. It flashes when it receives packets.

The back panel of the NetPing IO 254R301 device is shown in this image:

[ENG] NetPing IO R401, User Guide -[ENG] [R401] 3. Connectors and Indication Elements

[ENG] [R401] 3. Connectors and Indication Elements

              –

Element Function

IO1...2 Input/output lines

I3...4 Input lines

12V External sensors power output 250mA

5V External sensors power output 250mA

GND Ground

Default Reset button to the factory settings. In order to reset you need to turn on the

device with the button held down, wait until the CPU indicator stops flashing and

release the button.

[ENG] NetPing IO R401, User Guide -[ENG] [R401] 4. Installation and Connection

[ENG] [R401] 4. Installation and Connection

              –

[ENG] [R401] 4. Installation and Connection

In order to connect the device follow these steps:

1. Remove the device from its packaging.

2. Connect the devices which you need (see «Connection of sensors» section).

3. Connect the power supply unit to the power connector.

4. Insert the power supply unit into an electrical socket. The power indicator will light up.

5. Insert the Ethernet-cord into any Ethernet-connector of the devicer, connect it to the switch or directly to the

network card of the computer.

6. IP address was set by default. Fot the initial setting of the device make sure that the address of your computer is

located in the same IP-subnet as the address of the device. For example, the address which is set on the computer

can be 192.168.0.11 mask 255.255.255.0.

[ENG] NetPing IO R401, User Guide -[ENG] [R401] 4. Installation and Connection

[ENG] [R401] 4. Installation and Connection

              –

•

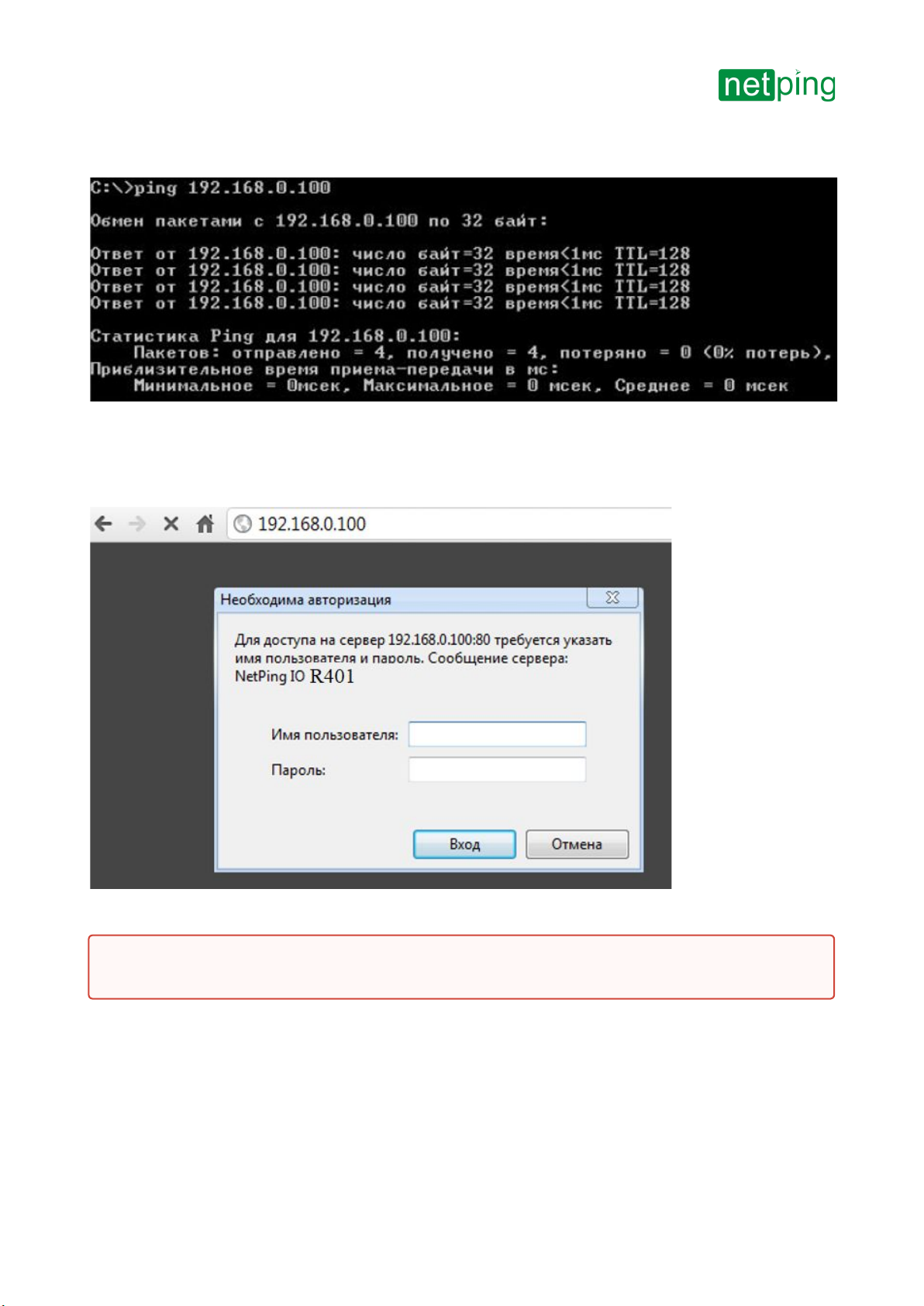

7. For the initial configuration of the device parameters using the web-interface, make sure that the device

responds to the ping command at its IP address.

8. In order to configure the device, open the web-interface of the device using this address http://192.168.0.100 with

the help of a browser (it is recommendable to use the latest version of Google Chrome). In order to authorize, use:

Password: ping

Further configuration of the device is carried out in the web-interface of the device.

Attention! The description of the web-interface can be found in a separate document DKSF 561.X IU, where X —

the number of a firmware version of the device, which description you use.
