NetMan 101 Manuel utilisateur

Network Adapter

Installation and operation manual

MNSMP-03D

Contents

I. OUTLINE………………………………………………………………………………………… 6

I.1.What is NetMan?………………………………………………………………………………. 6

I.2.What is SNMP?………………………………………………………………….……………..6

I.3.What is Network Adapter?…..……………………………………………………………….

I.4. Package content……………………………………………………………………………….. 10

I.5. System requirements………………………………………………………………………….11

I.6. Specifications…………………………………………………………………………………..13

II. INSTALLATION AND CONFIGU ATION………………………………… 15

II.1. Connecting the equipment…………………………………………………………………15

II.1.1 Adapter configuration………………………………………………………….…… 15

II.1.2 Hardware set-up……………………………………………………………………... 16

II.1.3 Software set-up………………………………………………………………….……. 16

II.2. Main configuration menu of Network Adapter……………………………….……….1

II.3. Description of options……………………………………………………………………… 1

II.3.1 Network configuration……………………………………………………………… 18

II.3.2 Trap Receivers……………………………………………………………………….. 20

II.3.3 Set SNM communities……………………………………………………………..21

II.3.4 Additional setup screen…………………………………………………………….. 21

II.3.5 Set U S protocol…………………………………………………………………….. 22

II.3.6 Modem configuration……………………………………………………………….. 23

II.3.7 Save configuration…………………………………………………………………... 24

II.3.8 Restore configuration……………………………………………………………….24

II.3.9 Service menu……………….…………………………………………………………. 24

II.3.10 Exit………………………………………………………………………………………

II.4. Upgrading the NetMan firmware………………………………………………………... 25

II.5. Testing and verifying the installation…………………………………………………… 25

III. SUPPLEMENTS…………………………………………………….……………………... 28

III.1. Using various NMS………………………………………………………………………... 28

III.2. Glossary of technical terms………………………………………………………………. 32

Thank you for purchasing the product by our company.

To reach the maximum utilization of our product in operation, we advise you to read

this manual thoroughly, prior to this product installation and operation.

Specifications and technical data in this manual are as up-to-date as possible. With

regards to perpetual improvement of our products, the producer reserves the right to changes

without prior notice, and takes no responsibility for casual aberrations not included or

presented here.

I. OUTLINE

I. 1. What is NetMan ?

This device is a network interface between the UPS and the LAN, is able to communicate in

severals way:

• TCP/IP UDP to be used in combination with our management software that is available for

all the common operating systems present on the market.

• HTTP to monitor the UPS status directly from a normal web browser without any added

software

• Telnet to configure the NetMan throw the network

• NetMan is able also to manage a modem. This is used to call the service center, that

immediately report the UPS failure.

I. 2. What is SNMP ?

With nowadays market environment using computer networks which become larger

and more complex, it is important to protect precious and confidential information and data.

Your computer systems connected to an uninterruptible power supply prevents from any data

loss in case of electricity outage. And what you need is a reliable equipment for monitoring and

control over each UPS within your computer system.

To monitor critical or operational states there is a standard network protocol for

network management - Simple Network Management Protocol (SNMP). This protocol is a

particle of IP protocols set even when there are solutions based on other network protocols

(IPX, etc.).

A PC or workstation supported by your UPS may perform the critical function that

cannot be cancelled by the provided network station monitoring. Or, your UPS may support

peripheral accessories and not the PC or workstation that has the ability, with suitable

software, to monitor the UPS directly via a serial interface network solution for monitoring

and control of the UPS.

Management Information Base ( MIB )

MIB (Management Information Base) is a virtual structure used for communication

between a NMS and SNMP Agent. MIB consists of OIDs (Object Identifiers) that label the

variables which can be controlled and monitored by a NMS (Network Management Station).

I. 3. What is Network Adapter?

The Network Adapter enables the network management of UPS units or other

equipment. Adapter is supplied with basic accessories that can be completed according to

individual customer's needs and requirements. In Figure 1 you see the Network Adapter

(NetMan101 version), in Figure 2 there is an example of connection between Network

Adapter NetMan 102 and UPS; this device is an expansion card for your UPS to insert directly

into UPS slot (for Ups models supporting that), but functionality is exactly the same of

NetMan101: in this manual everything explained about NetMan101 is the same for

NetMan102.

Fig. 1 Network Adapter NetMan 101

Description of controls and connectors :

1. UTP Ethernet LAN

2. Signaling LED’s for network activity

3. Terminal connect to configure adapter

Fig.2 Network adapter NetMan 102

NetMan 102

Rear side

of UPS

NETWORK

Fig. 3 Connecting Network Adapter NetMan 101 to an U S

Adapter connects to the twisted-pair Ethernet (10 base T) network via RJ-45

connector.

Adapter communicates with a NMS via the Ethernet network. Adapter includes SNMP

agent that implements Management Information Base (MIB) and, at the same time,

communicates with the UPS via a serial interface, and thus creates a data interconnection

between the systems.

Network Management Stations (NMS) can receive critical states of the UPS (traps)

and are able to monitor the important data about the UPS, for example input and output

voltages, battery status, etc. Moreover, the set of SNMP commands can remotely activate

various instructions for the UPS and control the supply of power from the UPS to the

connected load. For example it supports a remote restart of connected equipment.

UPS SNMP Adapter

Terminal

Emulation

Station

BootP

Server

TFTP

Server

File

Server

NMS

Device 1

Fig. 3 Connecting Network Adapter to the network.

Network adapter was designed after a careful consideration of needs of wide range of

network environments. As a result it offers network management with several supports :

* Universality and flexibility

* Network Interface Card (NIC) slot provides the Network Adapter, via a

manufacture-configured interface, to Ethernet.

User-configured parameters are stored in the Network Adapter´s nonvolatile memory.

Configuration can be updated via RS-232 port via a terminal.

Some proceeds in this Manual utilize specific parts of the Network Adapter. Before

you start working under these proceeds, make familiar with the Adapter's specific parts. In

Figure 4 you see the Adapter and its main parts.

Fig. 4 Main parts of Network Adapter NetMan 101

Description of controls and connectors :

1. Power cord connector 12V DC (connect the AC/DC adapter)

2. Port to connect to UPS via serial line

I. 3 Package content

The Network Adapter package contains the following items :

• Network Adapter

• AC/DC adapter

• Installation and operation manual for Network Adapter is inside floppy disk in PDF format

• Installation diskette in MS- DOS format, labeled SNM MIB

• RS-232 cable for connecting to the terminal (Terminal Emulation Station)

I. 4 System requirements

Before you begin to install Network Adapter, make sure to have the following parts:

• items given in article I.3 Package content

• possibility to create network connection

• Network Management Station (NMS) based on SNMP, to verify the installation or the web

browser to test the HTTP communication or the UPS management software to test the

UDP communication.

• terminal (Terminal Emulation Station) with RS-232 and terminal emulation software for

SNMP Agent configuration. This terminal can be a PC or other computer capable of

activating the terminal emulation software with X-modem protocol. It must be capable of

connection to Network Adapter via RS-232 connection. Terminal emulation software can

be either Windows HyperTerminal or any similar software pack.

• equipment cooperating with Network Adapter, in this case an UPS.

• following values :

- IP address and network mask of Network Adapter for the given network

- IP address of a NMS for sending traps

- Community definitions for Network Adapter

- IP address of gateway/router

Figure 5. Network Adapter package content.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels NetMan Carte réseau

NetMan

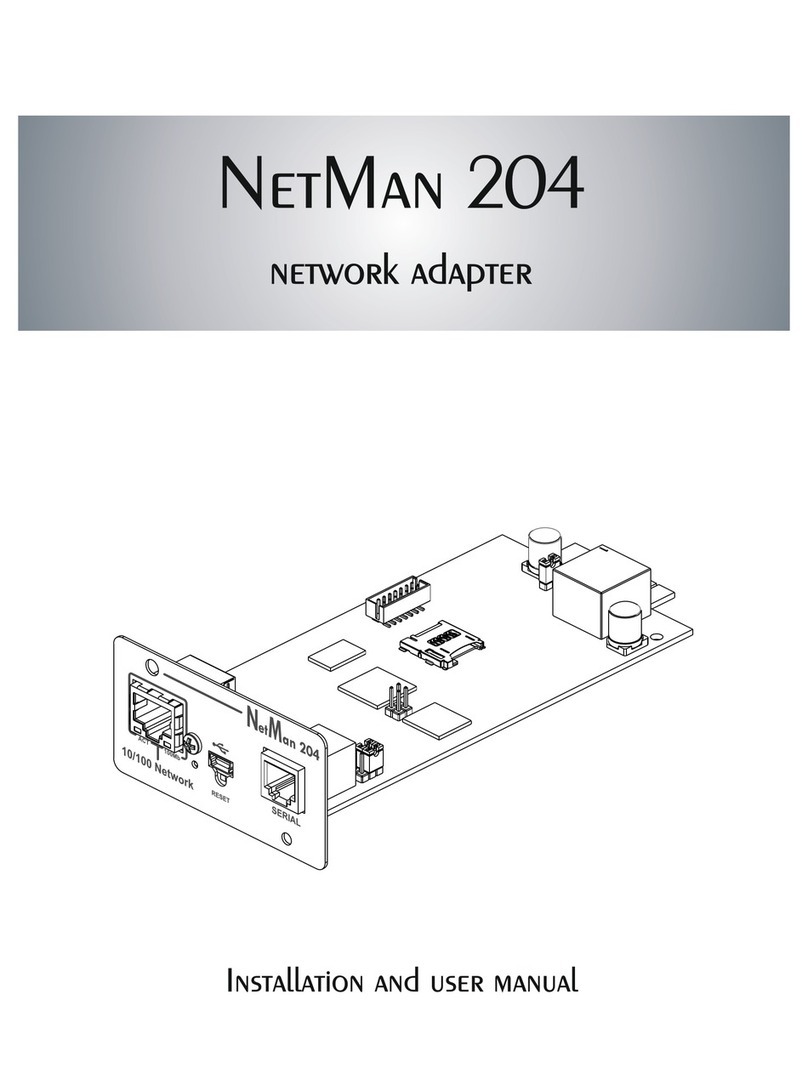

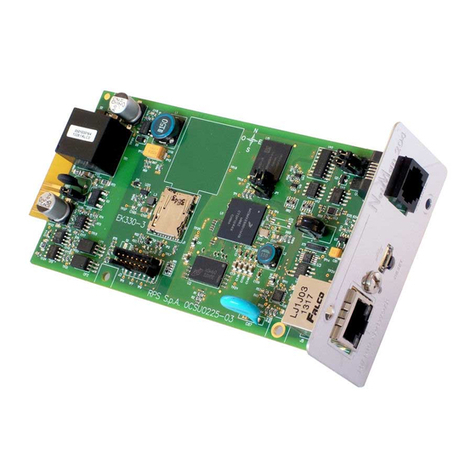

NetMan 204 Manuel utilisateur
