Netis DL4311 Manuel utilisateur
150Mbps Wireless N ADSL2+ Modem
Router
Wireless N ADSL2+ Modem Router Quick Installation Guide
1
1. Hardware Installation
Step 1: Connect the ADSL Line.
Method one: Plug one end of the twisted-pair ADSL cable into the
ADSL LINE port on the rear panel of the modem router, and insert
the other end into the wall socket.
Method two: You can use a separate splitter. The external splitter
has three ports:
• Line: Connect to the wall jack
• Phone: Connect to the phone sets
• Modem: Connect to the ADSL LINE port of the modem router
Step 2: Connect the Ethernet cable. Attach one end of a network
cable to your computer's Ethernet port or a regular hub/switch port,
and the other end to the LAN port on the modem router.
Step 3: Power on the computers and modem router.
Step 4: Attach the power adapter. Connect the power adapter to the
power connector on the rear of the device and plug in the adapter to
a wall outlet or power extension.
Wireless N ADSL2+ Modem Router Quick Installation Guide
2
Name Status Indication
PWR On Power is on.
Off Power is off.
ADSL
Flash The ADSL negotiation is in progress.
On The LINE port is linked up.
Off The LINE port is linked down.
Internet
Flashing Data is being transferred over the
Internet.
On The modem router is initializing in the
first 10 seconds when power is up.
Or a successful PPP connection has been
built.
Off
There is no successful PPP connection or
the modem router works on Bridge mode.
WLAN
Flash There is wireless data being transmitted.
On The wireless function is enabled but no
data is being transmitted.
Off The wireless function is disabled.
WPS Off WPS connection process is not activated.
There's no wireless device trying to
connect to the network by WPS function.
Flash WPS function is activated. The modem
router's waiting for the WPS connection
from a wireless device. This process will
last in the first 2 minutes.
Wireless N ADSL2+ Modem Router Quick Installation Guide
3
2. Configure PC
For Windows 7 as an example, other OS refer to set up.
Step 1: Click , then select the Open Network and Sharing
Center.
Step 2: Click the Change adapter settings.
LAN(1-4) Flash Data is being transferred over the 1-4
(LAN) port.
On
There is a successful connection on the
corresponding 1-4 (LAN) port but no
activity.
Off
There is no connection on the
corresponding 1-4 (LAN) port or the
connection is abnormal.
Wireless N ADSL2+ Modem Router Quick Installation Guide
4
Step 3: Click Local Area Connection with the right button of your
mouse. Then select Properties.
Step 4: Double click the “Internet Protocol Version 4(TCP/IPv4)”.
Wireless N ADSL2+ Modem Router Quick Installation Guide
5

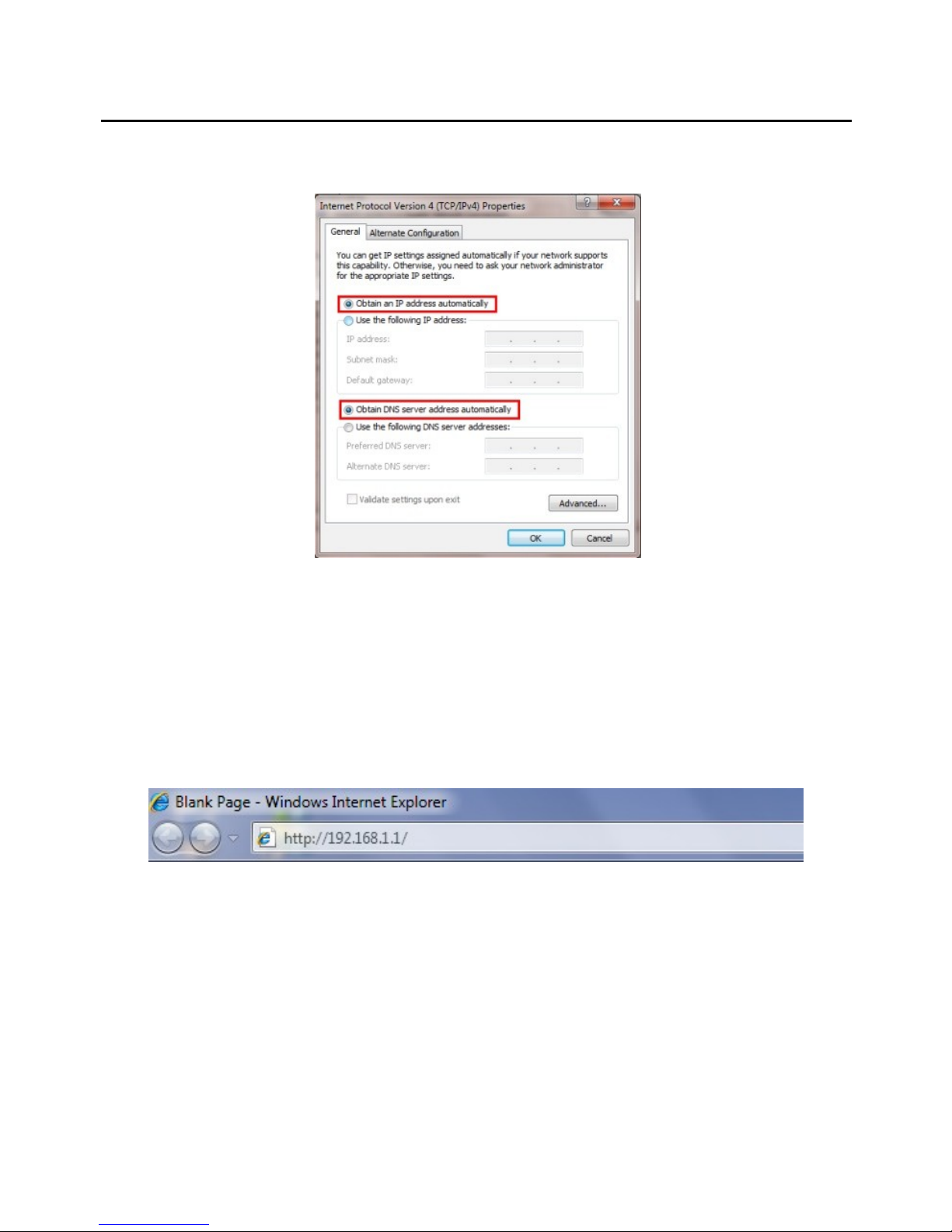

Step 5: Select the “Obtain an IP address automatically” as below.
Then click “OK”.
3. Login and Quick Start
Step 1:Start your web browser and type the private IP address of the
modem router in the URL field: 192.168.1.1.
Then,enter the default User Name guest and the default Password
guest, then click Login.
Wireless N ADSL2+ Modem Router Quick Installation Guide
6
Step 2: And then click OK to access to the Quick Start screen. Click
START to start Quick Start guide.
Step 3: The Wizard will guide you through these four quick steps.
Begin by clicking on NEXT
Step 4: Click Cancel if you know the correct PVC(VPI/VCI) from
your ISP, you can input the value manually. And if you don’t know
the correct value, please click OK , it will take a moment to search
for the available PVC.
Wireless N ADSL2+ Modem Router Quick Installation Guide
7
Step 5: After the PVC value be input or searched, please click NEXT.
Step 6: Select the Internet connection type to connect to your ISP,
click NEXT to continue.
We will take PPPoE/PPPoA for example throughout this Guide. (For
most DSL user)
Step 7: Enter the PPPoE/PPPoA information provided to you by your
ISP, click NEXT to continue.
Wireless N ADSL2+ Modem Router Quick Installation Guide
8
Step 8: You may enable/disable Wireless, change the wireless SSID
and authentication type in this page, then click NEXT to continue.
Note: The default SSID and Password are “netis”and “password”.
Step 9: Click NEXT to save the current settings, then click CLOSE to
finish the Quick Start.
