PowerDIN 4PZ –Quick Installation Guide (QIG)
Thank you for purchasing a product of NETIO products a.s. Before using your
product for the first time, please read this short guide to avoid problems with
incorrect installation or use. For more information, please see the User's Manual
available at http://netio-products.com.
Please carefully read the following notice.
The NETIO PowerDIN 4PZ is an electrical device. Mishandling may damage the
device, void your warranty, or result in injury or death.
Safety Notices
NETIO PowerDIN connects directly to a 230VAC supply; therefore, it should be
installed by qualified personnel only!
1) Never remove the device cover if the relay terminals are connected to the power
grid!
2) The local electrical system must include a power switch or a circuit breaker and
overcurrent protection.
3) The manufacturer is not liable for any damage caused by incorrect use of the
device or by operating it in an unsuitable environment.
4) The device is not rated for outdoor use.
5) Do not expose the device to strong vibrations.
6) Unauthorized modifications may damage the device or cause a fire.
7) Protect the device from liquids and excessive temperatures.
8) Make sure the device does not fall.
9) Only electrical appliances approved for use with the electrical network may be
connected to the device.
10) Do not connect multiple devices in series.
11) The cable plug must be easily accessible.
12) The device is completely switched off only when unplugged.
13) If the device malfunctions, disconnect it from the electrical outlet and contact
your vendor.
14) Do not cover the device.
15) Do not use the device if it appears to be mechanically damaged.
16) Make sure that the input and output cables are rated for the respective current.
3
Minimum system requirements
A device with an Internet browser (Firefox, Opera, Mozilla, Chrome etc.) that has
JavaScript and Cookies support enabled.
Package contents:
NETIO PowerDIN 4PZ
Quick Installation Guide (QIG)

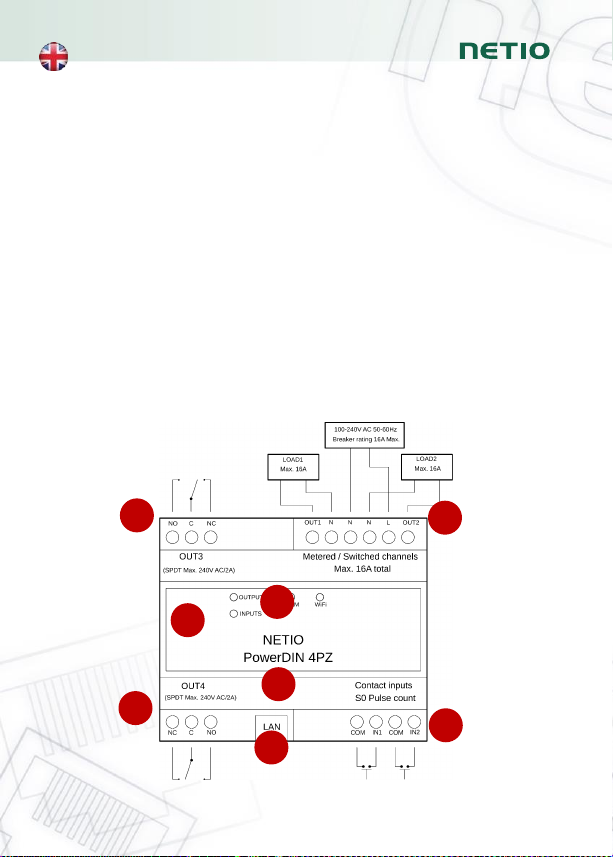

Top/front view
1) 1x RJ45 LAN jack
2) LEDs (OUTPUTS, INPUTS, M2M and WiFi)
3) RJ45 LEDs –Ethernet states (yellow and green)
4) “SETUP” button (under plastic plate with green label)
5) 230V Input and Outputs terminal blocks
6) Output relay terminal blocks
7) Digital Inputs terminal blocks
3
6
5
7
4
2
1
6
4
LED and button functions
LEDs
OUTPUTS (green)
Light when at least one Output is ON.
Blink when Output state change.
INPUTS (green)
Blink when some Input state change
M2M (red)
Blink when some M2M communication
is in progress
WiFi (yellow)
Light when connected to WiFi
RJ45 LEDs (green and yellow)
Ethernet Link and Activity
SETUP button (under the top plate)
Remove the top plate with green label –the button “DEFAULT” is on the left side.
Restoring factory defaults
Disconnect the device from the power.
Press and hold the button. Connect the
device to the power grid (button is
pushed) and wait at least 10 seconds.
After green LED OUTPUTS blinks,
release the button.
The device reverts to factory settings
and the AP mode is activated (if no
Ethernet cable connected).
Before the first use
NETIO PowerDIN 4PZ can use the Ethernet connection (RJ45) or WiFi connection
to network. The description of connection options below (LAN or WiFi) apply for the
new devices or devices after “Restoring factory defaults”.
1) Connect the NETIO PowerDIN 4PZ device to the power grid using terminal
blocks.
5
LAN connection
1) Connect your NETIO device to a LAN with a network cable (RJ45).
2) Wait about 30 seconds until the device starts and address is provided from a
DHCP server. The WiFi is completely turned off in this case.
3) Continue in section NETIO Discover below…
WiFi connection
WiFi is enabled only if Ethernet cable is not connected!
1) When the device is powered up for the first time, it enters the “AP mode” (Yellow
WiFi LED flashing quickly).

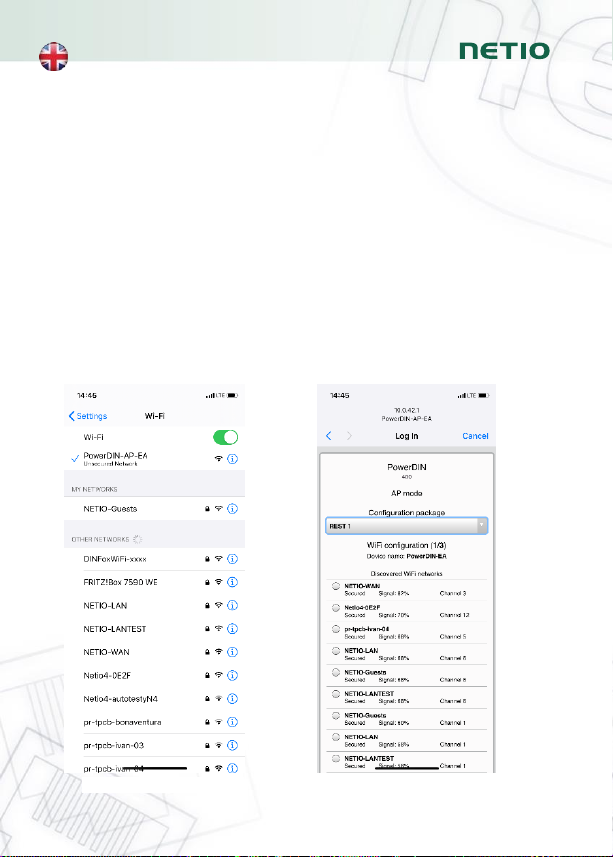

2) Connect from PC, tablet or smartphone, to WiFi “PowerDIN-AP-xx”. (Figure 1)
3) Device configuration page should open automatically.
If not, open a web browser and enter http://10.0.42.1
You will see NETIO PowerDIN WiFi configuration page. (Figure 2)
Figure 1
Figure 2
6

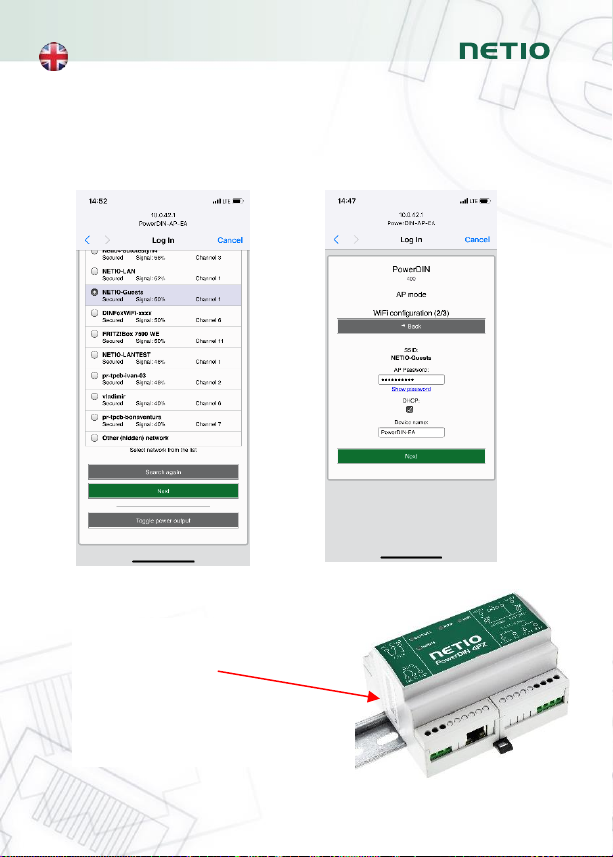

4) Select your network in the list of detected networks and press “Next”. (Figure 3)
5) Enter the password for the selected WiFi network. You may also change the
device name. If your network does not use the DHCP, unselect this option and
manually enter the IP address and other network parameters (for experts only).
Confirm by pressing “Next”. (Figure 4)
Figure 3
Figure 4
SN (serial number) on the label
----------xx
24A42C38E9EA
WiFi network:
PowerDIN-AP-xx
PowerDIN-AP-EA
7

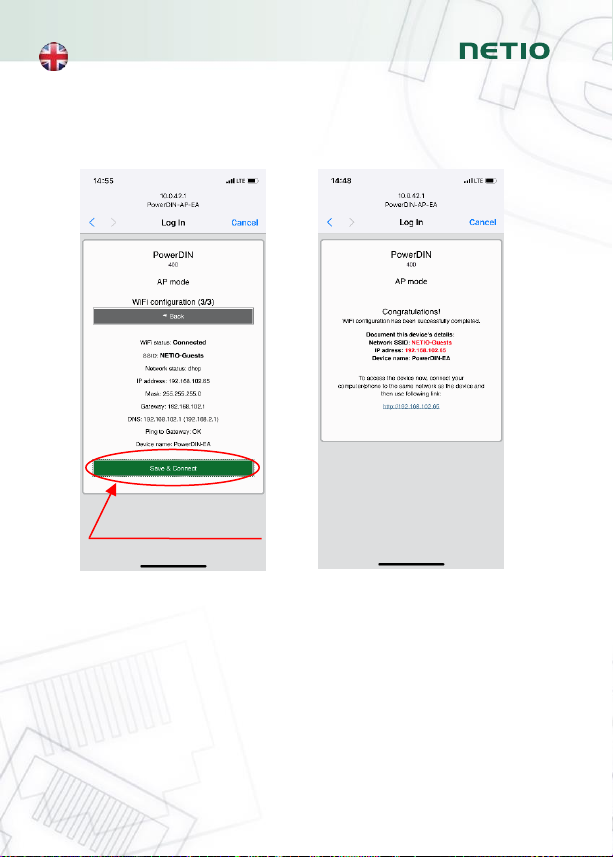

6) A page with the connection result is displayed. If it shows “WiFi status:
Connected“, check the network parameters and then click “Save&Connect” to
save the configuration. (Figure 5) The device then exits the AP mode, connects
to the selected WiFi network, and displays a network configuration summary
page. (Figure 6) WiFi connection is indicated with the yellow LED.
7) The device is now connected to the selected WiFi network.
Note: Connection of the Ethernet cable turns WiFi off and the device communicates
only on the LAN until the Ethernet cable is disconnected. Ethernet interface (LAN)
use different IP address.
Figure 5
Figure 6
Click here to finish installation!
8

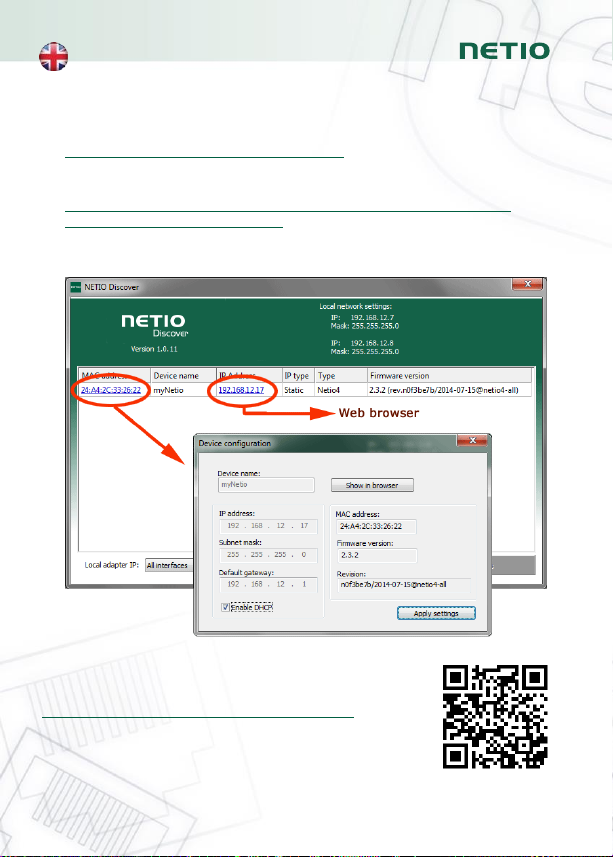

NETIO Discover
1) For MS Windows, find the NETIO Discover utility at our website and install it.
https://www.netio-products.com/en/download
2) In other operating systems (Mac, Linux, ...), the NETIO Discover multiplatform
version written in JAVA can be used. An up-to-date JAVA version is required.
https://wiki.netio-products.com/index.php?title=NETIO_UDP_Discover_-
_Java_based_Multiplatform_-_JAR
3) If your network uses a DHCP server, simply click the IP address in any NETIO
Discover version and open the web interface.
See video how to find NETIO devices on the local network:
https://www.youtube.com/watch?v=Nv_rF0GTG3c
9

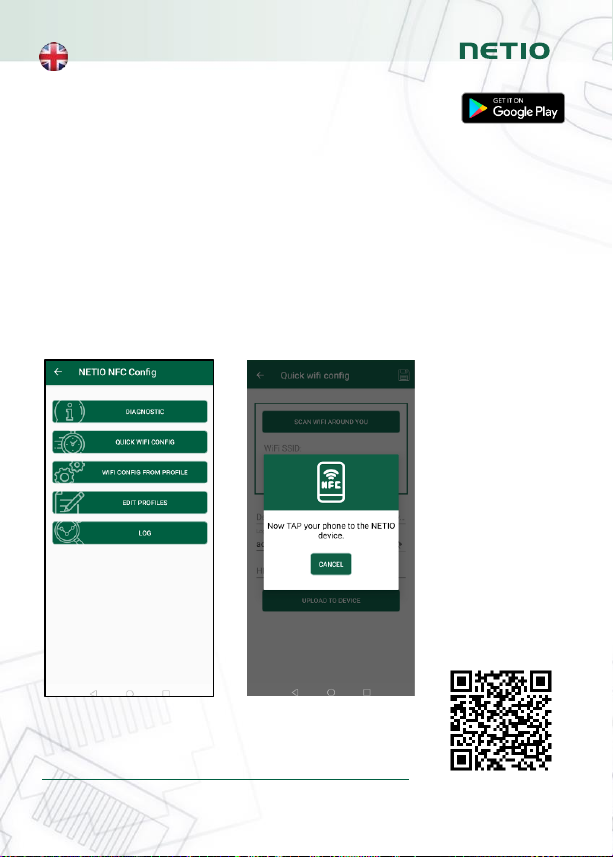

NFC pre-config
NFC (Near Field Communication) is a technology supported by
some mobile phones (and tablets).
Using a mobile phone with NFC support and the NETIO Mobile 2 app, even a device
that is powered off can be configured. The device will apply the new configuration as
soon as it is powered on.
For example:
NFC can be used to configure the WiFi connection parameters (network SSID +
password) in the PowerDIN 4PZ. When the PowerDIN is powered on, it
automatically connects to the specified WiFi network.
NFC and the mobile app can be used to find out the IP address assigned to the
installed WiFi device.
For authentication NFC config, the existing password to the web administration
“admin” account is used (default “admin” / “admin”).
NETIO Mobile 2 application can also discover NETIO
devices on the local network.
https://play.google.com/store/apps/details?id=cz.netio.netio
10

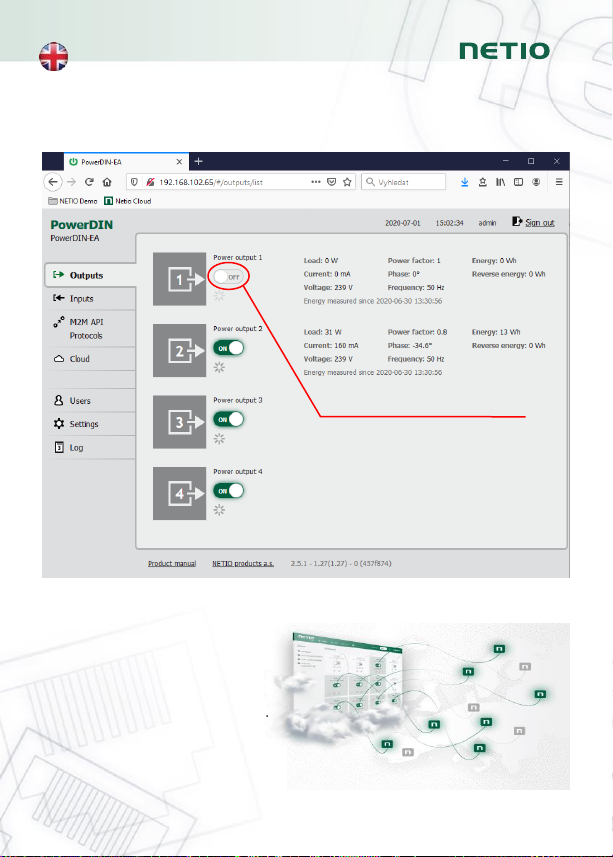

WEB interface
The default username / password combination is admin / admin.
NETIO Cloud
- All NETIO devices supported.
- Welcome credit for 3 years.
- Open API for the cloud account.
- Secured communication.
Click here to change the Output state
