NETGEAR WNR834Bv2 RangeMax Next Guide de l'utilisateur

April 2007

208-10070-02

v2.0

NETGEAR, Inc.

4500 Great America Parkway

Santa Clara, CA 95054 USA

Wireless Router Setup

Manual

Trademarks

NETGEAR and the NETGEAR logo are registered trademarks, and RangeMax and Smart Wizard are trademarks of

NETGEAR. Inc. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other

brand and product names are registered trademarks or trademarks of their respective holders.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to

make changes to the products described in this document without notice.

NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit

layout(s) described herein.

iii

Contents

Getting to Know Your Wireless Router................................................................................1

Unpacking Your New Router .............................................................................................1

Hardware Features ............................................................................................................3

Positioning Your Wireless Router ......................................................................................4

Installing Your Wireless Router ..........................................................................................5

Updating Your Router Firmware ........................................................................................6

Installing Your Router Using the Smart Wizard...................................................................9

Using the Smart Wizard .....................................................................................................9

Accessing Your Router After Installation and Checking for New Firmware .....................10

Installing Your Router Manually

(Advanced, Mac, and Linux Users) .....................................................................................15

Connecting Your Wireless Router ....................................................................................15

Verifying Your Connection ...............................................................................................18

Setting Up Your Router for Internet Access .....................................................................19

Checking for New Firmware ............................................................................................21

Configuring Your Wireless Settings and Security Options ...............................................23

Setting Up Your Wireless Computers ..............................................................................25

Troubleshooting...................................................................................................................27

Basic Setup Checklist ......................................................................................................27

Checking Basic Router Functions ...................................................................................28

Troubleshooting Login Problems .....................................................................................29

Checking the Internet Service Connection ......................................................................30

Obtaining an Internet IP Address ....................................................................................30

Using the Ping Utility to Troubleshoot ..............................................................................32

Default Configuration ..........................................................................................................35

Default Configuration Settings .........................................................................................35

Restoring the Default User Name and Password ............................................................36

Related Documents..............................................................................................................39

Registration and Certifications............................................................................................41

Getting to Know Your Wireless Router 1

Getting to Know Your Wireless Router

Congratulations on your purchase of a NETGEAR® high-speed wireless router, the RangeMax

NEXT Wireless-N Router Model WNR834Bv2.

Before you begin installing your router, check the package contents (see “Unpacking Your New

Router” on page 1). Become familiar with the front and back panels of your router—especially the

LEDs—and the important information on the router label (see “Unpacking Your New Router” on

page 1). Then, read the section on “Positioning Your Wireless Router” on page 4 to ensure that you

have selected the best location to install your router.

Unpacking Your New Router

Your product package should contain the following items:

• The wireless router

• A snap-on stand for your wireless router

• An AC power adapter (varies by region)

• A yellow Ethernet cable

•TheResource CD, which includes:

– The Smart Wizard Installation Assistant (Autorun.exe)

– A PDF version of this manual

– A link to the online User Manual

• Warranty and Support Information cards

If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the

carton, including the original packing materials, in case you need to return the product for repair.

2 Getting to Know Your Wireless Router

To prepare your router for installation:

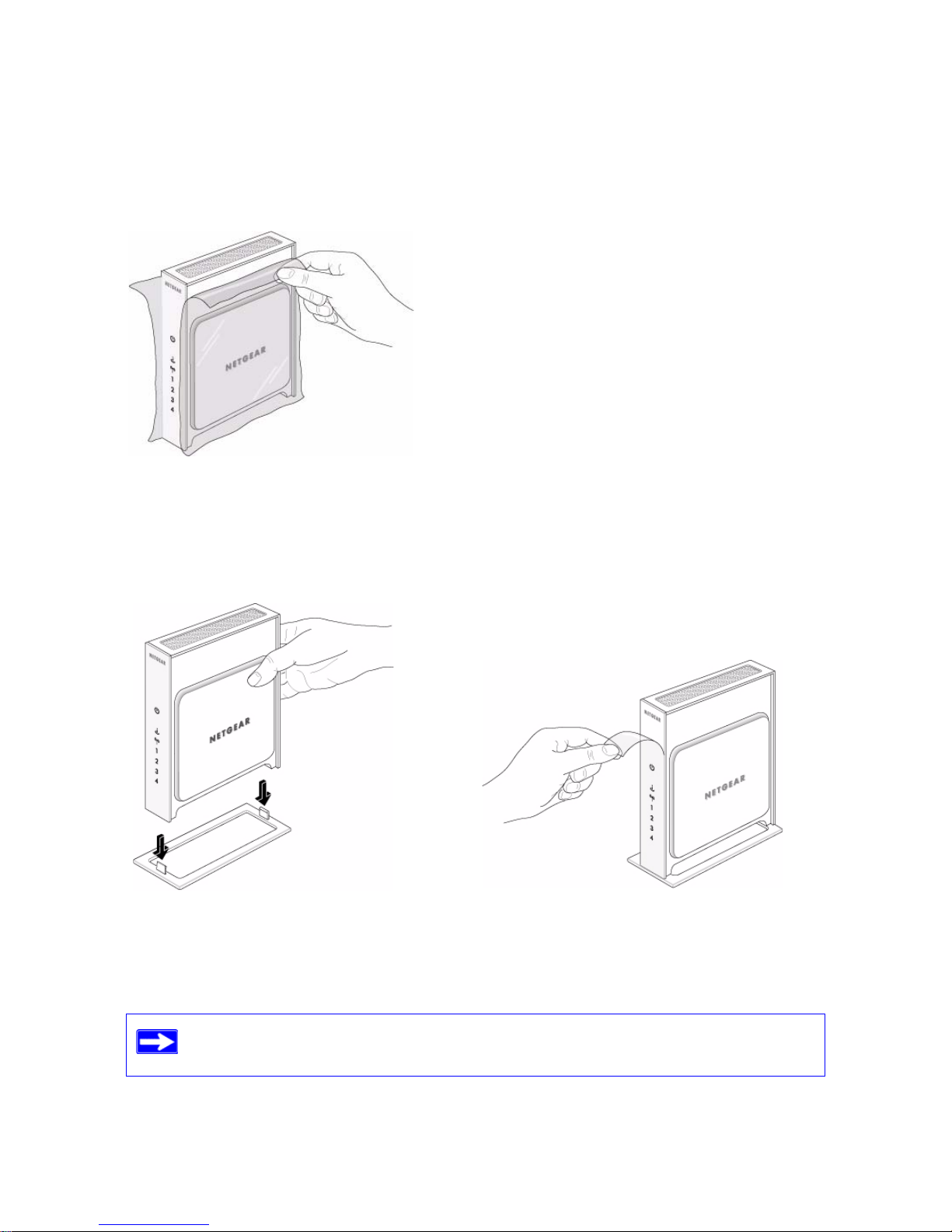

1. Carefully peel off the protective film covering both sides of your router (see Figure 1).

2. Set up your wireless router by inserting the tabs of the stand (supplied with your router) into

the slots on the bottom of your router as shown in Figure 2. Then, remove the protective film

covering the LED panel of the router.

3. Place your router in a suitable area for installation (near an AC power outlet and accessible to

the Ethernet cables for your wired computers).

Figure 1

Figure 2

To ensure proper heat dissipation and for router stability, it is important that you

connect the stand and place your router in an upright position.

Getting to Know Your Wireless Router 3

Hardware Features

Before you install and connect your router, take a moment to become familiar with the front and

back panels of the router—especially the LEDs on the front panel.

Front Panel

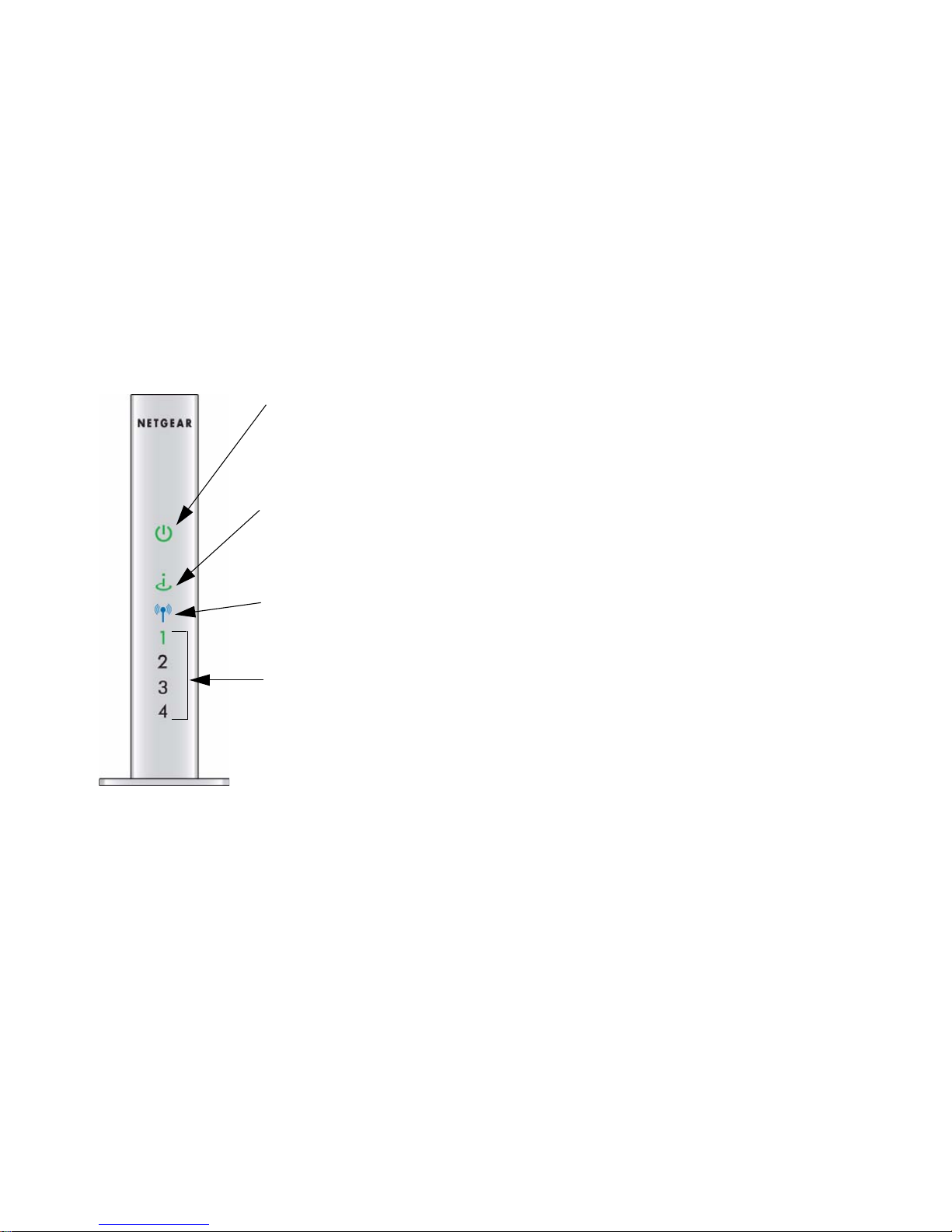

The lights on the front panel indicate the operating status of the router. A description of LED

behavior is included in Figure 3.

Back Panel

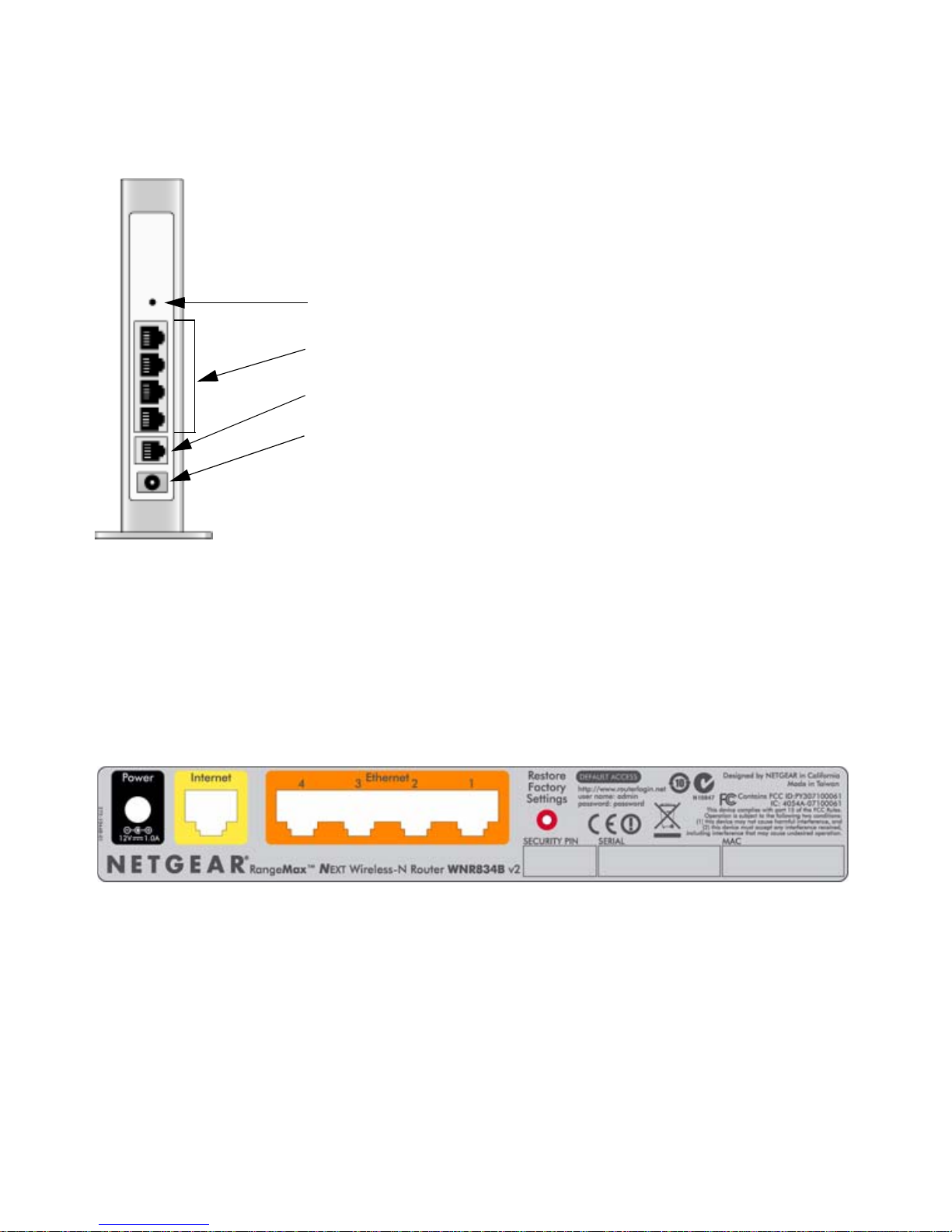

Figure 4 describes the port connections on the back panel of the wireless router.

Figure 3

Power

On – Amber The router is performing the power-on self-test diagnostic.

On – Green The power is on and the router is ready.

Fast blink – Green A software update is in progress.

Slow blink – Green There is a problem with the wireless router software.

Off Power is not being supplied to the router.

Internet

On – Amber No IP address acquired.

On – Green The wireless router has acquired an Internet address.

Blink – Green Data is being communicated with the Internet.

Off No Ethernet cable is connected to the modem.

Wireless

On – Blue The wireless interface is enabled.

Blink – Blue Data is being communicated over the wireless network.

Off The wireless interface is turned off.

LAN (Ports 1–4)

On – Green The local port is connected to a 100 Mbps device.

Blink – Green Data is being transmitted at 100 Mbps.

On – Amber The local port is connected to a 10 Mbps device.

Blink – Amber Data is being transmitted at 10 Mbps.

Off No link is detected on this port.

4 Getting to Know Your Wireless Router

Router Label

The label on the back of the wireless router shows the router’s MAC address, serial number,

security PIN, and factory default login information.

The ports on the router are color-coded to distinguish your Internet port from the other four ports

that connect to the wired computer(s) on your LAN.

Positioning Your Wireless Router

The wireless router lets you access your network from virtually anywhere within the operating

range of your wireless network. However, the operating distance or range of your wireless

connection can vary significantly depending on the physical placement of your router. For

Figure 4

Figure 5

1. Factory Default Restore setting. Press Restore for approximately

5 seconds to reset the router to the factory default settings.

2. Four Local Area Network (LAN) 10/100 Mbps Ethernet ports for

connecting the router to your local computers.

3. Internet/Wide Area Network (WAN) Ethernet port for connecting

the router to a cable or DSL modem.

4. AC power adapter outlet for connecting the power adapter.

Getting to Know Your Wireless Router 5

example, the thickness and number of walls the wireless signal must pass through may limit the

range. For best results, place your router:

• Near the center of the area where your computers and other devices will operate, preferably

within line of sight to your wireless devices.

• Accessible to an AC power outlet and near Ethernet cables for wired computers.

• In an elevated location such as a high shelf, keeping the number of walls and ceilings between

the wireless router and your other devices to a minimum.

• Away from electrical devices which are potential sources of interference, such as ceiling fans,

home security systems, microwaves, or the base for a cordless phone.

• Away from any large metal surfaces, such as a solid metal door or aluminum studs. Large

expanses of other materials such as glass, insulated walls, fish tanks, mirrors, brick, and

concrete can also affect your wireless signal.

Installing Your Wireless Router

To help you set up your router and get on the Internet quickly, the Resource CD contains a Smart

Wizard™. The Smart Wizard walks you through the steps required to connect your router, modem,

and PC(s); configure your wireless settings; and enable wireless security for your network. When

you have finished, you will be Internet ready!

You can set up your wireless router using one of two methods:.

•Smart Wizard Setup: The Smart Wizard setup is available on your Resource CD. See

“Installing Your Router Using the Smart Wizard” on page 9 to use the Smart Wizard.

– This is the easiest option. The wizard guides you through the setup process. It automates

many of the steps and verifies that the steps have been successfully completed.

Failure to follow these guidelines can result in significant performance degradation

or an inability to wirelessly connect to the Internet.

If you have a Macintosh or Linux system, you need to use the manual installation

method (see “Installing Your Router Manually (Advanced, Mac, and Linux Users)”

on page 15).

6 Getting to Know Your Wireless Router

– Smart Wizard requires a PC running Microsoft Windows..

•Manual Setup: If you cannot or prefer not to use the Smart Wizard, see “Installing Your

Router Manually (Advanced, Mac, and Linux Users)” on page 15. For example, if you are

connecting to a Mac, are using a Linux operating system, or are technically knowledgeable,

select this option. If you choose to use this option and install your router manually, for best

results, install and set up your router in this order:

1. Install and connect your wireless router to your network (see “Connecting Your Wireless

Router” on page 15).

2. Set up your wireless router for Internet access (see “Setting Up Your Router for Internet

Access” on page 19).

3. Check for new firmware for your router and install the latest firmware version (see

“Checking for New Firmware” on page 21).

4. Configure your wireless network and select wireless security settings to protect your

wireless network (see “Configuring Your Wireless Settings and Security Options” on

page 23).

Updating Your Router Firmware

NETGEAR is always improving the operability and features included with your router. To make it

easy for you to receive the best, most up-to-date features of your router, NETGEAR provides a

variety of methods for updating your product.

• The Smart Wizard installation assistant lets you check for and install updates as part of the

setup activity.

• The router includes an update feature that lets you check for and install updates. You must be

logged in to the router to use this feature.

• NETGEAR provides a Windows software utility that will let you easily manage keeping your

NETGEAR products up to date.

Before running the Smart Wizard on a corporate PC to set up your home

router, check with your company’s network support staff. Corporate

network settings or Virtual Private Network (VPN) client software may

conflict with the default settings of a home router. If you are unsure about

whether there might be a conflict, use a different computer.

Autres manuels pour WNR834Bv2 RangeMax Next

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels NETGEAR Routeur sans fil

NETGEAR

NETGEAR WGR614 Manuel utilisateur

NETGEAR

NETGEAR WNR3500v2 - RangeMax Wireless N Gigabit... Guide de l'utilisateur

NETGEAR

NETGEAR WNR612v2 - Wireless-N 150 Router Manuel utilisateur

NETGEAR

NETGEAR N300 Manuel utilisateur

NETGEAR

NETGEAR Nighthawk RS400 Manuel utilisateur

NETGEAR

NETGEAR Nighthawk RS700 Manuel utilisateur

NETGEAR

NETGEAR CENTRIA WNDR4700 Manuel utilisateur

NETGEAR

NETGEAR R6900P Manuel utilisateur

NETGEAR

NETGEAR WPN824v3 - RangeMax Wireless Router Manuel utilisateur

NETGEAR

NETGEAR Nighthawk R6700v3 Manuel utilisateur

NETGEAR

NETGEAR D500 Manuel utilisateur

NETGEAR

NETGEAR WNDRMAC Manuel utilisateur

NETGEAR

NETGEAR AirCard 797 Manuel utilisateur

NETGEAR

NETGEAR R6080 Manuel utilisateur

NETGEAR

NETGEAR DGN2200 - Wireless-N 300 Router Manuel utilisateur

NETGEAR

NETGEAR MR814V2 - 802.11b Cable/DSL Wireless Router Manuel utilisateur

NETGEAR

NETGEAR WNR612 - Wireless-N 150 Router Manuel utilisateur

NETGEAR

NETGEAR Super-G WGT624 Manuel utilisateur

NETGEAR

NETGEAR MR814 - 802.11b Cable/DSL Wireless Router Manuel utilisateur

NETGEAR

NETGEAR MBR1210-1BMCNS - This Product is a Special... Manuel utilisateur

NETGEAR

NETGEAR Nighthawk X6 R8000 Manuel utilisateur

NETGEAR

NETGEAR AC3200 Manuel utilisateur

NETGEAR

NETGEAR DM111P - ADSL2+ Ethernet Modem Manuel utilisateur

NETGEAR

NETGEAR DGND3700v2 Manuel de la liste des pièces

Manuels Routeur sans fil populaires d'autres marques

Milesight

Milesight UG67 Manuel utilisateur

Airlogic

Airlogic AirSync Class 1 Manuel du propriétaire

Samsung

Samsung WCH730B Manuel utilisateur

TELEFONICA

TELEFONICA USB Adapter Manuel utilisateur

Askey

Askey RAC2V1K Manuel utilisateur

Alloy

Alloy WLF2454AP-S Manuel utilisateur

TP-Link

TP-Link TL-WR542G Manuel utilisateur

Hama

Hama 53120 Manuel utilisateur

Intellinet

Intellinet 524582 Manuel utilisateur

Asus

Asus RT-N10P Manuel utilisateur

D-Link

D-Link DIR-506L Manuel utilisateur

Sapido

Sapido GR297n Manuel utilisateur

Asus

Asus DSL-N55U Manuel utilisateur

AMTC

AMTC WR7502 Manuel utilisateur

Compaq

Compaq CP-2W - iPAQ Connection Point Manuel utilisateur

SMC Networks

SMC Networks WBR14-N2 FICHE Manuel utilisateur

Draytek

Draytek Vigor2120 Series Manuel utilisateur

Sitecom

Sitecom WLR-4000 Manuel utilisateur
