NETGEAR DGN1000v3 Manuel utilisateur

N150 Wireless ADSL2+ Modem

Router DGN1000v3 Installation Guide

Contents

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Install Your Modem Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1. Connect to the Internet.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2. Power on the modem router.. . . . . . . . . . . . . . . . . . . . . . . . . 7

3. Connect a computer.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4. Launch a browser.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

If NETGEAR genie Does Not Display . . . . . . . . . . . . . . . . . . . . 9

Preset Wireless Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Wireless Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Join the Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Access the Modem Router to Make Changes . . . . . . . . . . . . . . . . 13

NETGEAR genie App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Other Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Reset the Modem Router to Factory Settings . . . . . . . . . . . . . . . . 17

Package Contents

The box contains the following items:

ADSL

Phone

Line

Note: Your package might contain more items. The filter, phone

cable, or splitter provided depends on the region, and in some

locations, a CD is included.

Note: If your subscriber line supports

DSL2+ Annex J, your package also

includes a German plug-to-WAN jack

adapter.

Phone cable Ethernet cable

Filter/splitterPower adapter

Modem router

Before You Begin

You can connect your modem router directly to a DSL line.

Note: Make sure that your DSL service is active before you install

the modem router. You need the information listed here to install your

DSL modem and connect to the Internet. Locate it and have it on

hand before you start the installation procedure.

•DSL user name and password. This information is included in

the welcome letter your DSL ISP sent you when you signed up for

your service. Record your DSL Internet service account user

name and password here:

•Your telephone number or DSL account number. If you do not

have voice service, you can use your DSL account number in

place of a phone number.

User name:

Password:

If you do not know or cannot locate your user name and password,

call your DSL Internet service provider.

Be specific when speaking with your DSL Internet service provider.

For example, you could say:

I need my DSL service user name and password. Can you help me?

Note: If your provider says that they do not support NETGEAR

services, tell them you need only your DSL user name and password;

you do not need support.

Install Your Modem Router

A microfilter filters DSL interference out of standard phone equipment

that shares the line with DSL service. Examples of devices are

telephones, fax machines, answering machines, and caller ID

displays.

To install your modem router:

1. Connect to the Internet.

ADSL microfilter

Phone line outlet

DSL port

Modem router

a. Install an ADSL microfilter between the phone line and the

phone.

b. Connect the DSL port of the modem router to the ADSL port

of the microfilter.

c. Use an ADSL microfilter for every phone line in the house if

your modem router and telephone connect to the same

phone line.

2. Power on the modem router.

a. Connect the power adapter to the modem router, and plug

the power adapter into an outlet.

Power

On/Off

b. Wait for the WiFi LED on the front panel to light.

c. If no LEDs are lit, press the Power On/Off button on the

modem router.

3. Connect a computer.

You can use an Ethernet cable or connect wirelessly.

•For a wired connection, use an Ethernet cable to connect

your computer to an unused yellow Ethernet LAN port on

your modem router.

LAN port

Computer

•To connect wirelessly, use the preset wireless security

settings on the label on the bottom of the modem router.

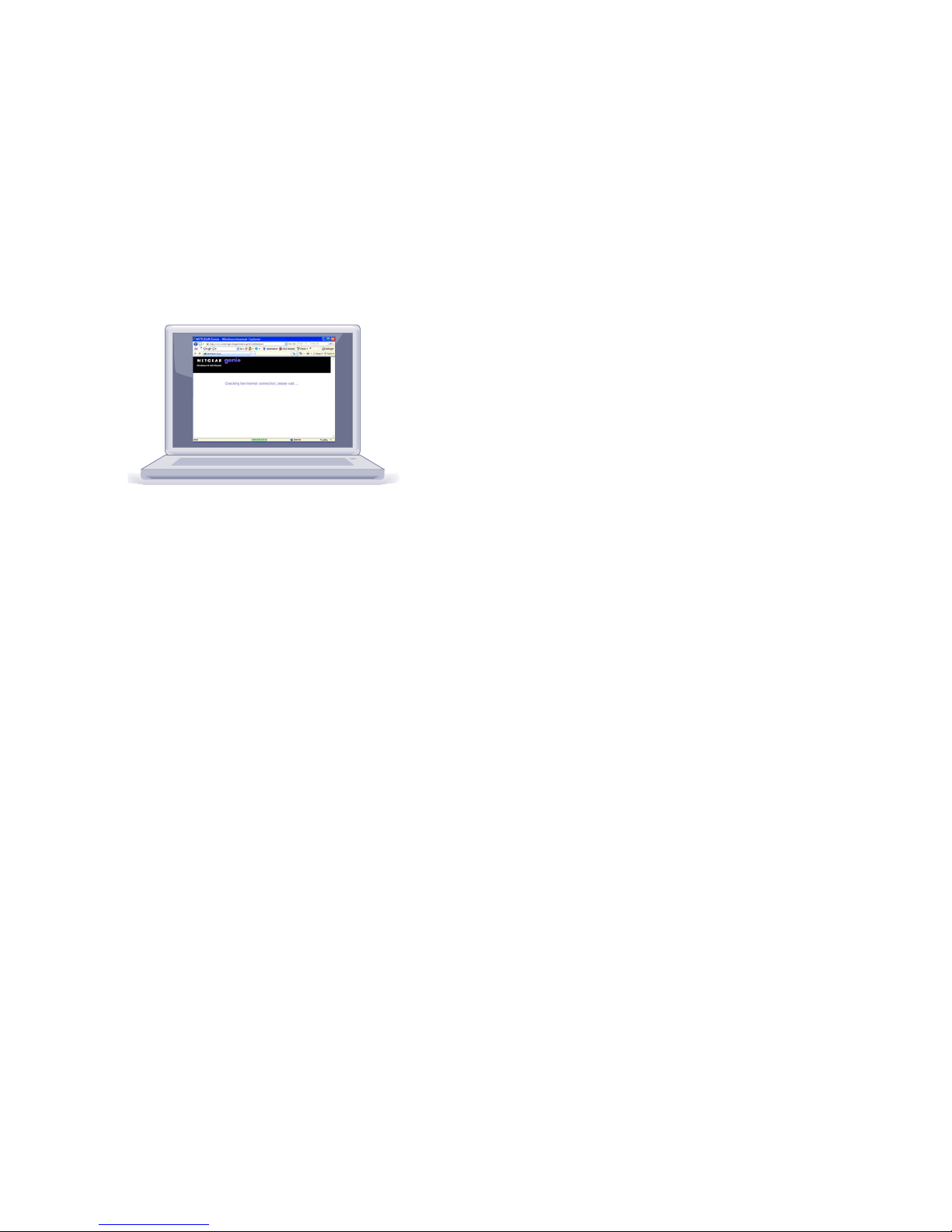

4. Launch a browser.

The first time that you connect to the modem router, the genie

screen displays. Follow the genie steps to connect to the Internet

If NETGEAR genie Does Not Display

•Close and reopen the browser. Type www.routerlogin.net in the

address bar, and enter admin for the user name and password for

the password.

•Make sure that the computer is connected to one of the four LAN

Ethernet ports, or wirelessly to the modem router.

•Make sure that the modem router has power, and that its WiFi

LED is solid green.

•If the computer is set to a static or fixed IP address (this condition

is uncommon), change it to obtain an IP address automatically

from the modem router.

Preset Wireless Security

The modem router has a unique WiFi network name (SSID) and

network key (password). The default SSID and password are

uniquely generated for every device, like a serial number, to protect

and maximize your wireless security. This information is located on

the label on the modem router.

NETGEAR recommends that you do not change the preset WiFi

SSID or password. If you do change the settings, the SSID and

password on the label no longer apply.

WiFi network name Network key

(password)(SSID)
