1. Introduction

The NETGEAR ProSafe® 4100 series managed switches provide state-of-the-art,

high-performance, IEEE-compliant network solutions. They include powerful management

features that you can use to eliminate bottlenecks, boost performance, and increase productivity.

The M4100 Series switches include the following:

M4100-26G

M4100-50G

M4100-26-POE

M4100-26G-POE

M4100-50G-POE+

M4100-50-POE

M4100-D10-POE

M4100-D12G

M4100-12GF

M4100-D12G-POE+

M4100-24G-POE+

M4100-12G-POE+

This guide describes hardware installation and basic troubleshooting for these managed

switches.

These switches can be freestanding, wall mounted, or rack mounted in a wiring closet or an

equipment room. For information about features for each product, visit the NETGEAR website at

http://www.netgear.com.

Front Panels and LEDs

The following figures show the front panels of the ProSafe 4100 series managed switches.

The front panel contains LEDs, a Reset button, a USB flash port, RJ45 ports, copper

(RJ-45)/fiber (SFP) combo ports, and USB console selection slide switch, and USB console

port.

NETGEAR Managed Switch

Figure 1. M4100-26G front panel

Figure 2. M4100-50G front panel

LEDs

Reset button SFP ports

POE ports

USB port RJ-45 ports

Figure 3. M4100-26-POE front panel

Reset button

LEDs

USB port POE ports SFP ports

RJ-45 ports

Figure 4. M4100-50-POE front panel

LEDs

Reset button SFP ports

RJ-45 ports

USB port

Combo Ports

RJ45 SPD/Link/ACT mode: Green = 1G Yellow = 10/100M Blink = ACT SFP SPD/Link/ACT mode: Green = Link at 1G Yellow = Link at 100M Blink = ACT

Power

Fan

RPS

Reset USB

LEDs

Reset button

RJ-45 ports

USB port SFP ports

NETGEAR Managed Switch

Figure 5. M4100-26G-POE front panel

Figure 6. M4100-50G-POE+ front panel

Figure 7. M4100-D10-POE Front Panel

Figure 8. M4100-D12G front panel

POE ports SFP ports

Reset button

LEDs

USB port RJ-45 ports

LEDs

Reset button

USB port SFP ports

POE ports RJ45 ports

POE ports SFP ports

LEDs

Reset button

USB port RJ45 ports

SFP ports

USB port

LEDs

Reset button RJ45 ports

NETGEAR Managed Switch

Figure 9. M4100-24G-POE+ front panel

Figure 10. M4100-D12G-POE+ front panel

Figure 11. M4100-12G-POE+ front panel

Figure 12. M4100-12GF front panel

Fan

Reset

MaxPoE

Power

USB

M4100-24G-POE+

PoE (Max 30W per port):

Off = No PD

Green = PoE Powered

Yellow = PoE Fault

RJ45 SPD/Link/ACT mode:

Green = 1G

Yellow = 10/100M

Blink = ACT

SFP SPD/Link/ACT mode

Green = Link at 1G

Yellow = Link at 100M

Blink = ACT

Console(USB)

115200,N,8,1

USB DB9

PoE SPD/Link/ACT

SPD/Link/ACT

SFP ports

USB port

LEDs

Reset button POE ports Mini

USB port

Console

switch

Fan

Reset

MaxPoE

Powe r

USB

PoE (Max 30W per port):

Off = No PD

Green = PoE Powered

Yellow = PoE Fault

PoE-PD (Port 1, 2):

Off = No PSE

Green = PSE 30w

Yellow = PSE 15.4w

RJ45 SPD/Link/ACT mode:

Green = 1G

Yellow = 10/100M

Blink = ACT

SFP SPD/Link/ACT mode

Green = Link at 1G

Yellow = Link at 100M

Blink = ACT

Console(USB)

115200,N,8,1

USB DB9

PoE SPD/Link/ACT

SPD/Link/ACT

M4100-D12G-POE+

SFP ports

USB port

LEDs

Reset button POE ports Mini

USB prt

Console

switch

Fan

Reset

MaxPoE

Power

USB

M4100-12G-POE+

PoE (Max 30W per port):

Off = No PD

Green = PoE Powered

Yellow = PoE Fault

RJ45 SPD/Link/ACT mode:

Green = 1G

Yellow = 10/100M

Blink = ACT

SFP SPD/Link/ACT mode

Green = Link at 1G

Yellow = Link at 100M

Blink = ACT

Console(USB)

115200,N,8,1

USB DB9

PoE SPD/Link/ACT

SPD/Link/ACT

SFP ports

USB port

LEDs

Reset button

POE ports Mini

USB prt

Console

switch

Fan

Reset

MaxPoE

Power

USB

PoE (Max 30W per port):

OFF = No PD

Green = PoE Powered

Yellow = PoE Fault

Link/ACT mode:

Green = Link at 1G

Yellow = Link at 10/100M

Blink = ACT

SPF Link/Act mode:

Green = Link at 1G

Yellow = Link at 100M

Blink = ACT Console(USB)

115200,N,8,1

USB DB9

PoE SPD/Link/ACT

SPD/Link/ACT

M4100-12GF

SPD Link/ACT

SPD/Link/ACT

SFP

Green = 1G

Yellow = 10/100M

Link/Act mode

OFF = No Link

Green = Link

Blinking = ACT

USB Port

LEDs

Reset button POE ports Mini

SFP ports

USB prt

RJ45 ports Console

switch

NETGEAR Managed Switch

Table 1. LED descriptions

LED Description

Power Solid green: Internal power supply operating normally and supplying power to the

switch.

Solid yellow: The system is in boot-up stage.

Blinking yellow: Power module is present but has failed.

Off: Power is disconnected.

Fan Solid green: The fan is operating normally.

Solid yellow: The fan has failed.

Off: No fan is detected.

RPS Solid green: RPS connected (using internal power supply’s power).

Solid yellow:The internal power supply has failed and the RPS is providing power to

the switch.

Blinking yellow:RPS is present but RPS has failed.

Off: RPS disconnected.

Note: Only for M4100-26G, 50G, 26-POE, 26G-POE, 50G-POE+, and 50-POE

PD Solid green: PD port 1 is connected to PSE getting 802.3at specified power.

Blinking green:PD port 1 is connected to PSE getting 802.3af specified power.

Off: PD port 1 is not connected to PSE.

Note: Only for M4100-D12G, -24G-POE, D12G-POE, 12G-POE+, -12GF

Max PoE Solid yellow: Indicates less than 7 watts of PoE power is available.

Blinking yellow: Indicates the PoE MAX LED was active in the previous 2 minutes.

Off: There is at least 7 watts of PoE power available for another device.

SPD/Link/ACT

(RJ-45 port) Off: No link is established on the port.

Solid green: A valid 1000 Mbps link is established on the port.

Blinking green: Packet transmission or reception is occurring on the port at 1000

Mbps.

Solid yellow: A valid 10/100 Mbps link is established on the port.

Blinking yellow: Packet transmission or reception is occurring on the port at 10/100

Mbps.

Note: If combo port media change to fiber, the Ethernet LED changes to off status.

PoE Off: No PoE powered device (PD) connected.

Solid green:The PoE powered device (PD) is connected and the port is supplying

power successfully.

Solid yellow: Indicates that one of the following failures resulted in stopping power to

that port:

- Short circuit on PoE power circuit

- PoE power demand exceeds power available

- PoE current exceeds PD’s classification

- Out of proper voltage (44 VDC–57 VDC for af, 50 VDC–57 VDC for at)

NETGEAR Managed Switch

Rear Panels

The rear panels have a DB9 console port, a mini USB port (only for M4100-26G, 50G,

26-POE, 26G-POE, 50G-POE+, 50-POE, D12-PoE, and D12G), a redundant power supply

connector (only for M4100-26G, 50G, 26-POE, 26G-POE, 50G-POE+, 50-POE, 12GF,

24G-POE+, and 12G-POE+), and a standard AC power receptacle for the supplied power

cord.

Figure 13. M4100-26G, 50G, 26-POE, 26G-POE, 50G-POE+, and 50-POE rear panels

Link/ACT

(RJ45 port) Off: No link is established on the port.

Solid green: A valid link is established on the port.

Blinking green: Packets transmission or reception is occurring on the port.

Note: If a combo port media changes to fiber, the copper port LED changes to off

status.

SPD (RJ45 port) Off: No link is established on the port.

Solid green: A valid 1000 Mbps link is established on the port.

Solid yellow: A valid 10/100 Mbps link is established on the port.

PoE-PD Off: No PSE is connected or PSE is connected but connection has failed.

Solid green: The PSE is connected and get 30 W power from PSE successfully.

Solid yellow: The PSE is connected and get 15.4 W power from PSE successfully.

SPD/Link/ACT

(SFP port) Off: No SFP/SFP+ module link is established on the port.

Solid green: A valid 1000 Mbps SFP+ module link is established on the port.

Blinking green: The port is transmitting or receiving packets at 1000 Mbps.

Solid yellow: A valid 100 Mbps SFP module link is established on the port.

Blinking yellow: Packet transmission or reception is occurring on the port at

100

Mbps.

Note: If combo port media changes to copper, the SFP port LED changes to off

status.

Table 1. LED descriptions (Continued)

LED Description

AC power

connector

Lock

Console

port power supply

connector

RPS

Mini

USB

port

NETGEAR Managed Switch

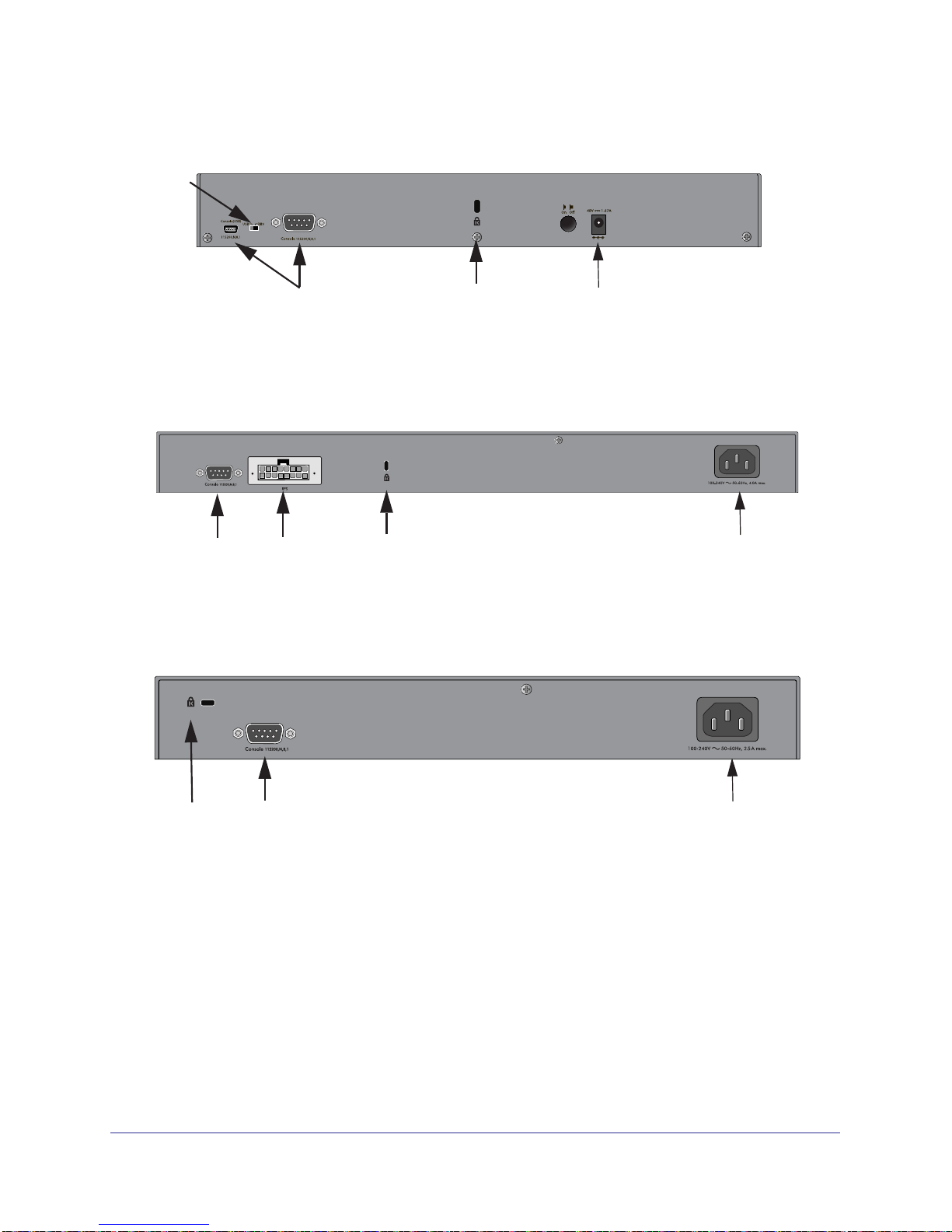

Figure 14. M4100-D10-POE and M4100-D12G rear panels

Figure 15. M4100-12GF, 24G-POE+, 12G-POE+ rear panel

Figure 16. M4100-D12G-POE+ rear panel

Safety Instructions

Use the following safety guidelines to ensure your own personal safety and to help protect

your system from potential damage.

To reduce the risk of bodily injury, electrical shock, fire, and damage to the equipment,

observe the following precautions.

• Observe and follow service markings.

- Do not service any product except as explained in your system documentation.

Power adapter

connector

Lock

Console

ports

Console

switch

AC power

connector

Lock

Console

port RPS

power supply

connector

AC power

connector

Console

port

Lock

Autres manuels pour M4100 Series ProSAFE

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels NETGEAR Changer

NETGEAR

NETGEAR GS105v5 Manuel utilisateur

NETGEAR

NETGEAR FS108P - ProSafe Switch Manuel utilisateur

NETGEAR

NETGEAR FSM7326P - ProSafe Managed Switch Mode d’emploi

NETGEAR

NETGEAR GS305Pv2 Manuel utilisateur

NETGEAR

NETGEAR GS724AT - ProSafe Gigabit Smart Switch Manuel utilisateur

NETGEAR

NETGEAR GS716T - ProSafe Switch Manuel utilisateur

NETGEAR

NETGEAR GS728TS Smart Switch Manuel utilisateur

NETGEAR

NETGEAR S350 Series Manuel utilisateur

NETGEAR

NETGEAR ProSafe GS105v3 Manuel utilisateur

NETGEAR

NETGEAR FSM7328S - ProSafe Switch Manuel utilisateur

NETGEAR

NETGEAR GS308 Manuel utilisateur

NETGEAR

NETGEAR ProSafe GS104 Manuel utilisateur

NETGEAR

NETGEAR JGS524F Manuel utilisateur

NETGEAR

NETGEAR GS305EP Manuel utilisateur

NETGEAR

NETGEAR FSM7328S - ProSafe Switch Manuel utilisateur

NETGEAR

NETGEAR FSM7328S - ProSafe Switch Manuel utilisateur

NETGEAR

NETGEAR ProSafe FS728TPv2 Manuel utilisateur

NETGEAR

NETGEAR S350 Series Manuel utilisateur

NETGEAR

NETGEAR GSM7248R - ProSafe Switch Manuel du propriétaire

NETGEAR

NETGEAR GSM712F - Managed Fiber Gigabit Switch Manuel utilisateur

NETGEAR

NETGEAR WFS709TP - ProSafe Smart Wireless Controller Manuel

NETGEAR

NETGEAR Smart Switch GS752TXS Manuel utilisateur

NETGEAR

NETGEAR ProSafe Plus GS108E Manuel utilisateur

NETGEAR

NETGEAR ProSafe Plus JGS524E Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
