NETGEAR FS309T Manuel utilisateur

FS309T

Fast Ethernet Switch with Gigabit Port

9-port with 10/100/1000 Mbps

Hang on – your network will soar when it’s hooked up to NETGEAR’s FS309T! This

powerful switch connects at 1 Gbps over Category 5 cables and makes it easy to link

as many as eight computers or peripherals to your server or network backbone. You’ll

experience wire-speed performance for maximum throughput. Eight switched 10/100

Mbps ports deliver 200 Mbps data transfer in full-duplex mode, while Auto Uplink™

on all nine ports automatically adjusts for straight-through or crossover cables. The

FS309T’s compact desktop case has LED indicators on the front for easy monitoring,

and includes a locking slot for security. Installation into your office network couldn’t

be simpler and, once powered on, it begins operating–cool and silent without an

internal fan.

Copper Gigabit uplink connects your server or switch at 1 Gbps over Category 5 UTP

cables for up to 300 feet (2 Gbps in full-duplex).

Tabletop design that is ideal for small office users with Plug and Play installation, rear ports

that reduce cable clutter, and front status LEDs for easy monitoring.

All nine ports deliver automatic speed and duplex sensing, plus Auto Uplink,

™which adjusts

for straight-through or crossover cables to make the right link.

Sturdy, metal desktop case stacks neatly with most NETGEAR routers and features

a locking slot to prevent theft. And the FS309T runs cool without a fan so it's quiet.

Dynamic

User-Friendly

Resourceful

Well-Designed

Everybody’s Connecting.™

• Help is there when you need it!

NETGEAR provides free, 24x7

telephone and e-mail technical

support in English, with selected

local language support during

office hours.

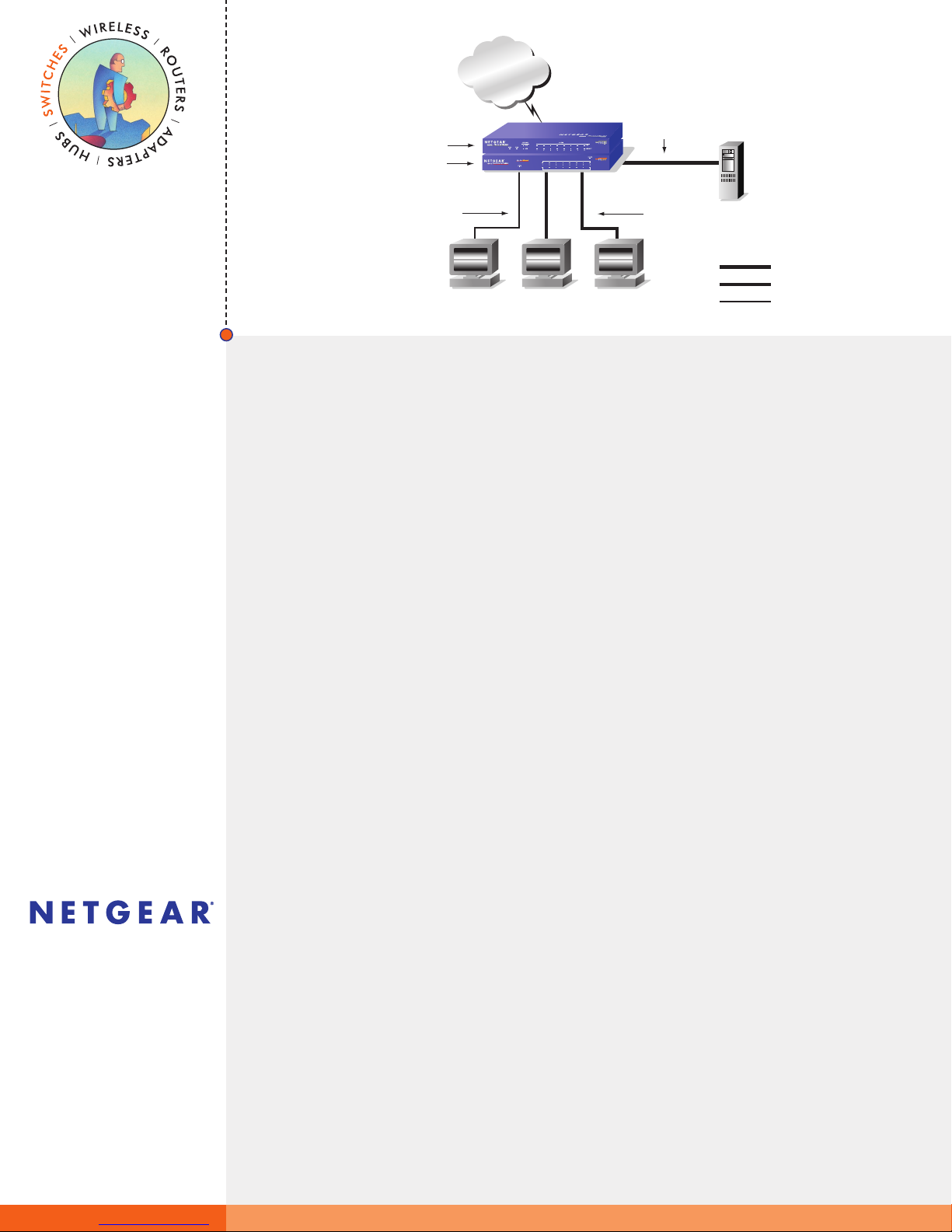

FR314 Firewall Router

10 Mbps

100 Mbps

1000 Mbps

PC PC MAC

100 Mbps

1000 Mbps

Server

FS309T Switch

INTERNET

4500 Great America Parkway

Santa Clara, CA 95054 USA

Phone: 1-888-NETGEAR

E-mail: [email protected]

www.NETGEAR.com

Netgear Logo, the Gear Guy, and

Everybody’s connecting are trademarks or

registered trademark of Netgear, Inc. in

the United States and/or other countries.

Microsoft, Windows, and the Windows

logo are trademarks, or registered trade-

marks of Microsoft Corporation in the

United States and/or other countries.

Other brand and product names are

trademarks or registered trademarks of

their respective holders. Information is

subject to change without notice. All

rights reserved.

•Electromagnetic Emissions

-Meets requirements of:CE mark, commercial

-FCC Part 15, Subpart B, Class A

-EN 55 022 (CISPR 22), Class A

-EN 55 024

-VCCI Class A

-TUV EN 60950

•Electromagnetic Susceptibility

-CE Mark, commercial

-Electrostatic discharge (ESD): IEC 801-2, Level 2/3

-Radiated electromagnetic field: IEC 801-3, Level 2

System Requirements

-Category 5 network cables

-Network card for each PC

-Network software (e.g., Windows)

Package Contents

-FS309T 9-port Fast Ethernet Switch with

Gigabit Port

-Self-adhesive rubber footpads for desktop installation

-Wall Mount Kit

-AC power cord

-Warranty & Owner Registration Card

-The Installation Guide

-Support Information Card

Technical Specifications

•Network Protocol and Standards Capability:

-IEEE 802.3i 10BASE-T

-IEEE 802.3u 100BASE-TX

-IEEE 802.3ab 1000BASE-T

-IEEE 802.3x Flow Control

•Data Rate:

-10 Mbps differential Manchester encoded

IEEE 802.3

-100 Mbps with 4B/5B encoding and MLT-3

physical interface for 1000BASE-T

•Interface:

-RJ-45 connector for 10BASE-T, 100BASE-TX

and 1000BASE-T

- All ports have Auto Uplink (Auto MDI-X)

•Power Consumption:

-3.7 W maximum

•Physical Specifications:

-10" x 7" x 1.4" (253 mm 180 mm 35 mm)

-2.8 lb (1.3 kg)

•Status LEDs:

-Power link, speed, activity duplex and collision

on each port

•Environmental Specifications:

-Operating Temperature: 0˚to 40˚C

-Storage Temperature: -20°to 70°C

-Operating Relative Humidity: 90%

non-condensing

-Acoustic noise: 0 dB

•Performance Specifications:

-Frame forward rate: Non-blocking, wire-speed

frame forward rate

-Forwarding modes: Store-and-forward

-Network latency: Less than 80 microseconds

for 64-byte frames in store-and-forward mode for

10 Mbps to 100 Mbps transmission

-Address database size: 4,000 media access control

(MAC) addresses per system

-Addressing: 48-bit MAC address
