NETGEAR R7300DST Manuel utilisateur

Package Contents

The package contains the following items.

In some regions, a resource CD is included in the package.

Geek Squad Support

The DST router and DST adapter come with setup and support via

phone and web from Geek Squad for one year from the date of

purchase. If needed, agents are available 24/7/365 to help you do the

following:

• Set up your network.

• Connect your wireless devices such as computers, tablets, gaming

consoles, and mobile phones.

• Customize your DST router and DST adapter settings.

• Make sure that your network is secure.

Your Geek Squad support coupon code is GS1337EXB.

For First-Time Setup

Steps 1–8 on the next page walk you through getting your DST router

and DST adapter powered on and connected to the Internet. If you’d

like help setting up or securing your DST router and DST adapter,

contact a Geek Squad agent via online chat or phone.

Visit www.geeksquad.com, click the CHAT WITH AN AGENT link, and

coupon code, which is GS1337EXB, when you are on the phone or

chatting with an agent.

Nighthawk DST

AC1900 DST Router and DST Adapter

Model R7300DST

Support

Thank you for purchasing this NETGEAR product.

Aer installing your device, locate the serial number on the label of your product and use it to

You must register your product before you can use NETGEAR telephone support. NETGEAR

recommends registering your product through the NETGEAR website.

For product updates and web support, visit http://support.netgear.com.

NETGEAR recommends that you use only the ocial NETGEAR support resources.

You can get the user manual online at http://downloadcenter.netgear.com or through a link in the

product’s user interface.

For additional support, visit www.geeksquad.com to chat online or call 1-800-GeekSquad. The

DST router and DST adapter come with setup and support via phone and web from Geek Squad for

one year from the date of purchase.

Your Geek Squad support coupon code is GS1337EXB.

Trademarks

SQUAD, the GEEK SQUAD logo, Dead Spot Terminator and the DST logo are trademarks of Best

Buy and its aliated companies. Any non-NETGEAR trademarks are used for reference purposes

only.

Compliance

For the current EU Declaration of Conformity, visit

http://support.netgear.com/app/answers/detail/a_id/11621/.

For regulatory compliance information, visit

http://www.netgear.com/about/regulatory/.

See the regulatory compliance document before connecting the power supply.

NETGEAR, Inc.

350 East Plumeria Drive

San Jose, CA 95134 USA

July 2015

R7300 DST router

Ethernet

cables (2)

Power cord

(varies by region)

Antennas (3)

DST6501

DST adapter

DST router

Ethernet cable

Cable or

DSL

Internet

Modem

Power cord

You can use this diagram to connect your DST router or follow the detailed instructions in this booklet.

Ethernet cable

DST

adapter

1. Remove the antenna caps, attach the

antennas, and position them.

NETGEAR recommends that you position

the center antenna vertically and that you

position the others outward at 45-degree

angles as shown.

2. Prepare your modem.

If you use an existing Internet connection,

verify that your modem is ready. Unplug

your modem’s power source. If the modem

uses a battery backup, remove batteries.

Make sure that your modem is turned o

and is connected only to the wall jack for

Internet service.

3. Connect your modem to

the DST router.

Plug in your modem and

put batteries back in. Then

connect the modem to the

yellow Internet port on the

DST router.

4. Power on the DST router.

The Power LED lights amber and then

turns white when the router is ready.

5. Set up the DST adapter.

In the room where you want to improve WiFi coverage or add

Ethernet, plug the DST adapter into an electrical outlet.

Wait for the DST LED on the DST adapter to light solid green or

amber and the DST LED on the DST router to light solid blue.

6. Connect a device to the DST router.

You can use an Ethernet cable or use WiFi

to connect a device to the DST router.

To connect with WiFi, use the WiFi

network name and password on the

product label.

7. Log in to the DST router

Launch a web browser.

NETGEAR genie displays.

NETGEAR genie detects your Internet

connection and helps you update the

ﬁrmware, WiFi settings, and encryption

key on your DST adapter.

If you do not see NETGEAR genie,

enter www.routerlogin.net in the

address ﬁeld of the web browser. When

prompted, enter admin for the user

name and password for the password.

Follow the onscreen steps to complete

the setup.

8. Contact Geek Squad for additional help.

If you need additional help, visit

www.geeksquad.com, click the CHAT WITH

AN AGENT link, and sign in to chat, or call

1-800-GeekSquad. Be sure to reference your

coupon code, which is GS1337EXB, when you

are on the phone or chatting with an agent.

DST Router Hardware Features

Front Panel

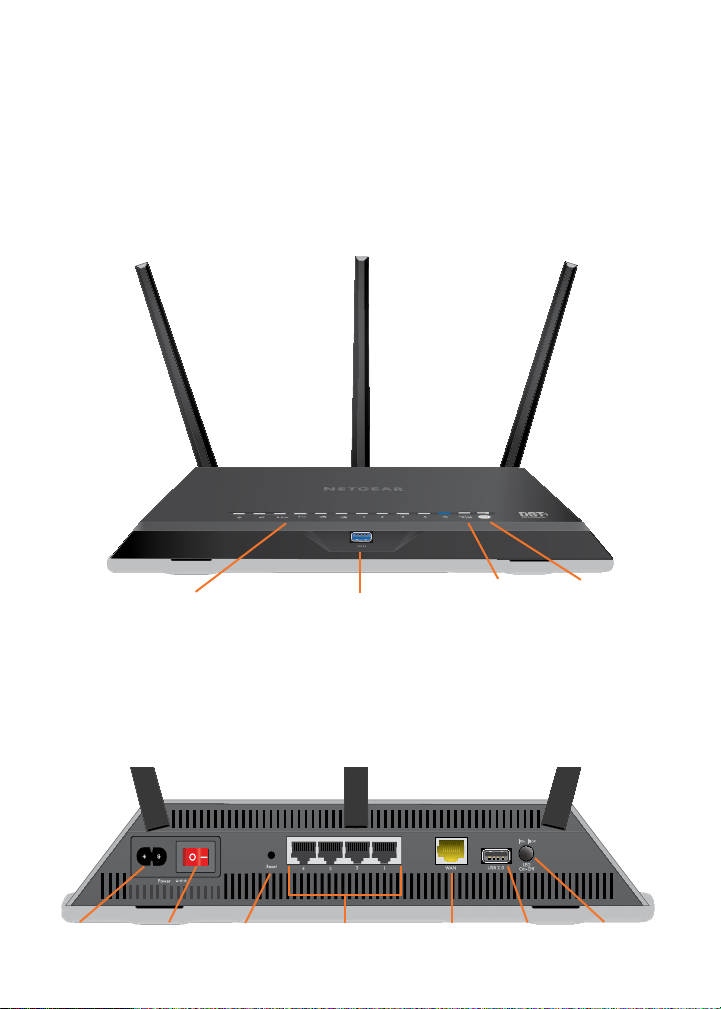

The LEDs, buttons, and USB port are shown in the following ﬁgure.

For more information about the LEDs, see DST Router LEDs on page

Rear Panel

The rear panel connections and buttons are shown in the following

ﬁgure.

LEDs USB 3.0 port

Reset

button

Ethernet

ports 1–4

WAN

(Internet)

port

Power

On/O

switch

Power

connector

WPS

and DST

Adapter

Sync

button

with LED

Geek Squad

Setup and

Support

button with

LED

USB 2.0

port

LED

On/O

button

DST Router LEDs

The LEDs on the top of the DST router light to indicate DST router

activity:

LED Description

Power LED • Solid white. The DST router is ready.

• Solid amber. The DST router is starting.

• Blinking amber. The ﬁrmware is upgrading, or the

Reset button was pressed.

• Blinking white. The ﬁrmware is corrupted.

• O. Power is not supplied to the router.

Internet LED • Solid white. The Internet connection is ready.

• Solid amber. The DST router detected an Ethernet

cable connection to the modem.

• Blinking white. The port is sending or receiving trac.

• O. No Ethernet cable is connected between the

DST router and the modem.

2.4 GHz WiFi LED • Solid white. The 2.4 GHz WiFi radio is operating.

• Blinking white. The DST router is sending or receiving

WiFi trac.

• O. The 2.4 GHz WiFi radio is o.

5 GHz WiFi LED • Solid white. The 5 GHz WiFi radio is operating.

• Blinking white. The DST router is sending or receiving

WiFi trac.

• O. The 5 GHz WiFi radio is o.

USB 1 LED

USB 2 LED

The USB 1 LED is for the blue USB 3.0 USB port. The USB

2 LED is for the USB 2.0 port.

• Solid white. A USB storage device is connected and is

ready.

• Blinking. A USB storage device is plugged in and is

trying to connect.

• O. No USB storage device is connected, or someone

clicked the Safely Remove Hardware button on the

DST router’s web interface and it is now safe to remove

the attached USB storage device.

LED Description

Ethernet ports

1–4 LED

The LED color indicates the speed: white for Gigabit

Ethernet connections and amber for 100 Mbps or 10

Mbps Ethernet connections.

• Solid. A powered-on device is connected to the

Ethernet port.

• Blinking. The port is sending or receiving trac.

• O. No device is connected to this Ethernet port.

DST LED • Solid blue. A DST adapter is connected to the

DST router’s network.

• O. The DST router did not ﬁnd any other compatible

DST adapter using the same encryption key.

WPS and DST

Adapter Sync

button with LED

Pressing this button for two seconds turns on the WPS

function and the DST adapter sync connection. Aer you

press this button, press the WPS or WPS and DST Router

Sync button on your device to connect your device to the

DST router.

• Solid white. A device is connected to the DST router.

• Blinking white. The DST router is ready to sync with a

device.

• O. The WPS and DST adapter sync connection is o.

Geek Squad Setup

and Support

button with LED

Geek Squad support is provided by phone and on the web.

Geek Squad agents use remote access to assist with setup

and support. The Geek Squad Setup and Support button

paired with a Geek Squad support ID (on the bottom of the

router) is used to authenticate the connection for remote

access.

The agent will provide direction regarding the use of the

button and the code. Pressing the button any other time

does not result in a connection with an agent.

The state of the LED indicates the status of the connection

with the Geek Squad agent:

• Solid white. The DST router is connected to Geek

Squad Support.

• Blinking white. The connection is being established.

• O. Geek Squad Support is not connected.

DST Adapter Hardware Features

The LEDs, buttons, and Ethernet port are shown in the following

ﬁgure. For more information about the LEDs, see DST Adapter LEDs

on page 5.

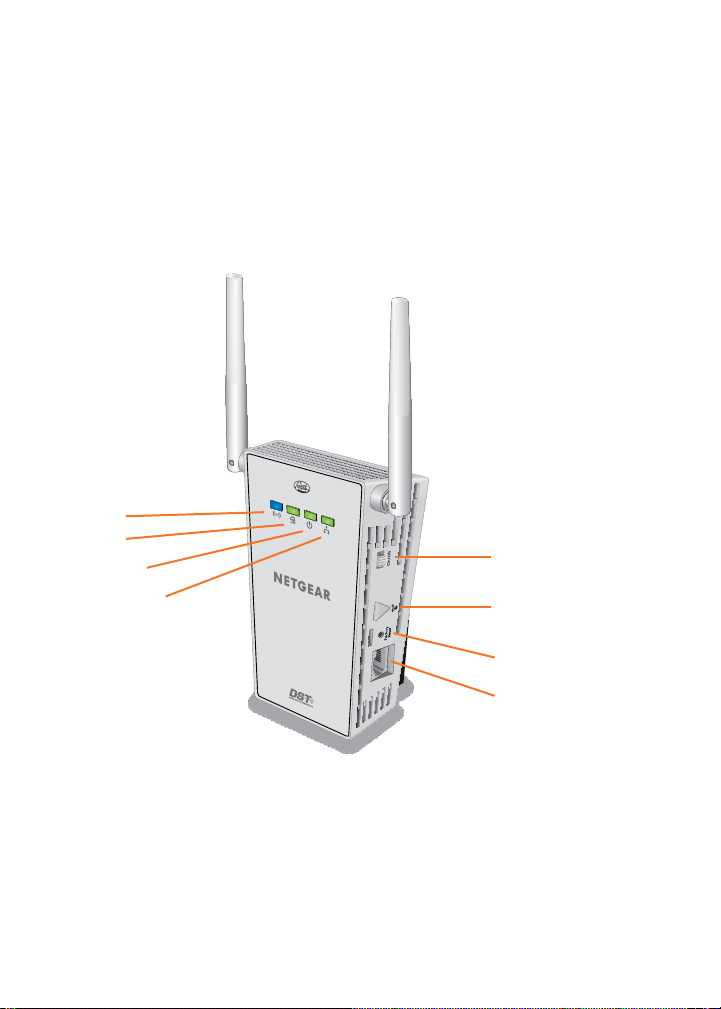

Power On/O switch

WiFi LED

DST LED

Power LED

Ethernet LED WPS and DST Router

Sync button

Factory Reset button

Ethernet port

DST Adapter LEDs

The LEDs on the DST adapter light to indicate DST adapter activity:

LED Description

WiFi LED Solid blue. The DST adapter is securely paired with a WiFi

device.

Blinking blue. The DST adapter is pairing with a WiFi device.

O. WiFi is disabled.

DST LED This LED indicates when the DST adapter is connected to

the electrical outlet with the strongest link performance,

indicated by the color displayed by the LED:

• Red. Link rate < 50 Mbps (good).

• Amber. Link rate > 50 and < 80 Mbps (better).

• Green. Link rate > 80 Mbps (best).

• O. The DST adapter did not ﬁnd any other compatible

DST devices using the same encryption key.

Power LED • Solid green. The DST adapter is powered on.

• Blinking green. The DST adapter is pairing with another

DST device.

• O. The DST adapter is powered o.

Ethernet LED • Solid green. A powered-on device is connected to the

Ethernet port.

• O. No device is connected to this Ethernet port.

Install Your DST Router and DST Adapter

Make sure that your Internet service is active before you install

your DST router.

¾To install your DST router and DST adapter:

1. Remove the antenna caps, attach the antennas, and position

them.

a. Remove the antenna caps from the threaded antenna posts

on the DST router.

b. Attach the antennas on the threaded antenna posts.

c. Position the antennas for the best WiFi performance.

NETGEAR recommends that you position the center

antenna vertically and that you position the others outward

at 45-degree angles as shown.

2. Prepare your modem:

a. Unplug your modem’s power.

b. If the modem uses a battery backup,

remove its batteries.

c. If your modem was already

connected to another router,

disconnect the cable between your

modem and that router.

Make sure that your modem is turned o and is cabled only to

the wall jack for your Internet service.

Internet

Modem

Cable or

DSL

3. Connect your modem.

a. Plug in, then turn on your modem.

b. If you removed the batteries, replace them.

c. With an Ethernet cable, connect your modem to the yellow

WAN (Internet) port on your DST router.

4. Add power to the DST router.

a. Connect the power cord to the DST router and plug the

power cord into an outlet.

Note: Do not plug the power cord into a surge protector.

b. Wait for the Power LED on the front panel to light amber

and turn white.

If no LEDs are lit, press the Power On/O switch on the

rear panel of the DST router to the On position.

Cable or

DSL

Internet

Ethernet cable

Modem

Ethernet cable

Modem

Internet

Cable or

DSL

Power

cord

DST router

5. In the room where you want to improve WiFi coverage or add

Ethernet, plug your DST adapter into an electrical outlet and

wait for the Power LED to light solid green.

Note: Do not plug the DST adapter into a surge protector.

6. If the Power LED does not light, slide the Power On/O

switch to the On position.

7. Wait for the DST adapter to connect to the DST router.

Once the connection is made, the DST LED on the DST adapter

lights solid green or amber and the DST LED on the DST router

lights solid blue.

This process takes between 5 and 80 seconds.

If the DST LED on the DST adapter is red, the link performance

is weak. You might want to move the DST adapter to another

electrical outlet with a faster connection.

8. If you bought another add-on DST adapter, repeat Steps 5–7.

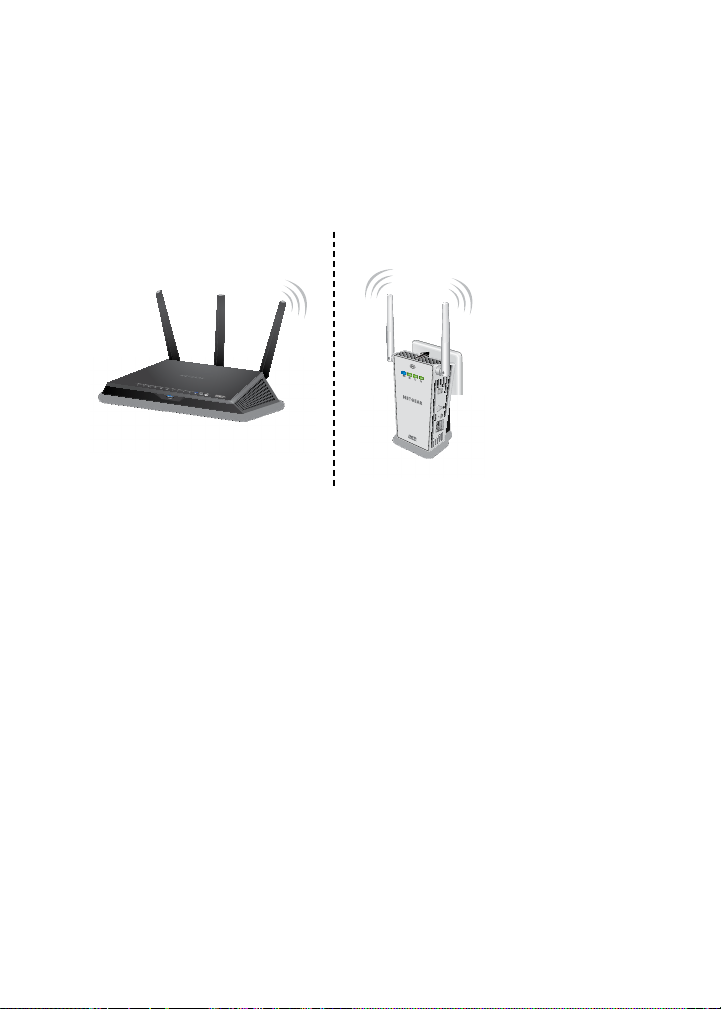

Room 1 Room 2

DST

router

DST

adapter

Table des matières

Autres manuels NETGEAR Routeur réseau

NETGEAR

NETGEAR R6700AX Manuel utilisateur

NETGEAR

NETGEAR DG834 - ADSL Firewall Router Manuel utilisateur

NETGEAR

NETGEAR GS750E Manuel utilisateur

NETGEAR

NETGEAR XE104 - 85 Mbps Wall-Plugged EN Switch... Manuel utilisateur

NETGEAR

NETGEAR RT210 Manuel utilisateur

NETGEAR

NETGEAR DG632 - ADSL Modem Router Manuel utilisateur

NETGEAR

NETGEAR N150 Manuel utilisateur

NETGEAR

NETGEAR Nighthawk RAX80 Manuel utilisateur

NETGEAR

NETGEAR RBS840 Manuel utilisateur

NETGEAR

NETGEAR JNR3210 Manuel de la liste des pièces

NETGEAR

NETGEAR RP334 Manuel utilisateur

NETGEAR

NETGEAR RM356 RM356 RM356 Manuel utilisateur

NETGEAR

NETGEAR Nighthawk AC2600 Manuel utilisateur

NETGEAR

NETGEAR XE102 - Wall-Plugged EN Bridge Manuel utilisateur

NETGEAR

NETGEAR LBR20 Manuel utilisateur

NETGEAR

NETGEAR Nighthawk GS808E Manuel utilisateur

NETGEAR

NETGEAR RP614 - Web Safe Router Manuel utilisateur

NETGEAR

NETGEAR WNR3500L - RangeMax Wireless-N Gigabit... Manuel utilisateur

NETGEAR

NETGEAR GS308P Manuel utilisateur

NETGEAR

NETGEAR XR450 Manuel utilisateur

NETGEAR

NETGEAR PR60X Manuel

NETGEAR

NETGEAR RANGEMAX WNDR3300 Manuel utilisateur

NETGEAR

NETGEAR DG834Gv1 - 54 Mbps Wireless ADSL Firewall... Manuel utilisateur

NETGEAR

NETGEAR WGR624v3 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité

LevelOne

LevelOne FBR-1416 Manuel utilisateur
