NETGEAR PR2000 Manuel utilisateur

NETGEAR Trek

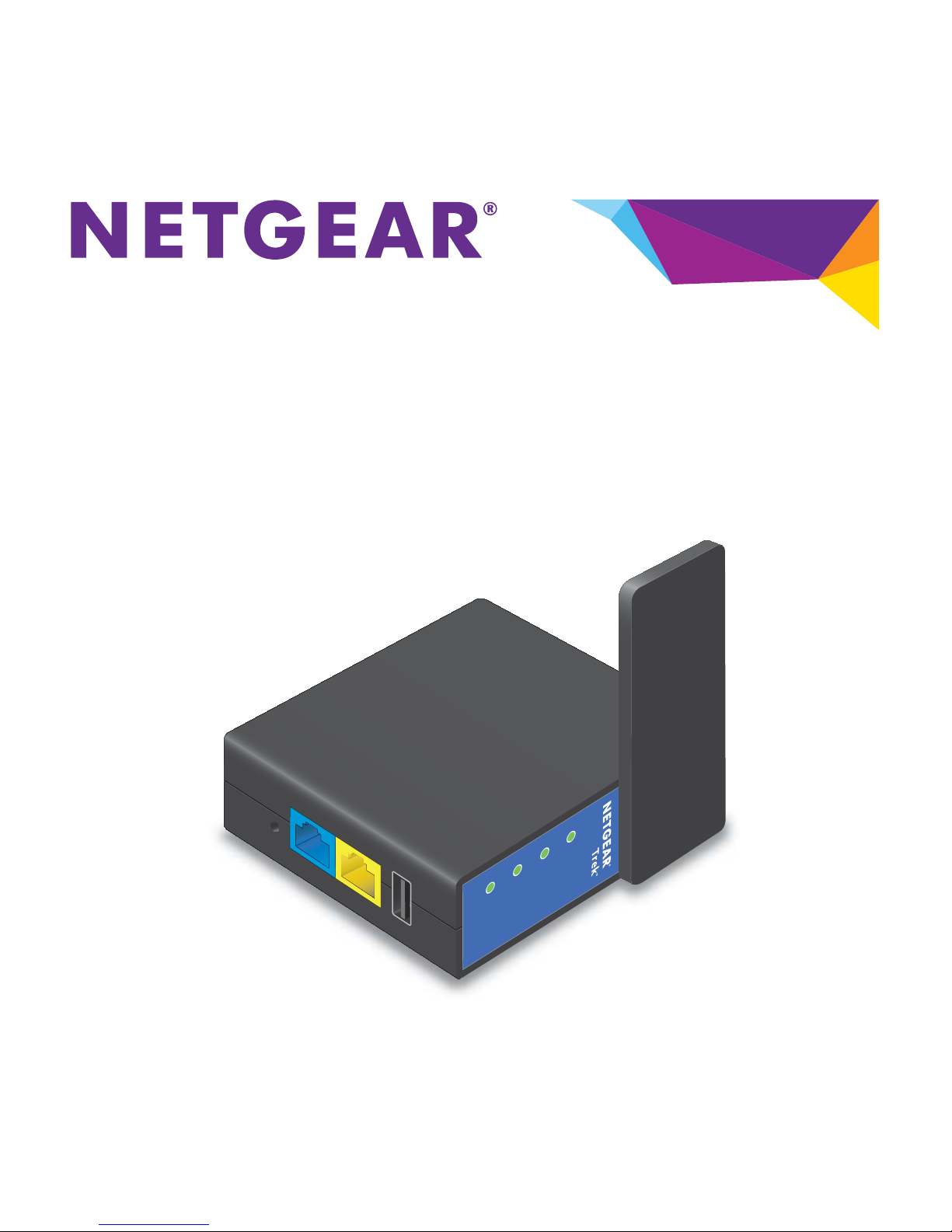

N300 Travel Router and Range Extender

PR2000

Installation Guide

WiFi

USB

LAN

Internet/LAN

Reset

NETGEAR

Power

Internet

Contents

Get Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Connect in the Home. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Connect on the Go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Meet Your Personal Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Internet Mode Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Power Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Indicator LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Connection Ports and Reset Button . . . . . . . . . . . . . . . . . . . . . 7

Antenna Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Internet Connection Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

WiFi Extender Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

WiFi Bridge Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

WiFi Hotspot Connection Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Cellular Connection Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Connect WiFi Devices to Your Network. . . . . . . . . . . . . . . . . . . . . 18

Get Started

Thank you for your purchase of the NETGEAR Trek N300 Travel

Router and Range Extender PR2000.

Whether you use the Internet in the home or on the go (or both), the

personal router is your solution to a better Internet experience.

Connect in the Home

The personal router provides you with the means to extend and

expand the home network that you already have with your existing

Internet connection. Use the personal router for any of the following

situations:

•Add a WiFi router to your home network.

Do you want to connect your wireless devices to your network?

Convert your home network into a home WiFi network. For more

information, see Internet Connection Setup on page 8.

•Extend the range of your home WiFi network.

Do you want to use your wireless devices at a greater distance

from your WiFi router? Extend the range of your WiFi router with

a WiFi range extender. For more information, see WiFi Extender

Setup on page 10.

•Bridge the distance to your Internet-ready TV.

Is your Internet-ready TV or other Ethernet-enabled device too far

from your router for an Ethernet cable connection? Bridge the

distance with a WiFi bridge. Examples of Ethernet-enabled

devices include an Internet-ready TV, Blu-ray player, gaming

console, and desktop or laptop computer. For more information,

see WiFi Bridge Setup on page 12.

Connect on the Go

The personal router gives you the means to connect to the Internet

while away from home.

Do you want to connect your devices to the Internet at a WiFi

hotspot? Connect your personal router to the WiFi hotspot and then

connect your devices to your personal router. The personal router’s

firewall protects your personal devices from known DoS attacks and

port scans from the Internet. For more information, see WiFi Hotspot

Connection Setup on page 14.

Do you want to connect your devices to your cellular service while

traveling? Connect your personal router to your cellular service and

then connect your devices to your personal router (this feature is

available only in certain regions). For more information, see Cellular

Connection Setup on page 16.

Meet Your Personal Router

Locate the hardware features on your personal router.

Internet Mode Switch

Select your Internet mode.

Internet

via

Wired

Power Off

Wireles

Internet

via

Wired

Power Off

Wireles

•Wired. Use an Internet connection with an

Ethernet cable.

•Power off. Turn off the personal router.

•Wireless. Use an Internet connection with

a wireless link.

Power Inputs

Use either of the following methods to power your personal router:

•AC power

connection.

Plug the unit

into an AC wall

outlet.

Power

Internet

WiFi

USB

Wired

Power Off

Wireles

•Micro USB connection.

Connect a micro USB

cable to the unit and to a

USB port on another

device.

NETGEAR

Internet

via

Wired

PowerOff

Wireles

Put the switch in one of the following

positions:

Indicator LEDs

Monitor the status of your personal router using the following LEDs:

NETGEAR

Power

Internet

WiFi

USB

Wired

Power Off

Wireles

Cover

(rotate

Indicator LEDs

clockwise

to open)

•Green. The personal router is powered

on.

•Off. The personal router is powered off.

•Green. Either the Internet/LAN port is

connected physically or a wireless

channel is associated successfully.

•Blinking green. One of the following

occurred:

•Off. The personal router is not connected

in either wired or wireless mode.

•Green. Either the LAN port or a wireless

device is connected to the personal router.

•Off. No device is connected.

•Green. The USB drive is properly

mounted.

•Off. No USB drive is detected.

Power

Internet

-The Reset button was pressed longer

than five seconds.

-A firmware upgrade is in progress.

-The bandwidth limit was exceeded.

WiFi

USB

Connection Ports and Reset Button

Connect or reset your personal router using the following items:

USB

LAN

Internet/LAN

Reset

ETGEAR

Reset

button

Connection

ports

•Reset button. To reset the personal router to

its factory settings, insert a paper clip into the

Reset hole and hold it until the Power LED

blinks.

•Internet/LAN port. An Ethernet port for an

Internet connection.

•LAN port. A LAN port for any Ethernet-

enabled device.

•USB port. A USB port for USB storage or

USB printer. When plugged into the wall, the

USB port can be used as a cell phone

charger.

Antenna Orientation

NETGEAR

Internet

via

Wired

Power Off

Wireles

Power

Internet

WiFi

USB

WiFi

USB

LAN

Internet/LAN

Reset

NETGEAR

Power

Internet

NETGEAR

LAN

Internet/LAN

Reset

USB

WiFi

USB

Power

Internet

The WiFi antenna is inside the cover.

Rotate the cover clockwise to orient

the antenna. For best performance,

keep the cover vertical when you use

your personal router.

Internet Connection Setup

Connect to the Internet with an Ethernet cable.

NETGEAR

Power

Internet

WiFi

USB

Wired

Power Off

Wireles

DSL or

cable modem (Optional) Connect a USB device to the USB port

To connect to the Internet with an Ethernet cable:

1. Connect an Ethernet cable between the Internet/LAN port of the

personal router and the Ethernet port of your DSL or cable modem.

2. Connect an Ethernet cable between the LAN port of the personal

router and the Ethernet port of your computer.

3. Connect the personal router to a power source.

For more information, see Power Inputs on page 5.

4. Turn on power to the personal router by moving the Internet Mode

switch from the Power Off position to the Wired position.

5. Open a web browser on your computer, type www.routerlogin.net

in the address field, and press the Enter key.

If a login screen displays, enter admin for your user name and

password for your password. Then click the OK button.

The Setup Wizard screen displays.

6. Click the Next button and follow the prompts of the Setup Wizard.

When you are done, the Congratulations screen displays.

The personal router is connected to the Internet.

7. (Optional) Connect your wireless devices to the personal router.

For more information, see Connect WiFi Devices to Your Network

on page 18.

8. (Optional) Connect a USB device to the USB port of the personal

router.

A USB device can be a USB storage drive or a USB printer.

When plugged into the wall, the USB port can also be used as a

cell phone charger. See the user manual.

WiFi Extender Setup

Use the personal router as a WiFi extender to connect your wireless

devices that are outside the range of your existing WiFi router.

NETGEAR recommends that you connect to the WiFi network of the

personal router when a wireless device is in a dead zone where the

connection to your existing WiFi router is poor or nonexistent.

To use the personal router as a WiFi extender:

1. Place the personal router at an equal distance between your

existing WiFi router and the wireless device that is located in the

dead zone of your router.

DO DON’T

NETGEAR

Power

Internet

WiFi

USB

Wired

PowerOff

Wireles

NETGEAR

Power

Internet

WiFi

USB

Wired

PowerOff

Wireles

When possible, specify the settings of the personal router and

your existing router in the same room.

2. Connect the personal router to a power source.

For more information, see Power Inputs on page 5.

3. Turn on power to the personal router by moving the Internet Mode

switch from the Power Off position to the Wireless position.
