NETGEAR ProSafe FR114W Manuel utilisateur

Installation Guide

Cable/DSL ProSafe Wireless-Ready Firewall

MODEL FR114W

Introduction

Thank you for purchasing a NETGEAR FR114W Cable/DSL ProSafe Wireless-Ready Firewall

with Print Server. A firewall is a special type of router that incorporates features for network

security. With this firewall you can have secure Internet access through a high-speed DSL or cable

modem and share the single modem with several computers. Provides the ability to install a

wireless notebook card for wireless networking functionality.

This installation guide shows you how to connect the firewall and configure it and your

computers for secure Internet access. Setup is easy—follow the instructions in this guide and

your system will be up and running quickly.

If you have problems, there is a troubleshooting section on page 13 to help you—or you can

get more detailed troubleshooting information from the Reference Manual on the CD, online

from www.NETGEAR.com or by phone.

Installation Overview

Estimated time: 15 to 30 minutes

1. Gather the configuration information you have for your working DSL or cable modem

connection to the Internet.

2. Install the firewall between the DSL or cable modem and one computer.

3. Configure that computer to work with the firewall and restart the computer and modem.

4. Configure the firewall and go online to test the connection.

5. Connect other computers, configure them and restart each. (optional)

On the FR114W Resource CD, you’ll find the Installation Assistant, which supplements the

instructions in this installation guide by animating the step-by-step procedures given here. For

more detailed information about installation, troubleshooting and configuration

procedures, see the Reference Manual on the CD.

Model FR114W ProSafe Wireless-Ready Firewall

What’s in the Box

When you open the box, verify that you received everything.

The package includes:

• FR114W Cable/DSL ProSafe Wireless-Ready Firewall

• AC power adapter

• Ethernet patch cable

• FR114W Resource CD, including a full Reference Manual and Installation Assistant.

• FR114W Installation Guide (this document)

• Warranty and registration card

• Support information card

If you don’t have everything listed above, see the support information card for contact

information. If the support information card is missing, you can get contact information at

www.NETGEAR.com in the Customer Service area.

FR114W Resource CD,

installation guide,support

information card &

warranty/registration card

Power adapter

Category 5

100 Mbps

Ethernet cable

Model FR114W ProSafe Wireless-Ready Firewall

Gather Configuration Information for

Your Working Connection to the Internet

Before installing the FR114W firewall, you

should have an external DSL or cable

modem with an Ethernet port set up and

working with one computer. You’ll be

installing the firewall between the modem

and the computer.

For each computer that you want to

connect to the firewall, you must have

• An available RJ-45 Ethernet port (or

adapter) — either built-in or from a

network interface card (NIC) installed

in the computer

an 802.11b-compliant wireless adapter.

• TCP/IP installed.

• If your computer is a Windows®

computer, it must have the Client for Microsoft®Networks software installed.

Note: Please see the Reference Manual on the CD if you need help installing

TCP/IP software or the Client for Microsoft Networks software on any Windows

computer that hasn’t been networked previously.

• A Category 5 (Cat 5) Ethernet patch cable

Note: There is one cable in the box with the firewall.

DSL modem

Note: If you have a cable

modem, you will have a cable

connection between the

modem and your cable outlet.

Connection information

Later in the setup process you’ll need to configure the firewall to work with your network. A

Setup Wizard is available to help you through this procedure. You can configure the firewall

yourself using information that you can get from your computer or your ISP about your

current Internet connection.

The next page includes blanks for you to fill in and refer to later. To get the needed

information from your computer:

• (Windows 98/Me) Open the Network control panel, select the TCP/IP entry, and

click Properties.

• (Windows 2000/XP) Open Local Area Network Connection and click Properties.

• (Macintosh®) Open the TCP/IP (or Network) control panel.

Your ISP should have provided you with a summary sheet of all the information needed to connect

your computer to the Internet. If you cannot locate the information, you’ll have to contact your ISP.

An ISP Guide is included with your firewall’s documentation, either as a printed card or on the

Resource CD. The ISP Guide contains specific configuration guidelines for connecting to

many popular ISPs.

Host and Domain Names

Some ISPs use a specific host or domain name—like jsmith or earthlink.net. If you haven’t

been given specific information about host or domain names then use the following examples

as a guide:

• If your main e-mail account with your ISP is aaa@yyy.com, then use aaa as your host

name. (Your ISP might call this your account name, user name, or system name.)

• If your ISP’s mail server is mail.xxx.yyy.com, then use xxx.yyy.com as the domain name.

Host name:_____________________________________

Domain name: __________________________________

If your ISP requires a login name and password (possibly because you have a PPPoE account),

fill in the following:

(may be your full e-mail address)

Password:______________________________________

Note: The login name could be called a user name or account name by your ISP.

The login name is case sensitive. You must type it exactly as given by your ISP. For

example, c_jones is a different login name than C_Jones or cjones.

Fixed (or static) IP address

If you have a static IP address through your ISP, fill in the following information:

IP address: _____._____._____._____

Subnet mask: _____._____._____._____

Gateway IP address:_____._____._____._____

DNS server address information

If you were given specific Domain Name System (DNS) server addresses, fill in the following:

DNS Server IP address(es): _____._____._____._____

_____._____._____._____

Install the Firewall

After unpacking the box and locating the

configuration information, you’re ready to install

the firewall. If you will be upgrading your

FR114W for wireless operation, perform the steps

in the following section. Otherwise skip to

“Connecting the Firewall to your network” below.

Installing a Wireless Card in

the FR114W

To upgrade the FR114W for wireless operation,

you must purchase and install a NETGEAR

802.11b Wireless PC Card. The firewall will

function normally without a wireless adapter card,

but will not have wireless connectivity. To install

the 802.11b Wireless PC Card in your FR114W,

follow these steps:

1. Locate the wireless adapter card slot on the rear panel of the FR114W.

2. Remove the rubber dust cover from the slot.

3. With the FR114W’s power off, slide the Wireless PC card into the slot with the card’s

front label and LED facing up.

4. Be sure that the Wireless PC card is securely seated into the internal connector.

The blue plastic end cap of the Wireless PC card should be outside of the FR114W’s case.

Note: You must use a NETGEAR wireless PC card as not all manufacturer’s PC

cards are compatible.

Connecting the Firewall to your Network

Note: You do not have to power down any equipment to do this, but if you need to

move your computers (perhaps to get to ports in the back), you may want to shut

down the computers before moving them around.

1. Locate the Ethernet cable currently going from the DSL or cable modem to the computer

that you use to access the Internet.

Note: You must use this cable to connect the DSL or cable modem to your firewall

since this may be a special cable even though it looks like other LAN cables.

WIRELESS PCMCIA

NETGEAR WIRELESS ADAPTER ONLY

Normal

UpLink 12VDC O.5A

4321

LOCAL

10/100M

INTERNET

WIRELESS PCMCIA

DSL

modem

Model FR114W ProSafe Wireless-Ready Firewall

2. Remove this cable from the computer and insert that end into the Internet port on the

rear panel of the firewall.

3. Use the Ethernet patch cable that came with the firewall to connect the computer to one

of the four numbered local Ethernet ports on the rear panel of the firewall.

4. Connect the power adapter’s cord into the back of the firewall and then plug the adapter

into a power source (such as a wall socket or power strip).

Note: If you want to connect other computers to the firewall, don’t connect them

now. Do that after you know that the modem/firewall setup works with one

computer.

Check the setup

• The Test light turns on for a few seconds and then goes off.

Note: If the Test light remains on for more than one minute, go to Troubleshooting

on page 13.

• The Power and Internet Link lights should be lit.

• The WLAN light should be lit.

• If your computer is on, the Local Link light should be on for the port number that your

computer is connected to.

Note: If the port connection is a 100 Mbps connection, the 100 light should be on.

If either the Power, Internet Link, or Local port Link light isn’t lit, go to Troubleshooting on

page 13.

Configure the Computer to Work with the

Firewall and Restart the Network

Next, make sure that the computer can interact with the firewall. To do this, configure the

TCP/IP settings on the computer and then restart the network. How you do this depends on

your computer.

Windows Operating System

Normally, you can leave the TCP/IP setup parameters at their factory default settings unless

you have a specific reason to change them. You should verify that the computer is set to ‘obtain

an IP address automatically’ in the Network control panel.

Windows 98 or Me

1. Choose Settings>Control Panel from the Start menu.

2. Double-click the Network icon.

3. Click the Configuration tab.

4. In the list of installed network components, select the TCP/IP entry for the computer’s

Ethernet or wireless adapter.

5. Click Properties.

6. Click the IP Address tab.

7. Check that Obtain an IP Address Automatically ia selected, select if not.

8. Click the Gateway tab.

9. Select and remove any IP Gateway addresses that are listed.

10. Click OK and click OK again to close the Network control panel.

11. Go to Restarting the Network on the next page.

Windows 2000 or XP

1. Right-click My Network Place and choose Properties.

2. Double-click Local Area Network Connection and

click Properties.

3. Select Internet Protocol (TCP/IP) and click Properties.

4. Select Obtain IP address automatically.

5. Click OK twice and click Close.

6. Go to Restarting the Network.

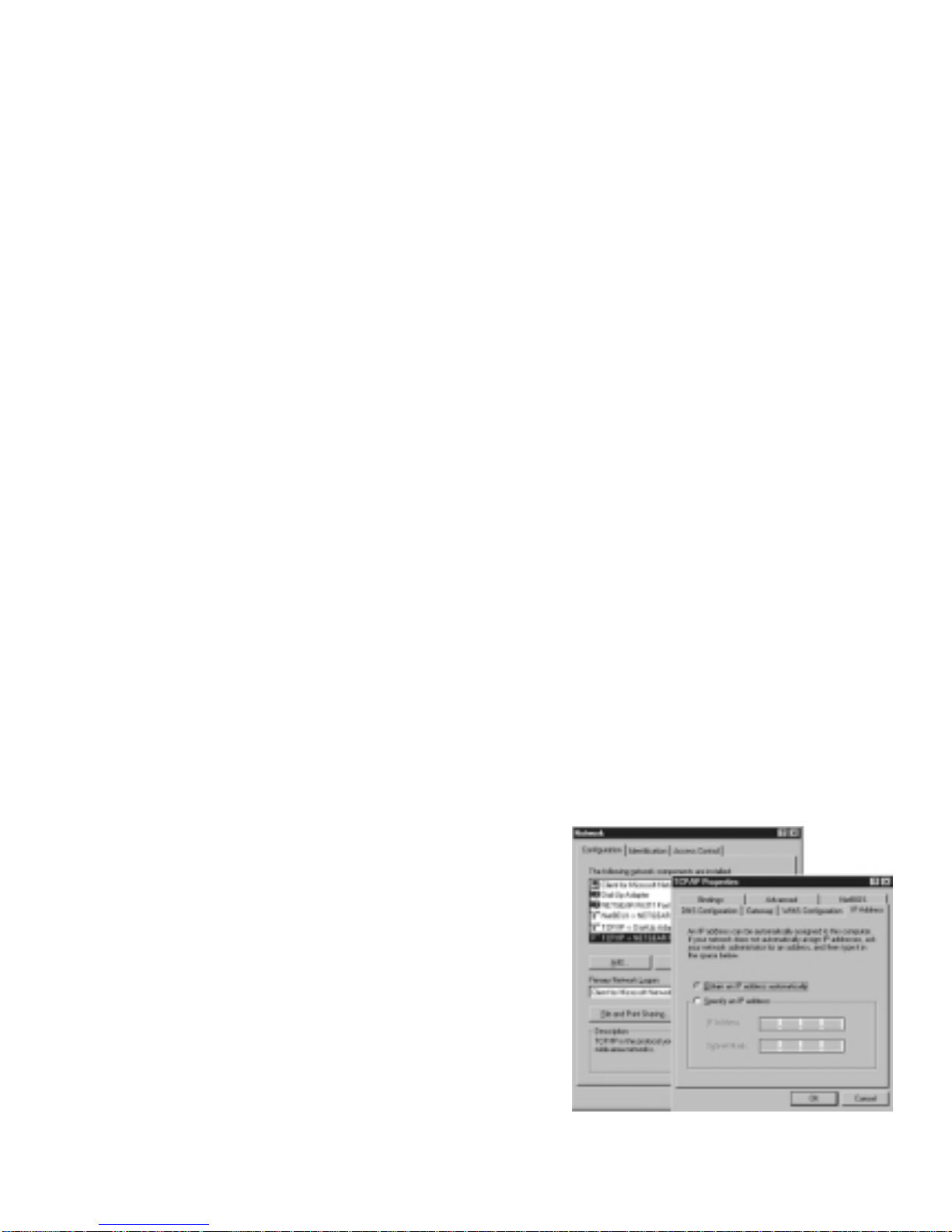

Windows 98/Me

Macintosh Operating System

Mac OS®8.6 or 9.x

1. Choose Control Panels >TCP/IP from the Apple

menu.

2. If not already selected, select Ethernet in the

Connect via list.

3. Select Using DHCP Server in the Configure list.

4. Click the close box.

5. If asked if you want to save this configuration,

click Save.

6. Go to Restarting the Network.

Mac OS X

1. Choose System Preferences from the Apple menu.

2. Double-click Network.

3. If not already selected, select Built-in Ethernet in the Configure list.

4. If not already selected, select Using DHCP in the TCP/IP tab.

5. Click Save.

6. Go to Restarting the Network.

Linux®or UNIX®Operating System

If you’re installing the firewall with a Linux-based or UNIX-based computer see your system

documentation for TCP/IP and networking setup information.

Restarting the Network

Once you’ve set up your computer to work with the firewall, you must reset the network for

the devices to be able to communicate correctly.

1. Turn off the DSL or cable modem, wait 15 seconds, and then turn it on again.

Note: If the modem doesn’t have an on/off switch, either pull the modem’s power

adapter out of the wall socket or power down the power strip.

2. If the firewall was powered down, power it up again and wait until the Test light turns off.

3. Restart the computer that is connected to the firewall.

Note: You may also configure the firewall from a wireless PC. In that case, set the

PC’s SSID to the firewall’s default SSID: Wireless and be sure to Disable WEP encryption. 9

Autres manuels pour ProSafe FR114W

Table des matières

Autres manuels NETGEAR Pare-feu

NETGEAR

NETGEAR ProSafe FVM318 Manuel utilisateur

NETGEAR

NETGEAR ProSafe FVS114 Manuel utilisateur

NETGEAR

NETGEAR ProSafe FVS318N Manuel utilisateur

NETGEAR

NETGEAR FVS336G - ProSafe Dual WAN Gigabit Firewall Manuel utilisateur

NETGEAR

NETGEAR ProSafe FR328S Manuel utilisateur

NETGEAR

NETGEAR FVS336G - ProSafe Dual WAN Gigabit Firewall Manuel utilisateur

NETGEAR

NETGEAR FVS338 - ProSafe VPN Firewall 50 Router Manuel utilisateur

NETGEAR

NETGEAR FVS328 - ProSafe VPN Firewall Manuel utilisateur

NETGEAR

NETGEAR ProSafe FVX538 Manuel utilisateur

NETGEAR

NETGEAR ProSafe FVS318v3 Manuel utilisateur

NETGEAR

NETGEAR FVG318 - ProSafe 802.11g Wireless VPN Firewall 8... Manuel utilisateur

NETGEAR

NETGEAR ProSafe FVS318v3 Manuel utilisateur

NETGEAR

NETGEAR FWG114P - ProSafe 802.11g Wireless Firewall Manuel utilisateur

NETGEAR

NETGEAR SRXN3205 - ProSafe Wireless-N VPN Firewall Wireless... Manuel utilisateur

NETGEAR

NETGEAR SRX5308 - ProSafe® Quad WAN Gigabit SSL VPN... Manuel utilisateur

NETGEAR

NETGEAR FVS336G - ProSafe Dual WAN Gigabit Firewall Manuel utilisateur

NETGEAR

NETGEAR UTM5 - ProSecure Unified Threat Management... Manuel utilisateur

NETGEAR

NETGEAR FVX538v2 - ProSafe VPN Firewall Dual WAN Manuel utilisateur

NETGEAR

NETGEAR SRXN3205 - ProSafe Wireless-N VPN Firewall Wireless... Manuel utilisateur

NETGEAR

NETGEAR STM150 - ProSecure Web And Email Threat Management... Manuel utilisateur

NETGEAR

NETGEAR FWG114P - ProSafe 802.11g Wireless Firewall Manuel utilisateur

NETGEAR

NETGEAR ProSafe FR328S Manuel utilisateur

NETGEAR

NETGEAR ProSafe FVS318N Manuel utilisateur

NETGEAR

NETGEAR FVL328 - Cable/DSL ProSafe VPN Firewall... Manuel utilisateur

Manuels Pare-feu populaires d'autres marques

Cisco

Cisco S190 Manuel utilisateur

Fortinet

Fortinet FortiGate Voice Series Manuel utilisateur

ADTRAN

ADTRAN NetVanta 2300 Manuel utilisateur

SecureLogix

SecureLogix ETM System Manuel utilisateur

Lanner

Lanner FW-8877 Manuel utilisateur

Huawei

Huawei USG6000 Series Manuel d'installation et d'exploitation

H3C

H3C SecPath F5000-AI-15 Manuel utilisateur

Nexcom

Nexcom DNA 1150 Manuel utilisateur

Fortinet

Fortinet FortiGate-60 series Manuel utilisateur

Cisco

Cisco 3110 Manuel

Draytek

Draytek Vigor2860 Series Manuel utilisateur

Lanner electronics

Lanner electronics FW-7650 Series Manuel utilisateur

Swisscom

Swisscom Internet Backup Manuel utilisateur

SonicWALL

SonicWALL NSa 5700 Manuel utilisateur

DPtech

DPtech FW1000 SERIES Manuel utilisateur

FEITIAN

FEITIAN MultiPass FIDO Manuel utilisateur

EBLOCKER

EBLOCKER PRO Manuel utilisateur

GTA

GTA GB-200 Manuel utilisateur
