NETGEAR XAVB5601 Manuel utilisateur

Powerline AV+ 500 Nano Set

XAVB5601 Installation Guide

No part of this publication may be reproduced, transmitted, transcribed,

stored in a retrieval system, or translated into any language in any form or by

any means without the written permission of NETGEAR, Inc.

DO NOT stack equipment, or place equipment in tight spaces or in drawers.

Be sure your equipment is surrounded by at least 2 in. of air space.

Technical Support

Thank you for choosing NETGEAR. To register your product, get the latest

product updates, or get support online, visit us at http://support.netgear.com.

Phone (US & Canada only): 1-888-NETGEAR

Phone (Other Countries): 

See http://support.netgear.com/app/answers/detail/a_id/984.

Trademarks

NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or

registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or

other countries. Information is subject to change without notice. Other brand and product

Statement of Conditions

In the interest of improving internal design, operational function, and/or

reliability, NETGEAR reserves the right to make changes to the products

described in this document without notice. NETGEAR does not assume any

liability that may occur due to the use or application of the product(s) or circuit

layout(s) described herein.

Package Contents

Products sold in some locations include a Resource CD.

Ethernet cables (2)

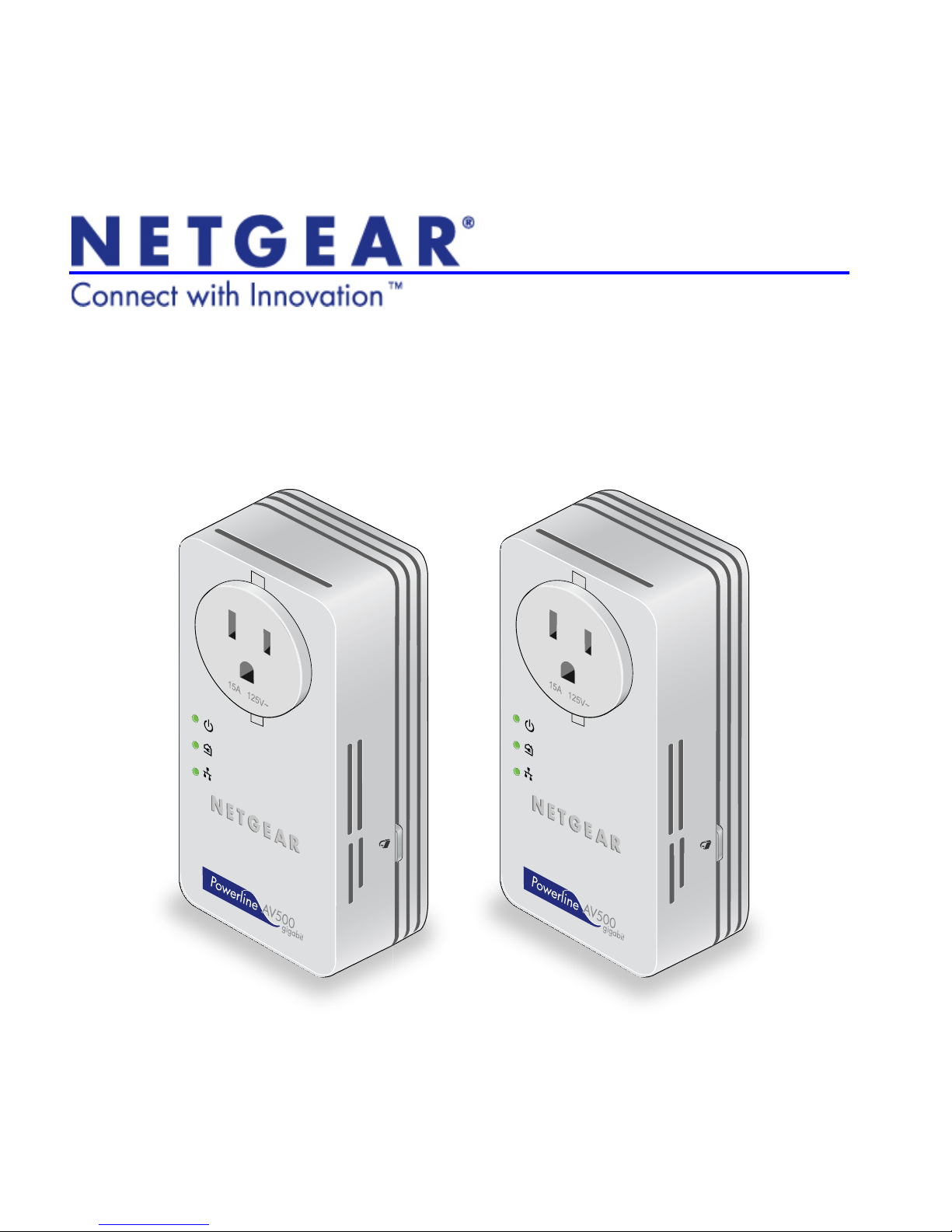

Powerline adapters (2)

UK France Germany/Europe Australia

Your Powerline adapter might look like one of these:

Hardware Features

Filtered

AC socket

Power

LED

Powerline

LED

Ethernet

LED

Security button

Factory

Reset

button

Compatible Powerline and HomePlug AV certified devices include the

NETGEAR XAV101, XAV1501, XAV1004, XAV2001, XAV2501,

XAV2602 XAVN2001, XAV5001, XAV5004, and XAV5501. For a

complete list of HomePlug AV certified devices, go to

www.homeplug.org/certified_products.

LEDs

The LEDS indicate the status of your Powerline adapters.

• When you plug in the adapter, the Power LED lights up and

turns green.

• The adapter is not active when no Ethernet link has occurred for

more than 10 minutes. The adapter enters power saving mode,

and the Power LED turns amber.

• The Ethernet LED lights up when you connect a powered-on

Ethernet device to at least one Ethernet port.

• The Powerline LED turns on when the adapter detects at least

one other compatible Powerline device.

The Pick A Plug diagnostic feature lets you pick the electrical

outlet with the strongest throughput, indicated by the color

displayed by the Powerline LED:

- Green: Link rate > 80 Mbps (Best)

- Amber: Link rate > 50 and < 80 Mbps (Better)

- Red: Link rate < 50 Mbps (Good)

Install Your Powerline Adapters

You can plug a

power strip into

the filtered outlet,

but do not plug

your Powerline

adapter into a

power strip.

The filtered AC

socket removes

some electrical

noise. Plugging

a nearby device

into the filtered

AC socket

improves

performance.

Secure Your Powerline Network

A Powerline network forms when at least two compatible Powerline

devices communicate. After the Powerline network is up and running,

you can use the Security buttons on the adapters to add encryption to

your Powerline network.

CAUTION: Do not press the Security button until each adapter has

powered up and its Power LED is solid green. Pressing this

button too soon can temporarily disable Powerline

communication. If this occurs, use the Factory Reset button

to return the Powerline adapter to its factory settings.

To secure your Powerline network:

1. Make sure the Power LED is solid green. If it is amber, connect

a device to one of the Ethernet ports so the adapter exits power

saving mode.

2. On the first Powerline adapter, press its Security button for 2

seconds. The Power LED blinks green while you are setting up

security.

3. Within 2 minutes, go to the next Powerline adapter and press its

Security button for 2 seconds.

After security is set, the Power LED turns solid green. The

adapters can communicate over the network. The Powerline

LEDs are blinking or solid.

Technical Support

Thank you for selecting NETGEAR products.

After installing your device, locate the serial number on the label of

your product and use it to register your product at

www.NETGEAR.com/register. Registration is required before you can

use the telephone support service. Registration through the

NETGEAR website is strongly recommended.

Go to http://support.netgear.com for product updates and web

support.

For additional information about setting up, configuring, and using

your Powerline AV+ 500 Nano Adapter, see the User Manual.

For complete DoC please visit the NETGEAR EU Declarations of

Conformity website at

http://support.netgear.com/app/answers/detail/a_id/11621/.

For GNU General Public License (GPL) related information, visit

http://support.netgear.com/app/answers/detail/a_id/2649.

Safety Information

• For national approvals (approval schemes other than CB),

relevant national standards for plug, socket-outlet, and direct

plug-in units (for example, US) shall also be consulted while

testing and approving such products according to national

standards.

• AC input rating (NA): 100–125V, 0.2A (Max); 50–60Hz excluding

socket outlet rating.

• AC input rating (AU, UK, FR, EU): 200–250V, 0.2A (Max), 

50–60Hz excluding socket outlet rating.

• XAV5601 ratings (maximum load): EU: 16A 250V~, 

UK: 13A 250V~, FR: 16A, 250V~, NA: 15A 125V~, 

AU: 10A, 250V~.

• Operating temperature: 0° C~40° C.

•Check the electrical current for any device plugged into the

filtered AC socket. Do not exceed home and product outlet

ratings and electrical requirements.

• The socket-outlet shall be installed near the equipment and be

easily accessible.

• Only power cords are allowed to be inserted into the filtered AC

outlet; no other equipment with a direct plug-in is allowed. Power
