NETGEAR PL1000 Manuel utilisateur

Quick Start

Powerline 1000

Model PL1000

Package Contents

In some regions, a resource CD is included with your product.

Get Started

Powerline adapters give you an alternative way to extend your network

using your existing electrical wiring. Plug two or more Powerline adapters

into electrical outlets to create a wired network connection. You can add

up to eight Homeplug AV-certiﬁed and AV2-certiﬁed adapters to extend

your network. For a complete list of Homeplug AV-certiﬁed devices, visit

http://www.homeplug.org/certiﬁed_products.

Power LED

Factory Reset button

Ethernet port

Pick A Plug LED

Ethernet LED

Security button

Meet Your Adapter

Before you install your adapters, familiarize yourself with their LEDs,

buttons, and ports.

Power LED Solid green. The electrical power is on.

Solid amber. The adapter is in power saving mode.

Blinking green. The adapter is in the process of setting up

security.

O. The adapter is not receiving electrical power.

Ethernet LED Solid green. The Ethernet port is linked.

O. No Ethernet connection is detected.

Pick A Plug LED The Pick A Plug feature lets you pick the electrical outlet

with the strongest link performance, indicated by the color

displayed by the LED:

Red. Link rate < 50 Mbps (good).

Amber. Link rate > 50 and < 80 Mbps (better).

Green. Link rate > 80 Mbps (best).

O. The adapter did not ﬁnd any other compatible Powerline

devices using the same encryption key.

Factory Reset

button

Press the Factory Reset button for one second, and then

release it to return the Powerline adapter to its factory

default settings.

Ethernet port Use an Ethernet cable to connect your wired devices,

including computers, WiFi routers, or game consoles, to your

Powerline network.

Security button Use the Security button to create a secure Powerline

network.

¾To install your adapters:

1. Plug in your new adapters.

2. Wait until the Pick A Plug LEDs are lit.

Congratulations. You installed your adapters and set up your network.

You can customize the network and security settings later.

Install Your Adapters

Do not plug your Powerline devices into extension cords, power strips, or surge

protectors.

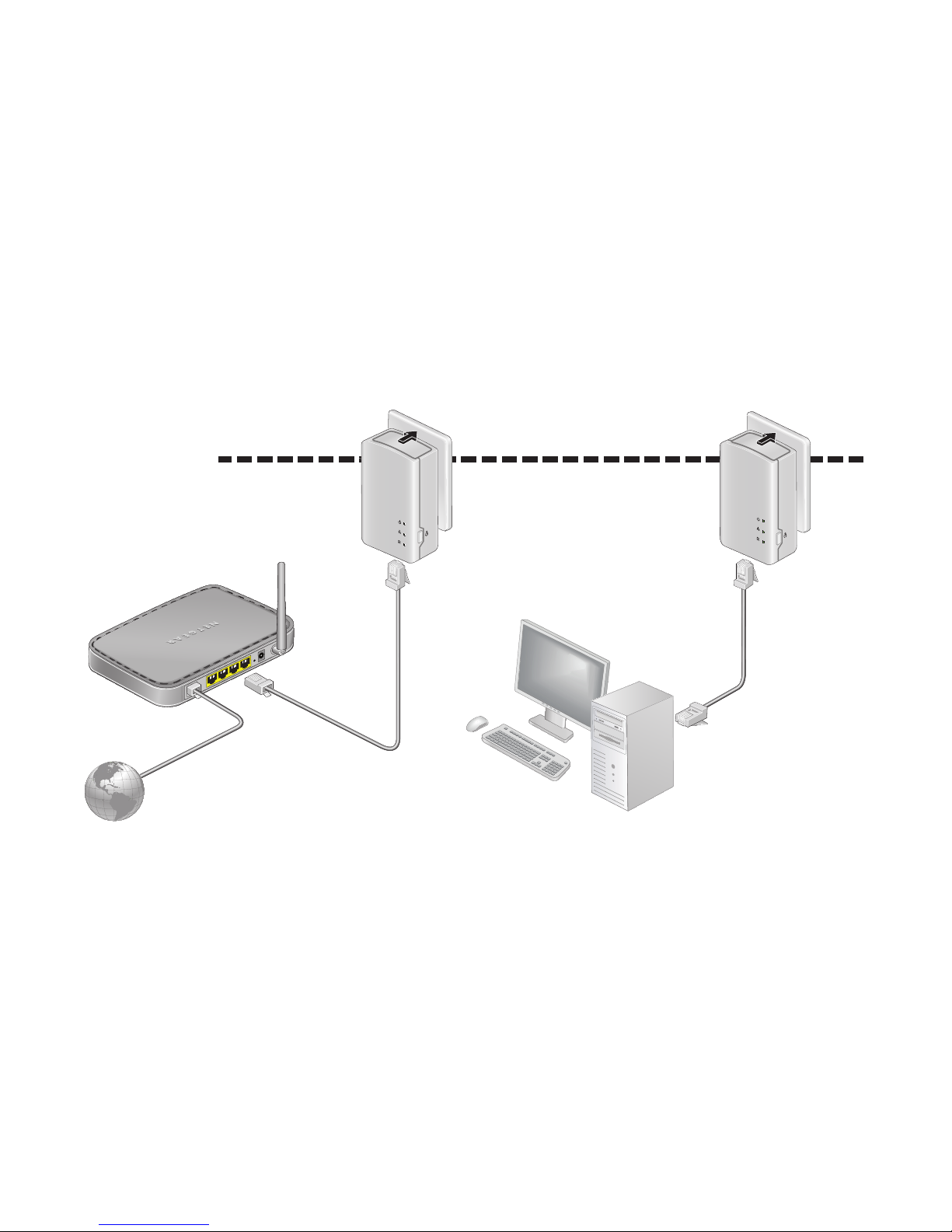

Room 1 Room 2

Do More

Aer your Powerline network is installed and running, you can expand your

network, customize the network settings, and customize security.

Add Adapters

To add adapters before you conﬁgure the security feature, just plug them

in and connect the adapters to your equipment.

¾To add an adapter to a Powerline network with security

set:

1. Plug the adapter into a wall outlet where you want to add Internet

access.

2. If you used a private encryption key, press the Security button on

one of the adapters that is already a part of the network for two

seconds, and then press the Security button on the new adapter for

two seconds.

Both buttons must be pressed within two minutes.

Note: The Security button does not work in power saving mode.

Do not press the Security button on the Powerline adapter until

installation is complete and the adapters are communicating with each

other (indicated by the blinking Power LED). Pressing this button too

soon can temporarily disable Powerline communication. If this occurs, use

the Factory Reset button to return the Powerline adapter to its factory

default settings.

Customize Your Network Security

When you ﬁrst set up your network, the setup uses a default encryption

key common to all Homeplug AV-certiﬁed adapters. You can change this.

¾To create a private secure network:

1. Wait until the Pick A Plug LEDs are lit.

2. Press the Security button for two seconds on one adapter, and then

press the Security button on one of the other adapters for two

seconds. Both buttons must be pressed within two minutes.

Note: The Security button does not work in power saving mode (see

Troubleshooting Tips on page 10).

Warning: Do not press the

Security

button on the Powerline adapter

until installation is complete and the adapters are communicating with

each other (indicated by the Power LED). Pressing this button too soon

can temporarily disable Powerline communication. If this occurs, use the

Factory Reset button to return the Powerline adapter to its factory

default settings.

If you add adapters later, use this procedure to add the new adapters to

your secure network.

Troubleshooting Tips

Power LED is o. Make sure that power is supplied to the electrical

outlet, and that the Powerline devices are not plugged

into an extension cord, power strip, or surge protector.

Power LED is amber. Power saving mode occurs when the Ethernet LED is

o. This can occur in the following circumstances:

• The Ethernet cable is unplugged.

• The device that is connected through the Ethernet

cable is turned o.

• The adapter is idle for 10 minutes.

It returns to normal mode within two seconds

aer the Ethernet link is established.

Pick A Plug LED is o. • If you already set network security, make sure

that all Powerline devices are using the same

encryption key; for information see the online user

manual.

• Press the Factory Reset button on each device

for one second to return the Powerline adapter to

its factory default settings.
