Ness Navigator Guide de démarrage rapide

Touch Screen Keypad

InstallatIon notes

Alarm Control Panels

Compatible with

RECEIVERLISTEN SERIAL READER

PROG

TAMP

BATTERY

RED +

TELEPHONE

HEATSINK

AUX1

AUX2

AUX3

AUX4

+12V

TAMP

+12V

CLK

DAT

COM

KEYPAD

RESET

STR

SIREN

17V

EARTH

BLACK

BOX TAMPER

SWITCH

N.C. Contacts

(WHITE)

J1 LINK

&BOX TAMPER PROGRAM LINK

= Sealed, normal state

=Tamper alarm state

Power up with link off to enter

installer program mode

BATTERY LEADS

(supplied)

“HEARTBEAT” LED

Constantly flashes

D8X MAIN BOARD

LISTEN PINS

Diagnostics. Connect an

8 Ohm horn speaker to

listen to dialler tones.

BATTERY CONNECTION

For 12V 7Ah backup

battery (BAT210)

RECEIVER

Header for

connecting

optional Radio

Interface.

AUX

Aux outputs

1-4.

SERIAL

Connection for

direct up/download

using NessComms

software

READER

Connection for

up to3Ness

Weigand readers

D8x / D16x V7

Main Board

Blue

White

Black

Red

DAT

CLK

COM

+12V

Wiring

Navigator Keypad REAR

3 pin header.

FACTORY USE ONLY

4 pin header.

NAVIGATOR WIRE

LOOM

Crimp connectors

(Supplied)

Installation

To open the Navigator Touch

Screen keypad, release the

four locking slots with a small

screwdriver.

Install the back housing on a

flat surface using the two slotted

mounting holes provided.

The alignment arrow indicates

the correct way up.

Navigator Touch Screen Keypad should be wired to the control panel using

minimum 7/020 security cable.

Up to four Navigator keypads

can be connected per control

panel as long as the maximum

current draw for all detectors

and keypads is below 500mA.

Maximum allowable cable

distance is 100m including

cable to all keypads.

Wire additional keypads in

“star” configuration to the

control panel.

This way

Navigator Keypad back housing.

Cable entry

Mounting holes x 2

Locking slots x 4

Applying the Protective Film

Navigator Touch Screen Keypad is supplied with a self-adhesive screen

protector to help protect the sensitive touch surface from marks and

scratches which may appear under normal use. We highly recommend

you apply the film to keep your touch screen looking brand new for years

to come.

Please peel off this

mask BEFORE application

STEP 1.

Use the Number tab to peel off the

self-adhesive backing.

STEP 2.

Flip the film over to position the No. 2

tab at the top left.

STEP 3.

Holding the protective film by

the No. 2 tab, carefully apply

the film to the Navigator’s

screen. Start applying at one

end and smooth the film as

you go to remove any air

bubbles

STEP 4.

Use the No. 2 tab to peel off

and discard the topmost layer

of the film.

Your Navigator is now ready

for use.

Please peel off this mask

AFTER application completed

Please peel off this mask

AFTER application completed

DIMENSIONS 108w x 86h x 15d mm.

DISPLAY TYPE 3.5" Colour LCD

DISPLAY RESOLUTION 320 x 240

TOUCH SCREEN Touch sensitive surface

COMPATIBILITY D8x & D16x control panels version 7 and later

MAX. KEYPADS 4 x Navigator Touch Keypads per panel

Maximum current draw for all detectors and keypads should

not exceed 500mA.

OPERATING VOLTAGE 12VDC supplied by the control panel

CURRENT DRAW 25mA with 50% backlighting

50mA with 100% backlighting

DATA 2 wire proprietary Ness data bus

Specifications

NAVIGATOR TOUCH SCREEN KEYPAD

INSTALLATION NOTES

Rev 2, Apr13

Document Part Number: 890-411

Compatibility

Navigator Touch Screen keypad

is compatible with Ness D8x and

D16x Version 7 and later control

panels.

The keypad will display a

warning if connected to

earlier panel versions.

www.nesscorporation.com

National Customer Service Centre

Ph: 1300 551 991

[email protected]

Autres manuels pour Navigator

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ness Clavier

Ness

Ness D16x Deluxe Manuel utilisateur

Ness

Ness 106-015 Mode d’emploi

Ness

Ness Navigator Manuel utilisateur

Ness

Ness Navigator D8XCEL4G Manuel utilisateur

Ness

Ness D16 Manuel utilisateur

Ness

Ness D8x Deluxe Manuel utilisateur

Ness

Ness M1 Navigator Manuel utilisateur

Ness

Ness D16XCEL Manuel utilisateur

Ness

Ness D8x Deluxe Manuel utilisateur

Ness

Ness 106-108-WHT Saturn Keypad White Mode d’emploi

Ness

Ness UltraProx S2B Manuel utilisateur

Ness

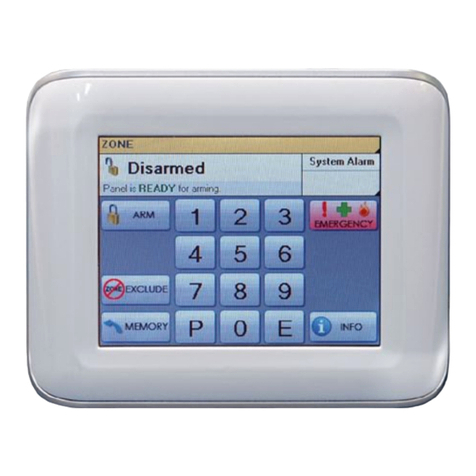

Ness D8X Manuel utilisateur
