Chapter 1 - Introduction
The ePC Series products are high performance color TFT embedded ultra-thin industrial
computers specifically designed for harsh industrial environments including Class I & II, Division 2
Hazardous Locations.

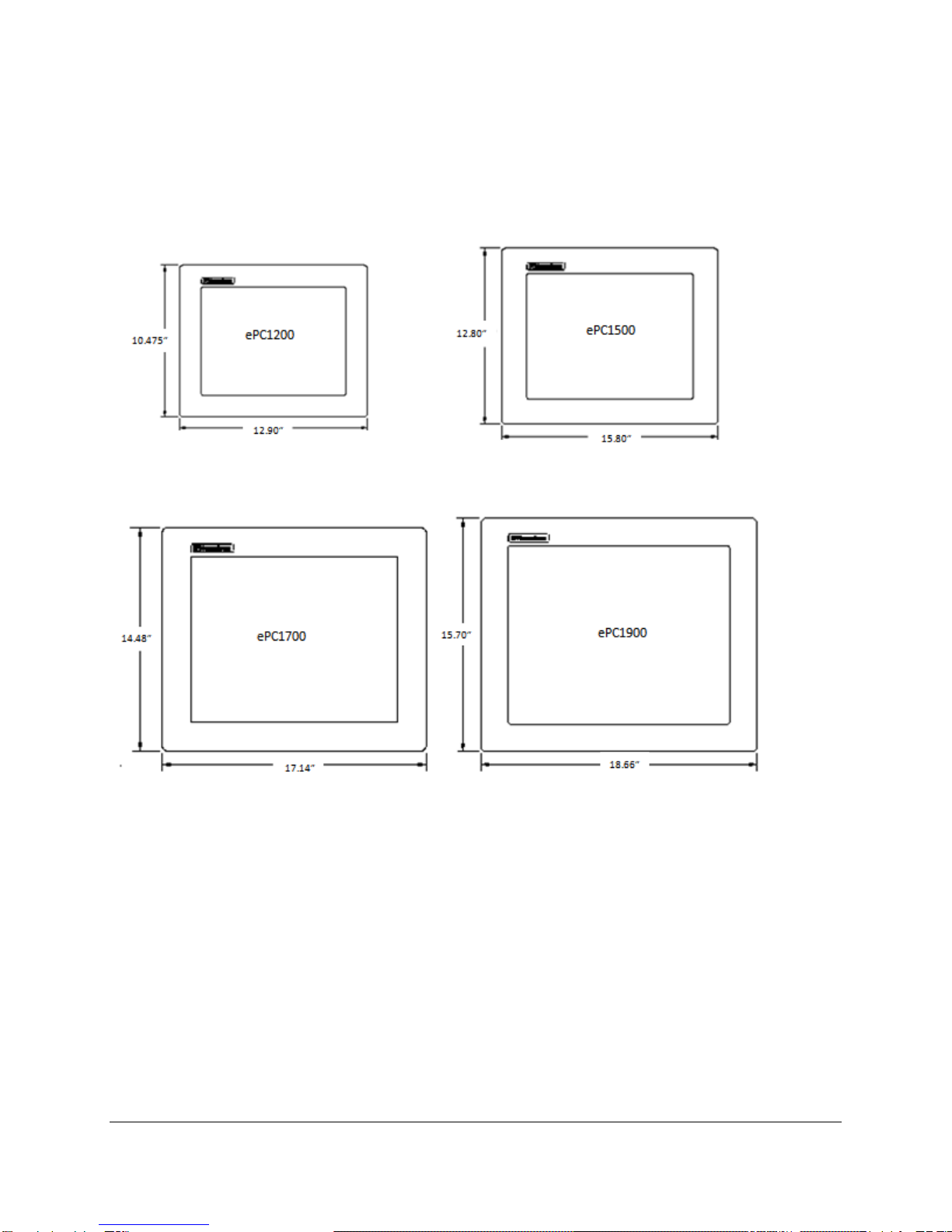

The ePC Series offers four versions with 12.1” SVGA (800 x 600), 15” XGA (1024 x 768), 17”
SXGA (1280 x 1024), or 19” SXGA (1280 x 1024) TFT Color LCD panels. A stand alone “node” version
without an integrated display is also available (nPC100). These high-performance embedded industrial
PCs offer processor options up to a state of the art Intel Core Duo Processor and DRAM options up to 2
GB. A fanless version is also available. With a multitude of I/O included on the standard unit many
automation applications are ideally suited for use with this series. The Ultra-Thin panel depth (2.7” to
3.42”) also makes this series ideal for space constrained applications. With Class I and II Division 2
approvals this industrial PC makes installation in Hazardous Locations applications simple.
Features
•Processor Options up to Intel Core Duo 2.0 GHz options
oFanless Intel ATOM N270 (1.6 GHz, 512K cache, 533 MHz bus)
oIntel Celeron M 440 (1.86 GHz, 1M cache, 533 MHz bus)
oIntel Core Duo T2500 (2.0 GHz, 2M cache, 667 MHz bus)
•DRAM Options up to 2 GB
•160 GB (minimum) easily removable SATA hard drive
oSolid State SATA hard drive upgrade options
•Numerous I/O Ports
oTwo Gigabit Ethernet ports
o4 USB 2.0 ports
o2 RS-232 serial port
o1 RS-422/485 Serial port
oPS/2 mouse and keyboard port (requires splitter)
oType I/II CompactFlash Socket with ejector
oAnalog VGA port for dual screen applications
•UL 508 and UL 1604 listed for Hazardous Locations: Class I, Division 2, Groups A, B, C, D and
Class II, Division 2, Groups F and G, Class III when installed in a NEMA Type 1/4/4x/12
enclosure (does not include the optional enclosed (-EN) units)
•NEMA 4/4X/12 front bezel (panel mount versions only)
•Optional Vented back enclosure (-EN option)
oePC1500 and ePC1900 only.
•2-Year warranty
•RoHS compliant
•European CE mark compliant
•Integral 100 -240 VAC power supply
•Simplified installation with no studs
•Ultra-Thin design – less than 3.25” behind front panel
•VESA compliant – all modes up to SXGA, 75Hz (SVGA on 12” and XGA on 15” unit)
•Optional 5-wire resistive touch screen
•Optional 304 stainless steel front bezel
•Optional ePC1900 Rack Mount front bezel (not NEMA sealed)
•Optional 24 VDC input power
•Windows XP Professional (Windows 7 and Windows Vista Business are optional)
