NEC GT1150 Series Guide d'installation et d'utilisation

Visual Systems

Rev 3.0

GT1150/2150 Installation Data

Desktop and Ceiling Mount

Definitions: H = Horizontal Screen Width (4:3)

Page 1

Contents

Product Description, Lens Specs, Notes and Formulas Page 1

Projection Distances and Screen Sizes

Ceiling Mount Installation Page 2

DesktopSetup Page 3

Lens Shift Adjustable Range Page 4

Cabinet Dimensions

Top, Front and Right Side Page 5

Bottom, Back and Left Side Page 6

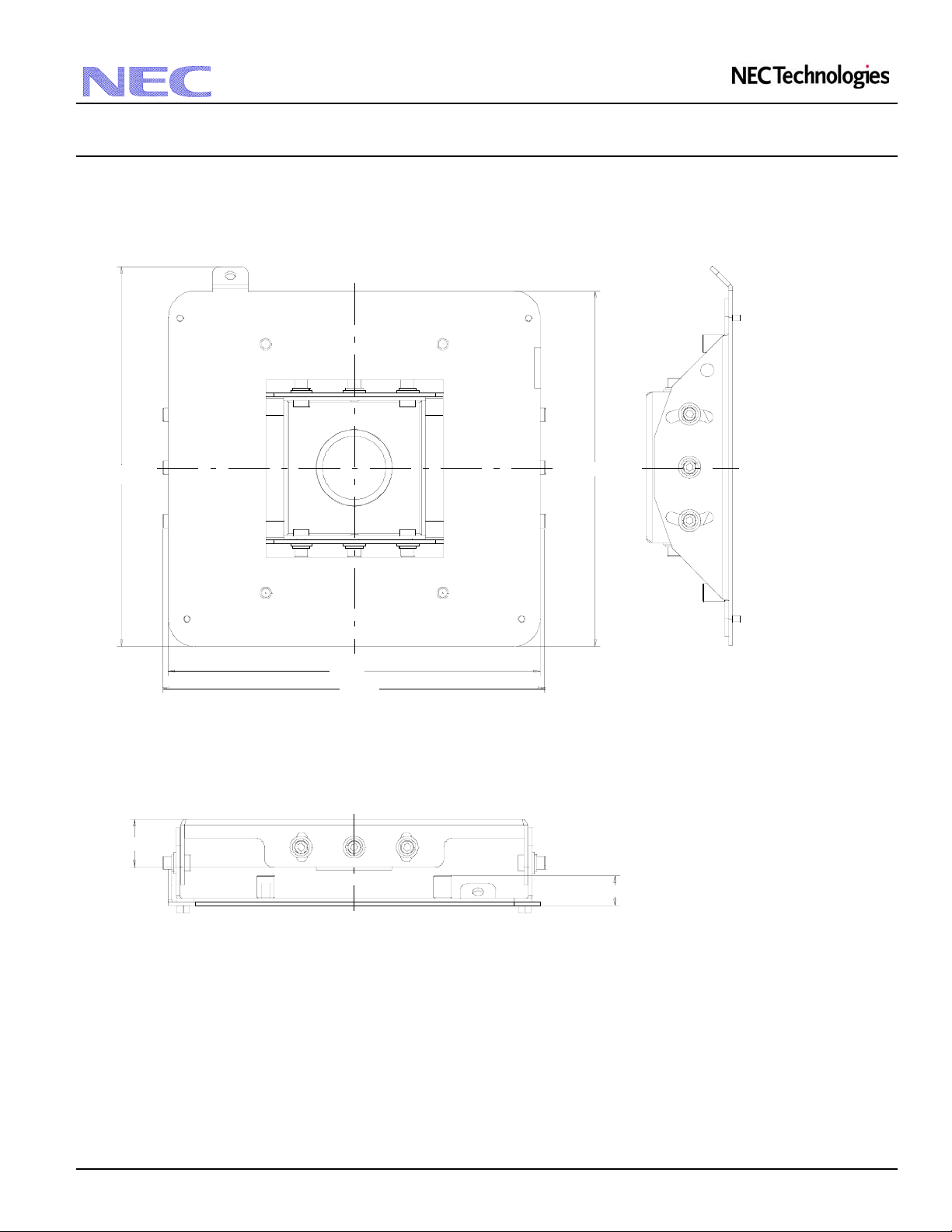

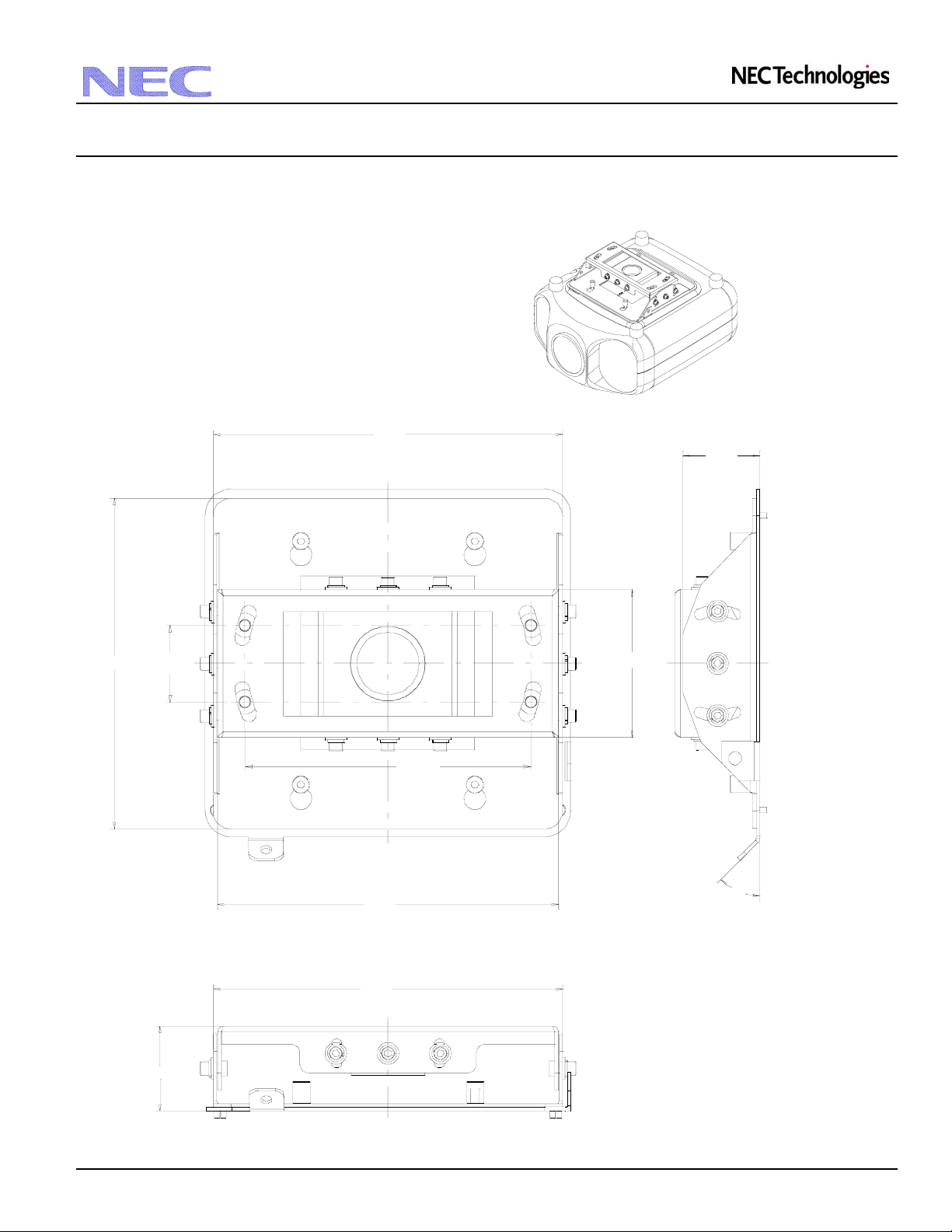

Ceiling Mount Dimensions

Top, Front and Left Side Page 7

Bottom, Back and Right Side Page 8

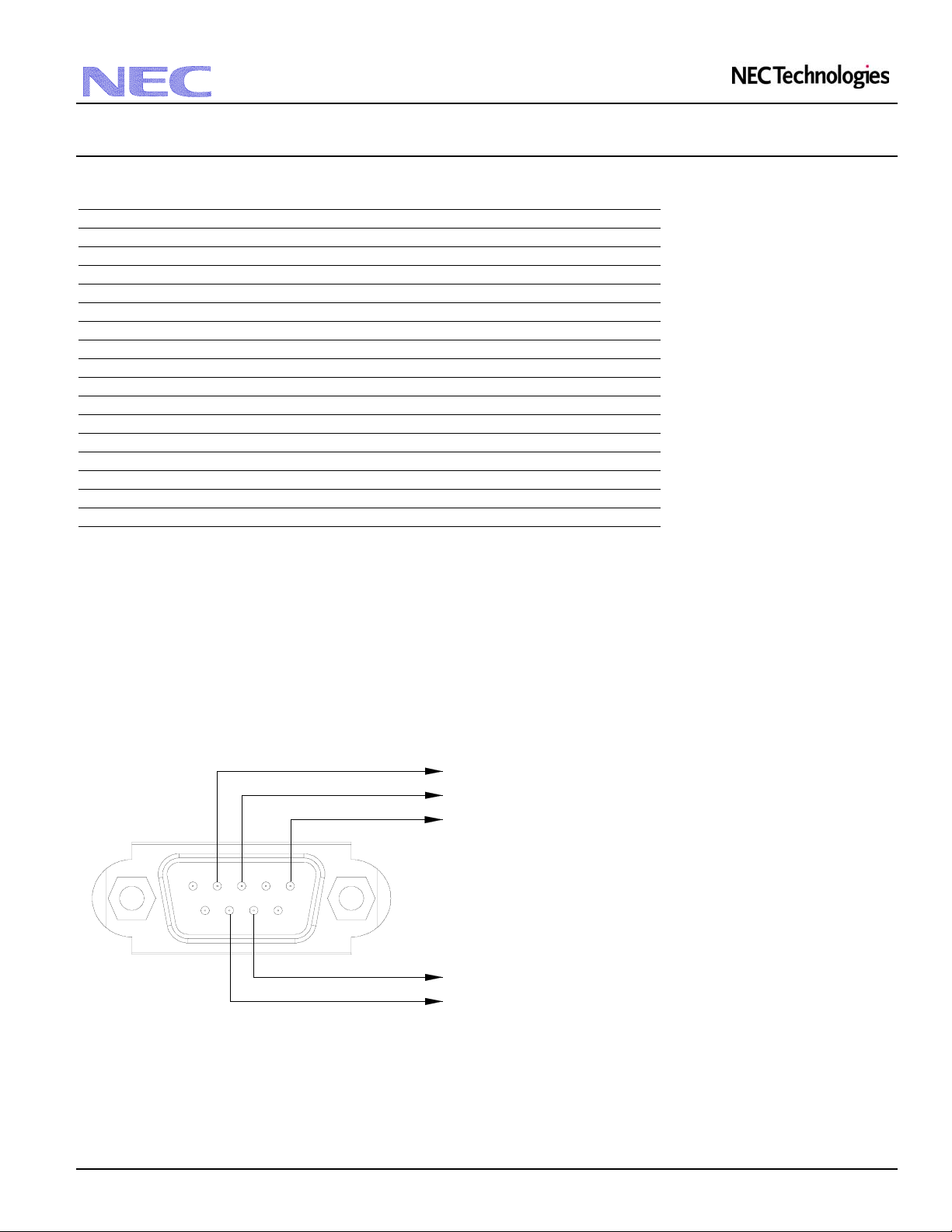

PC Control Codes Page 9

Product Description

Type: 3 panel, 1.3” p-Si TFT w/MLA LCD projector Dimensions: 16.5”(W) x 8.25”(H) x 19.45”(D)

Native Resolution: GT1150: 1024 x 768 Weight: GT1150: 22.1 lbs w/o lens

GT2150: 1366 x 1024 GT2150: 28.3 lbs w/o lens

Brightness: GT1150: 3000 ANSI Lumens Power Lens Shift/Power Zoom/Power Focus

GT2150: 2500 ANSI Lumens

Lens Specifications

GT10RL Throw Ratio: 1.0:1(approx.) Focal Length: 27mm

Screen Sizes: 40”-300” F/#: 2.3

GT13ZL Throw Ratio: 1.3 - 1.6:1(approx.) Focal Length: 34.5 - 42.5mm

Screen Sizes: 40” - 300” F/#: 2.3 - 2.8

GT19ZL Throw Ratio: 1.8 - 2.4:1(approx.) Focal Length: 48.9 - 63.7mm

Screen Sizes: 40” - 300” F/#: 2.0 - 2.5

GT24ZL Throw Ratio: 2.4 - 3.4:1(approx.) Focal Length: 64.0 – 92.8mm

Screen Sizes: 60” - 400” F/#: 2.5 - 3.2

GT34ZL Throw Ratio: 3.4 - 5.2:1(approx.) Focal Length: 92.4 - 140.6mm

Screen Sizes: 80” - 500” F/#: 2.5 - 3.4

Notes

 For screen sizes not indicated on the projection tables, use the formulas below.

 If the figures on the tables do not match the results of formulas, use the figures in the table.

 The ceiling must be strong enough to support the LCD projector and the installation must be in accordance with any local

building codes.

• All calculations are based on 4:3 aspect ratio.

• Distances are in inches, for millimeters multiply by 25.4.

• Distances may vary ±5%.

Formulas

Units: Inches (for millimeters multiply final number by 25.4)

V= Vertical Screen Height (4:3)

C= Throw Distance

Projection Formulas: ScreenFormulas:

GT10RL: C = 1.027H – 2.468 H= Screen Diagonal x 4/5

GT13ZL: C(Wide) = 1.3099H – 2.325 ------- C(Tele) = 1.6111H – 2.325 V= Screen Diagonal x 3/5

GT19ZL: C(Wide) = 1.8639H – 3.228 ------- C(Tele) = 2.4231H – 3.228 Screen Diagonal = H x 5/4

GT24ZL: C(Wide) = 2.4282H – 4.799 ------- C(Tele) = 3.5209H – 4.799

GT34ZL: C(Wide) = 3.5523H – 6.786 ------- C(Tele) = 5.3284H – 6.786

Visual Systems

GT1150/2150 Installation Data

Desktop and Ceiling Mount Rev 3.0

Page 2

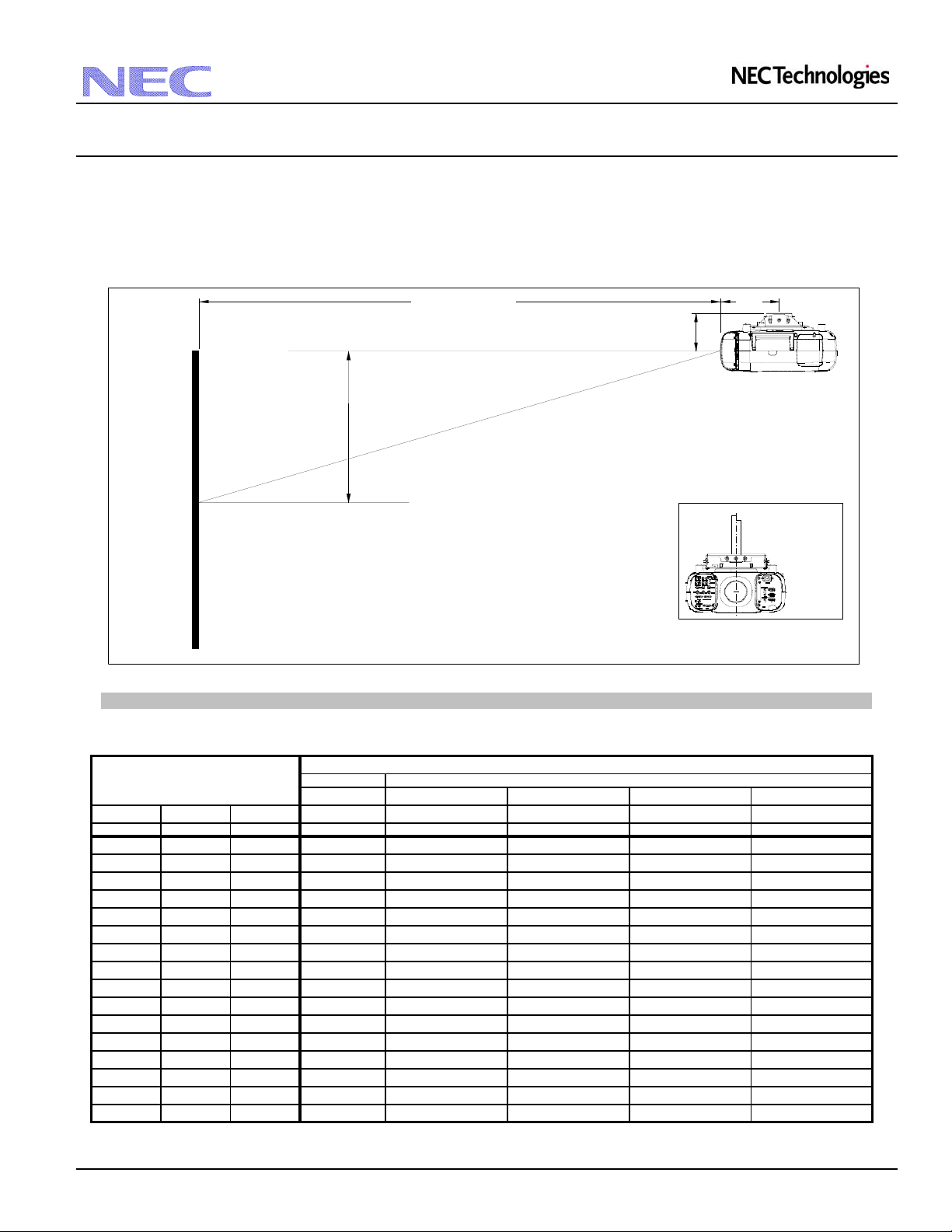

Projection Distance and Screen Size for Ceiling Mount

The following shows the proper relative position of the projector and screen. Refer to the table for installation data.

Distances are in inches. For millimeters multiply by 25.4.

Ceiling Mount Installation

Vertical Offset

Screen Ctr

Throw Distance

6.6"

9.7"

Lens Centered

with Mount

Note: Lens shift is not available on GT10RL(rear lens). GT10RL should be used only for “zero degree/no-offset” applications.

Distance Chart

rear lens

GT10RL

Diagonal Width(H) Height (V) 1.0:1

inches inches inches inches

40 32 24 30.4 39.6 - 49.2 56.4 - 74.3

60 48 36 46.8 60.6 - 75.0 86.2 - 113.1 111.8 - 164.2

67 53.6 40.2 52.6 67.9 - 84.0 96.7 - 126.7 125.4 - 183.9

72 57.6 43.2 56.7 73.1 - 90.5 104.1 - 136.3 135.1 - 198.0

84 67.2 50.4 66.6 85.7 - 105.9 122.0 - 159.6 158.4 - 231.8 231.9 - 351.3

90 72 54 71.5 92.0 - 113.7 131.0 - 171.2 170.0 - 248.7 249.0 - 376.9

100 80 60 79.7 102.5 - 126.6 145.9 - 190.6 189.5 - 276.9 277.4 - 419.5

120 96 72 96.1 123.4 - 152.3 175.7 - 229.4 228.3 - 333.2 334.2 - 504.7

150 120 90 120.8 154.9 - 191.0 220.4 - 287.5 286.6 - 417.7 419.5 - 632.6

180 144 108 145.4 186.3 - 229.7 265.2 - 345.7 344.9 - 502.2 504.7 - 760.5

210 168 126 170.1 217.7 - 268.3 309.9 - 403.9 403.1 - 586.7 590.0 - 888.4

240 192 144 194.7 249.2 - 307.0 354.6 - 462.0 461.4 - 671.2 675.3 - 1016.3

270 216 162 219.4 280.6 - 345.7 399.4 - 520.2 519.7 - 755.7 760.5 - 1144.1

300 240 180 244.0 312.1 - 384.3 444.1 - 578.3 578.0 - 840.2 845.8 - 1272.0

400 320 240 NA 772.2 - 1121.9 1130.0 - 1698.3

500 400 300 NA 1414.1 - 2124.6

Screen Size (4:3)

Throw Distance

zoom lenses

3.4 - 5.2:1

GT13ZL GT19ZL

GT24ZL GT34ZL

2.4 - 3.4:1

inches inches

1.3 - 1.6:1 1.8 - 2.4:1

inchesinches

NA NA

NANA

Note: For screen sizes not indicated on the projection tables, use the formulas on page 1.

Visual Systems

GT1150/2150 Installation Data

Desktop and Ceiling Mount Rev 3.0

Page 3

Projection Distance and Screen Size for Desktop

The following diagram shows the relationship between projector position and the screen.

Distances are in inches. For millimeters multiply by 25.4.

Desktop Setup

Throw Distance

Screen Ctr

4.65"
