X551UHD Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com X551UHD Page 1 of 9

Contents:

Product Description and Notes Page 1

Tilt Angle and Rotation Page 1

Ventilation Recommendations Page 2

Display Dimensions

Front, Top, Right Side, Left Side Page 3

Rear & Bottom Page 4

Display Dimensions with stand Page 5

Optional Stand dimensions Page 5

Optional Speaker Dimensions (SP-TF1) Page 6

Optional Speaker Dimensions (SP-RM1) Page 7

Input Panel Page 8

Control Codes Page 8

Cable Connection Page 9

Browser Control Page 9

Product Description:

Type: LCD Display

Resolution: 3840 x 2160 Dimensions without stand: 49.2” (W) x 28.4” (L) x 3.1” (D)

Aspect Ratio: 16:9 Dimensions with stand: 49.2”(W) x 29.9”(H) x 15.7”(D)

FCC: Class B Weight without stand: 63.3 lbs

Power Consumption: 190W (max with no speaker/OPS slot) Weight with stand: 68.1 lbs

BTU’s: 1706.07 BTU/hour

NOTES:

This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not

intended to be a step-by step procedure for installation.

Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally

to fill the screen using the menus (see “Aspect Modes” in menus and user manual).

Distances are in inches, for millimeters multiply by 25.4.

Distances may vary ±5%.

TiltAngleandRotation:

Below is the maximum angle the monitor can be tilted. Note that the monitor can only be tilted in the landscape position.

Face Up/Face Down

Brightness Setting must not exceed 70

NEC Display Solutions of America, Inc.

X551UHD Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com X551UHD Page 2 of 9

VentilationRecommendations:

Dimensions below are minimum required for proper ventilation.

NOTE:

The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be

covered, other means of ventilation will need to be incorporated into the design. Contact NEC for design review and

recommendations.

10cm (4in.)

10cm (4in.) 10cm (4in.)

10cm (4in.)

10cm

(4in.)

NEC Display Solutions of America, Inc.

X551UHD Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com X551UHD Page 3 of 9

Display Dimensions:

NEC Display Solutions of America, Inc.

X551UHD Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com X551UHD Page 4 of 9

Display Dimensions (cont.):

NEC Display Solutions of America, Inc.

X551UHD Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com X551UHD Page 5 of 9

Table Top Stand Dimensions (ST-5220):

NEC Display Solutions of America, Inc.

X551UHD Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com X551UHD Page 6 of 9

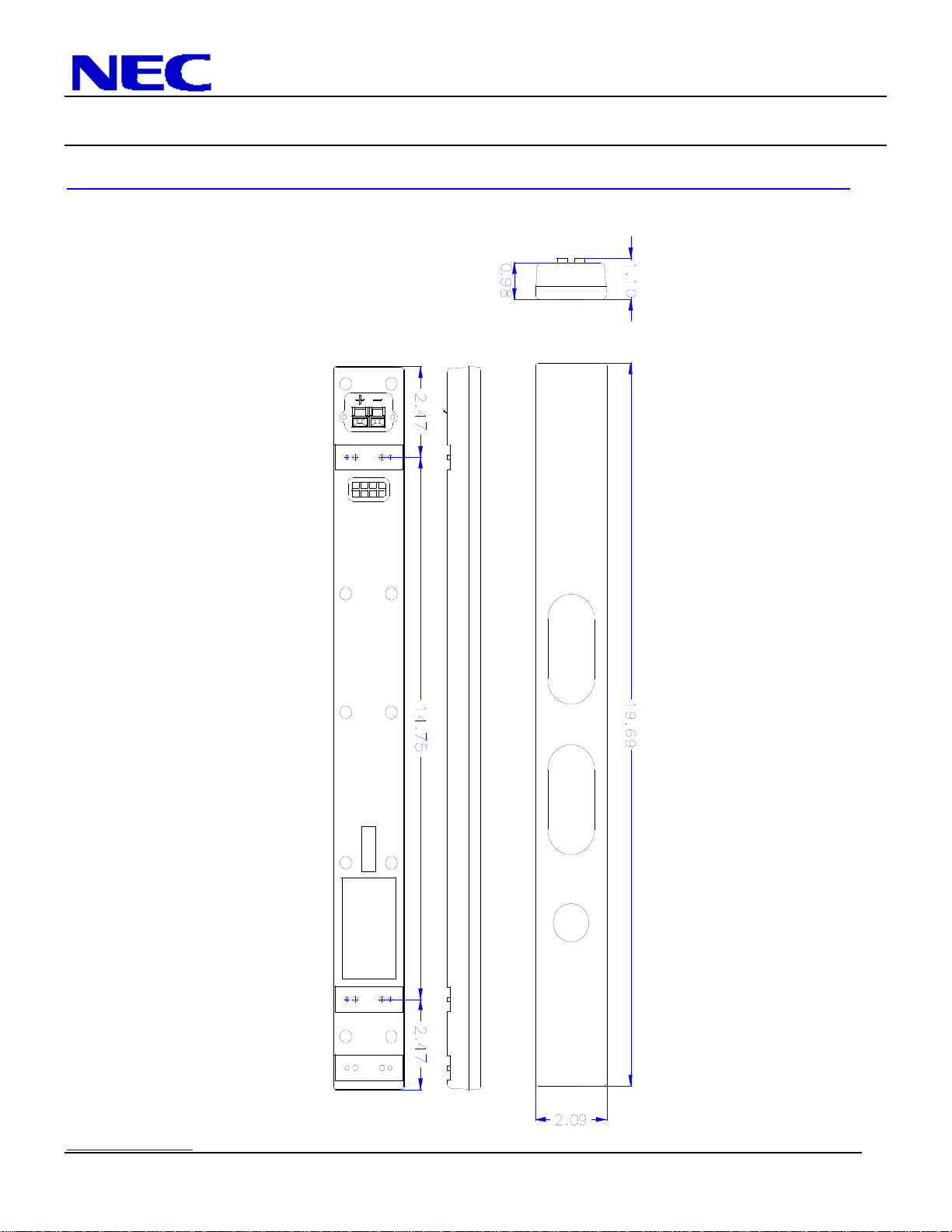

Optional Speaker Dimensions (SP-TF1)

NEC Display Solutions of America, Inc.

X551UHD Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com X551UHD Page 7 of 9

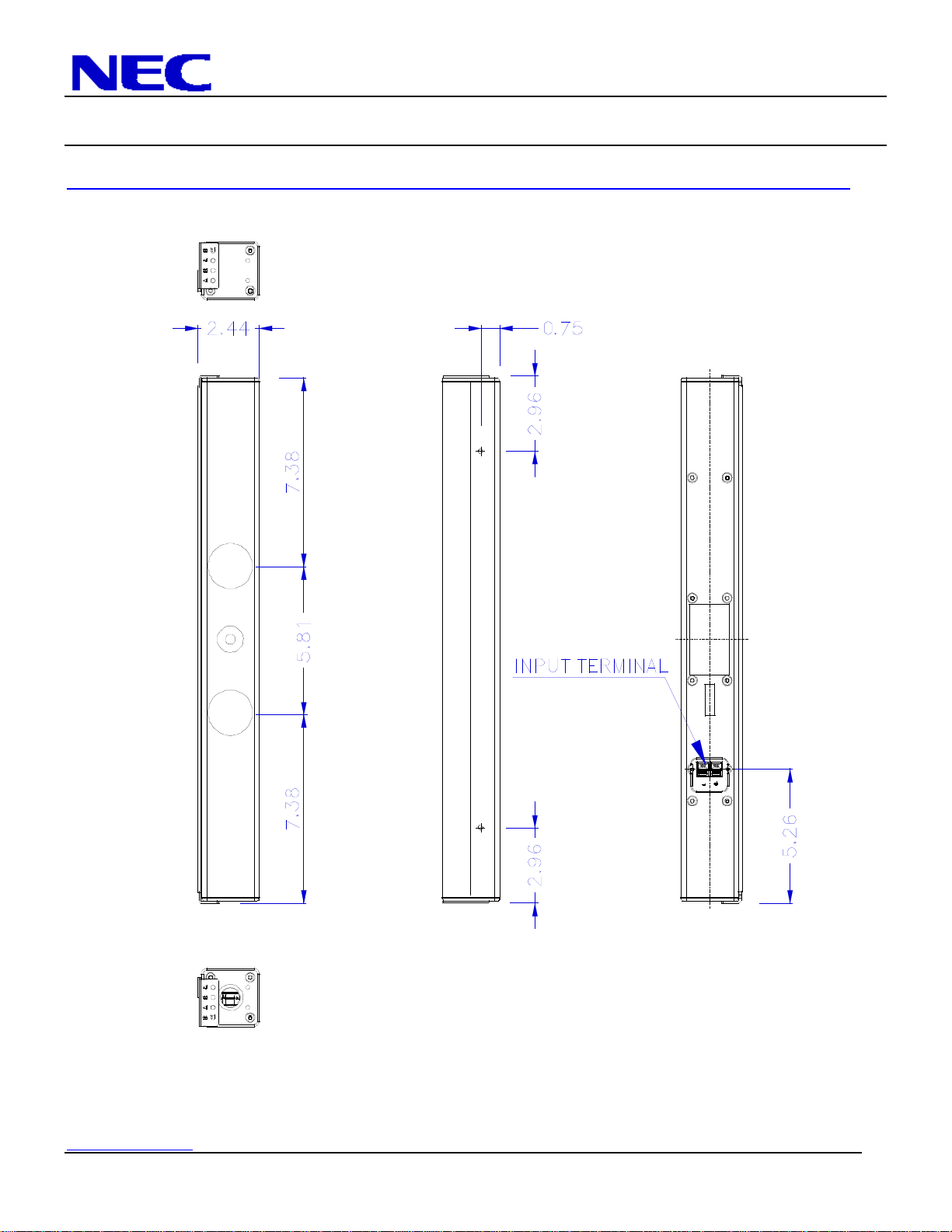

Optional Speaker Dimensions including holder (SP-RM1):

NEC Display Solutions of America, Inc.

X551UHD Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com X551UHD Page 8 of 9

InputPanel:

Bottom

Side (Rotated)

ControlCodes:

NOTE: Contact your NEC representative for codes not listed.

NEC Display Solutions of America, Inc.

X551UHD Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com X551UHD Page 9 of 9

CableConnection

Communication Protocol:

Interface: RS-232C

Communication System: Asynchronous

Baud Rate: 9600 bps

Data Length: 8 bits

Parity: None

Stop Bit 1 bit

Communication Code: ASCII

Interface: Ethernet (CSMA/CD

Communication System: TCP/IP (Internet Protocol Suite)

Communication Layer: Transport layer (TCP)

IP Address: 192.168.0.10 (default out of box)

Port Number: 7142 (Fixed)

Browser Control

Information and control can also be available through the HTTP browser control menu.

In order to accomplish this, type: http://<the Monitor’s IP address>/pd_index.html

Note that the LAN Power needs to be turned on in order for the display to be controlled while the units are off.

All displays are set to the IP address 192.168.0.10 out of the box

Communicating network PC needs to be on the same subnet as display that is being communicated with

Note: Above browser control states X841UHD but is consistent with the X551UHD.

Transmit Data+

Transmit Data-

Receive Data+

Receive Data-

Not Used
