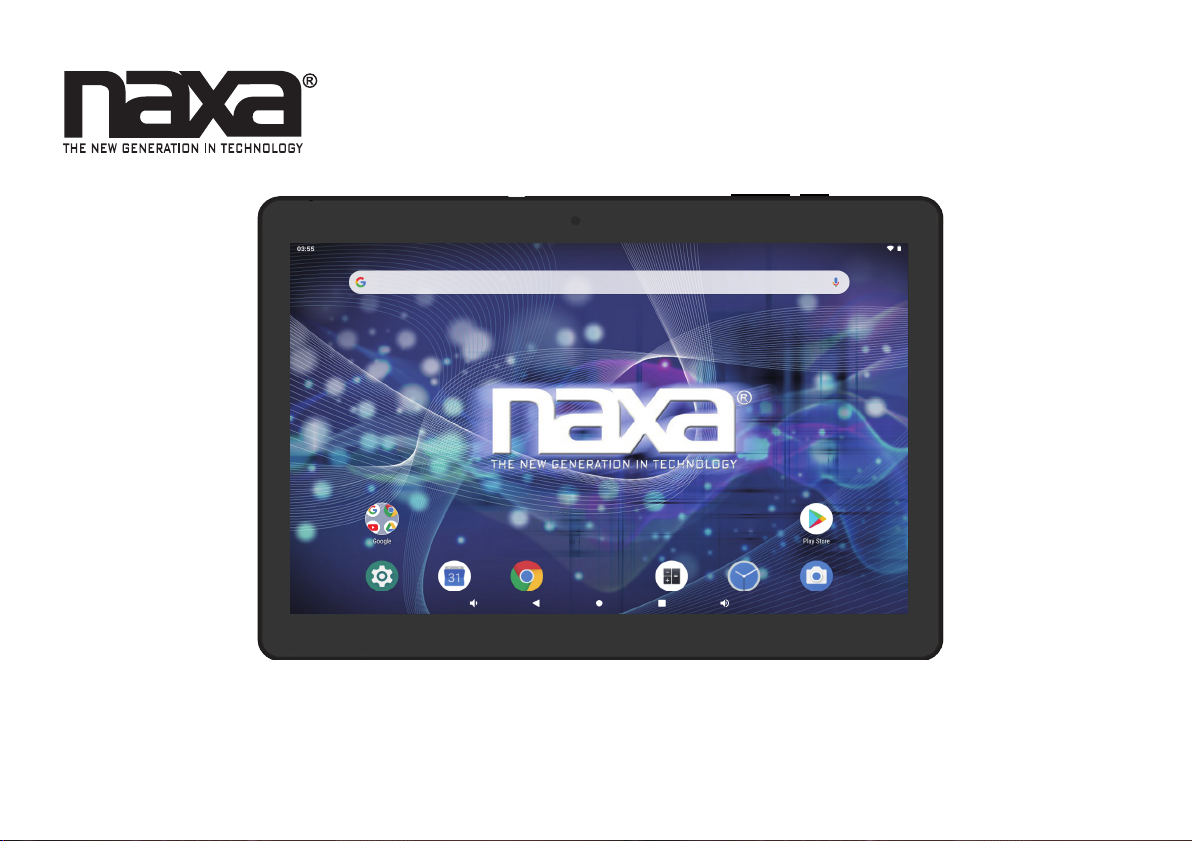

Naxa NID-1051 Manuel utilisateur
10.1" Core™ Tablet with Android™ OS 9.0
& GMS Certication
NID-1051
Instruction Manual
Please read carefully before use and keep for future reference.
Page 2 Naxa Electronics
Thank You
We know you have many choices when it comes to
technology; thank you for choosing us here at Naxa
Electronics. Established in 2001 in Los Angeles, Califor-
nia, we are dedicated to delivering products that en-
tertain and delight.
We trust that you will be happy with your purchase.
Please read this manual carefully and save it for refer
ence. You may also find the latest FAQ, documentation,
-
and other product material at our website. Come visit
us on the web at www.naxa.com and see all that we
have to offer!
In the Box
Please take a moment to make sure that you have ev-
erything in the list below. Although we make every ef-
fort to ensure that each Naxa device is securely packed
and sealed, we know a lot can happen in between us and
you. If anything is missing, check back with your local
retailer to get immediate assistance. If they cannot help
you, please contact our Naxa Support team at www.
naxa.com/naxa_support.
•NID-1051 tablet
•Power Adapter
•USB cable
•User’s manual
•Warranty Card
•Case & BTKeyboard(see the image below)
•DJStyle Headphone(see the image below)
www.naxa.com Page 3
Before You Start
Please take note of the following before you start.
1) Do not drop the unit. Avoid forceful shaking of the
display to prevent damage or unusual operation.
2) Do not touch the unit with metal or sharp
objects to avoid short circuit or damage.
3) Schedule regular backup of your data to prevent
the loss of important data. Always backup your
data before upgrading the firmware.
4) Do not disassemble. Do not wipe the surface of the
unit with alcohol, thinner or benzene.
5) Do not disconnect the tablet while it is formatting
or uploading/downloading. Doing so may corrupt
your data.
6) Do not allow water or foreign objects to enter the
tablet.
7) Do not use the tablet in places that are extremely
hot, cold, dusty, or humid.
8) Please charge your tablet when the Low Battery
icon is displayed, system turns off automatically,
or keys are not responsive.
9) It is normal for the tablet to become slightly warm
during the charging process.
10) The USB port is for transferring data only. The port
is not used to charge any devices.
11) Specifications are subject to change without
prior notice.
Page 4 Naxa Electronics
At a Glance
1 Front camera
2 LCD touchscreen
3Power button
4Reset
1050
Mad e In Chin a
FCC ID:2AKAIMID10X
8
www.naxa.com Page 5
5Headphone Jack
6
7Volume+/-
8
Micro USB Port
9Memory Card Slot
Rear Camera
9
6
Page 6 Naxa Electronics
Basic Operation
To ensure the longevity of your battery, please charge
your tablet for 10 hours upon initial charge. Afterwards,
charge the device accordingly as needed. Connect the
DC adapter that is supplied with your device and plug
it into an AC outlet that supports 100-240V ~50/60 Hz Powering On
Charging your device
Saving Battery Life
Please review the following several key points on
extending the battery life of your tablet.
1. When device is not in use, press the power button
once to go into sleep mode.
2. Shut down applications when not in use.
3. Turn off WLAN when not in use.
4. Disable application sync.
5. Set a shorter time for display backlight.
6. Reduce brightness on the display.
Press and hold the Power Button for 2-3 seconds
to turn on the unit.
Sleep Mode
After the device is on, press the power button once
and it will go into sleep mode. The screen is now on
standby and under low battery consumption. To wake
up the device, simply press the power button again.
Power Off
To power off the device, press and hold the power
button for 2-3 seconds until the screen displays
“Power Off”, then select “OK” to power off the unit
completely.
www.naxa.com Page 7
If the device is locking up, use a small pin to press
Reset, as it will force shut down and restart the device.
Reset / Force Shutdown Touch Panel
Click – Use finger or capacity panel pen to touch once,
to select or activate function, select menu, or
turn on applications.
Tap and hold – Tap and hold for 2 seconds, a pop up
menu with options will display.
RE S ET
Page 8 Naxa Electronics
Slide – Slide up, down, left or right for fast scrolling,
browsing page and display screen.
Drag – drag an icon to relocate the position.
Double Click – Double click to enlarge or shrink the
display size of the picture or while browsing a website.
Shut – Use two fingers at same time on touch panel,
to enlarge or to shrink the display scale.
www.naxa.com Page 9
Home Screen
①Google search
②Tap to turn on voice search, it will search
according to voice input ( Make sure WI-FI is on)
③List of current running applications
④Back to Home screen
⑤Back to previous screen
⑥Display of icons and device status, tap to
turn on notification screen
①
③
④
⑤
⑥
②
TM
Page 10 Naxa Electronics
To place an app icon shortcut on another
home screen, drag it to the edge of the
screen and wait for a new home screen to
appear. (If the current home screen is empty,
the tablet will not create a new home screen).
Changing the Wallpaper
1. Press the home screen for about 2 seconds, it will
pop-up the wallpaper selection.
2. Select from the preloaded wallpapers or a picture
as your desired wallpaper.
3. Click “set wallpaper” to confirm.
Adding a Shortcut on a Home
Screen
1. On the application page, tag an application icon.
2. Tap and hold an app icon, then drag it to a home
screen to create a shortcut that is easily accessible.
Adding Widgets to the
Home Screen
Some apps have Widgets that can be placed on a Home
screen. Widgets are like windows into your apps; they
allow you to use some features of the app quickly from
the Home screen.
To add a widget:
1) Tap & hold on an empty part of a Home screen,
then tap WIDGETS.
2) Swipe left/right to browse the available widgets.
Tap and hold a widget to pick it up, then drag it to
an empty space on a Home screen.
If you have dragged the widget to a Home
screen that doesn’t have room for it, the
widget will not be added.
Some widgets will prompt you to make
additional choices before it is added to the
Home screen.
