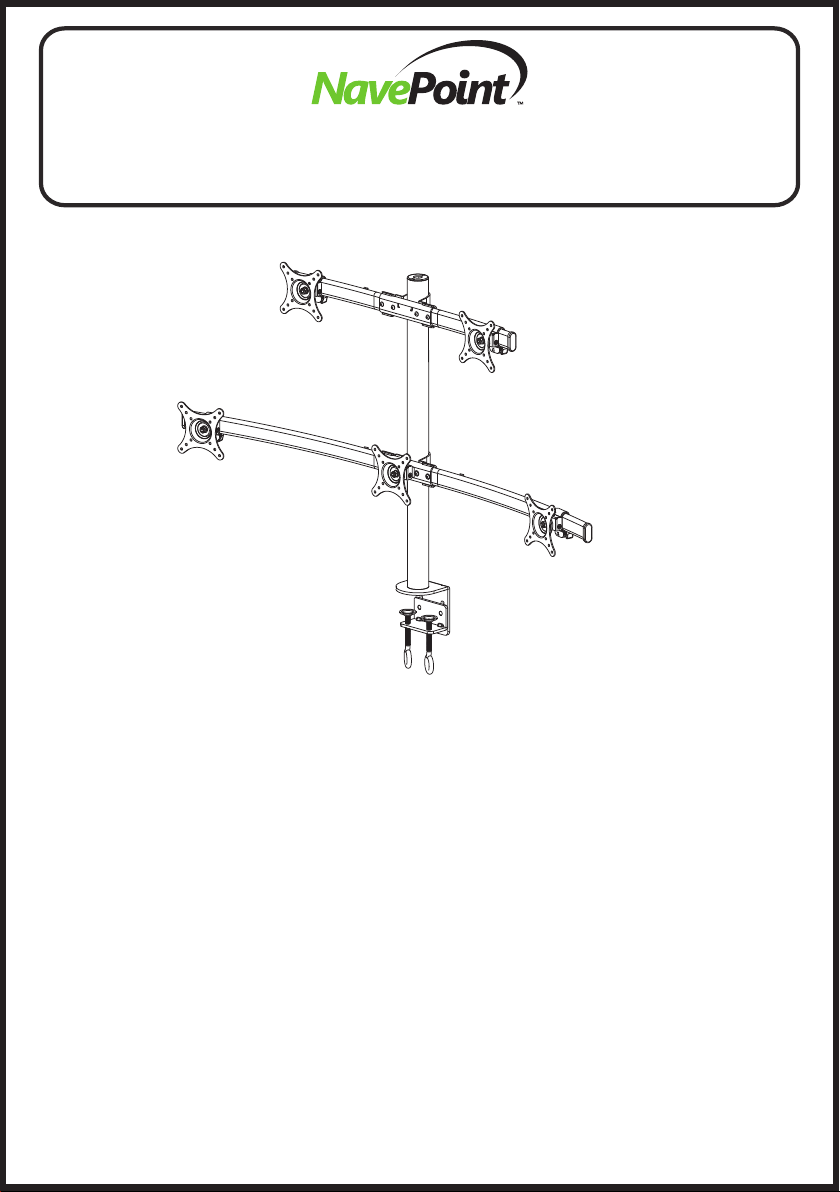

NavePoint 00402225 Manuel utilisateur
Assembly Instructions
www.NavePoint.com
Customerservice@navepoint.com
Thank you for purchasing a NavePoint product. If you have any questions regarding the installation or
use of your product, please call us at 888.505.1363.
Please examine the product for any damaged parts. If any part is damaged or missing, contact Nave-
Point for assistance. Do not attempt to install or use product if it has been damaged.
During installation, lay product contents on cardboard or other protective surface to avoid any damage.
Improper installation of this product could result in damage to the product, other equipment, or
personal injury. It is recommended that installation be performed by a qualified installer. NavePoint
cannot be held responsible for damage to equipment or personal injury resulting from improper use or
installation of product.
Limitations of Liability: In no event will NavePoint, LLC. be liable for any damages, whether direct or
indirect, special, punitive, incidental or consequential damages (including, but not limited to, lost profits
or revenue, loss of use, lost business opportunities or loss of goodwill) or for the costs of procuring
substitute products, arising out of or in connection with the use of the product, whether such liability
arises from any claim based upon contract, warranty, tort (including negligence), product liability or
otherwise, whether or not seller has been advised of the possibility of such loss or damage. In no
event will seller’s total cumulative liability, from all causes of action and all theories of liability, exceed
the total amounts actually paid to seller by customer under the order that gives rise to any liability
hereunder.
2

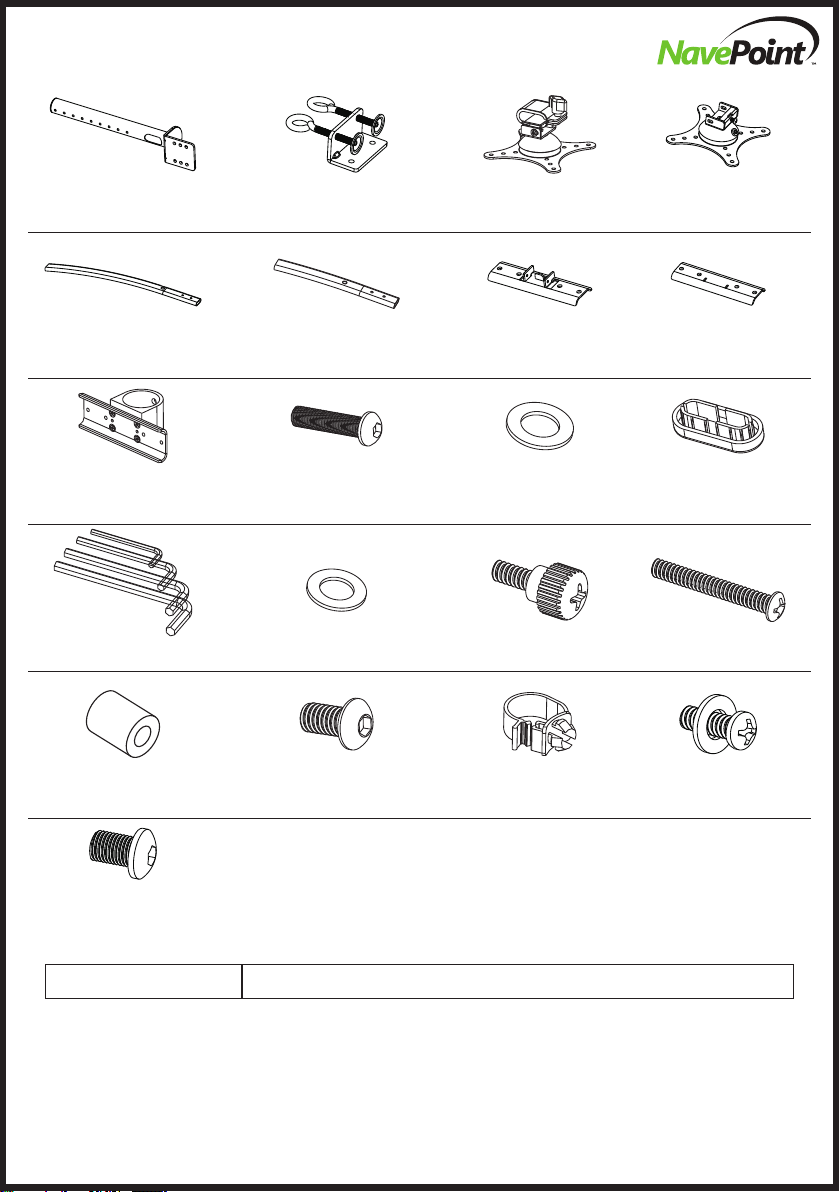

(1) 48mm Pole-a (4) Side Vesa Plate
with Slip Set-c1
(1) Middle Vesa
Plate-c2
(4)Arm Plastic
Cover-i
(2) Arm Clamp-f (8)M6x25 Bolt-g (8)M6 Washer-h
(20)M4x30 Bolt-m(40)M4 Washer-k(1)Allen Key-j
(2) Long Arm-d1 (1) Arm Connect
Part-e1
(2) Short Arm-d2 (1) Arm Connect
Part-e2
(20)M4 Space-n (4)M8x10 Bolt-o (4)Wire Clip-p (2)M4x16 Bolt with
washer-q
(1) Disconnected
“C” Clamp-b
(2)M10x15 Bolt-r
(20)M4x12
Thumb Bolt-l
www.NavePoint.com [email protected]
Supplied Parts
Phillips Screwdriver
Tools Required

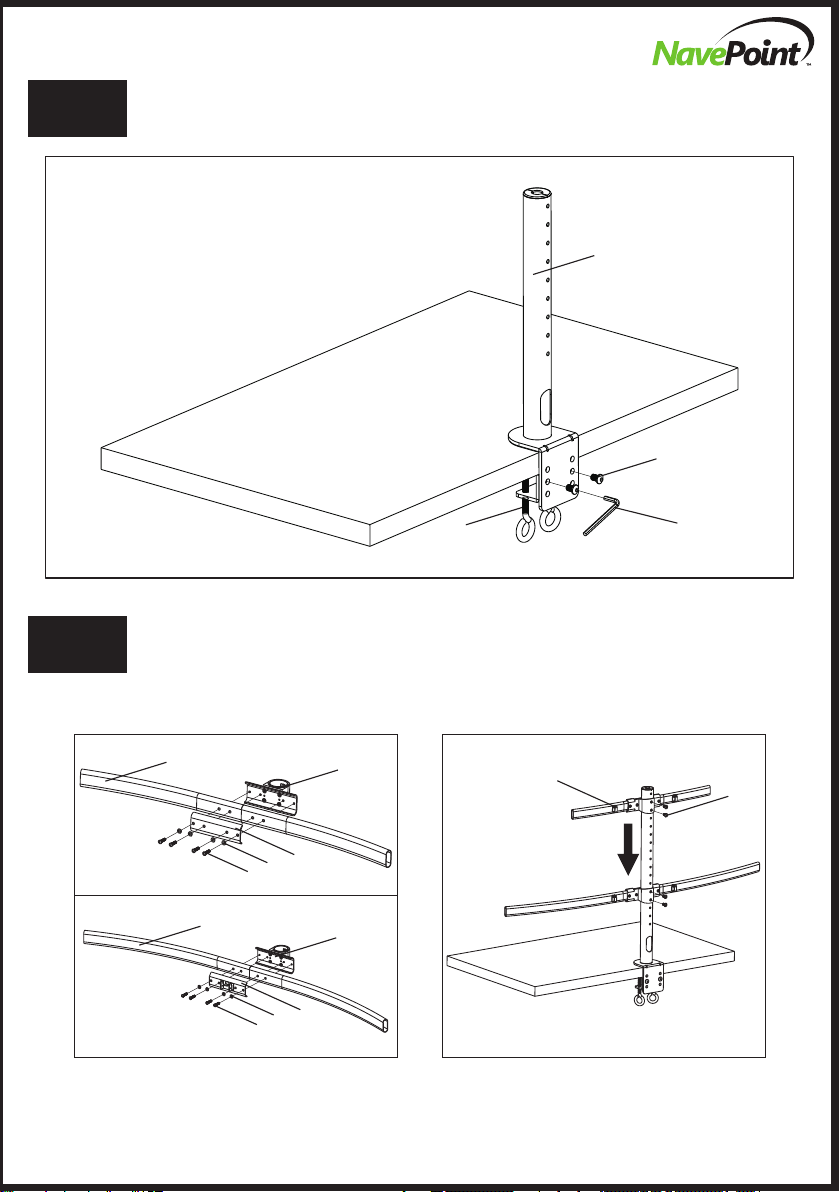

Assemble the curved arm sets as the
diagram above, fasten the M6x25
Bolt(g) with provided Allen Key(j).
Insert the curved arm sets to pole,
fasten the M8x10 Bolt(o) provided
Allen Key(j). Install the Wire Clip(p).
po
S t e p 2 Assemble the Arm Sets and Install it on the Pole
S t e p 1 Install the “C” Clamp According to the Desktop Thickness
3
a
b
r
j
The depth of “C” clamp can be changed in
three positions. Choose the proper depth
according to the thickness of your
desktop. Connect it with 2pcs M10x15
bolts(r), using the supplied Allen Key(j).
d1
ghe1
f
d2
ghe2
f
www.NavePoint.com [email protected]
with
4

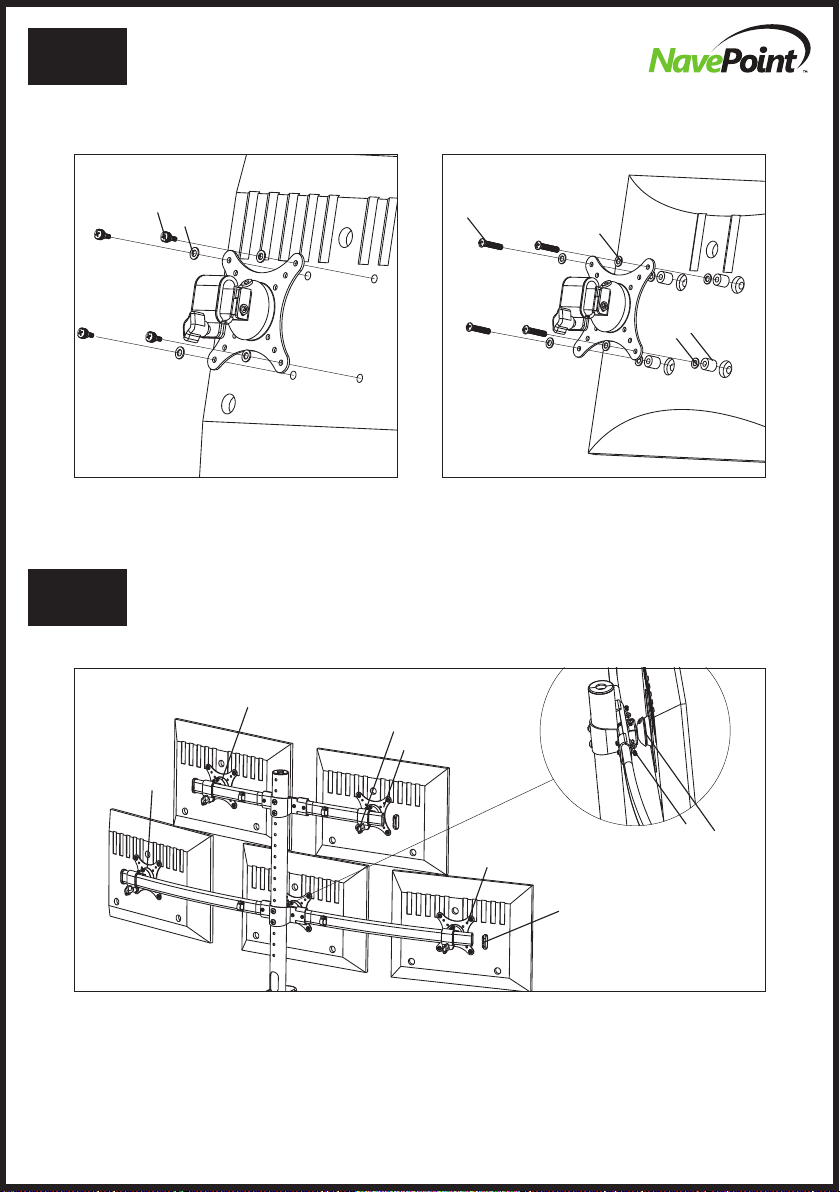

S t e p 3 Mount the Monitor to VESA Plate
n
k
m
k

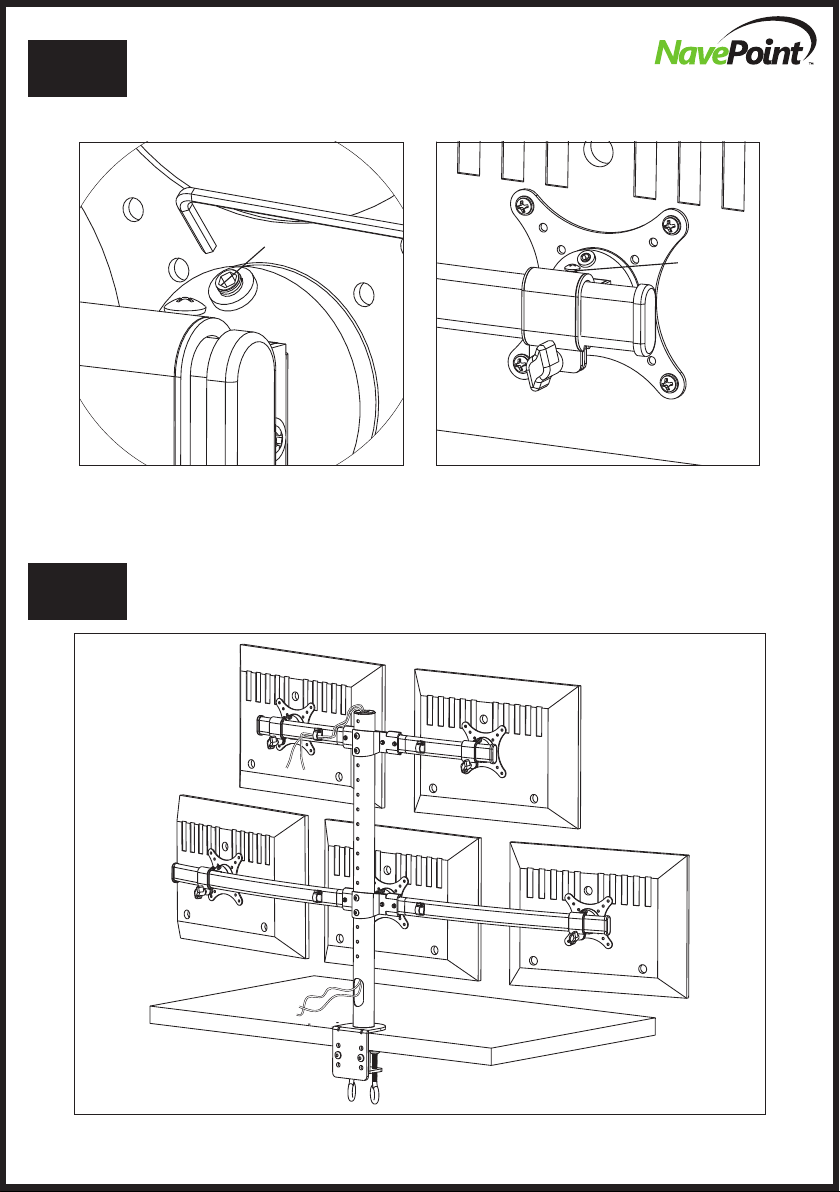

S t e p 4 Attach the Monitors to Arm Sets
Attaching the monitors to the curved arm sets, fasten the M4x16 Bolt with
Washer(q), fixing the position by the plastic knob. Install the Arm Plastic
Cover(i) as the above diagram.
i
Plastic Knob
c1
qc2
c1
c1
c1
k
l
www.NavePoint.com [email protected]
For Flat Back Monitor For Curved Back Monitor
5
S t e p 5 Adjust the Tilting Angle and the Monitors Level
Adjust the grub screw to fix the tilting
angle with provided Allen Key(j).
grub screw
Bolt
the bolt on the above diagram
to adjust the level of each monitor.
S t e p 6 Manage the Wires
www.NavePoint.com [email protected]
Adjust
