Nauticam NA-NEX6 Manuel utilisateur

Thank you for your purchase of a NAUTICAM camera housing.

At NAUTICAM, we pride ourselves on the ability to recognise the

requirements of professional as well as amateur underwater

photographers and fulfill them through the innovative designs of our

products. We strive to achieve a high level of user-friendliness by

allowing stress-free installation and easy operation of all important

functions of the camera.

Each NA-NEX6 housing is individually inspected and water pressure

tested to ensure optimum quality.

Please read this manual carefully before using the housing, this will

maximise its performance as well as its lifetime.

1. All NAUTICAM Products are warranted against any material and

manufacturing defects for one year from the date of purchase for

consumer use.

2. NAUTICAM accepts no liability for any damage to and defects in the

housing caused by improper use and/or poor maintenance; it is the

responsibility of the owner to carefully follow the instructions in

this manual.

3. NAUTICAM does not hold responsibility for damage, of any nature,

to any equipment used with and/or placed within the housing.

4. NAUTICAM accepts no liability for any loss of captured images or

the inability to capture images even if it is due to the

malfunctioning or leakage of the housing.

5. This warranty only applies to products purchased from authorised

NAUTICAM dealers and does not extend beyond the original retail

purchaser.

6. Unauthorised modifications and/or repairs of the housing will

automatically invalidate this warranty.

7. To return products for service, please contact our regional

distributor, normally you would need to notify them by email first

and ship them the product by registered mail, along with your

contact details and a brief description of the defect.

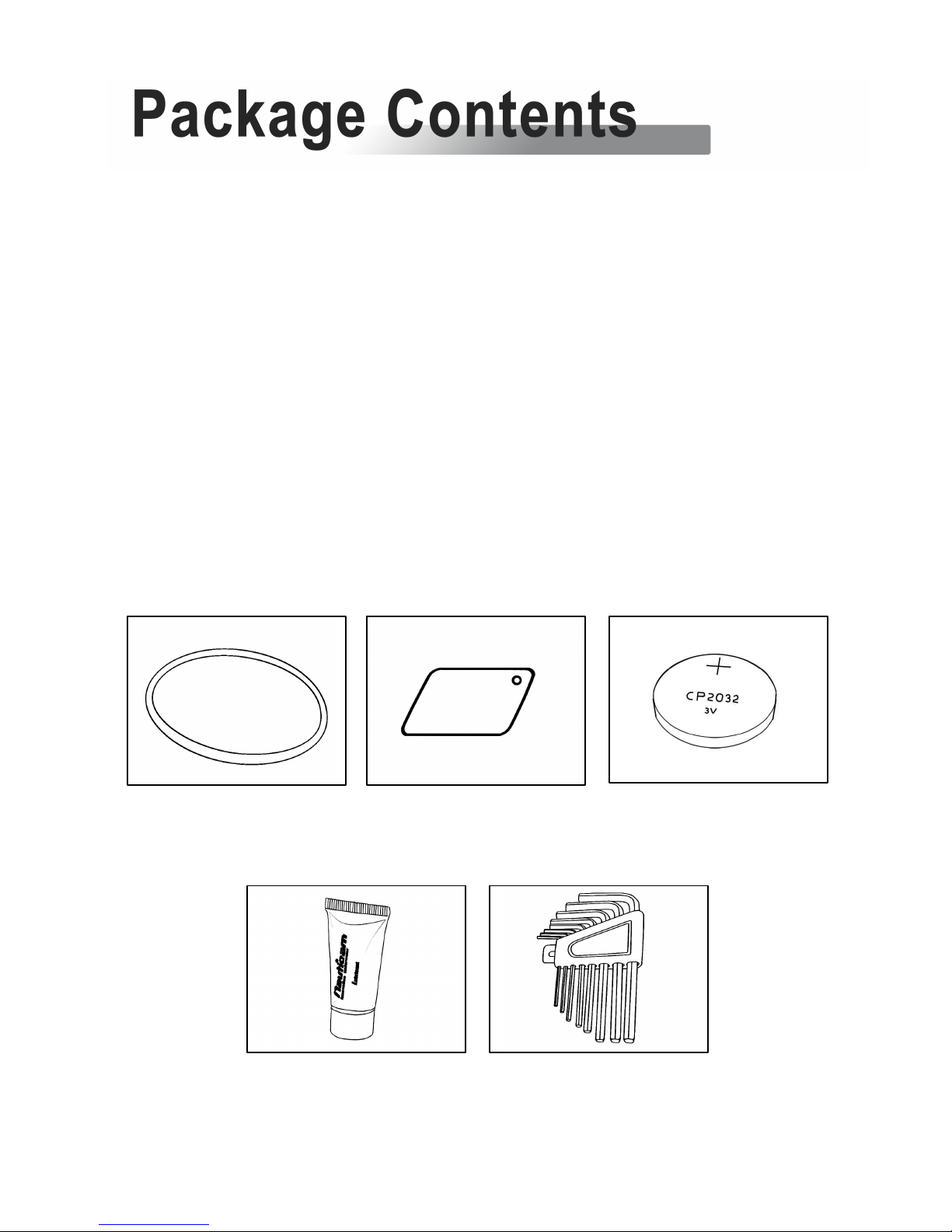

1. NA-NEX6 housing

2. Instruction manual

3. Spare silicone rubber housing o-ring

4. O-ring remover

5. CR2032 battery (for moisture alarm)

6. Lubricant

7. Set of Allen keys

Spare silicone rubber o-ring

Lubricant Set of Allen keys

CR2032 battery

O-ring remover

1. A water-tight test without the camera inside the housing is highly

recommended when using the system for the first time and after

the changing of port and O-ring(s).

2. Do not use lubricants from other brands with the silicone rubber O-

ring on this housing, only use the lubricant provided by NAUTICAM.

3. Discontinue use immediately should you notice any leakage.

4. Store the housing in a robust, shock-proof container during

transportation; avoid transporting with any equipment, such as a

camera, inside the housing.

5. When travelling by air, do not close the housing if the port is

installed, as this may lead to a pressure difference between the

atmosphere and inside the housing.

6. Care must be taken when opening the housing, as pressure may

build up inside the housing which increases the opening force.

7. Do not open the product in a wet or sandy environment. Protect

the interior from moisture and debris in order to prevent

malfunction or leakage.

8. Do not store the product in an environment of high humidity.

9. Do not leave the housing and the camera in direct sunlight for

prolonged periods.

10. Keep out of reach of children, failure to do so could result in injury.

11. Defective products should be shipped to our distributors for service,

unauthorized disassembling and/or modifications could result in

malfunction or leakage.

Specifications 6

Identification of Parts 7

Preparation of the Housing 10

Opening and Locking the Housing 12

Installing the Camera 13

Mounting the Port 14

Care and Maintenance 16

Optional Accessories 17

Construction

Housing body: Aluminium alloy

Surface treatment: Hard anodised

Display window: Abrasion resistant polycarbonate

Dimensions

Width: 178mm

Height: 120mm

Depth: 86mm

Weight Approx. 0.93kg (without camera)

Buoyancy Slightly negative

Depth rating 100 metres

Features

Moisture alarm: Blinking LED and audible alarm

TTL capability:

Optical fibre mount included for

external strobes connection,

utilising the camera’s pop-up flash

as trigger.

Port mount: Patented easy port installation

system.

Control dial: Easily reached by thumb.

Flash up/off lever: Allows the camera's built-in flash

to be disabled underwater.

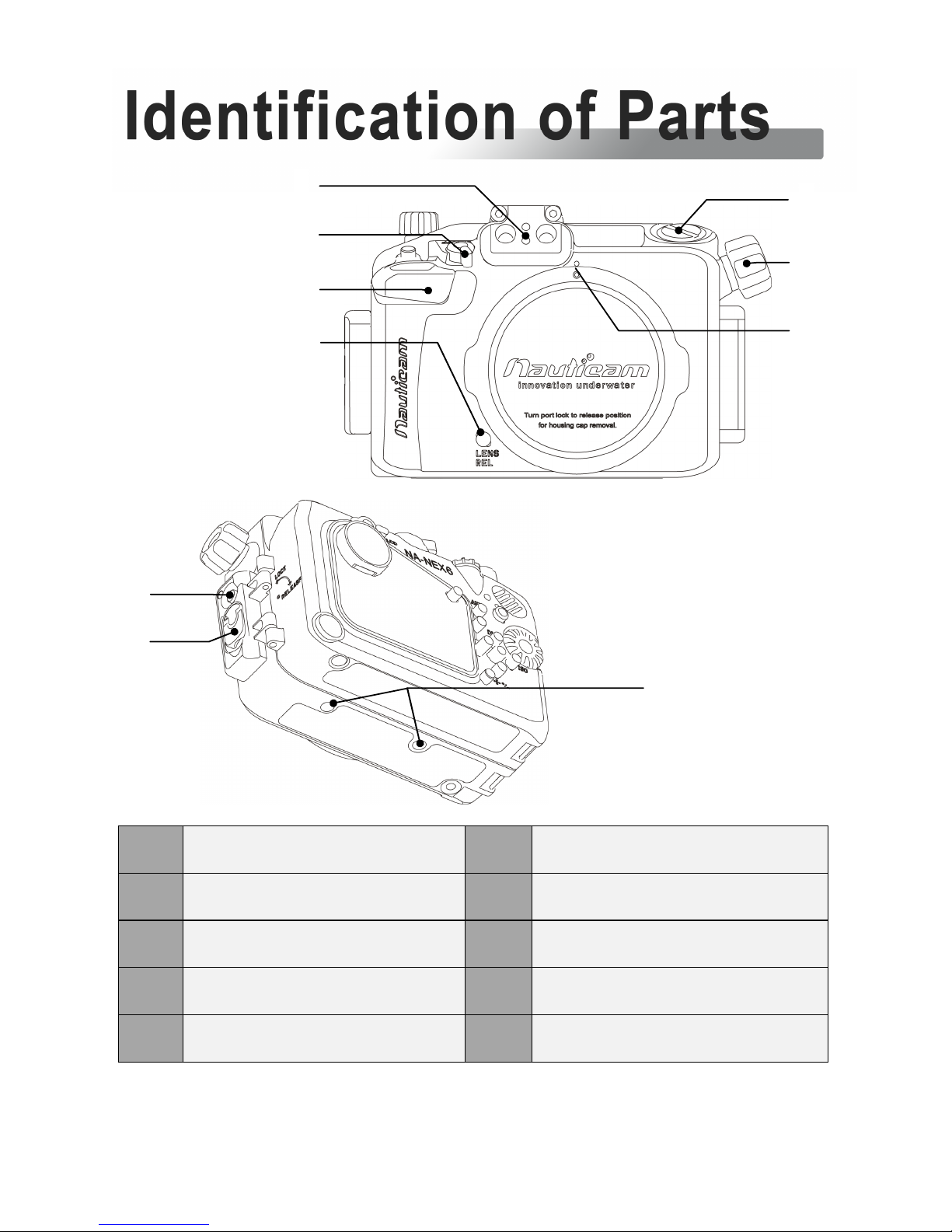

1 Optical fibre mount 6 Zoom/Focus knob

2 On/off lever 7 Port alignment index

3 Shutter release lever 8 Port release safety button

4 Lens release button 9 Port lock/release latch

5 M16 accessory port 10 1/4”–20UNC tripod socket x 2*

* The maximum length of screws that can be

used with the tripod sockets is 4mm

11 Flash up/off lever 15 M10 strobe mounting base

12 Control dial 16 Fn button

13 Mode dial 17 Housing lock safety button

14 Accessory coldshoe 18 Housing lock

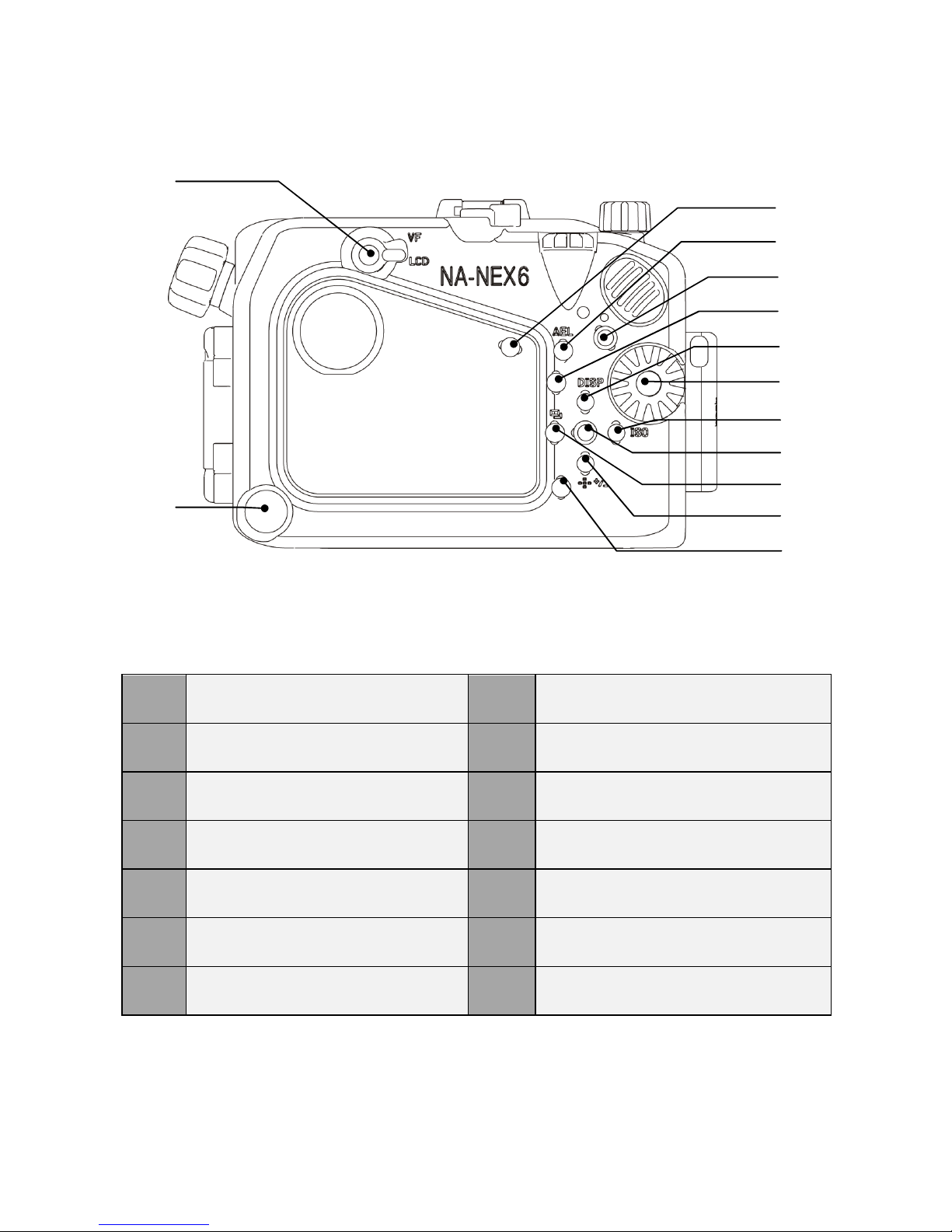

12 16

19 Viewfinder/LCD lever 26 Control wheel

20 Moisture alarm window 27 Right selection/ISO button

21 Playback button 28 Soft key C button

22 AEL button 29 Left selection/Drive mode

button

23 Movie button 30 Down selection/Exposure

comp./Image index button

24 Soft key A button 31 Soft key B button

25 Up selection/Display button
