Nauticam 86223 Manuel utilisateur

Current as of 2022-05-23

M67 Mounting Ring

Instruction Manual

Mounting Ring for 86221

PN# 86223

FOREWORD

Thank you for your purchase of a NAUTICAM product.

At NAUTICAM, we pride ourselves in the ability to recognize the requirements of

professional as well as amateur underwater photographers and fulfill them

through the innovative designs of our products. We strive to achieve a high level

of user-friendliness by allowing stress-free installation and easy operation of all

important functions of the camera.

Please read this manual carefully before using the product, this will maximize its

performance as well as its lifetime.

WARRANTY

All NAUTICAM Products are warranted against any material and manufacturing

defects for two years from the date of purchase for consumer use. This warranty

only applies to products purchased from authorized NAUTICAM dealers and does

not extend beyond the original retail purchaser.

To return your product for service, please contact your regional authorized

service center(s). Please note that this warranty only applies when the product

is purchased in the territory where the service center is located.

NAUTICAM does not hold responsibility for damage, of any nature, to any

equipment used with and/or placed within our products.

NAUTICAM accepts no liability for any loss of captured images or the inability to

capture images even if it is due to the malfunctioning of our products.

Unauthorized modifications and/or repairs of our products will automatically

invalidate the warranty.

PACKAGE CONTENTS

M67 Mounting Ring for 86221

Thumb Screws x 8

CHANGE THE MOUNTING RING ON THE MWL-1

A M67 mounting ring is supplied for MWL-1 to use on the dedicated two flip

holder products.

Please follow below instruction to exchange the Bayonet Mounting Ring of MWL-

1 to M67 Mounting Ring.

Unscrew the eight thumb screws, and remove them from the back of the lens.

Remove the bayonet mounting ring of MWL-1, and keep the 4pcs black

cylindrical positioning pins in position.

Locate the 4x sockets on the M67 mounting ring as shown, align with the

positioning pins on the MWL-1 and install accordingly.

IDENTIFICATION OF PARTS

Thumb Screws (x8)

Current as of 2022-05-23

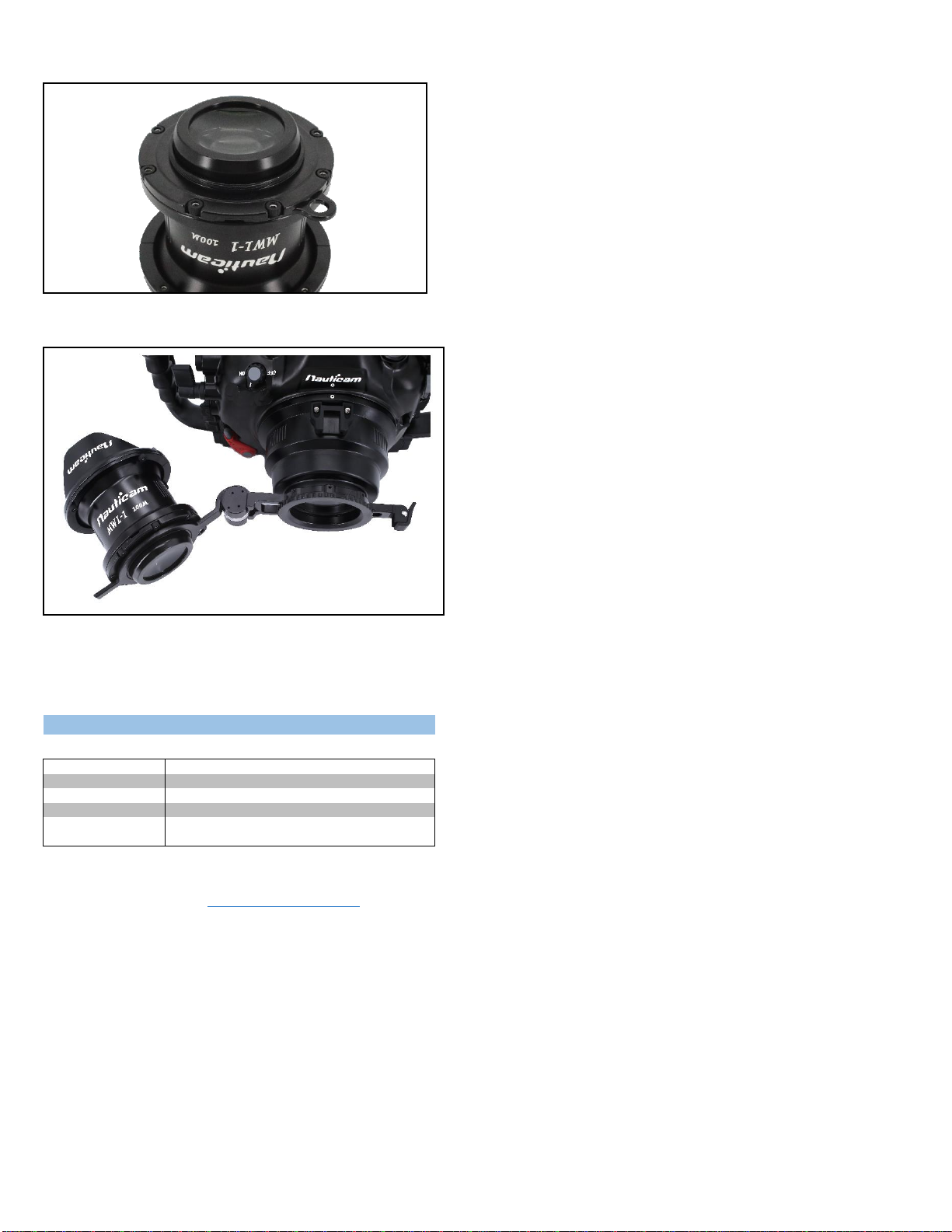

Tighten the mounting ring with the eight thumb screws provided.

The lens is ready to use with 86221 or 86222.

To remove the Mounting Ring, reverse the above steps.

SPECIFICATIONS

#83223 Mounting Ring for 86221

Diameter(mm):

122.4 x 96.0 x 10.1

Weight(kg):

0.06

Material:

Aluminum Alloy

Compatible Lens:

86201 Macro to Wideangle Lens 1 (MWL-1)

Compatible Product:

86221 M67 Flip holder for MWL-1

86222 Double Flip Holder for MWL-1

Remark: Nauticam supports only e-manuals. Please download corresponding

product manuals on google drive https://bit.ly/Nauticammanual, or contact us for

e-manuals.
