Nauticam 45 Viewfinder Manuel utilisateur

1. All NAUTICAM Products are warranted against any material and manufacturing

defects for one year from the date of purchase for consumer use.

2. NAUTICAM accepts no liability for any damage to and defects in the viewfinder

caused by improper use and/or poor maintenance; it is the responsibility of the

owner to carefully follow the instructions in this manual.

3. NAUTICAM does not hold responsibility for damage, of any nature, to any

equipment used with the viewfinder.

4. NAUTICAM accepts no liability for any loss of captured images or the inability

to capture images even if it is due to the malfunctioning or leakage of the

viewfinder.

5. This warranty only applies to products purchased from authorised NAUTICAM

dealers and does not extend beyond the original retail purchaser.

6. Unauthorised modifications and/or repairs of the port will automatically

invalidate this warranty.

7. To return products for service, please contact our regional distributor,

normally you would need to notify them by email first and ship them the

product by registered mail, along with your contact details and a brief

description of the defect.

1. A water-tight test without the camera inside the housing is highly

recommended when using the system for the first time and after the changing

of viewfinder and O-ring(s).

2. Do not use lubricants from other brands with the silicone rubber O-rings on

this product, only use the lubricant provided by NAUTICAM.

3. Discontinue use immediately should you notice any leakage.

4. Store the product in a robust, shock-proof container during transportation.

5. Do not detach the product from the housing in a wet or sandy environment.

6. Do not store the product in an environment of high humidity.

7. Do not expose the product to direct sunlight for prolonged periods.

8. Keep out of reach of children, failure to do so could result in injury.

9. Defective products should be shipped to our distributors for service,

unauthorized disassembling and/or modifications could result in malfunction

or leakage.

Specifications

Identification of Parts

Changing the viewfinder

Care and Maintenance

Construction

Casing:

Aluminium alloy

Surface treatment:

Anodised

Lenses and prisms:

Multi-layer coated optical glass

Dimensions

81.4 mm (H) x 85.7mm (W) x 108.6 mm (D)

Weight

460g

Entrance pupil

Dioptric adjustment knob

Eyepiece

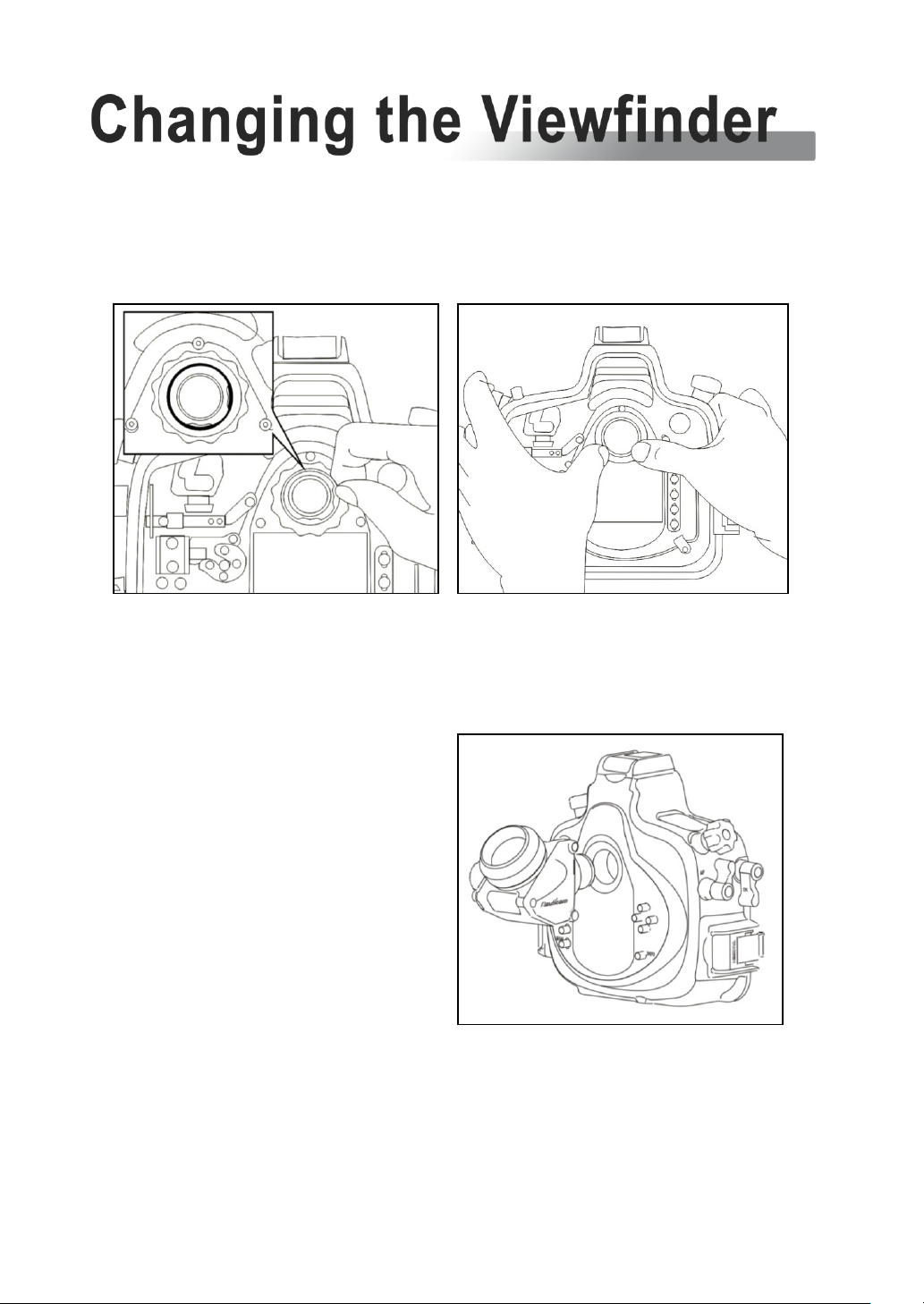

Please follow the steps below to change from the 0.66x viewfinder to the

Enhanced 180°viewfinder on Nauticam housings.

1. Remove the retainer O-ring of the

0.66x viewfinder inside the rear

half of the housing.

2. Take off the 0.66x viewfinder by

gently pushing it from the inside

of the housing.

3. Lightly coat the o-rings on the

outer periphery of the entrance

pupil of the 45°viewfinder

with lubricant.

4. Align the 45°viewfinder with the

viewfinder mounting ring in the

display window as shown in the

diagram.

5. Gently push the viewfinder

inside the mounting ring until

it cannot go in any further.

6. The 45°viewfinder can be

rotated at any desired angle.

1. After each use, wipe the viewfinder with a towel before detaching it from the

housing.

2. After each day of diving, it is advisable to have the O-rings removed from their

grooves with the O-ring remover and inspected for damage, also check that

the O-rings retain their original circular shape; never stretch the O-rings

excessively or remove them with a sharp object. The O-ring grooves should

be cleaned to ensure they are free from any salt deposit or foreign material;

lightly coat the O-rings with the provided lubricant before reinstalling it in the

groove. A damaged O-ring should be discarded immediately and replaced

only with one that is provided by NAUTICAM.

3. Replace the O-rings annually.
