GETTING STARTED GUIDE

NI 9207

16 AI, ±20 mA/±10 V, 24 Bit, 500 S/s Aggregate

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

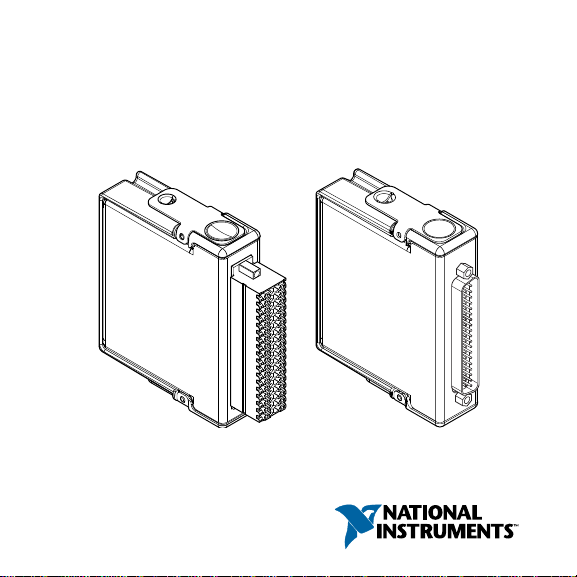

This document explains how to connect to the NI 9207. In this

document, the NI 9207 with spring terminal and the NI 9207 with

DSUB are referred to inclusively as the NI 9207.

Note Before you begin, complete the software and

hardware installation procedures in your chassis

documentation.

Note The guidelines in this document are specific to

the NI 9207. The other components in the system might

not meet the same safety ratings. Refer to the

documentation for each component in the system to

determine the safety and EMC ratings for the entire

system.

Safety Guidelines

Operate the NI 9207 only as described in this document.

Caution Do not operate the NI 9207 in a manner not

specified in this document. Product misuse can result in

a hazard. You can compromise the safety protection

built into the product if the product is damaged in any

2| ni.com | NI 9207 Getting Started Guide

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

way. If the product is damaged, return it to NI for

repair.

NI 9207 with Spring Terminal Safety Voltages

Connect only voltages that are within the following limits:

Isolation

Channel-to-channel None

Channel-to-earth ground

Continuous 250 Vrms, Measurement

Category II

Withstand up to

5,000 m

3,000 Vrms, verified by a 5 s

dielectric withstand test

Measurement Category II is for measurements performed on

circuits directly connected to the electrical distribution system.

This category refers to local-level electrical distribution, such as

that provided by a standard wall outlet, for example, 115 V for

U.S. or 230 V for Europe.

Caution Do not connect the NI 9207 to signals or use

for measurements within Measurement Categories III

or IV.

NI 9207 Getting Started Guide | © National Instruments | 3

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

NI 9207 with DSUB Safety Voltages

Connect only voltages that are within the following limits:

Isolation

Channel-to-channel None

Channel-to-earth ground

Continuous 60 VDC, Measurement

Category I

Withstand up to

2,000 m

1,000 Vrms, verified by a 5 s

dielectric withstand test

Withstand up to

5,000 m

500 Vrms, verified by a 5 s

dielectric withstand test

Measurement Category I is for measurements performed on

circuits not directly connected to the electrical distribution system

referred to as MAINS voltage. MAINS is a hazardous live

electrical supply system that powers equipment. This category is

for measurements of voltages from specially protected secondary

circuits. Such voltage measurements include signal levels, special

equipment, limited-energy parts of equipment, circuits powered

by regulated low-voltage sources, and electronics.

4| ni.com | NI 9207 Getting Started Guide

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Caution Do not connect the NI 9207 with DSUB to

signals or use for measurements within Measurement

Categories II, III, or IV.

Note Measurement Categories CAT I and CAT O are

equivalent. These test and measurement circuits are not

intended for direct connection to the MAINS building

installations of Measurement Categories CAT II,

CAT III, or CAT IV.

Safety Guidelines for Hazardous Locations

The NI 9207 is suitable for use in Class I, Division 2, Groups A,

B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nA IIC T4

and Ex nA IIC T4 hazardous locations; and nonhazardous

locations only. Follow these guidelines if you are installing the

NI 9207 in a potentially explosive environment. Not following

these guidelines may result in serious injury or death.

Caution Do not disconnect I/O-side wires or

connectors unless power has been switched off or the

area is known to be nonhazardous.

NI 9207 Getting Started Guide | © National Instruments | 5

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Caution Do not remove modules unless power has

been switched off or the area is known to be

nonhazardous.

Caution Substitution of components may impair

suitability for Class I, Division 2.

Caution For Division 2 and Zone 2 applications,

install the system in an enclosure rated to at least IP54

as defined by IEC/EN 60079-15.

Special Conditions for Hazardous Locations Use in

Europe and Internationally

The NI 9207 with spring terminal has been evaluated as Ex nA

IIC T4 Gc equipment under DEMKO 12 ATEX 1202658X and is

IECEx UL 14.0089X certified. The NI 9207 with DSUB has been

evaluated as Ex nA IIC T4 Gc equipment under DEMKO

Certificate No. 07 ATEX 0626664X and is IECEx UL 14.0089X

certified. Each NI 9207 is marked II 3G and is suitable for use

in Zone 2 hazardous locations, in ambient temperatures of -40 °C

≤ Ta ≤ 70 °C. If you are using the NI 9207 in Gas Group IIC

hazardous locations, you must use the device in an NI chassis that

has been evaluated as Ex nC IIC T4, Ex IIC T4, Ex nA IIC T4, or

Ex nL IIC T4 equipment.

6| ni.com | NI 9207 Getting Started Guide

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Caution You must make sure that transient

disturbances do not exceed 140% of the rated voltage.

Caution The system shall only be used in an area of

not more than Pollution Degree 2, as defined in

IEC/EN 60664-1.

Caution The system shall be mounted in an

ATEX/IECEx-certified enclosure with a minimum

ingress protection rating of at least IP54 as defined in

IEC/EN 60079-15.

Caution The enclosure must have a door or cover

accessible only by the use of a tool.

Electromagnetic Compatibility Guidelines

This product was tested and complies with the regulatory

requirements and limits for electromagnetic compatibility (EMC)

stated in the product specifications. These requirements and

limits provide reasonable protection against harmful interference

when the product is operated in the intended operational

electromagnetic environment.

NI 9207 Getting Started Guide | © National Instruments | 7

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

This product is intended for use in industrial locations. However,

harmful interference may occur in some installations, when the

product is connected to a peripheral device or test object, or if the

product is used in residential or commercial areas. To minimize

interference with radio and television reception and prevent

unacceptable performance degradation, install and use this

product in strict accordance with the instructions in the product

documentation.

Furthermore, any changes or modifications to the product not

expressly approved by National Instruments could void your

authority to operate it under your local regulatory rules.

Caution To ensure the specified EMC performance,

operate the NI 9207 with DSUB only with shielded

cables and accessories. Do not use unshielded cables or

accessories unless they are installed in a shielded

enclosure with properly designed and shielded input/

output ports and connected to the product using a

shielded cable. If unshielded cables or accessories are

not properly installed and shielded, the EMC

specifications for the product are no longer guaranteed.

8| ni.com | NI 9207 Getting Started Guide

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Special Conditions for Marine Applications

Some products are Lloyd’s Register (LR) Type Approved for

marine (shipboard) applications. To verify Lloyd’s Register

certification for a product, visit ni.com/certification and search

for the LR certificate, or look for the Lloyd’s Register mark on

the product.

Caution In order to meet the EMC requirements for

marine applications, install the product in a shielded

enclosure with shielded and/or filtered power and

input/output ports. In addition, take precautions when

designing, selecting, and installing measurement probes

and cables to ensure that the desired EMC performance

is attained.

NI 9207 Getting Started Guide | © National Instruments | 9
