PXI-7358

Getting Started with NI 7340/7350

Motion Controllers and AKD Servo

Drives

This document explains how to install and configure the AKD servo drives for use with the

NI 7340 and NI 7350 motion controllers.

Tip If you encounter any problems during setup, refer to the Tips and

Troubleshooting section for assistance.

Contents

What You Need to Get Started ................................................................................................. 2

Hardware .......................................................................................................................... 2

Software............................................................................................................................ 3

Related Documentation .................................................................................................... 4

NI Motion Controller Configuration and Installation............................................................... 5

Step 1: Install NI-Motion.................................................................................................. 5

Step 2: Install the NI 7340/7350 Motion Controller......................................................... 5

Step 3: Install Software on and Configure the

RT PXI Controller (PXI 7340/7350 Only).................................................................... 7

NI UMI and AKD Servo Drive Configuration and Installation ............................................... 8

Step 1: Connect and Configure the NI UMI..................................................................... 8

Step 2: Mount the Drive and Connect the Protective Earth ............................................. 14

Step 3: Connect the NI UMI to AKD Cable to the AKD Servo Drive............................. 15

Step 4: Connect the Logic Power Supply to the AKD Servo Drive................................. 16

Step 5: Connect the Motor and Encoder to the Drive....................................................... 19

Step 6: Connect the AC Input Power................................................................................ 20

Step 7: Connect the Drive Communication...................................................................... 21

Step 8: Confirm Drive Connections ................................................................................. 22

Software Installation and Configuration................................................................................... 23

Step 1: Update Firmware on the Motion Controller......................................................... 23

Step 2: Configure the NI Motion Controller .................................................................... 23

Step 3: Install AKD WorkBench and Configure the Drive .............................................. 25

Step 4: Test the Motor In MAX........................................................................................ 33

Tips and Troubleshooting......................................................................................................... 34

The Drive Does Not Enable.............................................................................................. 34

Cannot Communicate With the Drive Using Ethernet ..................................................... 34

UMI-7772/74 Does Not Turn On ..................................................................................... 34

Drive Does Not Turn On .................................................................................................. 34

Connecting to the PC Using a Static IP............................................................................ 34

2|ni.com |Getting Started with NI 7340/7350 Controllers and AKD Drives

The Motor Responds Poorly ............................................................................................. 35

Using an EtherCAT AKD Drive in Analog Mode ...........................................................35

Cannot See the AKD Servo Drive in the AKD WorkBench Software.............................36

Wiring Diagram ........................................................................................................................ 37

Worldwide Support and Services .............................................................................................38

What You Need to Get Started

Caution Before installing the drive, review Chapter 2, Safety, in the AKD

Installation Manual that came with your hardware or is available from ni.com/

manuals. Failure to follow safety instructions may result in injury or damage to

equipment.

You need the following items to get started.

Hardware

A computer with an available PXI or PCI slot

NI 7340 or NI 7350 motion controller

UMI-7764 or UMI-7772/74

68-pin cable to connect your NI UMI and motion controller

–UMI-7764—SH68-C68-S

–UMI-7772/74—SHC68-C68-S

UMI to AKD drive cable appropriate for the UMI you are using

+24 VDC power supply for the NI UMI-7772/74 and AKD servo drive

+5 V power supply for the UMI-7764

Ethernet connection and cable for the AKD servo drive

AKD servo drive

NI or third-party servo motor and encoder

Note AKM series servo motors available from NI contain built-in encoders and

come pre-wired for use with the AKD servo drive. National Instruments recommends

using one of these motors for the best user experience and system performance.

Getting Started with NI 7340/7350 Controllers and AKD Drives |© National Instruments |3

Software

NI-Motion 7.6 or later driver software

One of the following software packages and documentation:

– LabVIEW 8.5 or later

– LabWindows™/CVI™8.5 or later

– Microsoft Visual C++

– Microsoft Visual Basic

AKD WorkBench software

Figures 1 and 2 show the hardware connections using a UMI-7772/74 and UMI-7764,

respectively.

Figure 1. UMI-7772/74 to AKD Drive Connections

Host PC

SHC68-

C68-S

Cable

UMI-7772/74

to AKD

Drive Cable

Screw Terminal

Connector for

Additional I/O

(Limits, etc.)

Ethernet Cable

(Initial Configuration Only)

+24 V Power Supply

(NI PS-15 Shown)

UMI-7772/74

AKD Analog

Servo Drive

+24 V Power Supply

(NI PS-15 Shown)

4|ni.com |Getting Started with NI 7340/7350 Controllers and AKD Drives

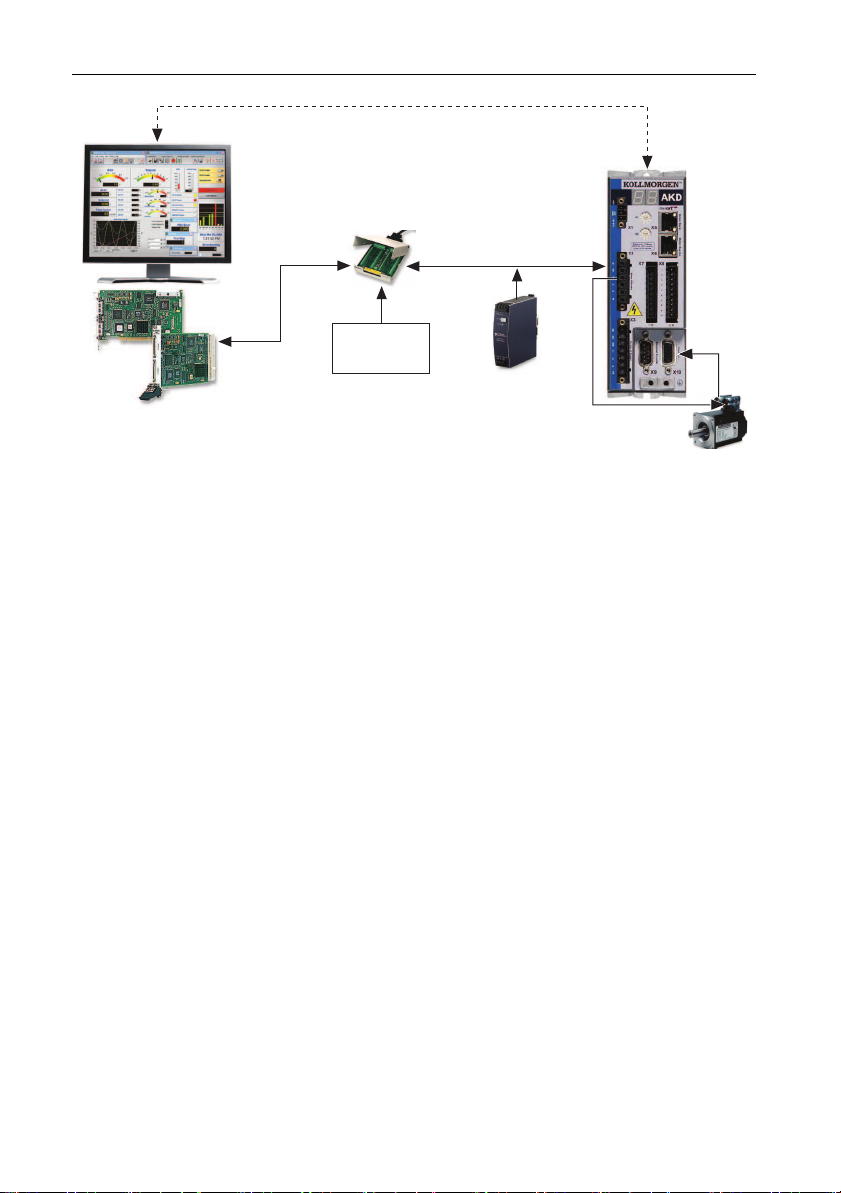

Figure 2. UMI-7764 to AKD Drive Connections

Related Documentation

The following documents contain additional information that you may find helpful. All

referenced documents ship with the product and are available at ni.com/manuals.

•NI 7340 User Manual or NI 7350 User Manual—Describes the electrical and mechanical

aspects of the NI 7340/7350 motion controller, and contains information about installing

and operating the device.

•Getting Started with NI-Motion for NI 73xx Motion Controllers—Provides instructions for

installing and getting started with the NI-Motion driver software and NI motion controllers.

•AKD Installation Manual—Provides additional information about the electrical and

mechanical aspects of the AKD servo drive, including important safety information and

advanced configuration information.

•NI-Motion Help—Contains information about designing a basic move, designing a

multi-axis move, incorporating image and data acquisition into motion applications, and

working with common motion concepts, such as contouring and breakpoints. This

document is task-based and takes you through each phase of designing and executing a

motion application.

•NI-Motion Function Help—Contains function reference information for C and Visual Basic

and provides details about each function, including a description of the function, a list of

the function parameters, illustrations, and error codes.

•NI-Motion VI Help—Contains LabVIEW VI reference information and provides details

about each VI, including VI descriptions, lists of VI parameters, usage, illustrations, and

error codes.

•Measurement & Automation Explorer Help for Motion—Provides information about using

MAX to configure the NI motion controller as well as advanced conceptual information

about topics such as Bode analysis and control loop parameters.

Host PC

Ethernet Cable

(Initial Configuration Only)

SH68-C68-S

Cable

+24 V Power Supply

(NI PS-15 Shown)

UMI-7764 to

AKD Drive Cable

AKD Analog

Servo Drive

UMI-7764

+5 V Power

Supply

Getting Started with NI 7340/7350 Controllers and AKD Drives |© National Instruments |5

NI Motion Controller Configuration and

Installation

Caution Before installing the NI 7340/7350 motion controller refer to the user

manual appropriate to your controller for safety and specification information.

Failure to follow safety instructions may result in damage to equipment.

Step 1: Install NI-Motion

You must install the NI-Motion driver software before installing an NI motion controller for the

first time. If you are upgrading from a previous version of NI-Motion, it is not necessary to

remove the NI motion controller before installing the upgrade. The upgrade does not affect the

existing Microsoft Windows configuration.

Note If you are using a Real-Time OS, install LabVIEW Real-Time on the

development computer before installing NI-Motion so that the RT support files

install.

Complete the following steps to install the NI-Motion driver software:

1. Insert the NI-Motion CD into the CD-ROM drive to display the NI-Motion installation

screen.

2. If you have autorun enabled, autorun.exe runs automatically. Otherwise, double-click

autorun.exe.

3. Follow the onscreen instructions.

Note You must update the firmware on your NI motion controller(s) before you can

use them with the corresponding version of NI-Motion. Refer to Step 1: Update

Firmware on the Motion Controller in the Software Installation and Configuration

section for detailed instructions.

Step 2: Install the NI 7340/7350 Motion Controller

The following sections explain how to install PXI and PCI motion controllers.

Note When adding or removing the motion controller, you must be logged on with

administrator-level access. After you have restarted the system, you may need to

refresh Measurement & Automation Explorer (MAX) to view the new controller.

PXI Controllers

1. Power off and unplug the chassis.

Caution To protect yourself and the computer from electrical hazards, the

computer must remain unplugged until the installation is complete.

6|ni.com |Getting Started with NI 7340/7350 Controllers and AKD Drives

2. Choose an unused peripheral slot and remove the filler panel.

3. Touch a metal part on the chassis to discharge any static electricity that might be on your

clothes or body. Static electricity can damage the controller.

4. Insert the PXI controller into the chosen slot. Use the injector/ejector handle to fully secure

the device into place.

5. Attach the front panel of the PXI controller to the front panel mounting rails of the chassis

with the slot screws on the chassis.

Caution Make sure you have correctly connected all safety devices before you

power on the motion system. Safety devices include inhibits, limit switches, and

emergency shut down circuits.

Caution Always power on the computer containing the motion controller and

initialize the controller before you power on the rest of the motion system. Power off

the motion system in the reverse order.

6. Plug in and power on the chassis.

PCI Controllers

1. Power off and unplug the computer.

Caution To protect yourself and the computer from electrical hazards, the

computer must remain unplugged until the installation is complete.

2. Open the computer case to expose access to the PCI expansion slots.

3. Touch a metal part on the chassis to discharge any static electricity that might be on your

clothes or body. Static electricity can damage the controller.

4. Choose an unused +3.3 V or +5 V PCI slot, and remove the corresponding expansion slot

cover on the back panel of the computer.

5. Gently rock the controller into the slot. The connection may be tight, but do not force the

controller into place.

Note Check that the bracket of the device aligns with the hole in the back panel rail

of the computer chassis.

6. Secure the mounting bracket of the controller to the back panel rail of the computer.

7. Replace the cover.

Caution Make sure you have correctly connected all safety devices before you

power on the motion system. Safety devices include inhibits, limit switches, and

emergency shut down circuits.

Getting Started with NI 7340/7350 Controllers and AKD Drives |© National Instruments |7

Caution Always power on the computer containing the motion controller, and then

initialize the controller before you power on the rest of the motion system. Power off

the motion system in the reverse order.

8. Plug in and power on the computer.

Step 3: Install Software on and Configure the RT PXI

Controller (PXI 7340/7350 Only)

Note This step is only required if you are using a PXI-7340/7350 motion controller

and an RT PXI controller. If you are not using an RT PXI controller, skip to the

NI UMI and AKD Servo Drive Configuration and Installation section.

Complete the following steps to configure the controller and install software on it.

Note The Measurement & Automation Explorer (MAX) user interface may not

match these steps exactly depending on which version of MAX you are using.

1. Boot the NI PXI embedded controller into the real-time operating system. The PXI

controller automatically boots into LabVIEW RT Safe Mode when no software is installed.

LabVIEW RT Safe Mode loads with the basic real-time operating system and automatically

attempts to connect to the network using DHCP. If DHCP is not available, the controller

connects to the network with a link-local IP address.

Tip You can connect a monitor to the PXI to display startup messages such as the

IP address and MAC address.

2. Launch Measurement & Automation Explorer (MAX) on the development computer by

clicking the MAX icon on the desktop ( ), or by selecting Start»All Programs»

National Instruments»Measurement & Automation.

3. Expand the Remote Systems branch. MAX lists the PXI controller as the model name of

the controller followed by the MAC address (for example, NI-PXI-8104 00802f108562).

Tip Record the PXI controller MAC address, located on the side of the controller,

for use in identifying the controller. The label also can be removed and placed on the

front of the controller for easier access. If you have connected the PXI controller to a

monitor, the MAC address also appears when the PXI system boots up.

4. Select the System Settings tab and type a descriptive name for the system in the Name

field.

5. (Optional) Complete this step only if the target has an empty IP address (0.0.0.0). Select the

Network Settings tab and select DHCP or Link Local from the Configure IPv4 Address

list to assign an IP address or select Static to specify a static IP address in the IPv4 Address

section.

6. Click Save on the toolbar and let MAX reboot the system.

8|ni.com |Getting Started with NI 7340/7350 Controllers and AKD Drives

7. When the new system name appears under Remote Systems, expand the controller item in

the tree, right-click Software, and select Add/Remove Software.

8. Install the LabVIEW Real-Time software and NI-Motion on the RT target. Go to

ni.com/info and enter etspc for the latest information about supported software.

9. Click Next to install the selected software on the controller. Click Help if you need

information about installing recommended software sets.

10. Expand the Devices and Interfaces item under the PXI system.

11. Right-click the remote motion controller icon and select Map to Local Machine. This

assigns a local board ID to the remote motion controller in the host system.

Mapping the remote controller into the local system allows you to configure the controller

through MAX exactly as you would a controller that is in the host system. You can initialize

the controller, download firmware, and use the interactive and configuration panels exactly

as you would on a controller installed in the host machine. You also can write VIs using the

remote motion controller through the local board ID assigned to it.

This allows you to write and debug your VIs on the host, and then download them to the

remote system when you are ready. All you need to change is the board ID in your VI from

the locally assigned Board ID to the ID assigned by the remote system.

12. Browse to Devices and Interfaces under My System, where there is a shortcut icon next

to a new controller name.

For example, if the motion controller on the remote system is a PXI-7354, and the remote

system has an IP address of 123.45.678.9, then the shortcut device would show a name

like PXI-7354 (X) on 123.45.678.9 (Y).

Xis the board ID assigned to the board by the remote system. Use this board ID for VIs that

are downloaded to the remote system through LabVIEW RT.

Yis the board ID assigned to the remote motion controller by the local system. Use this

board ID for any VIs that run on the host and use the remote motion controller.

13. Close MAX.

NI UMI and AKD Servo Drive Configuration and

Installation

This section covers the hardware setup for the NI UMI and AKD servo drive.

Step 1: Connect and Configure the NI UMI

Connecting a UMI-7772/74

Complete the following steps to connect and configure the UMI-7772/74. If you are using a

UMI-7764 refer to the Connecting a UMI-7764 section.

Tip For more information about connecting external power, encoders, and other

motion I/O signals to the UMI-7772/74, refer to the National Instruments Universal

Motion Interface (UMI)-7772/74 User Manual and Specifications.

Getting Started with NI 7340/7350 Controllers and AKD Drives |© National Instruments |9

1. Connect the SHC68-C68-S 68-pin shielded cable between the Motion I/O connector on the

NI 7340/7350 motion controller and the Motion I/O connector on the UMI-7772/74.

2. Connect the UMI-7772/74 to AKD Drive Cable to the Control and Feedback connectors on

the UMI-7772/74.

Figure 3 shows the UMI-7772/74 to AKD Drive Cable connectors.

Figure 3. UMI-7772/74 to AKD Drive Cable Connectors

The UMI-7772/74 to AKD Drive Cable contains the following connections:

•UMI-7772/74 Feedback Connector—25-pin DSUB connector containing encoder,

limit, and home sensor signals.

•UMI-7772/74 Control Connector—15-pin DSUB connector containing drive

command and drive enable signals.

•X8 10-Pin Connector—10-pin connector containing the servo command, enable, and

fault signals.

•X9 DSUB Connector—9-pin DSUB connector containing emulated encoder output

signals from the AKD servo drive.

•X1 3-pin Connector—+24 V power supply connection for the AKD servo drive.

•Screw Terminal Connector—20-pin screw terminal connector for external I/O

connections. Table 1 shows the UMI-7772/74 to AKD Drive Cable screw terminal

pinout.

Screw Terminal

Connector

X1 3-Pin

Connector

X8 10-Pin

Connector

X9 DSUB

Connector

UMI-7772/74

Feedback

Connector

UMI-7772/74

Control

Connector

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels National Instruments Contrôleurs

National Instruments

National Instruments CompactRIO NI cRIO-9012 Manuel utilisateur

National Instruments

National Instruments CompactRIO cRIO-9072 Manuel utilisateur

National Instruments

National Instruments PCI-7340 Manuel utilisateur

National Instruments

National Instruments IC-3121 Manuel utilisateur

National Instruments

National Instruments cRIO-FRC II Manuel utilisateur

National Instruments

National Instruments cRIO-9064 Manuel utilisateur

National Instruments

National Instruments PXI-7344 Manuel utilisateur

National Instruments

National Instruments sbRIO-9629 Manuel du propriétaire

National Instruments

National Instruments cRIO-9063 Manuel utilisateur

National Instruments

National Instruments NI PXI-8104 Manuel utilisateur

National Instruments

National Instruments CompactRIO cRIO-9002 Manuel utilisateur

National Instruments

National Instruments GPIB-1284CT Manuel utilisateur

National Instruments

National Instruments PXI-8150B Manuel utilisateur

National Instruments

National Instruments NI 3100 Manuel utilisateur

National Instruments

National Instruments cRIO-9063 Manuel utilisateur

National Instruments

National Instruments NI cRIO-9035 Manuel utilisateur

National Instruments

National Instruments cFP-22 Series Manuel utilisateur

National Instruments

National Instruments PXI 8351 Manuel utilisateur

National Instruments

National Instruments RMC-8356 Manuel utilisateur

National Instruments

National Instruments GPIB-ENET Manuel utilisateur

National Instruments

National Instruments NI cDAQ-9134 Manuel du propriétaire

National Instruments

National Instruments PXI-8820 Manuel utilisateur

National Instruments

National Instruments Compact FieldPoint cFP-21 Series Manuel utilisateur

National Instruments

National Instruments CompactRIO cRIO-9035 Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
