GETTING STARTED GUIDE

IC-3120

Industrial Controller

The IC-3120 is a high-performance, fanless embedded system designed for rugged industrial

applications. This document explains how to install and configure the IC-3120.

Contents

Safety Information.................................................................................................................... 1

Electromagnetic Compatibility Guidelines...............................................................................2

Configuring the Hardware........................................................................................................ 2

Connecting the System Power Supply.............................................................................. 4

Connecting the Isolated Outputs Power Supply and PoE Power Supply......................... 5

Configuring the IC-3120 for NI Linux Real-Time....................................................................7

Connecting to the Development Computer.......................................................................7

Using Vision Builder AI with the IC-3120....................................................................... 7

Installing the NI Industrial Controller Device Drivers..................................................... 7

Setting a System Password............................................................................................... 9

Configuring the IC-3120 for Windows..................................................................................... 9

Connecting the IC-3120 to a Network.............................................................................. 9

Installing the NI Industrial Controller Device Drivers..................................................... 9

Troubleshooting...................................................................................................................... 10

Where to Go Next................................................................................................................... 13

Worldwide Support and Services............................................................................................ 13

Safety Information

Caution The following paragraphs contain important safety information you must

follow when installing and operating the device.

Do not operate the device in a manner not specified in the documentation. Misuse of the

device may result in a hazard and may compromise the safety protection built into the device.

If the device is damaged, turn it off and do not use it until service-trained personnel can check

its safety. If necessary, return the device to National Instruments for repair.

Keep away from live circuits. Do not remove equipment covers or shields unless you are

trained to do so. If signal wires are connected to the device, hazardous voltages can exist even

when the equipment is turned off. To avoid a shock hazard, do not perform procedures

involving cover or shield removal unless you are qualified to do so. Disconnect all field power

prior to removing covers or shields.

Because of the danger of introducing additional hazards, do not install unauthorized parts or

modify the device. Use the device only with the chassis, modules, accessories, and cables

specified in the installation instructions. All covers and filler panels must be installed while

operating the device.

This is a Pollution Degree 2 device. Do not operate the device in an explosive atmosphere or

where flammable gases or fumes may be present. Operate the device only at or below the

pollution degree stated in the specifications. Pollution consists of any foreign matter—solid,

liquid, or gas—that may reduce dielectric strength or surface resistivity. The following is a

description of pollution degrees.

• Pollution Degree 1—No pollution or only dry, nonconductive pollution occurs. The

pollution has no effect.

• Pollution Degree 2—Normally only nonconductive pollution occurs. Occasionally,

nonconductive pollution becomes conductive because of condensation.

• Pollution Degree 3—Conductive pollution or dry, nonconductive pollution occurs.

Nonconductive pollution becomes conductive because of condensation.

Clean the device and accessories by brushing off light dust with a soft, nonmetallic brush.

Remove other contaminants with a stiff, nonmetallic brush. The unit must be completely dry

and free from contaminants before returning it to service.

You must insulate signal connections for the maximum voltage for which the device is rated.

Do not exceed the maximum ratings for the device. Remove power from signal lines before

connection to or disconnection from the device.

Electromagnetic Compatibility Guidelines

This product was tested and complies with the regulatory requirements and limits for

electromagnetic compatibility (EMC) stated in the product specifications. These requirements

and limits provide reasonable protection against harmful interference when the product is

operated in the intended operational electromagnetic environment.

This product is intended for use in industrial locations. However, harmful interference may

occur in some installations, when the product is connected to a peripheral device or test object,

or if the product is used in residential or commercial areas. To minimize interference with

radio and television reception and prevent unacceptable performance degradation, install and

use this product in strict accordance with the instructions in the product documentation.

Furthermore, any changes or modifications to the product not expressly approved by National

Instruments could void your authority to operate it under your local regulatory rules.

Configuring the Hardware

Remove the IC-3120 from the package and inspect the system for damage. Notify National

Instruments if the system appears damaged in any way. Do not use a damaged system.

2| ni.com | IC-3120 Getting Started Guide

Ensure that the AC input to the external power supply is disconnected before plugging in or

unplugging any connector. Ground the unit to minimize the possibility of static electricity

damage.

Refer to the following figures while configuring the hardware.

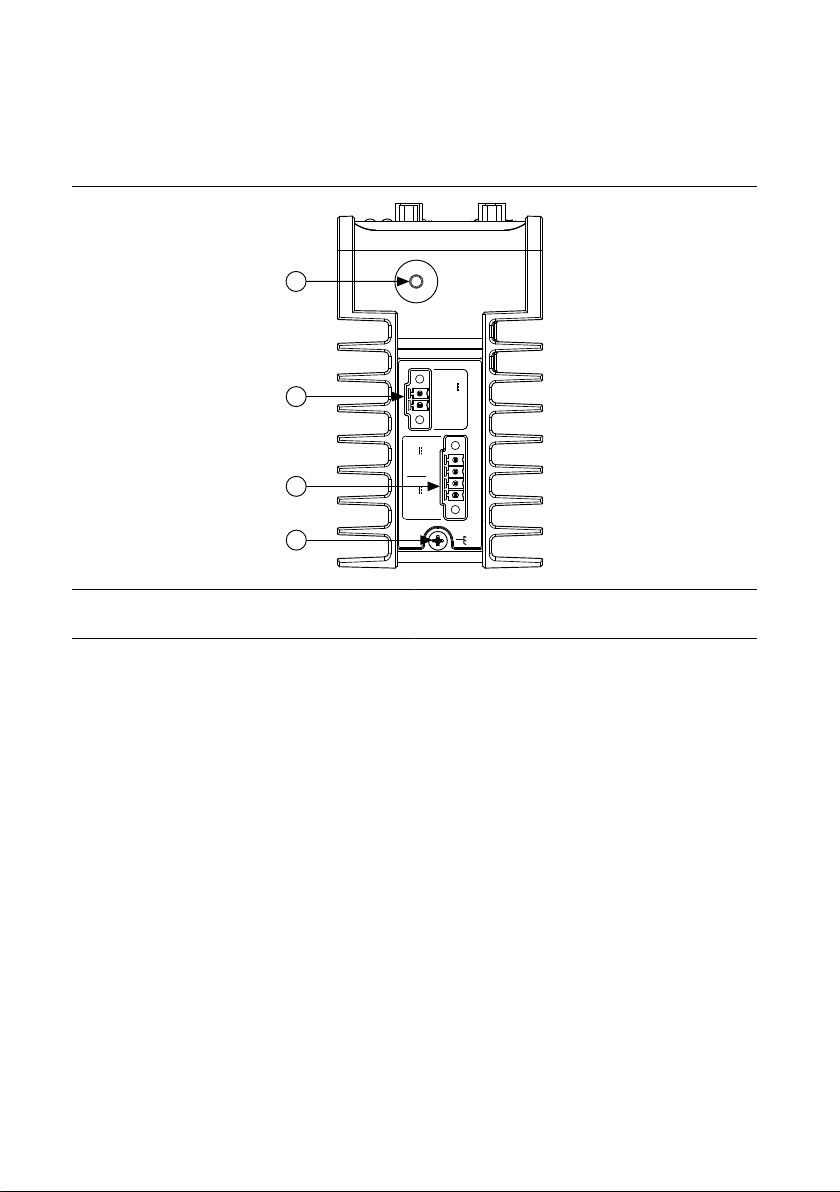

Figure 1. IC-3120 Power Connectors and Reset Button

SYSTEM

PoE

48 V

ISO

CISO CPoE

VPoE

VISO

5-24 V

12-24 V

C V

1. Reset Button

2. System Power Connector

3. Isolated Outputs and PoE Power Connector

4. Chassis Grounding Screw

IC-3120 Getting Started Guide | © National Instruments | 3

Figure 2. IC-3120 Front Panel Connectors

RESET

DIGITAL I/O

10/100/

1000

ACT/

LINK

USER1

USER2

PWR/

FAULT

STATUS

PoE0

PoE PORT 0 PoE PORT 1

PoE1

IC-3120

Industrial Controller

1. VGA Connector

2. RJ50 Serial Port

3. USB 2.0 Ports

4. RJ45 Network Port

5. Gigabit Ethernet PoE Ports

6. 44-pin Digital I/O Connector

Connecting the System Power Supply

NI recommends the following power supply for the IC-3120.

Power Supply Part Number

NI PS-15 Industrial Power Supply 781093-01

Complete the following steps to supply power to the IC-3120.

1. Verify the power source is turned off.

2. Install one ferrite across the negative and positive leads of the power source,

approximately 50 to 75 mm (2 to 3 in.) from the end of the power input wires.

Figure 3. Installing a Ferrite on the Power Leads

3. If the power connector plug is connected to the chassis, disconnect it from the device.

4| ni.com | IC-3120 Getting Started Guide

Figure 4. 2-Position Power Screw Terminal Connector

1. V (Positive) Terminal Screw

2. C (Negative) Terminal Screw

3. Connector Screws

Caution Do not tighten or loosen the terminal screws on the power connector

while the power is on.

4. Connect the positive lead of the power source to the V terminal of the power connector

plug and tighten the terminal screw to 0.2 to 0.25 N · m (1.8 to 2.2 lb · in.) of torque.

5. Connect the negative lead of the power source to the C terminal of the power connector

plug and tighten the terminal screw to 0.2 to 0.25 N · m (1.8 to 2.2 lb · in.) of torque.

6. Install the power connector plug into the SYSTEM power receptacle on the IC-3120

chassis and tighten the connector screws to 0.4 N · m (3.5 lb · in.) of torque.

7. Turn on the external power source.

Connecting the Isolated Outputs Power Supply and

PoE Power Supply

NI recommends the following power supplies for the IC-3120.

Power Supply Part Number

NI PS-15 Industrial Power Supply, to power the isolated outputs 781093-01

48 V, DIN Rail, Industrial Power Supply for Power over Ethernet 783307-01

48 V, Desktop Power Supply for Power over Ethernet 783308-01

Complete the following steps to supply power to the PoE ports and the isolated outputs.

1. Verify the power source is turned off.

2. Install one ferrite across the negative and positive leads of the power sources,

approximately 50 to 75 mm (2 to 3 in.) from the end of the power input wires. If you are

using an isolated output power supply and a PoE power supply, wrap the wires for both

power supplies through the same ferrite.

IC-3120 Getting Started Guide | © National Instruments | 5

Figure 5. Installing a Ferrite on the Power Leads

3. If the power connector plug is connected to the chassis, disconnect it from the device.

Figure 6. 4-Position Power Screw Terminal Connector

ISO POE

1. VPOE (Positive) Terminal Screw

2. CPOE (Negative) Terminal Screw

3. VISO (Positive) Terminal Screw

4. CISO (Negative) Terminal Screw

5. Connector Screws

Caution Do not tighten or loosen the terminal screws on the power connector

while the power is on.

4. Connect the positive lead of the isolated outputs power source to the V2 terminal of the

power connector plug and tighten the terminal screw to 0.2 to 0.25 N · m (1.8 to

2.2 lb · in.) of torque.

5. Connect the negative lead of the isolated outputs power source to the C2 terminal of the

power connector plug and tighten the terminal screw to 0.2 to 0.25 N · m (1.8 to

2.2 lb · in.) of torque.

6. Connect the positive lead of the PoE power source to the V1 terminal of the power

connector plug and tighten the terminal screw to 0.2 to 0.25 N · m (1.8 to 2.2 lb · in.) of

torque.

7. Connect the negative lead of the PoE power source to the C1 terminal of the power

connector plug and tighten the terminal screw to 0.2 to 0.25 N · m (1.8 to 2.2 lb · in.) of

torque.

8. Install the power connector plug into the ISO/PoE power receptacle on the IC-3120

chassis and tighten the connector screws to 0.4 N · m (3.5 lb · in.) of torque.

9. Turn on the external power source.

6| ni.com | IC-3120 Getting Started Guide

Configuring the IC-3120 for NI Linux Real-Time

The real-time version of the IC-3120 ships preloaded with NI Linux Real-Time. Complete this

section if you are using the real-time version of the IC-3120.

Connecting to the Development Computer

The IC-3120 can connect to the development computer directly or through a network.

Connecting Directly to the Development Computer

Complete the following steps to connect the device directly to the development computer.

1. Verify the development computer is powered on.

2. Connect one end of an Ethernet cable to the network port on the device.

3. Connect the free end of the cable to an Ethernet port on the development computer.

4. Verify the ACTIVITY/LINK LED on the port is on or blinking.

The device uses a link-local IP address when connected directly to the development computer.

Connecting to the Development Computer Over a Network

To connect over a network, the device must be on the same subnet as the development

computer. Complete the following steps to connect the device to the development computer

over a network.

1. Verify the development computer is powered on and connected to the network.

2. Connect one end of an Ethernet cable to the network port on the device.

3. Connect the free end of the cable to an Ethernet switch or other network device on the

same network as the development computer.

4. Verify the ACTIVITY/LINK LED on the port is on or blinking.

The device negotiates an IP address when connected to a network with a DHCP server or

comparable network device.

Using Vision Builder AI with the IC-3120

Complete the following steps to use Vision Builder AI with the IC-3120:

1. Install Vision Builder AI on the development computer.

2. Refer to the How to Configure NI Vision Builder AI Remote Targets section in the Vision

Builder for Automated Inspection: Configuration Help.

When using Vision Builder AI, it is not necessary to install the NI Industrial Controller Device

Drivers or use NI MAX to set a system password on the target.

Installing the NI Industrial Controller Device Drivers

Before using the IC-3120, install the drivers onto the device. Complete the following steps to

install and configure NI Industrial Controller Device Drivers:

1. Install NI Industrial Controller Device Drivers onto the Windows development machine

connected to the IC-3120.

IC-3120 Getting Started Guide | © National Instruments | 7

2. Run NI MAX.

3. Expand the Remote Systems list in the configuration tree.

4. Select the IC-3120 in the list. By default, MAX lists devices by the model number

followed by the serial number, such as IC-3120-XXXXXXXX.

5. Configure the network settings for the IC-3120. Refer to the Remote Systems Help in

MAX. Select Help»Help Topics»Remote Systems for instructions about configuring

network settings.

6. Install a recommended software set. If you would like to install custom software instead

of a recommended software set, proceed to the next step.

a) Expand the IC-3120 under Remote Systems.

b) Click the Software item below the IC-3120 in the configuration tree.

c) Click Add/Remove Software on the MAX toolbar to launch the LabVIEW Real-

Time Software Wizard.

d) Enter admin as the username and leave the password field blank.

e) Select NI Industrial Controller under the version of LabVIEW Real-Time you are

using.

f) Click Next.

g) Select any additional add-ons you would like to install to the IC-3120.

h) Click Next. Review the list of software to install.

i) Click Next to begin downloading the software to the IC-3120. When MAX finishes

downloading the software, the IC-3120 restarts.

j) Click Finish.

7. Install custom software. You do not need to install custom software if you installed a

recommended software set.

a) Expand the IC-3120 under Remote Systems.

b) Click the Software item below the IC-3120 in the configuration tree.

c) Click Add/Remove Software on the NI MAX toolbar to launch the LabVIEW Real-

Time Software Wizard.

d) Enter admin as the username and leave the password field blank.

e) If you are given a choice of recommended software sets, choose Custom software

installation and click Next to proceed with a custom installation.

f) Select the NI Industrial Controller Device Drivers, and any additional software you

would like to install on the IC-3120.

g) Click Next. Review the list of software to install.

h) Click Next to begin downloading the software to the IC-3120. When NI MAX

finishes downloading the software, the IC-3120 restarts.

i) Click Finish.

8. Connect hardware to the IC-3120. The NI Industrial Controller Device Drivers enable the

IC-3120 to detect any hardware connected.

9. Select the target in the configuration tree and click the Refresh button. Refresh the target

whenever you connect new hardware.

10. Expand Devices and Interfaces under the IC-3120 in the configuration tree. Select the

hardware connected to the IC-3120 from the list. You can view or modify the device

settings as allowed by the hardware.

8| ni.com | IC-3120 Getting Started Guide

Setting a System Password

Complete the following steps to set a system password.

Note The default username for the IC-3120 is admin. There is no default

password for the IC-3120, so you must leave the password field blank when logging

in until you set a system password.

1. In MAX, right-click the IC-3120 and select Web Configuration.

The NI Web-Based Configuration and Monitoring utility opens in the default browser and

is where you set the password. If you have not installed Microsoft Silverlight,

NI Web-based Configuration and Monitoring prompts you to do so.

2. Enter a unique name for your system in the Hostname field.

3. Click the Security Configuration icon.

4. Click Login.

5. In the Login dialog box, enter the username admin and leave the password field blank.

6. Click OK.

7. Click Change Password.

8. Enter and re-enter a new password.

9. Click OK.

10. Click Save.

11. Click OK to confirm you are changing the password.

Caution NI cannot recover lost system passwords. If you forget the password,

you must contact NI and reformat the controller.

Configuring the IC-3120 for Windows

The Windows version of the IC-3120 ships preloaded with Windows Embedded Standard 7

64-bit. Complete this section if you are using the Windows version of the IC-3120.

Connecting the IC-3120 to a Network

Complete the following steps to connect the device to a network.

1. Connect one end of an Ethernet cable to the network port on the device.

2. Connect the free end of the cable to an Ethernet hub or other network device.

3. Verify the ACTIVITY/LINK LED on the port is on or blinking.

By default, the operating system automatically attempts to connect to the network using

DHCP. If it is unable to initiate a DHCP connection, it connects to the network with a link-

local IP address (169.254.x.x).

Installing the NI Industrial Controller Device Drivers

Before using the IC-3120, install other National Instruments software, such as application

development environments, and then install the drivers onto the device.

IC-3120 Getting Started Guide | © National Instruments | 9

If you have an external USB DVD drive, you can use the external DVD drive to install the NI

Industrial Controller Device Drivers from the DVD shipped with the device. Otherwise,

complete the following steps to download and install the NI Industrial Controller Device

Drivers

1. Connect a USB keyboard and a USB mouse to the USB ports on the IC-3120.

2. Connect a monitor to the VGA on the IC-3120.

3. Using the web browser on the IC-3120, navigate to ni.com/drivers.

4. In the Drivers search field, search for NI Industrial Controller Device Drivers.

5. Download the latest version of NI Industrial Controller Device Drivers.

6. Run the NI Industrial Controller Device Drivers installer.

Troubleshooting

The following sections provide instructions for troubleshooting the IC-3120.

(RT Only) The IC-3120 Does Not Appear in MAX

• The IC-3120 may not be powered. Verify that there is system power to the device and that

both the IC-3120 and the development computer are properly connected to the network.

The PWR/FAULT LED should be lit green and the ACTIVITY/LINK LED on the

primary network port should flash green when refreshing the list of devices in MAX.

• Ensure you are connecting to the IC-3120 from a Windows development machine with NI

Industrial Controller Device Drivers installed.

• The IC-3120 may have been configured on another network and then moved to the

current network. Reconfigure the IC-3120 for the current network.

Note Connect a monitor and keyboard to the IC-3120 and press <Enter> to

view the current configuration settings of the device.

• Another device on the network is using the IP address assigned to the IC-3120. This can

happen when you assign the same static IP to two devices, you assign a static IP that is in

the range of the IP address available for DHCP use on your network, or the DHCP

assigns the same IP address to another device. Either remove or reconfigure the other

device, or reconfigure the IC-3120 to use a different IP address by putting it into the IP

RESET state and restarting into the normal state. Refer to the IC-3120 User Manual on

ni.com/manuals for instructions on how to perform an IP RESET.

• The cable you are using may be inappropriate for the speed of your network, causing

network communication dropout. While 1,000 Mbps communication over short cable

lengths can be achieved with the CAT5 cable commonly used for 10 and 100 Mbps,

CAT5e and CAT6 cables are more reliable and recommended for 1,000 Mbps links. The

IC-3120 has the ability to perform auto-crossover, allowing the use of straight or

crossover Ethernet cables, independent of the connection configuration.

• The IC-3120 is configured to acquire an IP address from a DHCP server, but no DHCP

server is available. By default, the target will automatically attempt to connect to the

10 | ni.com | IC-3120 Getting Started Guide

Autres manuels pour IC-3120

Table des matières

Autres manuels National Instruments Contrôleurs

National Instruments

National Instruments cRIO-9063 Manuel utilisateur

National Instruments

National Instruments PXI Express Series Manuel utilisateur

National Instruments

National Instruments PXI-8150B Guide de démarrage rapide

National Instruments

National Instruments IC-3121 Manuel utilisateur

National Instruments

National Instruments NI SMD-7613 Manuel utilisateur

National Instruments

National Instruments 9862 Manuel utilisateur

National Instruments

National Instruments cRIO-9038 Manuel utilisateur

National Instruments

National Instruments CompactRIO cRIO-9066 Manuel utilisateur

National Instruments

National Instruments PCI-7340 Manuel utilisateur

National Instruments

National Instruments IC-3120 Manuel utilisateur

National Instruments

National Instruments UMI-7774 Manuel utilisateur

National Instruments

National Instruments GPIB-1284CT Manuel utilisateur

National Instruments

National Instruments ExpressCard-8360 Manuel utilisateur

National Instruments

National Instruments GPIB-ENET Manuel utilisateur

National Instruments

National Instruments sbRIO-9637 Manuel utilisateur

National Instruments

National Instruments RMC-8356 Manuel utilisateur

National Instruments

National Instruments CompactRIO cRIO-9002 Manuel utilisateur

National Instruments

National Instruments PXI-8109 Manuel utilisateur

National Instruments

National Instruments SB-GPIB Manuel utilisateur

National Instruments

National Instruments RMC-8357 Manuel utilisateur

National Instruments

National Instruments IC-3173 Manuel utilisateur

National Instruments

National Instruments PXI-8232 Manuel utilisateur

National Instruments

National Instruments NI PXI-8104 Manuel utilisateur

National Instruments

National Instruments PXIe-8100 Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
